A 45° beam, well focused on the task
Where many profiles shine straight ahead, the #90 offers lighting with a beam oriented at 45 degrees. Mounted in a corner, under a cabinet, along a shelf or at the top of a display, it sends the light at an angle toward the countertop, the products or the work surface. The light is designed to be uniform, without hot spots, and the series excels at maximizing the appeal of products in point-of-purchase displays while maintaining a minimalist style.
Aluminum that looks after your LEDs

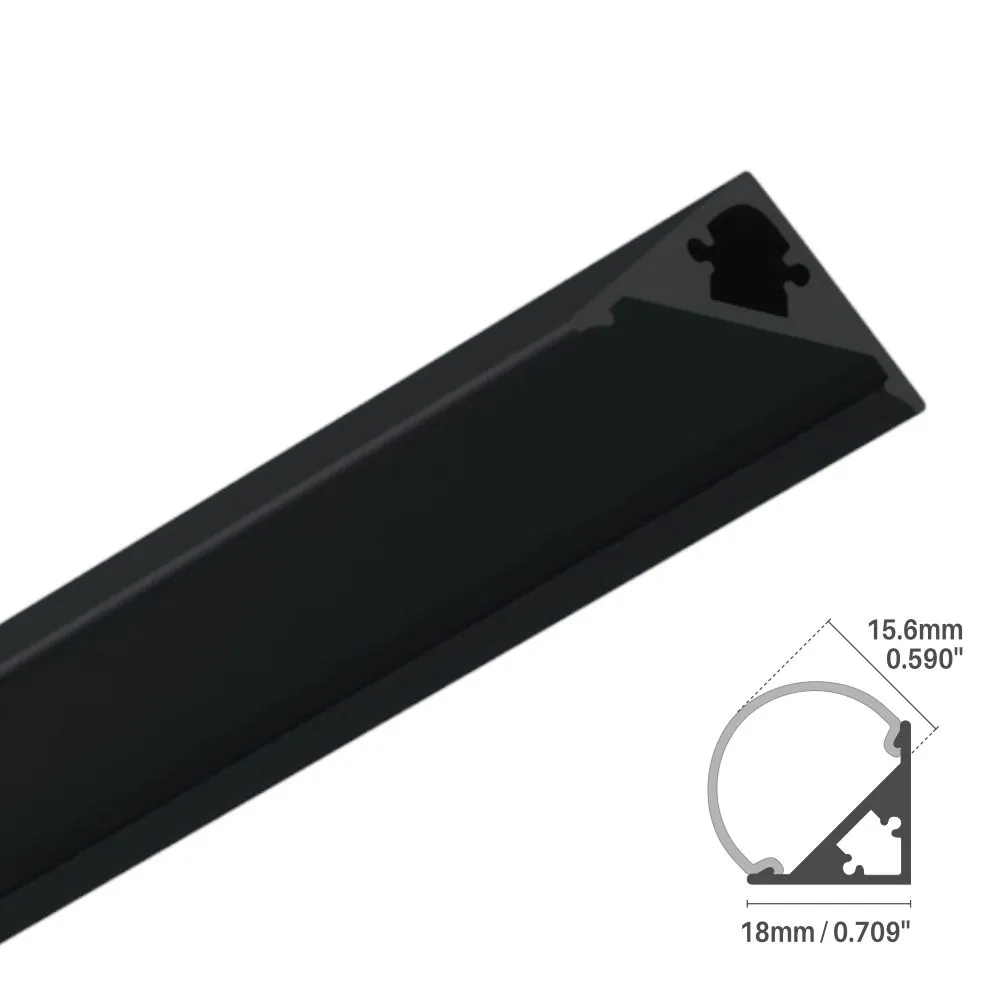

The #90 is made of 6063-T5 aluminum alloy, which increases heat dissipation; using it increases the lifetime of your LED engine. It is designed for LED strips of 10 mm (3/8 in) or less. The profile includes a long lens fitting system to maximize its long-term durability, with an enhanced mechanical fit for the lens. This version, LCPROF-90-16FT-BK-LENS-FROS, pairs a black aluminum profile with a frosted lens that softens the light of the strip.
Mounting and lengths
The ordering guide lists two mounting methods: a 45° corner bracket for a precise angle, or double-face mounting tape for a quick installation on a clean, smooth surface. End caps come without a hole, with a hole or one of each. Standard lengths are 8 and 16 ft, and custom lengths are available by sections of 2 to 192 inches. Besides black, the series is offered in plain aluminum, white and custom colours. Plan the wire path and an accessible spot for the LED power supply, and leave line-voltage connections to a licensed electrician.
Technical specifications
SKU: LCPROF-90-16FT-BK-LENS-FROS
Series: 90
Beam: oriented at 45°, from a corner
Length: 16 ft
Finish: black aluminum
Lens: frosted
Material: 6063-T5 aluminum alloy
LED strips: 10 mm (3/8 in) or less
Section (drawing): 15.6 mm (0.614 in) and 17.5 mm (0.689 in)
Mounting (ordering guide): 45° corner bracket or double-face tape
End caps: no hole, with hole, or one of each
Series lengths: 8 and 16 ft, custom from 2 to 192 in
Warranty: 3 years
Applications and documentation
Kitchen countertops, retail shelving, pharmacy and cosmetics displays, wine racks, bookcases and workshop benches: the #90 in black puts a clean, angled line of task lighting exactly where it counts. The spec sheet (PDF), with the technical drawing and the ordering guide, is available in the Documentation tab, ready to share with your designer, shopfitter or electrician.
