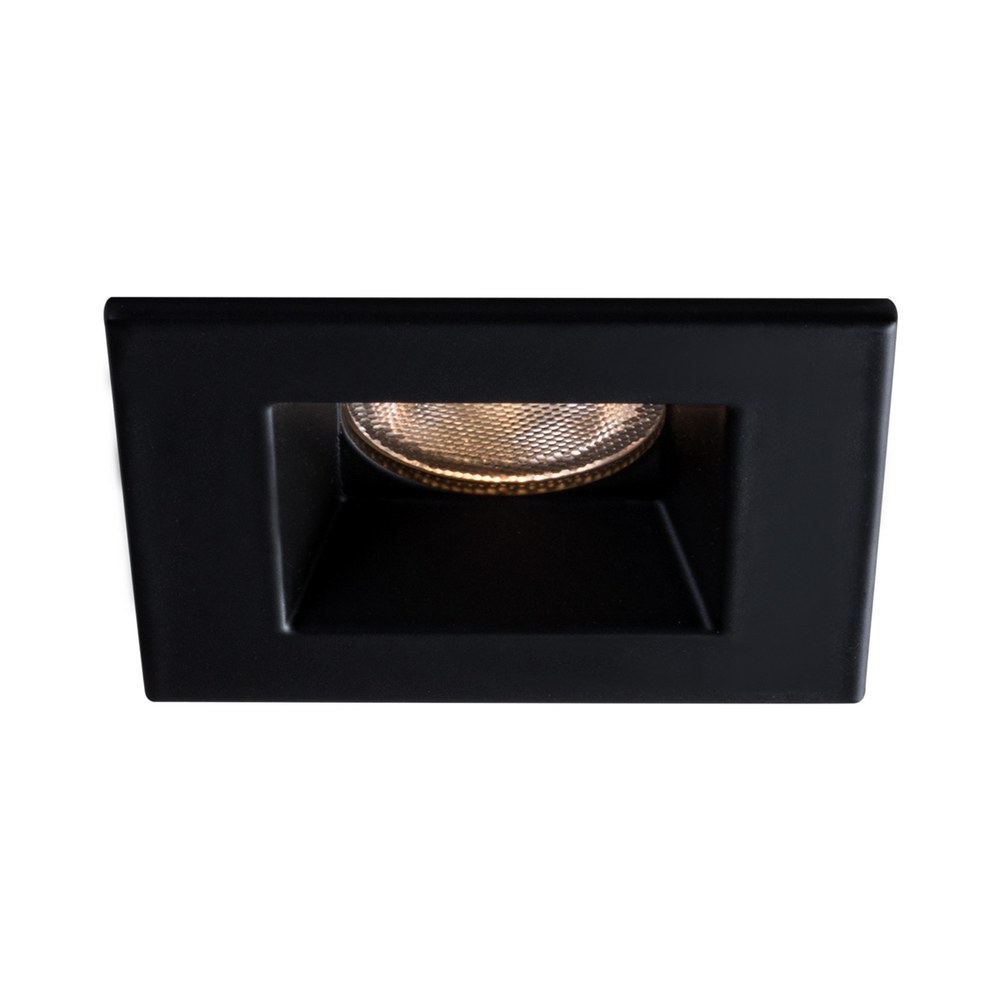

2" LUNA LED SQUARE FIXED COLOR SELECTABLE RECESSED FIXTURE - RA2S-7F-DTW90BK

Name: 2" LUNA LED SQUARE FIXED COLOR SELECTABLE RECESSED FIXTURE - RA2S-7F-DTW90BK
Brand: LITELINE
SKU: RA2S-7F-DTW90BK
Price: 104.97 CAD
Availability: InStock

SKU: RA2S-7F-DTW90BK

Brand: LITELINE

Small aperture, big personality: the LUNA 2" square LED recessed fixture in black (SKU RA2S-7F-DTW90BK) proves that a 2-inch downlight can carry a whole room. This is the Dim-to-Warm version of Liteline's DESIGNER SERIES 2" — what most people call a square pot light, a mini LED downlight or simply a square recessed light. Its regressed optic sits deep inside a crisp black square trim, so you see the light, not the source. Homeowners use it over kitchen islands and hallways, contractors specify it for remodels and new construction, and designers love it in wall niches and small commercial spaces where a full-size downlight would look heavy.

Behind that tiny 2¾" x 2¾" face (70 mm) is a 7 W LED module delivering up to 700 lumens — up to 103 lumens per watt — with a typical CRI of 96 that makes wood, paint and skin tones look right. The DTW module dims the colour temperature from 3000 K down to 2000 K, exactly like a halogen warming as you lower the dimmer, with DTW output rated at 680 lumens. Dimming runs 100 %–10 % on standard forward-phase / reverse-phase dimmers. The body is durable airtight aluminum with an anodized blue heat sink, the beam spread is 40°, input is 100-135V AC, 50/60 Hz, power factor 0.9, and the fixture is cETLus certified, Class II, suitable for wet locations and approved for direct contact with insulation. Projected life is 70 % at 50,000 hrs, backed by a lifetime warranty, and it starts down to -40°C (-40°F).

That wet-location, airtight rating is what makes it a Canadian favourite: showers, covered porches, soffits, entryways and three-season rooms, plus kitchens, closets, stairwells, boutiques and restaurant niches. The hole cut is Ø 2½" (64 mm) and two spring-loaded clips grip any ceiling material, so retrofits go fast. Prefer a fixed selectable white instead of Dim-to-Warm? See the Luna 2" square recessed fixture in black, or match finishes with the white version and the brushed nickel version. Order your LUNA 2" in black today and give your ceiling that quiet, high-end glow.

Built to disappear into the ceiling
The LUNA 2" square is engineered around a durable airtight aluminum body with an anodized blue heat sink that maximizes airflow around the LED source — the reason this little square LED downlight keeps its output honest year after year. The trim measures 2¾" (70 mm) square with a 1 5⁄8" (42 mm) inner opening and a 2 5⁄16" (59 mm) regressed aperture, and the housing sits only 4 5⁄8" (117 mm) tall, so it slips into tight joist bays and shallow bulkheads. The black (BK) finish keeps the aperture visually quiet against dark ceilings and feature walls, while regressed optics cut glare at eye level.

Light quality and Dim-to-Warm
This is the Dim-to-Warm (DTW) module: instead of an on-fixture 5-position CCT switch, the colour temperature follows your dimmer, travelling from 3000 K down to 2000 K for that candle-like evening ambience. Typical CRI is 96, and independent photometrics on the DTW platform show CRI 98.2 with R9 at 97.3 and TM30 Rf 95.1 — numbers that translate into rich reds, clean whites and flattering skin tones. The lens delivers a 40° beam spread for controlled, directional pools of light. DTW lumen output is rated at 680 lumens, within a family rated up to 700 lumens and up to 103 lumens per watt.

Technical specifications
SKU: RA2S-7F-DTW90BK
Brand: LITELINE
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: Up to 700 (DTW 680)
Lumens per Watt: Up to 103
CCT (DTW): 3000 K ~ 2000 K
CRI: 96
Beam Angle: 40°
Input: 100-135V AC, 50/60Hz
Power Factor: 0.9
Dimming: Yes, 100%-10%, forward/reverse-phase
Hole Cut: Ø 2½" (64mm)
Certification: cETLus
Class II: Yes
Projected Life: 70% @ 50,000 hrs
Minimum Starting Temperature: -40°C (-40°F)
Warranty: Lifetime

Wiring and installation
The fixture ships with an extruded aluminum hardwire box housing a 170mA dimmable class II electronic LED driver with 100-135V AC input. Three Quick Connect push-in terminals in the driver compartment make wiring fast, and an 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver to fixture — approved for use in plenums and suspended ceilings (note: not approved for branch wiring). Two spring-loaded clips hold the trim to any ceiling material, and an optional pre-mounting plate is available for new construction. Cut a Ø 2½" (64 mm) hole, snap it in, done. It is airtight, IC rated for direct contact with insulation, and suitable for indoor/outdoor wet locations. Pair it with standard forward-phase or reverse-phase dimmers; contact the factory for the list of compatible dimmers.

Where it works, and what pairs with it
Think a row of 2" square pot lights over a kitchen counter, grazing light on a stone fireplace, soffit and porch lighting that shrugs off Canadian weather, shower and bathroom ceilings, stair runs, retail wall niches, hotel corridors and restaurant banquettes where the DTW warm-glow dimming sets the mood at night. For mixed projects, keep the same look with the fixed colour-selectable versions: Luna 2" square in black, white or brushed nickel, or choose the Dim-to-Warm model in white. The full technical PDF for RA2S-7F-DTW90BK, with photometrics, dimensions and the ordering guide, is in the Documentation tab.
