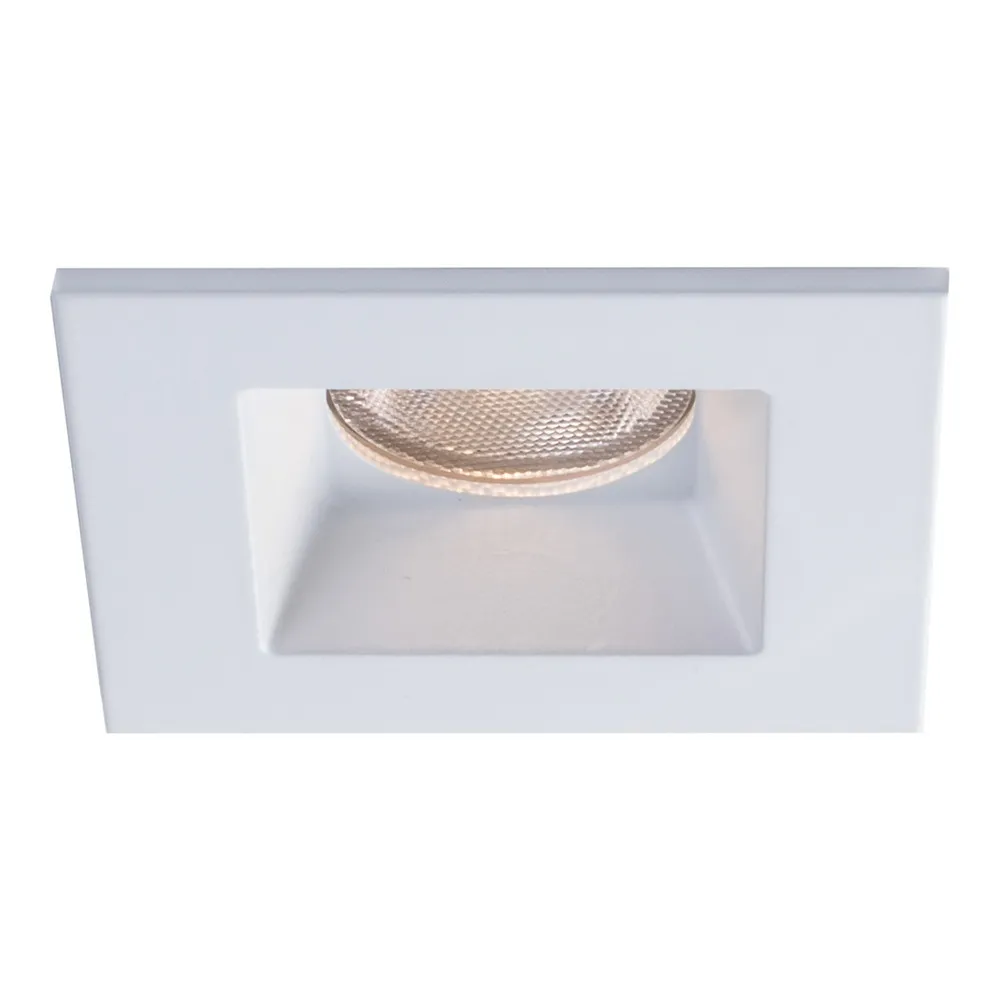

2" LUNA LED SQUARE FIXED COLOR SELECTABLE RECESSED FIXTURE - RA2S-7F-DTW90WH

Name: 2" LUNA LED SQUARE FIXED COLOR SELECTABLE RECESSED FIXTURE - RA2S-7F-DTW90WH
Brand: LITELINE
SKU: RA2S-7F-DTW90WH
Price: 104.97 CAD
Availability: InStock

SKU: RA2S-7F-DTW90WH

Brand: LITELINE

Small aperture, big personality: the 2" LUNA LED square fixed recessed fixture (SKU RA2S-7F-DTW90WH) packs serious light into a 2-inch square trim that all but disappears into the ceiling. People search for it as a square downlight, a mini pot light, a 2 inch recessed LED light or a dimmable LED downlight — this is the one with the DTW (Dim-to-Warm) module, so the light shifts from 3000 K down to 2000 K as you dim, exactly like an incandescent used to. Part of Liteline's LUNA Designer Series, it's built for remodel work and new construction alike: hallways, kitchens, bathrooms, covered porches, stairwells, wall niches and tight accent runs where a 4" or 6" fixture would simply be too much.

Under the trim is a 7 W LED module delivering up to 700 lumens, with a Dim-to-Warm output of 680 lumens and efficacy up to 103 lumens per watt. Colour rendering is exceptional at a typical CRI of 96, so wood, paint, skin tones and food look the way they should. The 40° beam spread from the regressed lens keeps glare down, and dimming runs from 100% to 10% on industry-standard forward-phase / reverse-phase dimmers. The durable airtight aluminum body with anodized blue heat sink is rated for wet locations, airtight, and approved for direct contact with insulation, with a Ø 2½" (64 mm) hole cut, 100-135V AC 50/60Hz input, cETLus certification, Class II driver, a projected life of 70% at 50,000 hours and a lifetime warranty.

This little white-trim square earns its keep in Canadian homes and small commercial spaces: over a kitchen island, along a basement corridor, in a bathroom or shower area thanks to the wet location rating, under a soffit or covered entry where winters get serious (minimum starting temperature -40°C / -40°F), and in retail or hospitality niches that need clean, directional light. Need the same look in another finish or with the 5-position CCT Select switch instead of Dim-to-Warm? Pair it with the 2" LUNA square colour selectable recessed fixture in white, the black trim version or the brushed nickel version for project uniformity. Add it to your next lighting plan and light the details properly.

Built to disappear into the ceiling
The LUNA 2" square starts with a durable airtight aluminum body and an anodized blue heat sink that maximizes airflow around the LED light source — the kind of thermal design that keeps output and colour stable year after year. The trim is square with regressed optics, a shape contractors reach for when they want a crisp architectural ceiling instead of a row of obvious pot lights. This unit carries the white (WH) trim finish and the Dim-to-Warm module; note that the on-fixture 5-position colour selectable switch is not available on DTW versions, since the colour shift happens through the dimmer instead.

Light quality and Dim-to-Warm behaviour
The 7 W LED module maintains uniform intensity and produces up to 700 lumens, with the DTW module rated at 680 lumens. Its colour temperature travels from 3000 K down to 2000 K as you dim, which is why this fixture feels so natural in dining rooms, bedrooms and restaurants — bright and neutral when you need to work, candle-warm when you want to relax. Typical CRI is 96, and independent photometric testing on the RA2-7F-DTW-90WH module measured a CRI of 98.2 with R9 at 97.3, TM30 Rf of 95.1 and a measured 2822 K, at 6.9 W and 499 lm for 73 lumens per watt. The 40° beam spread and a tested beam angle of 43.3° give clean, controlled pools of light with low glare.

Technical specifications
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Beam angle: 40°
CCT (DTW): 3000 K ~ 2000 K
CRI: 96
Wattage: 7W
Lumens: Up to 700 (DTW: 680)
Lumens per watt: Up to 103
Input: 100-135V AC, 50/60Hz
Dimming: Yes, 100%-10%, forward/reverse-phase
Hole cut: Ø 2½" (64mm)
Power factor: 0.9
Projected life: 70% @ 50,000 hrs
Certification: cETLus — Class II: Yes
Minimum starting temperature: -40°C (-40°F)
Warranty: Lifetime
Trim finish: WH (white)

Wiring and installation
Mounting is fast: two spring-loaded clips grip any ceiling material, so remodel installs go up through a Ø 2½" hole without opening the drywall. The extruded aluminum hardwire box holds a 170 mA dimmable Class II electronic LED driver, and three Quick Connect push-in terminals make the wiring straightforward. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings — but it is not approved for branch wiring. The luminaire is airtight, approved for direct contact with insulation and suitable for indoor/outdoor applications, so it works under soffits, on covered porches and in bathrooms. Optional accessories listed by Liteline include a new construction mounting kit with pre-mounting plate and hanger bars, butterfly brackets, a 60" flexible connector to extend the distance between fixture and driver, a vapor barrier, and a commercial grade driver (120~347V / 120~277V, 0-10V dimming).

Where to use it, and what pairs with it
Think kitchen perimeters and islands, hallway runs, stair nosings, closet and pantry lighting, bathroom vanities and shower areas, wall niches in boutiques, clinics and small offices, plus covered outdoor entries. Because LUNA is also offered in 3", 3.5", 4" and 5" or 6", you can keep one aesthetic through a whole house or storefront. For matching trims in the same 2" square format, see the colour selectable white version, the brushed nickel version, or the Dim-to-Warm black trim version. The full technical PDF (RA2S-7F-DTW90WH Spec Sheet) is in the Documentation tab, with photometrics, dimensions and the ordering guide for your submittal package.
