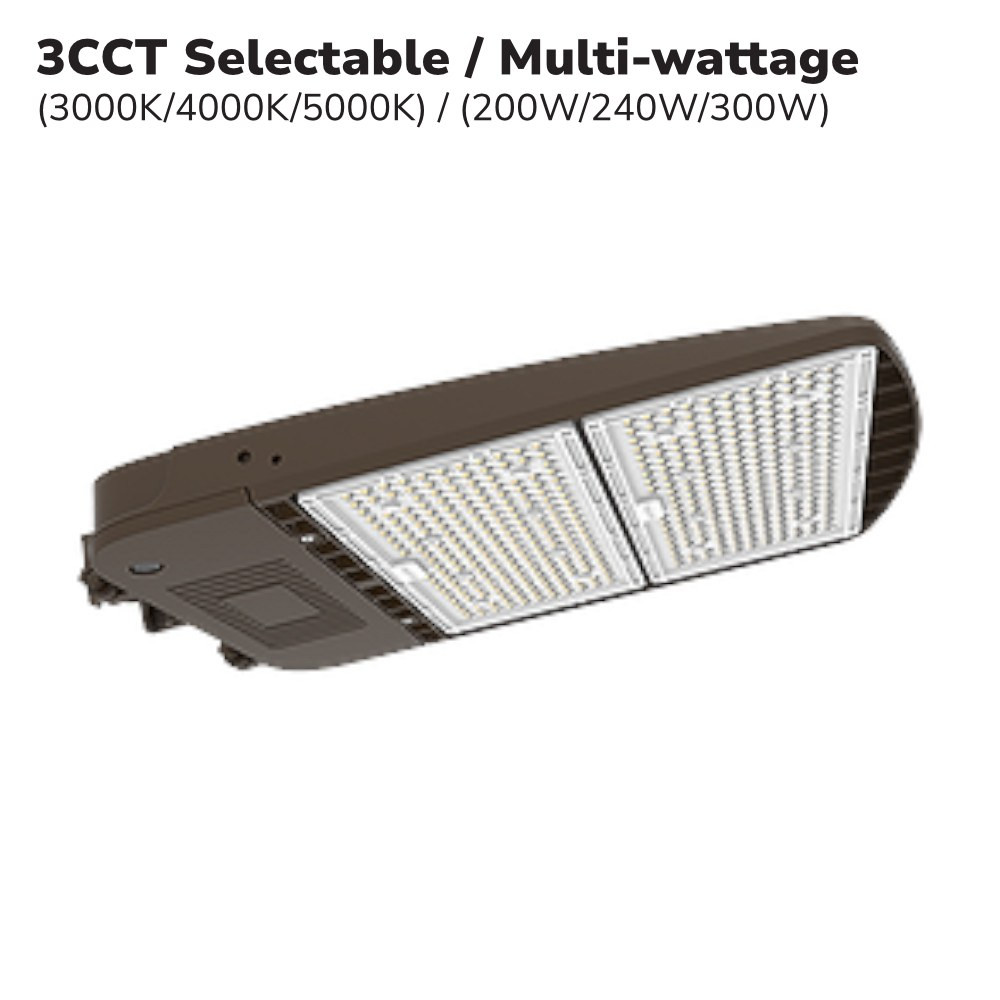

200-240-300W LED FLOODLIGHT - LCFLD200-240-300W-MK-UV-BR

Name: 200-240-300W LED FLOODLIGHT - LCFLD200-240-300W-MK-UV-BR
Brand: LEDCO
SKU: LCFLD200-240-300W-MK-UV-BR
Price: 441.97 CAD
Availability: InStock

SKU: LCFLD200-240-300W-MK-UV-BR

Brand: LEDCO

Some yards swallow light. A parking lot, a loading dock, a hockey rink, a storage compound — the kind of place where a small fixture just makes a puddle of brightness and leaves the rest in shadow. That is exactly where this LED floodlight earns its keep. Known on job sites as a flood lamp, an outdoor area light or simply a big 300W flood, it is a slim, compact outdoor luminaire with a polycarbonate lens and a selectable output that lets one single fixture cover very different jobs. It is built for expansive spaces: parking garages, arenas, stadiums, yards, façades, industrial sites and commercial properties that need real, usable light after dark.

The multi-watt selector lets you choose 200W, 240W or 300W, delivering 26000, 31200 or 39000 lumens depending on the setting, while the CCT selector switches the colour between 3000K for a warmer ambiance, 4000K for a brighter neutral white and 5000K for maximum brightness. The body is pressure die cast aluminum for better thermal management, and the fixture is suitable for use in wet locations with IP65 protection. Inside, a 120-347V LED auto-sensing driver with a 10KV surge protection device handles a wide range of services, it is compatible with 0-10V dimming, and it operates from -40 to 45°C. Rated for 50 000 hours with a 5 year warranty, model LCFLD200-240-300W-MK-UV-BR comes in a bronze finish and measures 19.19'' by 17.27'' by 12.4'', with a 2.48'' depth at the housing.

This is a natural fit for Canadian winters and Canadian distances: pole-mounted over a contractor's yard, trunnion-mounted on a warehouse wall, aimed down a long driveway, or washing the front of a commercial building so signage and vehicles read clearly on camera. Four different brackets are available and sold separately — the pole bracket LCFLD-BRACKET-P, the trunnion bracket LCFLD-BRACKET-T, the U-shape bracket LCFLD-BRACKET-U and the knuckle bracket LCFLD-BRACKET-K — so you can match the mount to the structure you have. Prefer a darker look? The same fixture is offered in black as the 200-240-300W LED floodlight. Pick your wattage, pick your colour, and light the whole property properly.

Built like outdoor gear should be
The housing is pressure die cast aluminum, chosen to ensure better thermal management — heat is pulled away from the diodes instead of cooking them, which is what keeps light output and colour steady year after year. The optic is a polycarbonate lens in a slim, compact area lighter profile that cuts wind load and keeps the fixture discreet on a wall or a pole. It is suitable for use in wet locations with IP65 protection, and the operating temperature range of -40 to 45°C means it is rated for a real Canadian January as well as a July heat wave on a black asphalt lot. The bronze finish of this model blends with brick, wood and earth-tone buildings.

Light you can tune on site
Two selectors do the work of several part numbers. The multi-watt selector sets the fixture to 200W, 240W or 300W, and the CCT selector sets 3000K, 4000K or 5000K. Choose 3000K for a warm ambiance on a residential façade or a hospitality entrance, 4000K for a brighter neutral light over mixed-use areas, or 5000K for maximum brightness across a yard, a garage or a sports surface. Because the selection happens at installation, you can stock one fixture for a whole property and fine-tune each location — lower setting near neighbours, full output over the loading zone.

Technical specifications
Model: LCFLD200-240-300W-MK-UV-BR
Colour: Bronze
Colour temperature: CCT selectable 3000K / 4000K / 5000K
Wattage: 200-240-300 selectable
Lumens: 26000 / 31200 / 39000
Input voltage: 120-347V, LED auto-sensing driver
Surge protection: 10KV device
Dimming: compatible with 0-10V dimming
Protection: IP65, suitable for wet locations
Operating temperature: -40 to 45°C
Lifetime: 50 000 hours
Warranty: 5 years
Dimensions: 19.19'' x 17.27'' x 12.4'', 2.48''

Electrical, mounting and controls
The 120-347V auto-sensing driver simplifies specification on projects where the available service is not the same from one building to the next, and the 10KV surge protection device adds a layer of defence on exposed poles and outdoor feeds. The fixture is compatible with 0-10V dimming, so it drops into a control scheme with dimmable drivers, photocells or time clocks for dusk-to-dawn operation. Four different brackets are offered for installation and each is sold separately: pole (LCFLD-BRACKET-P), trunnion (LCFLD-BRACKET-T), U-shape (LCFLD-BRACKET-U) and knuckle (LCFLD-BRACKET-K). Installation should be done by a qualified electrician: fasten the bracket to a solid surface or pole, make the weatherproof connections, then set the tilt and lock it. A practical tip — aim the beam slightly downward rather than straight out. You cover more usable ground, you cut glare for neighbours and drivers, and the light stays where it does the work.

Where it goes and what comes with it
Think parking garages, arenas and stadiums, truck yards, equipment compounds, car dealerships, warehouse walls, farm buildings and municipal facilities — anywhere a high-output flood beats a row of small fixtures. High colour rendering keeps vehicles, signage and surfaces looking true, which helps security cameras do their job. If black suits the architecture better, the same fixture is available as the 200-240-300W LED floodlight in black. The full technical PDF spec sheet, including the technical drawing and the polar candela curve, is available in the Documentation tab for your plans and submittals.

Technical Files
