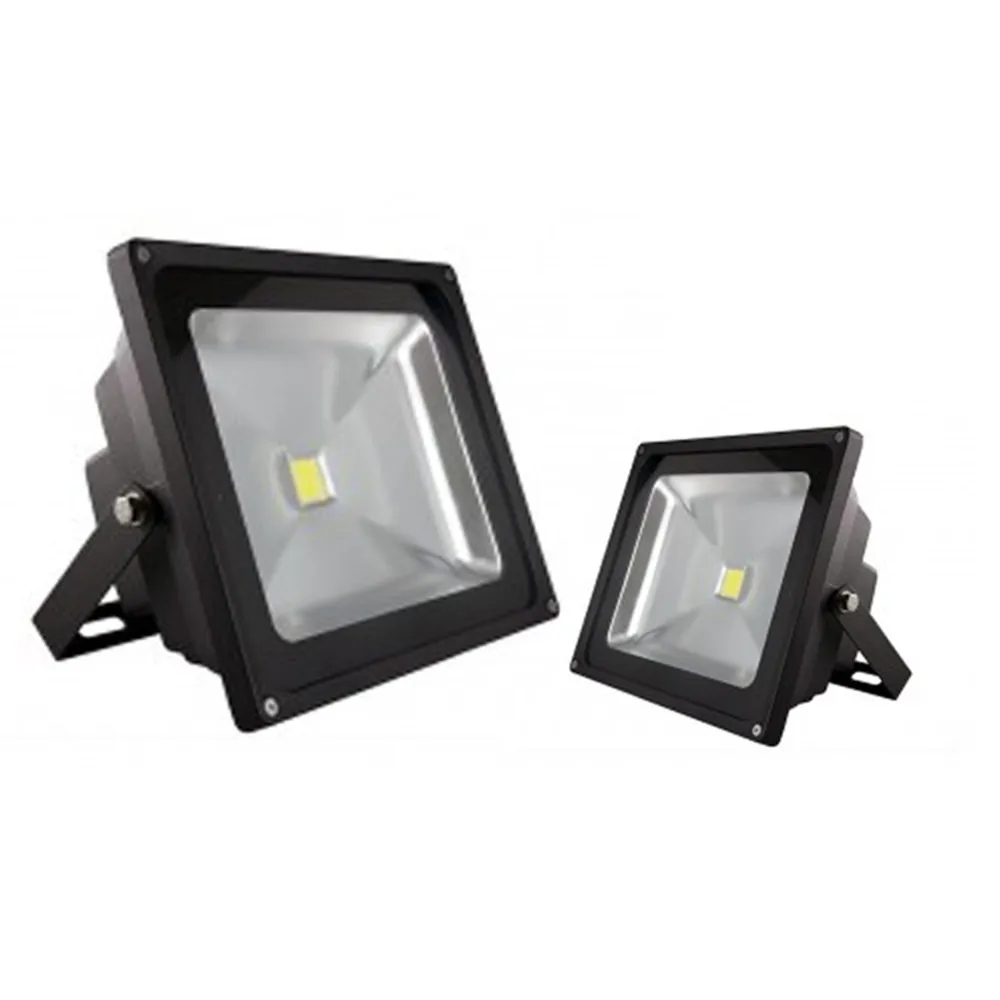

LED FLOODLIGHT 24V 20W

Name: LED FLOODLIGHT 24V 20W
Brand: LEDCO
SKU: LCFLD24V-20W-30K
Price: 110.97 CAD
Availability: InStock

SKU: LCFLD24V-20W-30K

Brand: LEDCO

Turn a dark driveway, yard or storefront into a place you can actually see — and feel safe in — with this 24V 20W LED floodlight. Call it a low-voltage LED flood light, an outdoor projector light or simply a yard light: it's the compact black fixture you aim at a wall, a walkway, a parking pad or a sign, and it does the job all night, every night. Because it runs on 24V DC, it's a natural fit for landscape lighting circuits, solar and battery setups, RV and trailer installations, workshops and any site where a safer low-voltage wiring method is preferred over line voltage. Homeowners use it for façades, garages, sheds and back decks; contractors and small businesses use it for loading areas, equipment yards, signage and security lighting.

Under the tempered housing sits a single commercial-grade COB LED chip pushing 1900 lumens of warm white 3000 K light — bright enough to cover a wide area, soft enough to stay welcoming rather than harsh. The 120° beam angle spreads that light evenly instead of punching one hot spot, so driveways, walkways and work zones get usable coverage from a single fixture. It draws only 20W at 24V DC, which keeps the load light on transformers and long cable runs when you're wiring several heads on one circuit. The black housing is rated IP67 — sealed against dust and water — and measures a tidy 180 x 130 x 100 mm. It's backed by a 3-year warranty, and the SKU to quote is LCFLD24V-20W-30K.

This floodlight earns its keep on house façades and gable ends, over garage doors and side entrances, along fence lines, on posts lighting a gravel driveway, and in commercial spots like patios, storage yards, car lots and shop signage — real Canadian duty, through rain, snow and freeze-thaw. Pair it with a timer, photocell or motion sensor on your low-voltage circuit for hands-free security lighting. Need more punch or a second size for the same project? The matching LED floodlight 24V 30W runs on the same 24V DC supply and keeps your installation consistent. Pick your wattage, size your transformer for the total load, and light up the property tonight.

Built to take the weather
Outdoor fixtures fail for two reasons: water gets in, or heat stays in. This 24V LED floodlight addresses both. The sealed black housing carries an IP67 rating, meaning it's dust-tight and protected against water ingress — the level you want on an exposed wall, a soffit, a post or a fixture that sits close to grade where snow piles up and meltwater runs. At 180 x 130 x 100 mm, it's compact enough to tuck under an eave or mount on a narrow post without looking bulky, and the black finish disappears against most trim, brick and siding during the day.

Light quality you can live with
A single COB LED chip produces 1900 lumens — one continuous light source rather than a grid of small diodes, which gives a cleaner, more uniform wash and fewer multiple shadows. The 3000 K warm white colour temperature is the friendly end of the scale: it flatters brick, wood, stone and landscaping instead of washing everything out, so a lit façade still looks like a home and not a checkpoint. The 120° beam angle is wide and symmetric, which is exactly what you want for area coverage — driveways, patios, walkways, work zones — rather than a narrow spot that leaves dark edges.

Technical specifications
SKU: LCFLD24V-20W-30K
Voltage: 24V DC
Wattage: 20W
Lumens: 1900 lm
Colour temperature: 3000 K (warm white)
LED type: 1 COB chip
Beam angle: 120°
IP rating: IP67
Dimensions: 180 x 130 x 100 mm
Colour: Black
Warranty: 3 years

Wiring, installation and compatibility
This is a 24V DC low-voltage fixture, so it must be fed by a 24V DC supply — a landscape transformer or driver, a solar/battery bank, or a DC panel on a mobile or off-grid installation. Confirm your supply's total output covers every head on the run, and size the cable for the distance: long low-voltage runs lose voltage, and an undersized wire shows up as dim or uneven output at the far end. Because the circuit is low voltage, it's a practical choice around gardens, decks and water features, and it plays well with 24V-compatible timers, photocells and motion sensors for automatic dusk-to-dawn or on-demand security lighting. Aim the head so the beam grazes the surface you want lit rather than shining into windows or toward the street, then lock the bracket down. If your project needs a brighter head somewhere on the same circuit, the LED floodlight 24V 30W shares the same 24V DC supply and black outdoor housing.

Where it works and what's documented
Typical jobs: lighting a two-car driveway from the garage gable, washing a stone or brick façade, covering a back deck and stairs, putting light on a shed or detached garage door, illuminating a fence line or side yard, lighting a small business patio, a loading area, a storage yard, a parking pad or a wall-mounted sign. On multi-fixture layouts, two or three heads at 20W each often deliver better, flatter coverage than one oversized unit. For full details before you order or quote, the technical PDF spec sheet for LCFLD24V-20W-30K is available in the Documentation tab — check dimensions, IP rating and electrical data against your site conditions and your 24V supply before final installation.

Technical Files
