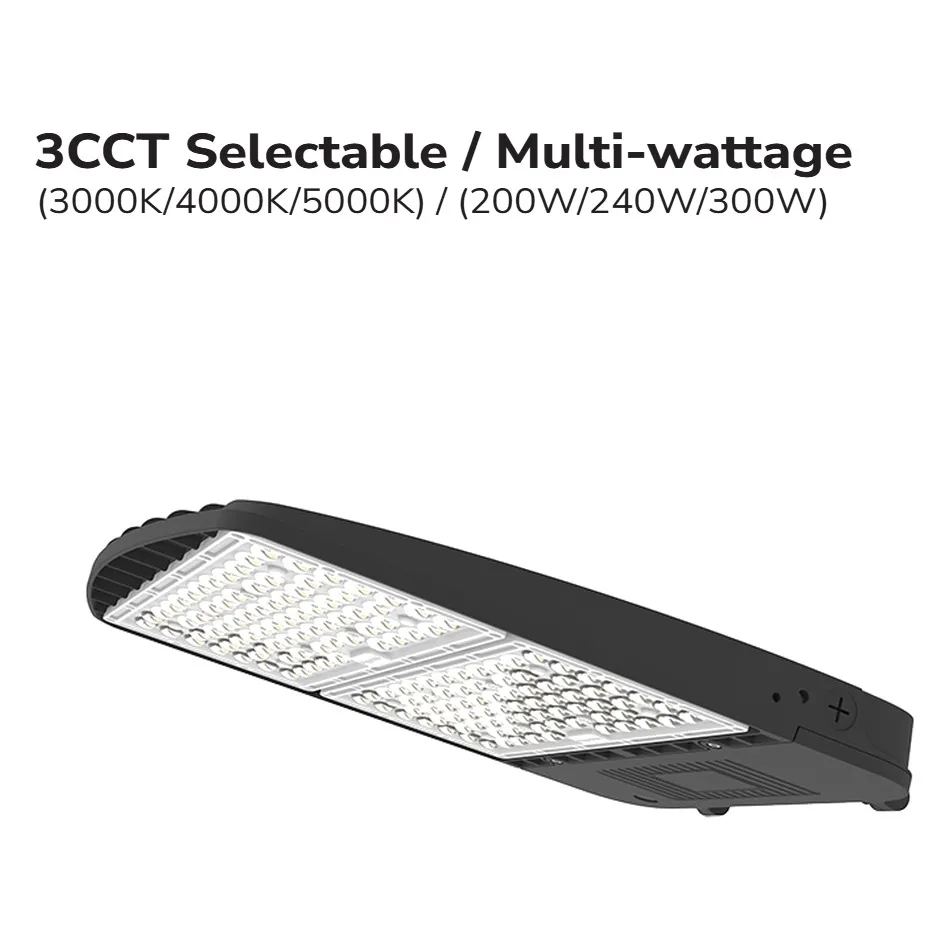

200-240-300W LED FLOODLIGHT

Name: 200-240-300W LED FLOODLIGHT
Brand: LEDCO
SKU: LCFLD200-240-300W-MK-UV-BK
Price: 441.97 CAD
Availability: InStock

SKU: LCFLD200-240-300W-MK-UV-BK

Brand: LEDCO

Some yards swallow light. This is the fixture that finally fills them. The 200-240-300W LED floodlight (SKU LCFLD200-240-300W-MK-UV-BK) is the big-area workhorse people look for when they search for a 300W floodlight, an outdoor LED projector, a yard light or a slim area lighter — one sealed black housing that throws a wide, even wash of light across parking lots, storage yards, loading areas, arenas and building perimeters instead of leaving hot spots and dark corners where nobody wants them.

It is built around a pressure die-cast aluminum body with a polycarbonate lens, so the finned housing pulls heat away from the diodes and keeps brightness and colour stable season after season. The on-board multi-wattage selector lets you set 200W, 240W or 300W, delivering 26 000, 31 200 or 39 000 lumens, and the CCT selector gives you three selectable colour temperatures: 3000K for a warmer look, 4000K for a brighter neutral white, or 5000K for maximum punch. The 120-347V auto-sensing driver with 10KV surge protection handles just about any feed you put in front of it, it is compatible with 0-10V dimming, it is suitable for wet locations with IP65 protection, and it operates from -40 to 45°C. Rated life is 50,000 hours and it carries a 5-year warranty. Overall size: 19.19'' x 17.27'' x 12.4'', with a 2.48'' profile detail.

Put it on a pole over a commercial lot, on a warehouse wall, above a farm building or a contractor's storage yard, on an arena or stadium field, or over a municipal garage — the cold-weather rating means it keeps working through a Canadian winter. Four mounting brackets are sold separately so you can match the job: pole (LCFLD-BRACKET-P), trunnion (LCFLD-BRACKET-T), U-shape (LCFLD-BRACKET-U) and knuckle (LCFLD-BRACKET-K). Prefer a warmer finish? The same floodlight is offered as the 200-240-300W LED floodlight in bronze. Pick your wattage, pick your colour, and light the whole property properly.

Built to stay outside
This outdoor LED floodlight uses a pressure die-cast aluminum body designed for better thermal management, with deep fins that move heat away from the LEDs, plus a polycarbonate lens on a slim, compact area-lighter profile. It is suitable for use in wet locations with IP65 protection, so rain, snow, wash-down spray and blowing dust stay where they belong. The operating range runs from -40 to 45°C, which is exactly what a Canadian job asks of a fixture mounted on a pole, a parapet or an exposed wall. The black finish keeps it discreet on dark cladding and under soffits.

Two selectors, one fixture
The multi-wattage selector lets you choose 200W, 240W or 300W on site, for 26 000, 31 200 or 39 000 lumens — so one part number covers a small side yard and a full parking field, and you can dial the output down if a neighbour or a camera system complains about brightness. The CCT selector offers three selectable colour temperatures: 3000K, 4000K and 5000K. Warm 3000K suits hospitality and residential perimeters, 4000K is the everyday choice for commercial lots and loading zones, and 5000K gives the crispest, brightest read on signage, plates and faces at night.

Electrical and installation
The driver is a 120-347V LED auto-sensing driver with a 10KV surge protection device, so the same fixture goes on a residential-style feed or a higher-voltage commercial panel without ordering a different model — handy on retrofits where you inherit whatever is in the pole base. It is compatible with 0-10V dimming, which lets you tie it into a controller, a timer or an astronomic schedule and drop the level after closing hours. Four brackets are sold separately: pole bracket LCFLD-BRACKET-P, trunnion bracket LCFLD-BRACKET-T, U-shape bracket LCFLD-BRACKET-U and knuckle bracket LCFLD-BRACKET-K — pick the one that matches your pole, wall or existing tenon. Cut the power before wiring, aim the fixture slightly downward to limit glare toward the street, and keep the lens and gasket clean so the seal stays tight.

Technical specifications
Model: LCFLD200-240-300W-MK-UV-BK
Colour: Black
Colour temperature: CCT selectable 3000K / 4000K / 5000K
Wattage: 200-240-300W selectable
Lumens: 26 000 / 31 200 / 39 000
Input voltage: 120-347V auto-sensing
Surge protection: 10KV
Dimming: 0-10V compatible
Protection: IP65, wet locations
Operating temperature: -40 to 45°C
Dimensions: 19.19'' x 17.27'' x 12.4'' (2.48'')
Lifetime: 50,000 hours
Warranty: 5 years

Where it goes and what's in the documents
Typical projects: parking garages, arenas and stadiums, truck yards and loading docks, farm buildings, car dealership frontages, contractor storage compounds, municipal works garages, condo and retail parking lots, and large residential properties where one well-aimed LED projector replaces several old halogen heads and cuts energy use dramatically. For a matching installation in a warmer tone, the same unit is available as the 200-240-300W LED floodlight in bronze. The Documentation tab holds the technical PDF spec sheet for LCFLD200-240-300W-MK-UV-BK, including the technical drawing, the specification table and the polar candela curve — worth downloading before you finalize pole spacing and aiming angles.
