70-100-150W LED FLOODLIGHT

Name: 70-100-150W LED FLOODLIGHT
Brand: LEDCO
SKU: LCFLD70-100-150W-MK-UV-BK
Price: 233.97 CAD
Availability: InStock

SKU: LCFLD70-100-150W-MK-UV-BK

Brand: LEDCO

Light up the whole yard, lot or loading dock with one tough fixture: this LED floodlight is the all-in-one outdoor workhorse people search for when they type "150W flood light", "led shoebox light 150w" or simply "projecteur LED". Known as an outdoor flood light, area light or wall pack-style floodlight, it replaces power-hungry metal halide and halogen heads on walls, poles, soffits and gables. Its slim, compact body and polycarbonate lens throw a wide, even wash of light over driveways, parking areas, storage yards, sports surfaces and commercial frontages — no harsh hot spots, no dark corners, just usable brightness where your cameras, customers and crews need it.

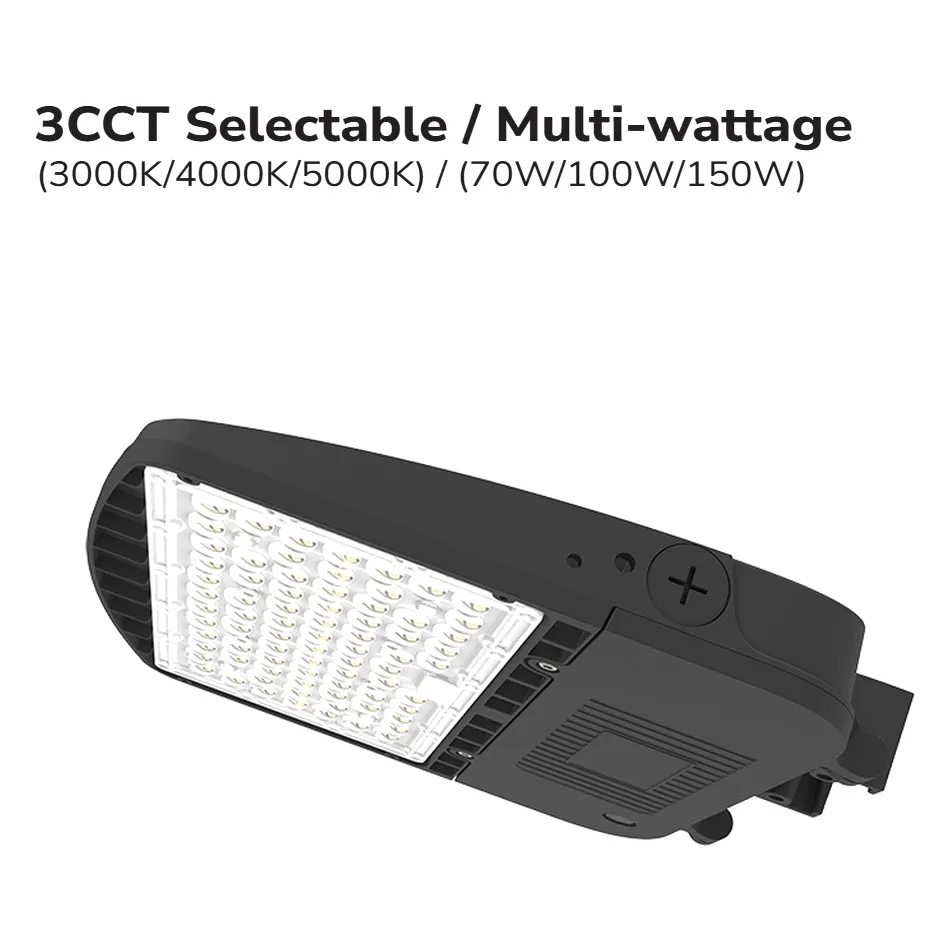

What makes it so flexible is the built-in Multi-Watt and CCT selector: pick 70W, 100W or 150W and get 9100, 13000 or 19500 lumens from the very same fixture, then dial the colour to 3000K for a warm look, 4000K for a crisp neutral white, or 5000K for maximum punch. The pressure die-cast aluminum body handles thermal management so the diodes stay cool and stable, and the fixture is rated for wet locations (IP65) — rain, blowing snow and humidity included. A 120-347V auto-sensing LED driver with 10KV surge protection covers residential and commercial feeds alike, it is 0-10V dimmable, it operates from -40 to 45°C, and it is backed by a 50 000-hour lifetime and a 5-year warranty. Model LCFLD70-100-150W-MK-UV-BK comes in black; dimensions are 13.31'' x 11.41'' x 12.4'' with a 2.47'' depth detail.

Contractors use it for parking garages, arenas, stadiums, warehouses, farm buildings, car lots and municipal yards; homeowners put it over the garage door, patio or back lane. In Canada, that -40°C cold rating matters — this one keeps working through January. Mounting is your choice: four brackets are sold separately, the pole bracket LCFLD-BRACKET-P, trunnion LCFLD-BRACKET-T, U-shape LCFLD-BRACKET-U and knuckle LCFLD-BRACKET-K, so you can aim the beam exactly where it belongs. Prefer a warmer finish? The same floodlight is offered as 70-100-150W LED floodlight in bronze. Order the black version and light the place up properly.

Built to take the weather
The housing is pressure die-cast aluminum, chosen for better thermal management: heat is pulled away from the LEDs instead of cooking them, which is exactly how a fixture reaches its rated 50 000 hours. The lens is polycarbonate, and the whole assembly is a slim, compact area lighter that keeps its profile tight against a wall or pole. It is suitable for use in wet locations with IP65 protection, so direct rain, wind-blown snow and humidity are part of the job description. The operating range runs from -40 to 45°C — real Canadian numbers for real Canadian winters — and the fixture is covered by a 5 years warranty.

Light quality you can actually tune
Two selectors do the heavy lifting. The Multi-Watt selector sets the fixture to 70W, 100W or 150W, delivering 9100, 13000 or 19500 lumens respectively, so one part number covers a small courtyard and a full parking lot. The CCT selector chooses 3000K for a warm, welcoming ambiance, 4000K for a brighter neutral light, or 5000K for maximum brightness on security and work areas. Set both on site, after you see the space — no reordering, no guessing from a catalogue. A polar candela distribution chart is included in the spec sheet if you are laying out pole spacing.

Electrical and installation
The driver is a 120-347V LED auto-sensing unit with a 10KV surge protection device, so the same floodlight drops onto a house circuit or a commercial three-phase system without swapping hardware — useful when one contractor is wiring several buildings. It is compatible with 0-10V dimming, which pairs well with energy codes, timers and building controls. Four brackets are available separately — pole (LCFLD-BRACKET-P), trunnion (LCFLD-BRACKET-T), U-shape (LCFLD-BRACKET-U) and knuckle (LCFLD-BRACKET-K) — so the same head works on a square pole, a parapet, a soffit or a gable. Mount high, tilt slightly downward rather than straight out: less glare for neighbours and drivers, wider coverage, and water runs off the lens. Always cut power at the panel and seal the wiring entry before final tightening.

Technical specifications
Model: LCFLD70-100-150W-MK-UV-BK
Colour: Black
Colour temperature: CCT selectable 3000K / 4000K / 5000K
Wattage: 70-100-150W selectable
Lumens: 9100 / 13000 / 19500
Input voltage: 120-347V auto-sensing
Surge protection: 10KV
Dimming: 0-10V
Protection: IP65, wet locations
Operating temperature: -40 to 45°C
Dimensions: 13.31'' x 11.41'' x 12.4'' / 2.47''
Lifetime: 50 000 hours
Warranty: 5 years

Where it earns its keep — and what to read next
Think parking garages, arenas and stadiums, truck yards, equipment storage, dealership lots, church and school parking, barns and machine sheds, plus building facades and signage that need to look right on camera thanks to good colour rendering. Homeowners install it over the garage door, the back deck or a long rural driveway at 70W, then leave the 150W setting for the shop. The full technical PDF spec sheet — drawing with dimensions, bracket accessories and the polar candela curve — is in the Documentation tab; download it before you finalize pole heights or aiming angles. If your project calls for a warmer-looking finish, the identical fixture is available as the 70-100-150W LED floodlight in bronze.
