Built small, built tough

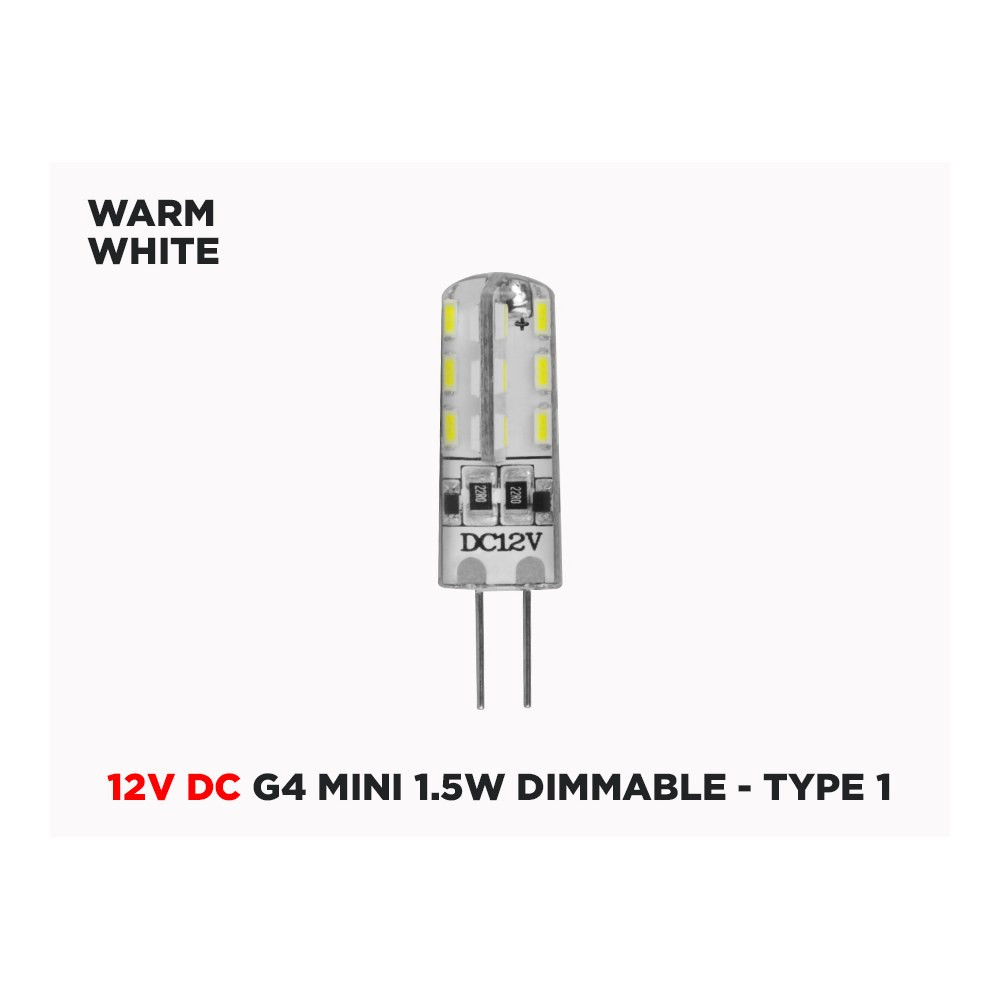

The body of this G4 MINI LED bulb is moulded in clear silicone rather than fragile glass, so it feels rubbery in the hand and takes knocks, fingerprints and vibration far better than a traditional halogen capsule. That matters in boats, trailers, cabinet doors that slam and display cases that get rearranged weekly. The lens colour is clear, which keeps the light output sharp and lets the 24 x 3014 SMD LEDs read as a smooth band of light rather than a cluster of hot dots. At only 25 mm long (36 mm with pins) and 9 mm wide, it disappears into the same shallow housings your old capsules lived in.
Light quality and colour
Warm White 3000-3500K gives 110 lumens of soft, cozy light — the right call for chandeliers, bedside and living room fixtures, and anywhere you want that familiar halogen-like ambience. The 360 degree beam angle is a real advantage over directional mini lamps: in crystal and open-arm fixtures, light reaches the whole shade and every facet instead of blasting straight up.
Electrical and installation
Input voltage is 12V DC and nothing else. This is the single most important point: verify that your transformer, driver or power supply outputs DC before ordering. Many older halogen systems use AC transformers, and putting a DC bulb on an AC circuit will destroy both the bulb and the fixture, with no warranty coverage. The base is a standard G4 bi-pin, so installation is push-in simple — cut power, let the old capsule cool, pull it straight out, and press the new one in without touching the LEDs any more than necessary. The bulb is dimmable; pair it with a dimming method suited to your 12V DC supply, and add bulbs gradually so your power supply is comfortably sized for the total load.
Technical specifications
SKU: G4MINI-W1
Brand: LED MONTREAL
Lens colour: Clear
Material: Silicone
Dimensions: 25mm long (36mm with pins) x 9mm wide
Chip brand: Epistar
LED consumption: 1.5W
LED quantity: 24 x 3014 SMD LEDs
Base type: G4
Input voltage: 12V DC
Dimmable: Yes
Beam angle: 360 degrees
Colour temperature: Warm White 3000-3500K
Lumens warm white: 110 lm
Applications and documentation
Think kitchen under-cabinet puck lights, bar shelving, retail jewellery and watch cases, museum-style vitrines, reading lamps, range hoods, bathroom vanity fixtures with mini sockets, and 12V interiors in RVs, campers, vans and boats. Homeowners use them to refresh an inherited chandelier without rewiring; contractors and small business owners use them to cut the heat load inside sealed display cases, which protects merchandise and keeps the cabinet cool to the touch. Because these are low-wattage 12V DC LED bulbs, a single power supply can feed many of them, simplifying cottage, marine and off-grid setups across Canada. The full technical PDF for this bulb is available in the Documentation tab — download it to confirm dimensions and voltage before you order a quantity.
