A discreet guide light for everyday safety

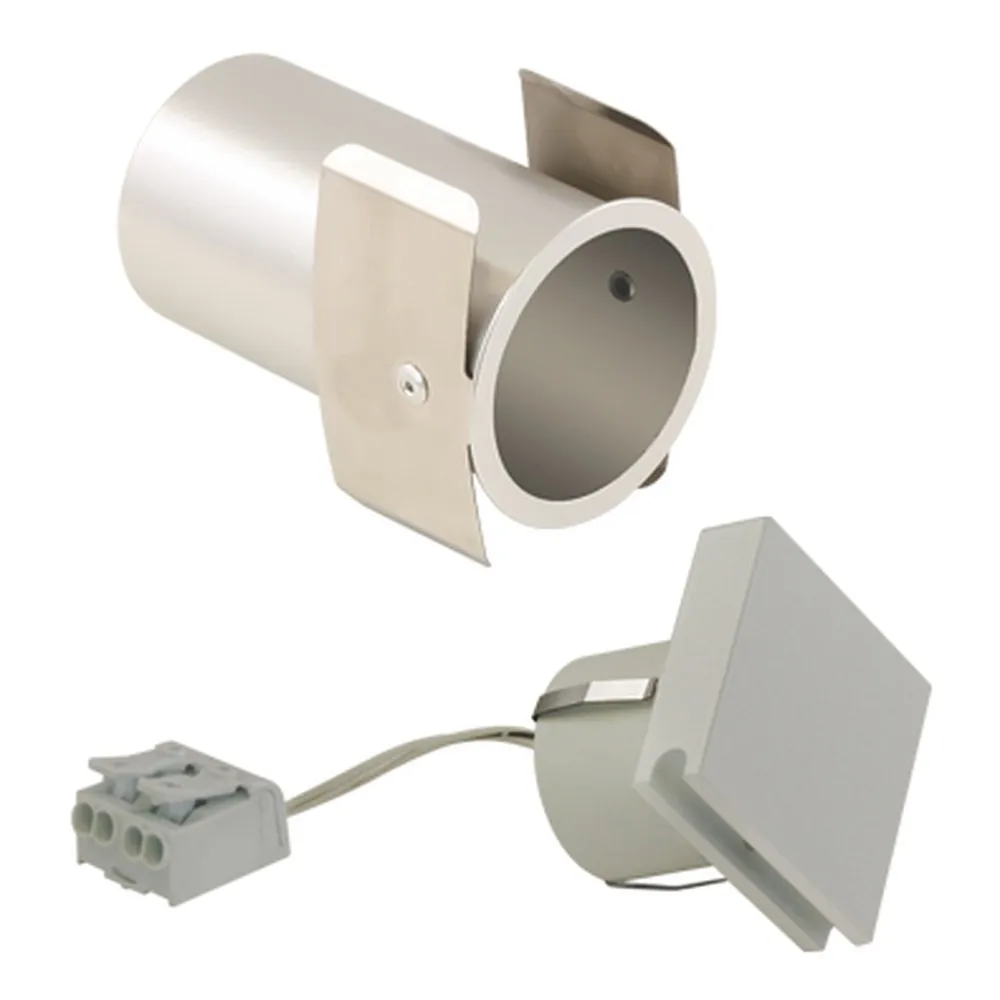

The WLFLS-1W30K-90-FWH is a compact recessed LED wall light with a square white face that grazes light across walls and floors at low height. Placed next to stair treads or spaced along a hallway, it gives just enough light to walk safely at night — to the kitchen, to a child's room or down to the basement — without switching on bright ceiling lights. The wide 120° beam spreads the light over a full step or a good stretch of corridor.
Warm light, true colours
The 3000K warm white suits bedrooms, hallways and living areas, and the 90 CRI keeps painted walls, flooring and trim looking natural. With a draw of only 1.4W per fixture, a full row can stay on all evening. Dimming from 100% down to 5% with compatible electronic or magnetic dimming drivers lets you set a comfortable night-light level, especially appreciated in bedroom hallways and en-suite passages.
Installation and ratings
This hardwire low-voltage fixture runs on a 24V constant-voltage system and requires a remote power supply. The toolless push-in connector takes LVT cable and supports daisy-chain wiring from fixture to fixture, which keeps long stair runs simple. The aluminum housing is fitted with strain relief and torsion clips for a secure hold, and the fixture rotates to direct the light. It is IC rated; for insulated walls, a vapor barrier (WL-VBE) and a pre-mounting plate are required, sold separately. It is designed for indoor use only in dry and damp locations — suitable for an entrance or a mudroom — and is cETLus certified.
Square trim, flat white finish
The square trim offers clean lines that echo modern switch plates, square pot lights and tile layouts, while the flat white finish blends into white and light-coloured walls for a minimalist result. For a softer outline or a bolder accent, the same wall graze light is also available with a round trim and in anodized black or aluminum.
Technical specifications
SKU: WLFLS-1W30K-90-FWH
Wattage: 1.4W
Voltage: 24V constant voltage (remote power supply required)
Colour temperature: 3000K
CRI: 90
Beam angle: 120°
Trim: Square
Finish: Flat white (FWH)
Connection: Hardwire, toolless push-in connector
Rating: IC rated, indoor dry and damp, cETLus
