ASYMMETRIC - 1.4W - 30K - 90CRI - 24V 45° - HARDWIRE - ROUND TRIM - AL - WLTDR-1W30K-90-AL

Name: ASYMMETRIC - 1.4W - 30K - 90CRI - 24V 45° - HARDWIRE - ROUND TRIM - AL - WLTDR-1W30K-90-AL
Brand: LITELINE
SKU: WLTDR-1W30K-90-AL
Price: 146.97 CAD
Availability: InStock

SKU: WLTDR-1W30K-90-AL

Brand: LITELINE

A round metallic accent that throws soft light exactly where it is needed: this asymmetric LED wall light with a round trim in aluminum (SKU WLTDR-1W30K-90-AL) is a compact recessed step light for stairs, hallways and entrances. People find it as a stair light, a round LED light, a corridor marker or a low-level wall light; whatever the name, its asymmetric optic directs the light rather than spreading it evenly, for glare-free ambient accent lighting in hallways, corridors, stairs and entrances — and for accent, display and wall-washing effects too.

It runs on only 1.4W with a 24V constant-voltage power system, producing warm 3000K light with a 90 CRI for natural colour on floors, stair nosings and walls. The 45° asymmetric beam keeps the light on the step and the floor. Its machined aluminum body doubles as the heat sink, the fixture rotates to aim the light, and the toolless push-in connector lets you daisy-chain fixtures on low-voltage cable. It is IC rated, cETLus certified and dims from 100% to 5% with a compatible dimming driver.

The aluminum finish brings a subtle metallic sheen that matches brushed hardware, stainless appliances and glass-and-metal railings. That makes it a smart pick for modern Canadian condos and townhouses, renovated basements and open staircases, and for offices, clinics, fitness centres, hotel corridors and retail stores. It is suited to indoor dry and damp locations and runs from a remote 24V supply. Specify a series of them in your next project and give stairs and corridors a warm, precise glow.

Sold separately
To complete the installation, add:
Power supply: HWB-DIM-CDC-24V-30W, HWB-DIM-CDC-24V-60W, HWB-DIM-CDC-24V-96W

Directed light for safer stairs
The WLTDR-1W30K-90-AL is a small recessed LED wall light with an asymmetric optic. Instead of spreading light evenly around its centre like an ordinary round light, it sends its 45° beam in a controlled way, so a fixture mounted low beside the stairs or along a hallway lights the tread and the floor while keeping glare away from people's eyes. It is a comfortable solution for stairs, landings, corridors and entrances, at home or in public spaces.

Warm light with accurate colour
A 3000K warm white makes corridors and stairwells feel welcoming instead of clinical, and the 90 CRI keeps hardwood, carpet, stone and paint looking natural. Each unit uses only 1.4W, so leaving a run of lights on through the evening is easy to justify. With compatible electronic or magnetic dimming drivers, output dims from 100% down to 5%, from full guidance during busy hours to a gentle night-light setting.

Wiring and mounting

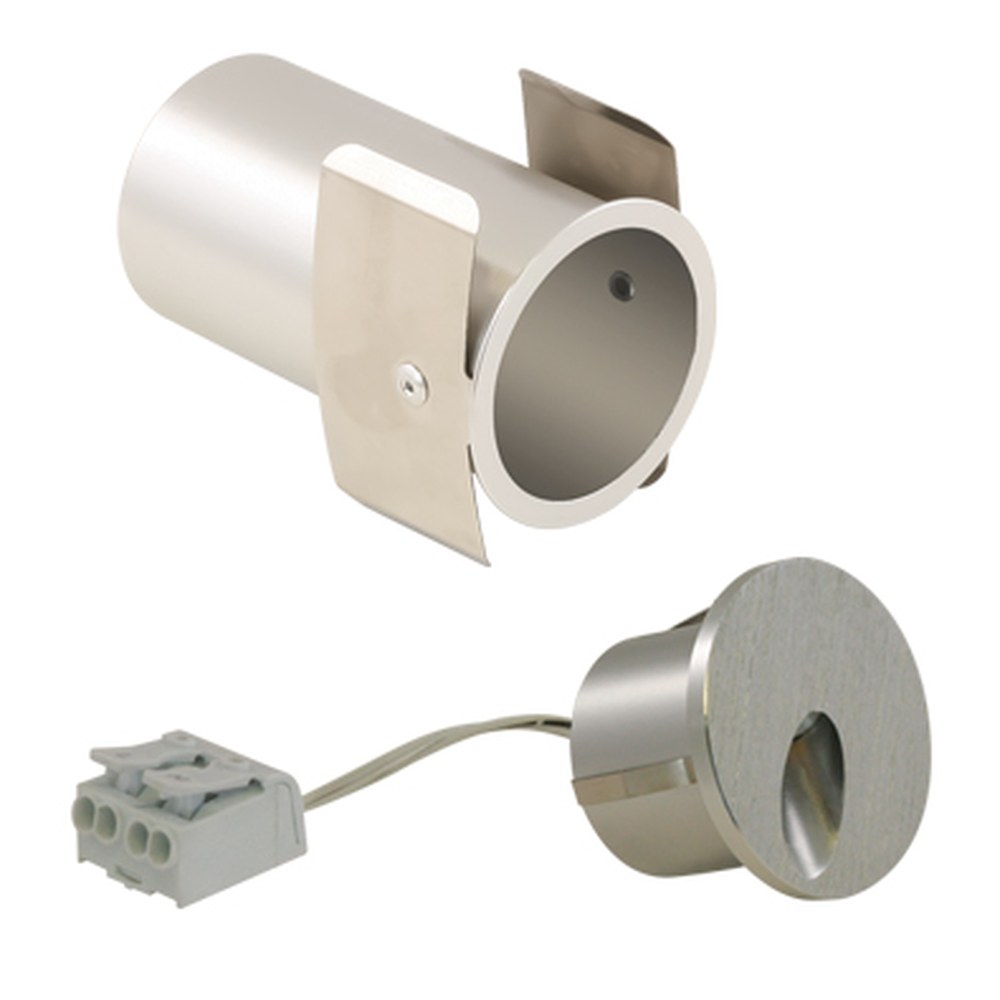

This hardwire low-voltage fixture operates on a 24V constant-voltage system and requires a remote power supply. The toolless push-in connector accepts LVT cable and allows daisy-chain wiring from fixture to fixture — a real time saver on multi-storey stairwells and long corridors. The aluminum housing includes strain relief and torsion clips for a secure fit, and the fixture rotates so you can orient the light precisely. It is IC rated; in an insulated wall, the manufacturer calls for a vapor barrier (WL-VBE) and a pre-mounting plate, sold separately. For indoor use only, in dry and damp locations; cETLus certified.

Applications and finish options
Beyond path lighting, the fixture is suggested for accent illumination, display lighting, under-cabinet lighting and wall washing: highlight a stone accent wall, a wine display, a reception desk or a retail niche. The aluminum finish and round trim give a clean, understated metallic look. The same asymmetric light also comes with a square trim and in flat white or anodized black, so you can match every room of the project.

Technical specifications
SKU: WLTDR-1W30K-90-AL
Wattage: 1.4W
Voltage: 24V constant voltage, remote power supply required
Colour temperature: 3000K
CRI: 90
Beam: 45° asymmetric
Trim: Round
Finish: Aluminum (AL)
Rating: IC rated, indoor dry and damp, cETLus
