24VDC - 96W - HARDWIRE BOX CLASS2 - CV - TRIAC - 0-10V - BK - HWB-DIM-CDC-24V-96W

Name: 24VDC - 96W - HARDWIRE BOX CLASS2 - CV - TRIAC - 0-10V - BK - HWB-DIM-CDC-24V-96W
Brand: LITELINE
SKU: HWB-DIM-CDC-24V-96W
Price: 319.97 CAD
Availability: InStock

SKU: HWB-DIM-CDC-24V-96W

Brand: LITELINE

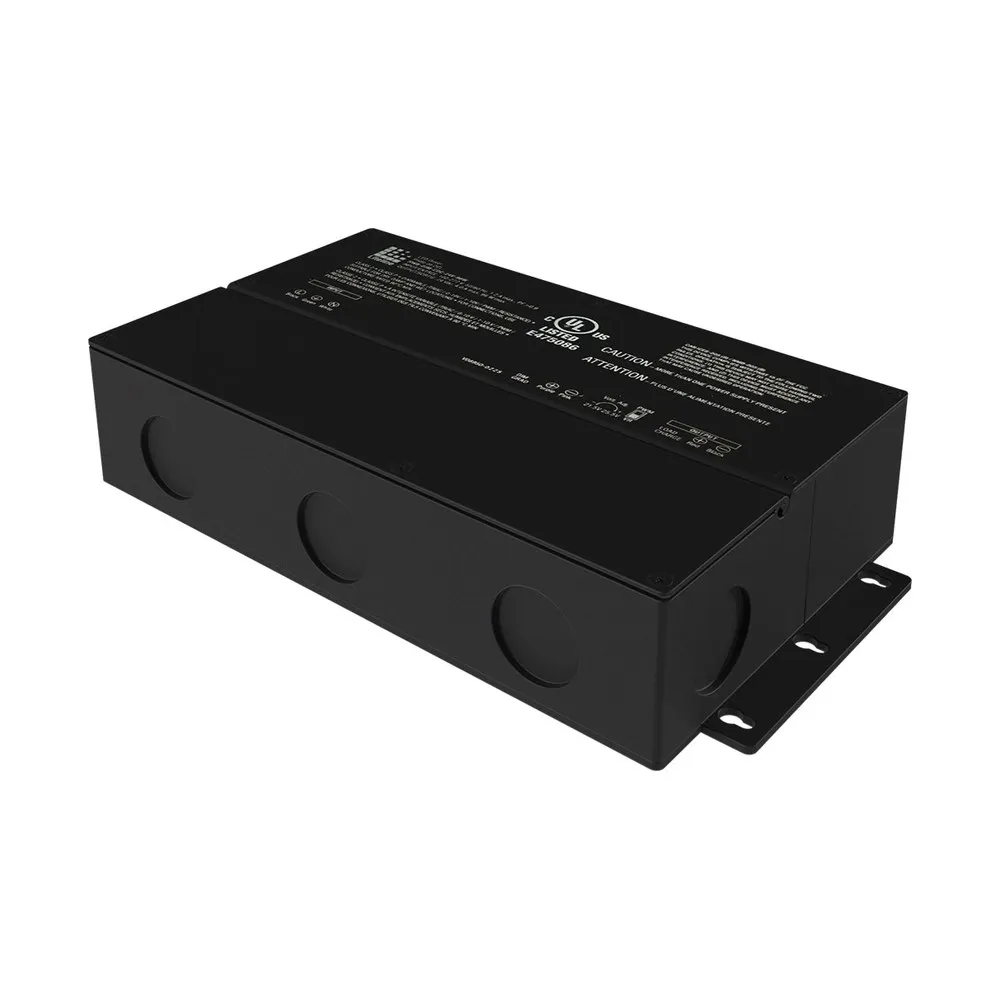

Power long runs of LED strip with this 96W dimmable hardwire driver (SKU HWB-DIM-CDC-24V-96W). Built as a 24VDC constant voltage LED driver, it supplies LED tape, linear profiles and cove lighting from a single, permanently wired black enclosure. With its Class 2 designation and dual TRIAC and 0-10V dimming, it is one of the most versatile LED drivers an electrician can bring to a job, whether the project is a full kitchen renovation, a restaurant dining room or an open-plan office.

The big advantage of this LED lighting power supply is capacity combined with control. At 96W, it can feed a generous length of 24V LED strip or several linear fixtures from one point, which means fewer drivers to hide and fewer connections to manage. It dims with standard TRIAC (phase-cut) wall dimmers found in homes and with 0-10V controls used in commercial buildings. The hardwire box format gives a tidy installation without plugs or loose cords, and the black finish keeps it discreet above a ceiling or inside a millwork cavity. For medium-length projects, the 24VDC 60W dimmable hardwire LED driver offers the same features in a smaller capacity.

Across Canada, this dimmable LED power supply is the workhorse behind perimeter cove lighting, long kitchen under-cabinet runs, retail shelving, bar back-lighting, hotel corridors and boardroom ceilings. When you want one reliable driver that handles a big 24V layout and dims smoothly, choose the HWB-DIM-CDC-24V-96W and give your linear lighting the power and control it deserves.

Built for larger 24V layouts
The HWB-DIM-CDC-24V-96W is a constant voltage (CV) LED driver delivering a 24VDC output with a 96W rating. It is designed for 24V LED strip lights, LED tape and linear fixtures that run on a fixed voltage. Its higher capacity lets a single driver serve a long continuous run or several shorter strips, reducing the number of power points you need to plan in a ceiling, a cabinet or a display wall.

Residential or commercial dimming
This dimmable LED driver works with TRIAC dimmers, the phase-cut wall dimmers used in most homes, and with 0-10V dimming, the low-voltage control standard of commercial lighting systems. For contractors, that means one product for both a high-end condo and a corporate office. For homeowners, it means the freedom to use a familiar wall dimmer. Make sure the dimmer or controller you select is rated for LED loads, and keep all the strips on a given driver in the same zone so they dim together.

Installing a hardwire box driver
Because the driver comes in a hardwire box, it connects directly to the building's electrical supply instead of a wall outlet. That permanent connection is cleaner and more secure for built-in lighting. The Class 2 designation applies to the low-voltage output, which can make the wiring of the LED side simpler. Place the driver where it stays accessible and ventilated, such as above a removable ceiling tile, inside a service cabinet or in a mechanical room. Cut power at the breaker first, follow the supplied instructions and have a licensed electrician make the line-voltage connection where local codes require it.

Choosing the right capacity
Add the wattage of every LED strip and fixture you plan to connect, then keep a comfortable margin rather than running the driver at its limit. This 96W model is the right pick for long runs and bigger rooms. If your layout is more modest, the 60W version of this dimmable hardwire driver shares the same dimming options and enclosure. Splitting a very large project across several drivers also makes future maintenance easier.

Typical projects
Think cove lighting around a living room ceiling, under-cabinet and toe-kick lighting along a long kitchen, illuminated shelving in a boutique, back-bar lighting in a pub, or linear accents in a hotel lobby. In each case, this LED strip driver delivers steady power and smooth dimming from a single tidy box.
