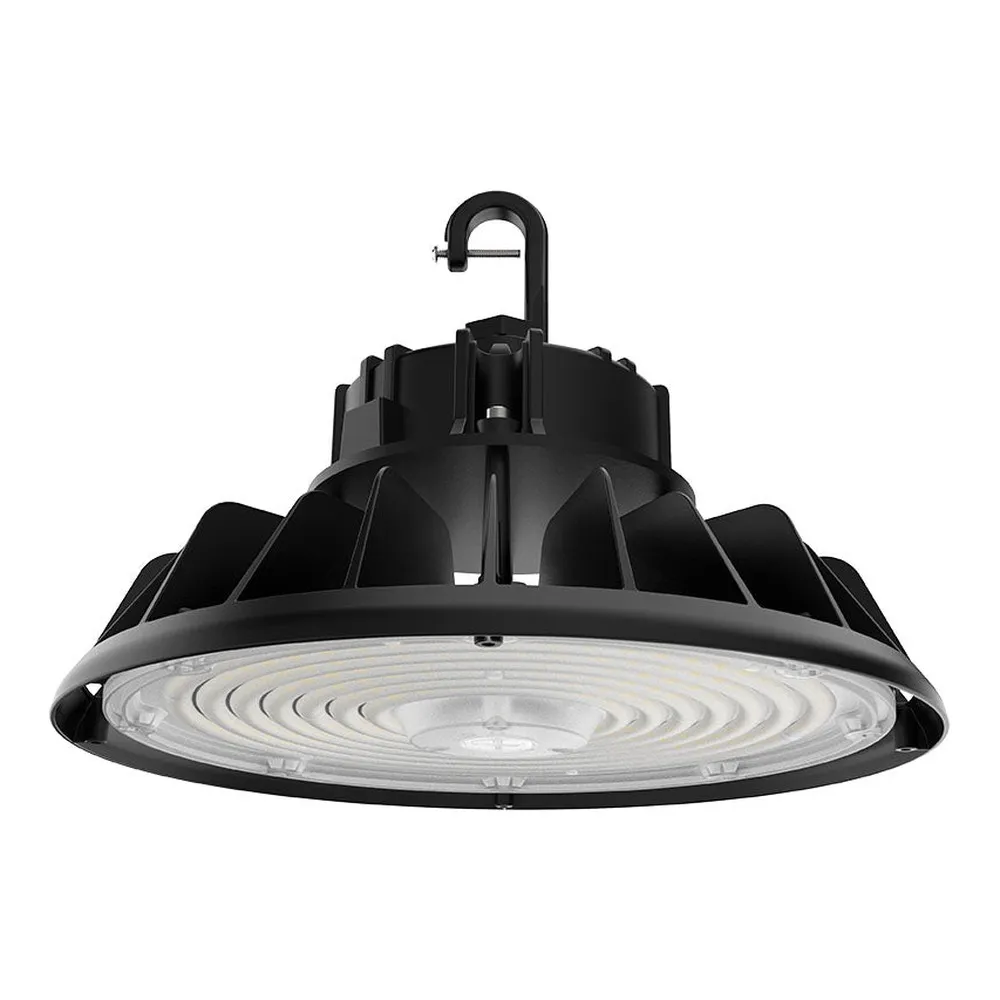

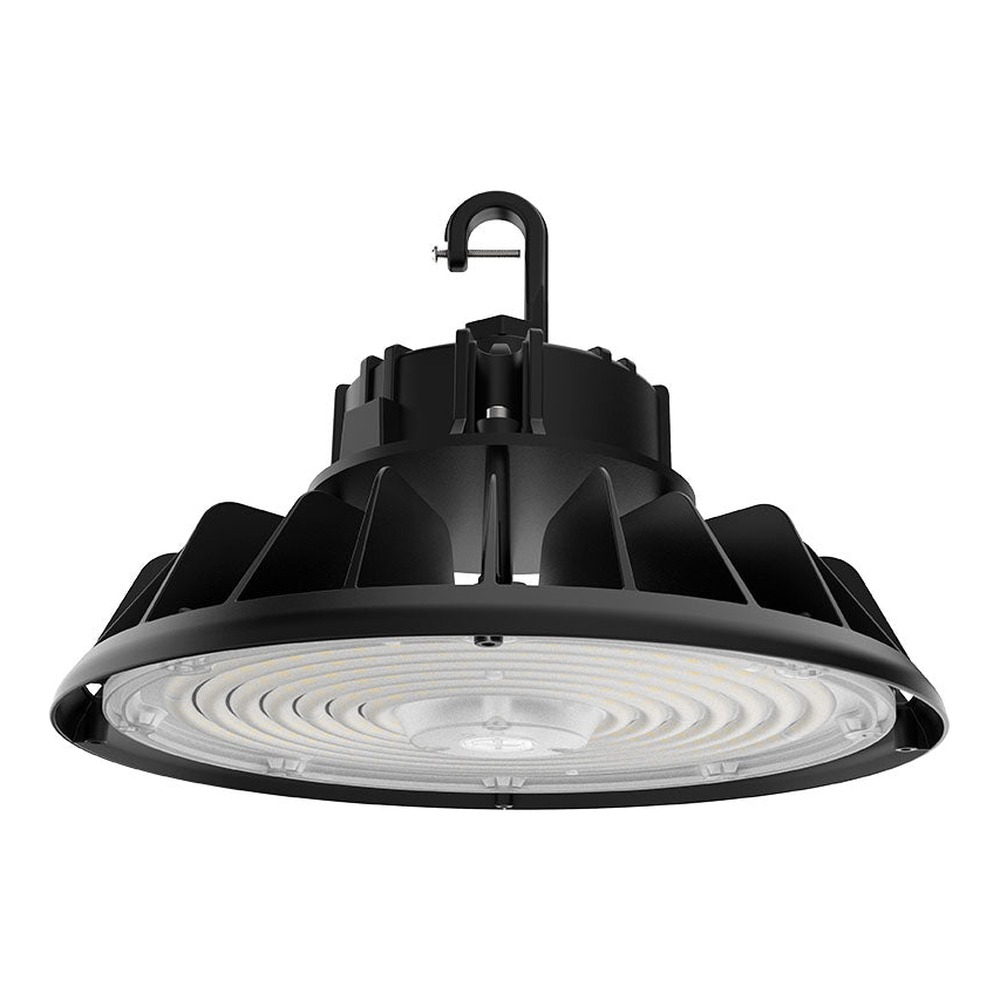

    UFO HIGHBAY 240-200-150W 120-347V 35-40-50K BLACK CLEAR 90 DEG. |DIM 0-10V
    UFO HIGHBAY 240-200-150W 120-347V 35-40-50K BLACK CLEAR 90 DEG. |DIM 0-10V

    UFO HIGHBAY 240-200-150W 120-347V 35-40-50K BLACK CLEAR 90 DEG. |DIM 0-10V

    SKU: HU90CBFC2400DV2

    Brand: SPECLITE

    Light up a whole warehouse bay with one fixture — and stop paying for light you never use. The SPECLITE UFO highbay (SKU HU90CBFC2400DV2) is the round LED high bay light people search for when they type "high bay lighting", "led high bay lights" or "round high bay led lights". Its disc-shaped die-cast body hangs from a chain, hook or rod over open floor space and floods it with clean, even light from above. This is the fixture for warehouses, shops, garages, arenas, barns, manufacturing floors and any ceiling over 15 ft, where the old metal halide or fluorescent gear is dim, slow to strike and expensive to keep alive. Switch it on and the whole floor is visible, instantly, with no warm-up.

    The numbers do the selling here. You get 36,154 lumens from a maximum real draw of 240 W, with selectable wattage of 240W, 200W and 150W so one fixture covers three different jobs. Colour temperature is selectable too — 3500K, 4000K and 5000K — and the CRI of 83 keeps labels, wiring colours and safety markings readable. It runs on 120-347V at 50/60Hz with a 97 % power factor, 10 % THD and 6KV surge protection with and without M.A.L.T. Dimming is 0-10V, the light output is flicker-free, and the L70 lumen maintenance is rated at 50,000 hrs. The housing is die-cast aluminium in a black finish with a frost polycarbonate lens, rated IP65 and IK08, operating from -40°C to 45°C. It carries cUL certification and DLC Premium listing (DLC ID S-Q405LZ), and a motion sensor receptacle is built in.

    Across Canada this is the workhorse for unheated warehouses, cold storage, loading docks, repair shops, arenas, indoor riding arenas and agricultural buildings — the -40°C rating means it starts in a January cold snap, and IP65 shrugs off dust and wash-down spray. The 90° beam angle throws light straight down onto the floor instead of into people's eyes, which is exactly what you want over aisles and racking. The 0-10V dimming lets you tie it into a building control system, and the occupancy and daylight sensor (configured with the universal Speclite remote) trims consumption when nobody is there. DLC Premium listing also means it is eligible for many utility incentive programs. Give your building the light it deserves — add this UFO high bay to your project list today.

    210.97$

    Built to take a beating
    The body is die-cast aluminium, which is what lets a fixture this powerful get rid of its heat without a fan or any moving part — the fins are the cooling system, and that is why the rated L70 lumen maintenance is 50,000 hrs. The lens is polycarbonate with a frost finish, so the LED dots disappear into a soft glowing surface instead of 336 hot spots. Sealing is IP65 against dust and water jets, impact resistance is IK08, and the finish is black. Operating temperature runs from -40°C to 45°C, so unheated shops, cold rooms and loading docks are fair game.

    Light quality and output
    Inside are 336 SMD 2835 LEDs producing 36,154 lumens. The CCT is selectable between 3500-4000-5000K: 3500K for a warmer showroom or retail feel, 4000K as the neutral all-purpose choice, 5000K for crisp task visibility on a production line. The CRI of 83 keeps colour-coded wiring, packaging labels and paint work honest. Output is flicker-free, which matters where people work long shifts or where cameras are recording. The 90 deg. clear optic is optimized for high ceilings (over 15 ft) and sends light straight to the floor while keeping glare out of workers' eyes; the photometric angle is listed at 110°.

    Technical specifications
    SKU: HU90CBFC2400DV2
    Lumens: 36,154
    Max real power: 240 W
    Selectable wattage: 240W, 200W, 150W
    CCT: 3500-4000-5000K
    CRI: 83
    Voltage: 120-347V
    Frequency: 50/60Hz
    Power factor: 97 %
    THD: 10 %
    Dimming: 0-10V
    LED type: SMD 2835
    LED quantity: 336
    LED voltage: DC 180-260V
    LED current: 1.2A
    Surge protection: 6KV with M.A.L.T. / 6KV without M.A.L.T.
    Ingress protection: IP65
    Impact resistance: IK08
    Housing: die casting aluminium, black
    Lens: polycarbonate, frost
    Operating temperature: -40°C ~ 45°C
    Installation: suspended
    Cable length: 150
    L70: 50,000 hrs
    Certifications: cUL, DLC Premium (DLC ID S-Q405LZ)

    Electrical, dimming and sensor
    The driver accepts anything from 120 to 347V, so the same fixture goes on a residential garage circuit or a commercial 347V panel without ordering a different model — handy on Canadian jobs where the service voltage is not confirmed until the electrician is on site. A 97 % power factor and 10 % THD keep the load clean, and 6KV surge protection guards against the spikes that kill cheap drivers. 0-10V dimming lets you pair the fixture with a wall dimmer, a panel or a building automation system, and the built-in motion sensor receptacle accepts the occupancy and daylight sensor, fully configurable with the universal Speclite remote so aisles drop to a low level when empty and come back up when a forklift rolls in. Installation is suspended — chain, hook, aircraft cable or threaded rod — and the fixture ships with a 150 cable length.

    Where it goes, and the paperwork
    Think warehouses and racked aisles, manufacturing floors, mechanical and body shops, fire halls, arenas and gyms, barns and machine sheds, self-storage buildings, big-box retail stockrooms and municipal garages. The selectable 240W, 200W and 150W settings let one model serve a tall warehouse and a lower shop bay on the same order, and the selectable CCT means you tune the look after the fixtures are hung. DLC Premium listing (DLC ID S-Q405LZ) opens the door to many provincial and utility rebate programs, and cUL certification satisfies the inspector. The full technical spec sheet for HU90CBFC2400DV2 is in the Documentation tab — download it for your submittal package, and reach out if you want help laying out spacing for your ceiling height.
