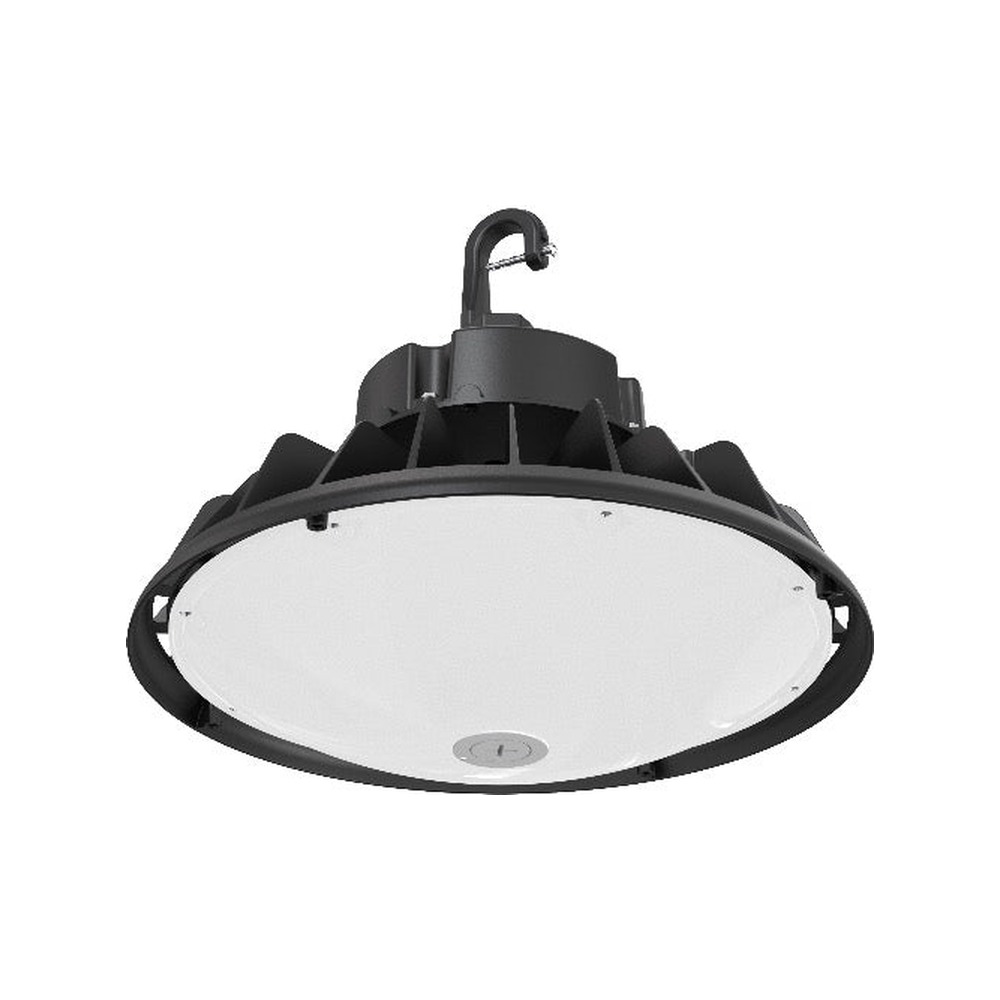

    UFO HIGHBAY DOME V2 240-200-150W 120-347V 50K BLACK FROST 90 DEG. MOTION BASE DIM 0-10V
    UFO HIGHBAY DOME V2 240-200-150W 120-347V 50K BLACK FROST 90 DEG. MOTION BASE DIM 0-10V

    UFO HIGHBAY DOME V2 240-200-150W 120-347V 50K BLACK FROST 90 DEG. MOTION BASE DIM 0-10V

    SKU: DU90FBF5240MDV2

    Brand: SPECLITE

    Bright, tough and ready to work — the UFO high bay that finally makes your ceiling disappear. The SPECLITE UFO HIGHBAY DOME V2 (SKU DU90FBF5240MDV2) is the round LED high bay light people look for when they type "led high bay lights", "round high bay led lights" or simply "high bay lighting". Its frosted anti-glare dome softens the source so you get a wide, comfortable wash of light instead of hot spots burning into your eyes every time you look up. Warehouses, garages, workshops, barns, arenas, distribution centres, manufacturing floors, car dealerships and big-box retail spaces are exactly where this fixture belongs. And because it comes with a motion sensor receptacle and 0-10V dimming, it is also the answer for anyone searching "120v motion sensor" or a way to stop lighting an empty aisle all night long.

    The numbers are serious: 36,579 lumens at a real maximum draw of 241.1 W, which works out to an efficiency of 151.72 lm/w — that is a lot of light for very little energy compared to old metal halide or halogen systems. It is a selectable multi-wattage model rated 240-200-150W, so you tune the output to the room, and it runs on a universal 120-347V input at 50/60Hz with a power factor of 97.2 % and T.H.D. of 5.9 %. Colour temperature is a crisp 5000K with CRI 80 and a 110° beam angle, flicker-free, built on 336 SMD 2835 LEDs. The die-cast aluminum body in black with a frost polycarbonate lens is rated IP65 and IK08, carries 6KV surge protection with and without M.A.L.T, operates from -40°C to 45°C, weighs 2.74 KG and delivers L70 lumen maintenance at 50,000 hrs. It is cUL listed and DLC Premium (DLC ID S-GKXP58).

    Recommended mounting height is 15 to 30 feet, suspended, with a 150 cable length — ideal for Canadian warehouses, cold shops and unheated garages where winter temperatures test lesser fixtures. Pair it with a motion sensor in the dedicated receptacle and a 0-10V dimmer to cut runtime in low-traffic zones, or dim whole rows for shift changes. Plan your layout, order your row of UFO domes and give your building the clean, even light it deserves.

    212.97$

    Built to take a beating
    The housing is die casting Aluminum finished in black, a choice that does two jobs at once: it pulls heat away from the 336 SMD 2835 diodes so the light output stays stable year after year, and it shrugs off the knocks of a busy industrial ceiling. The lens is polycarbonate with a frost finish, which is what creates the signature anti-glare dome look — the light source is diffused rather than exposed, so workers on a forklift or a mezzanine are not staring into raw LED dies. The fixture is rated IP65 against dust and water jets and IK08 for impact, weighs 2.74 KG, and operates from -40°C to 45°C.

    Light quality that people actually enjoy
    With 36,579 lumens at 5000K and a CRI of 80, this UFO LED high bay delivers the bright daylight feel that warehouses, shops and sports spaces are after. The 110° beam angle spreads light wide for the recommended 15 to 30 foot mounting heights, cutting the dark patches between racks. The fixture is flicker-free, which matters enormously in spaces with moving machinery and cameras, and L70 lumen maintenance is rated at 50,000 hrs.

    Technical specifications
    SKU: DU90FBF5240MDV2
    Lumens: 36,579
    CCT: 5000K
    Max power: 240-200-150W, real max 241.1 W
    Efficiency: 151.72 lm/w
    Voltage: 120-347V, 50/60HZ
    Beam angle: 110°
    C.R.I.: 80
    Dimming: 0-10V
    Sensor: Motion Sensor Receptacle
    LED type / qty: SMD 2835 / 336
    LED voltage / current: DC 180-260V / 1.2A
    Power factor: 97.2 %
    T.H.D: 5.9 %
    Surge protection: 6KV with and without M.A.L.T
    Ingress protection: IP65
    Impact resistance: IK08
    Housing: Die casting Aluminum, black
    Lens: Polycarbonate, frost
    Weight: 2.74 KG
    Operating temperature: -40°C ~ 45°C
    Installation: Suspended
    Cable length: 150
    L70: 50,000 hrs
    Certifications: cUL, DLC Premium (DLC ID S-GKXP58)
    UPC: 882110008721

    Electrical, controls and installation
    The universal 120-347V driver means one fixture covers a residential-style supply, a commercial feed or an industrial panel — handy when a single contractor is quoting several buildings. LED voltage is DC 180-260V at 1.2A, power factor 97.2 % and T.H.D 5.9 %, with 6KV surge protection with and without M.A.L.T to ride out the spikes common on industrial services. Mounting is suspended, with a 150 cable length, at a recommended height of 15 to 30 feet. The dedicated Motion Sensor Receptacle accepts an occupancy sensor so aisles light up on demand, and 0-10V dimming lets you tie rows into a control system, dim for shift changes, or hold a low level as a safety base. Always have the final connection done by a licensed electrician according to the Canadian Electrical Code.

    Where it earns its keep — and documentation
    Think distribution centres and racking aisles, manufacturing and welding shops, mechanic bays and fleet garages, agricultural buildings and barns, arenas and gymnasiums, big-box retail, grow spaces and municipal garages. With its IP65 rating and -40°C to 45°C range, it handles unheated Canadian warehouses, loading docks and cold storage areas where fluorescent tubes struggle in winter. Its DLC Premium listing (DLC ID S-GKXP58) also makes the project eligible for many utility rebate programs, which is worth checking before you buy. The full technical spec sheet (FICHE TECHNIQUE DU90FBF5240MDV2) is available in the Documentation tab for your submittals, layouts and inspection files.
