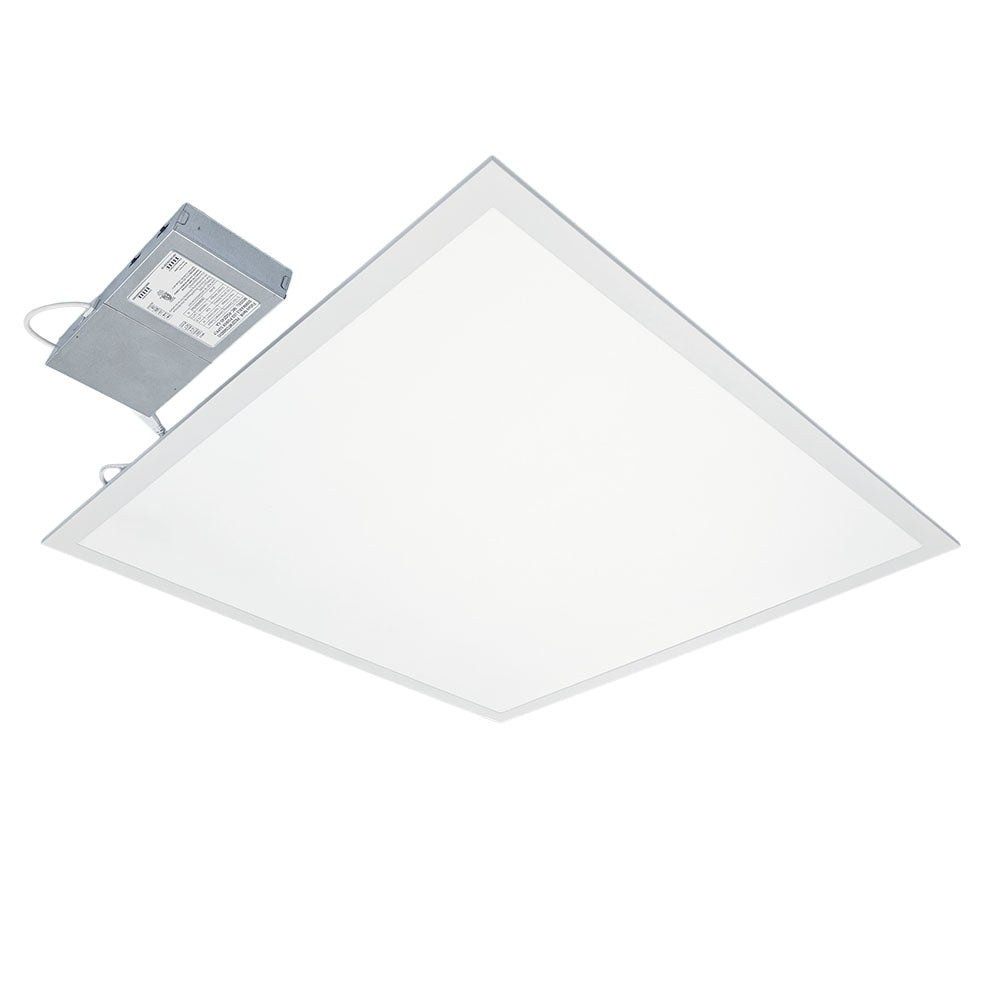

    [2PK] PANEL LIGHT 2X2' 40-30-25-20-15W 120-347V 30-40-50-57-65K WHITE FROST DIM 0-10V - PB22FWFC0400DV2
    [2PK] PANEL LIGHT 2X2' 40-30-25-20-15W 120-347V 30-40-50-57-65K WHITE FROST DIM 0-10V - PB22FWFC0400DV2

    [2PK] PANEL LIGHT 2X2' 40-30-25-20-15W 120-347V 30-40-50-57-65K WHITE FROST DIM 0-10V - PB22FWFC0400DV2

    SKU: PB22FWFC0400DV2

    Brand: SPECLITE

    Bright, even ceiling light without the glare — that is what a good LED panel light delivers, and the SPECLITE PB22FWFC0400DV2 does it in the most popular format of all. Sold as a 2-pack, this 2x2 LED panel (also called a flat panel, an LED ceiling panel or simply a drop-ceiling light) is built to slip straight into a suspended T-bar grid, or to be surface mounted or suspended when there is no grid at all. It is the go-to fixture for offices, classrooms, clinics, corridors, retail floors, basements and garages — anywhere you want clean, modern, uniform light from wall to wall instead of a patchwork of hot spots and shadows.

    Where this panel really earns its keep is flexibility. A built-in dip switch lets you choose the colour temperature on site among 3000K, 3500K, 4000K, 5000K, 5700K and 6500K, and select the power you need: 40, 30, 25, 20 or 15 W. Maximum real power is 40 W for 5,000 lumens at 125 lm/W, with a CRI of 80 and a 180° beam spread that fills the room. It runs on universal 120-347V input, dims smoothly with a 0-10V control down to 10 %, and is flicker-free — easy on the eyes for long workdays. The housing is steel in a white finish with a polycarbonate frost lens, weighs 3.00 kg, carries an IP40 rating, 2KV surge protection with ground (1KV without), operates from -25 °C to 50 °C, and is rated L70 at 50,000 hours. It is cETL certified and DLC Premium listed, which helps qualify your project for energy incentive programs.

    From a Montréal office retrofit to a small shop in the suburbs, this panel is a straightforward upgrade over old fluorescent troffers, and the removable driver means the drivers can be wired ahead on large jobs so the fixtures go up fast. An integrated circuit breaker and a tool-free openable design make service simple later on. Need other formats? SPECLITE panels also come in 1x4 and 2x4 to match the rest of your ceiling grid. Order SKU PB22FWFC0400DV2 and light up your space with a 2x2 flat panel that installs in minutes.

    163.97$

    Built for real job sites
    The PB22FWFC0400DV2 is a 2x2' LED flat panel with a steel housing finished in white and a polycarbonate lens with a frost finish that diffuses the light evenly across the whole face. The fixture weighs 3.00 kg, which keeps handling on a ladder manageable, and its tool-free openable design means you can get inside without hunting for a screwdriver. An integrated circuit breaker is built in to make maintenance and troubleshooting easier down the road, and the driver is removable — on larger projects the drivers can be pre-wired so a junior electrician simply connects the fixtures, cutting installation time and labour costs.

    Light quality you can live under
    Inside are 96 SMD 2835 LEDs producing 5,000 lumens at an efficiency of 125 lm/W, spread through a 180° beam angle so ceilings and walls stay bright instead of leaving dark corners. The CRI of 80 renders colours naturally for offices, retail and healthcare spaces, and the output is flicker-free, which matters in rooms where people work or study all day. The dip switch selects six colour temperatures — 3000K, 3500K, 4000K, 5000K, 5700K and 6500K — so you can go warm and welcoming in a waiting room or crisp and neutral in a workshop, all from the same box.

    Electrical and installation details
    Universal 120-347V input at 50/60Hz covers residential, commercial and light industrial panels alike. LED voltage is 25-52V at 850mA, power factor is 90 % and THD is 15 %. Surge protection is rated 2KV with ground and 1KV without. 0-10V dimming lets you adjust brightness down to 10 % for occupancy-based or daylight-harvesting control schemes. The panel can be installed recessed in a T-bar grid, surface mounted or suspended, and the selectable power levels (40, 30, 25, 20, 15 W, with a maximum real power of 40 W) let you tune output fixture by fixture instead of stocking multiple models.

    Technical specifications
    Model: PB22FWFC0400DV2
    Size: 2x2'
    Max real power: 40 W
    Selectable power: 40-30-25-20-15W
    CCT: 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
    CRI: 80
    Beam angle: 180°
    Efficiency: 125 lm/w
    Voltage: 120-347V
    Dimming: 0-10V
    LED type: SMD 2835, 96 LEDs
    Housing: Steel, white finish
    Lens: Polycarbonate, frost
    Ingress protection: IP40
    Operating temperature: -25°C ~ 50°C
    Weight: 3.00 KG
    Lumen maintenance: L70 50,000 hrs
    Certifications: cETL, DLC Premium
    Quantity: 2-pack

    Applications and documentation
    Think open-plan offices and meeting rooms, school classrooms, dental and medical clinics, corridors and stairwells, condo lobbies, retail sales floors, back-of-house storage, finished basements and home offices — anywhere a suspended ceiling calls for a clean 2x2 panel light. With an operating range from -25 °C to 50 °C and IP40 protection, it also suits cooler indoor spaces such as unheated entryways and service corridors, while the DLC Premium listing supports rebate applications on Canadian retrofit projects. The full technical PDF for PB22FWFC0400DV2 is available in the Documentation tab of this page, with the photometric, electrical and mechanical data you need for your LED ceiling panel submittal.
