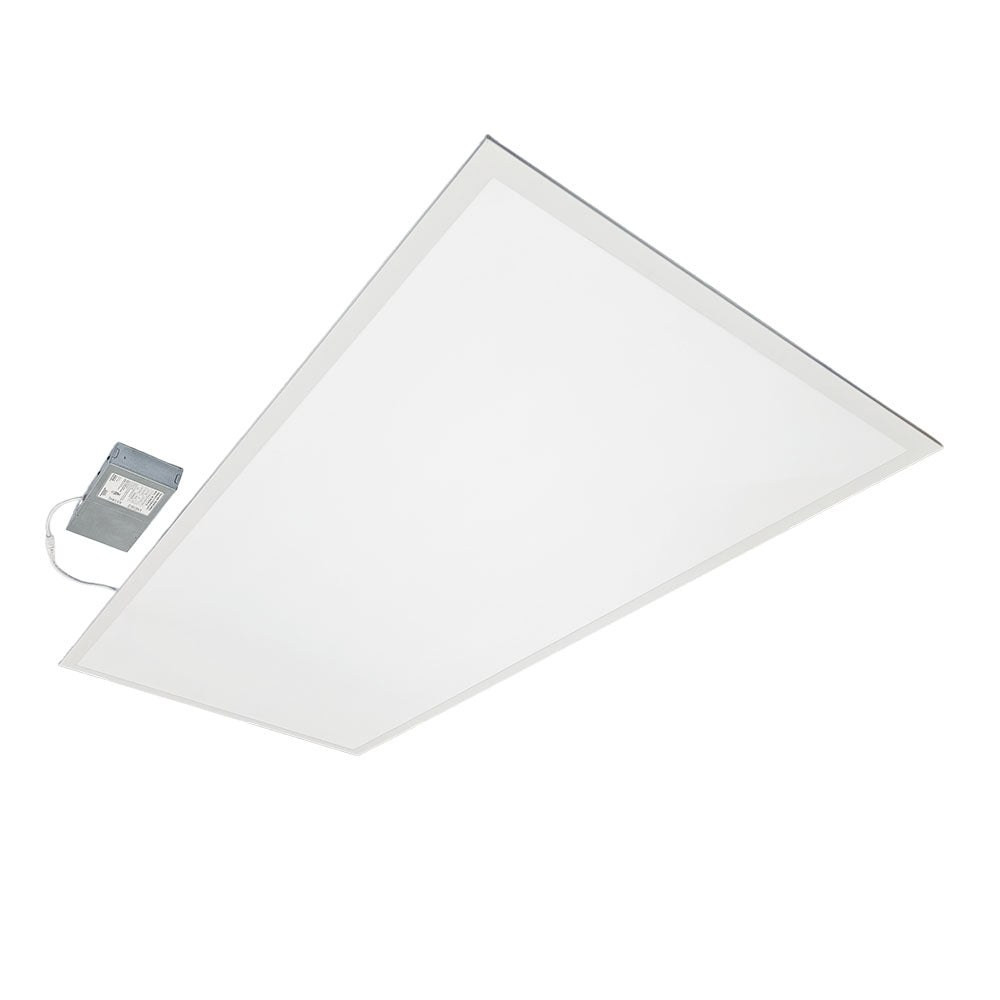

    PANEL LIGHT 2X4' FROST WHITE 120-347V 3000-4000-5000-5700-6500K 72-60-50-40-30W DIM 0-10V HL V2
    PANEL LIGHT 2X4' FROST WHITE 120-347V 3000-4000-5000-5700-6500K 72-60-50-40-30W DIM 0-10V HL V2

    PANEL LIGHT 2X4' FROST WHITE 120-347V 3000-4000-5000-5700-6500K 72-60-50-40-30W DIM 0-10V HL V2

    SKU: PB24FWFC0720DV2

    Brand: SPECLITE

    Say goodbye to tired, flickering fluorescent troffers. The SPECLITE 2x4 LED panel light — also called a LED flat panel, LED ceiling panel or drop-ceiling troffer — drops straight into a standard suspended T-bar grid and fills the room with smooth, even, glare-controlled light from its frost white lens. It's the go-to fixture when you need to relight an office, a clinic, a classroom, a retail floor or a basement renovation quickly, cleanly and without surprises. One SKU, five colour temperatures, five wattages: you decide what the space needs while you're standing on the ladder.

    This is a genuinely flexible fixture. An integrated dip switch selects 5 colour temperatures — 3000K, 4000K, 5000K, 5700K and 6500K — and 5 power levels of 72, 60, 50, 40 and 30 W, with a maximum real draw of 72 W delivering up to 9,000 lumens at 125 lm/W. Universal 120-347V input covers residential and commercial services alike, and 0-10V dimming takes the light down to 10% for real energy control. Add a CRI of 80, a 180° beam, flicker-free SMD 2835 LEDs (168 of them), a 90% power factor, 15% THD, surge protection of 2KV with ground and 1KV without, an IP40 rating and an operating range of -25°C to 50°C. The steel housing in white finish with polycarbonate frost lens weighs 6.00 KG, carries a removable driver plus an integrated circuit breaker, and is rated L70 at 50,000 hrs. Certifications: cETL and DLC Premium (DLC ID S-1P2NR5). Model PB24FWFC0720DV2.

    It shines in offices, corridors, retail stores, garages, workshops, classrooms, medical and dental clinics, warehouses with low ceilings, and finished basements across Canada. Installation is recessed in a T-bar grid, surface mount on drywall or concrete, or suspended by cables, so the same panel works in a renovated bungalow and a strip-mall unit. The removable driver lets you pre-wire on big jobs and hand the hook-up to a junior electrician, and DLC Premium listing keeps the project eligible for utility rebate programs. Pick your colour, pick your wattage, and light the room right the first time.

    249.97$

    Built to install fast and last
    The SPECLITE panel is built around a steel housing in a clean white finish, closed by a polycarbonate lens with a frost finish that diffuses the diodes into one soft, uniform sheet of light instead of visible dots. The supplier describes a lightweight, corrosion-resistant design that opens tool-free for quick access, and an integrated circuit breaker that makes maintenance simpler once the fixture is in the ceiling. At 6.00 KG, a single installer can lift it into a T-bar grid, and the operating range of -25°C to 50°C means it keeps working in an unheated garage, a cold entry vestibule or a warm mechanical room.

    Light quality you can tune on site
    Instead of stocking five versions of the same 2x4 LED flat panel, you carry one. The dip switch selects 3000K for a warm residential feel, 4000K for offices and corridors, 5000K, 5700K or 6500K for shops, garages and task-heavy areas — and separately selects 72, 60, 50, 40 or 30 W. At full output the panel produces 9,000 lumens at an efficiency of 125 lm/W, with a CRI of 80 for natural, believable colour on skin, merchandise and paperwork. The 180° beam spreads light corner to corner, and the flicker-free SMD 2835 LED board (168 LEDs) is easier on the eyes over a full workday and friendlier to cameras in retail and security applications.

    Technical specifications
    Model: PB24FWFC0720DV2
    Size: 2x4'
    Lumens: 9,000
    CCT: 3000/4000/5000/5700/6500K
    Max real power: 72 W (72-60-50-40-30W)
    Efficiency: 125 lm/w
    CRI: 80
    Beam angle: 180°
    Voltage: 120-347V
    Dimming: 0-10V
    Power factor: 90 %
    THD: 15 %
    Frequency: 50/60HZ
    LED type: SMD 2835, 168 LEDs, 25-52VDC, 1500mA
    Surge protection: 2KV with ground / 1KV without ground
    Ingress protection: IP40
    Housing: Steel, white finish
    Lens: Polycarbonate, frost
    Weight: 6.00 KG
    Operating temperature: -25°C ~ 50°C
    Installation: Recessed, Surface Mount, Suspended
    Lumen maintenance: L70 50,000 hrs
    Certifications: cETL, DLC Premium (DLC ID S-1P2NR5)

    Electrical and installation notes
    The 120-347V universal driver removes the guesswork on commercial jobs: the same panel goes on a 120V residential circuit or a 347V commercial service, which simplifies ordering on multi-building projects. The driver is removable, so on large installs the drivers can be wired ahead of time and the fixtures simply connected afterward — a real saving in labour hours. For dimming, run a low-voltage 0-10V control pair to a compatible dimmer or lighting control system; output can be brought down to 10%. Mount it recessed in a standard suspended ceiling grid, surface-mounted against drywall or concrete where there is no plenum, or suspended on cables over open-ceiling spaces. Respect the IP40 rating: this is an indoor, dry and protected-location fixture, not an outdoor or wash-down product.

    Where it earns its keep, and documentation
    Think open-plan offices and meeting rooms, school and daycare corridors, dental and medical clinics, pharmacies, convenience stores and boutiques, church halls, condo common areas, auto shops and low-ceiling warehouses, plus finished basements and home workshops. Because it is DLC Premium listed, the project can qualify for utility efficiency incentive programs across Canada, an argument that often closes a retrofit quote on its own. The full technical spec sheet (PDF) for PB24FWFC0720DV2 is available in the Documentation tab of this page, with the photometric, electrical, mechanical and packaging data you need for your submittal package.
