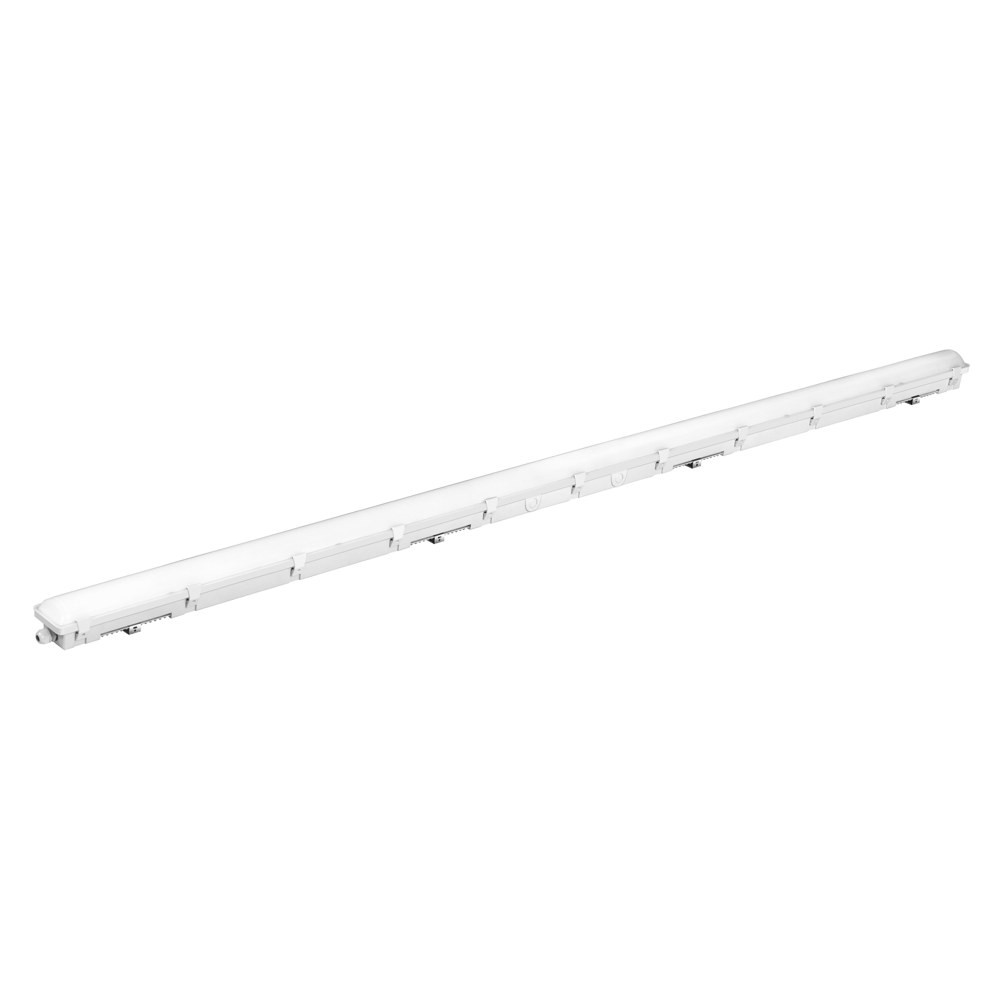

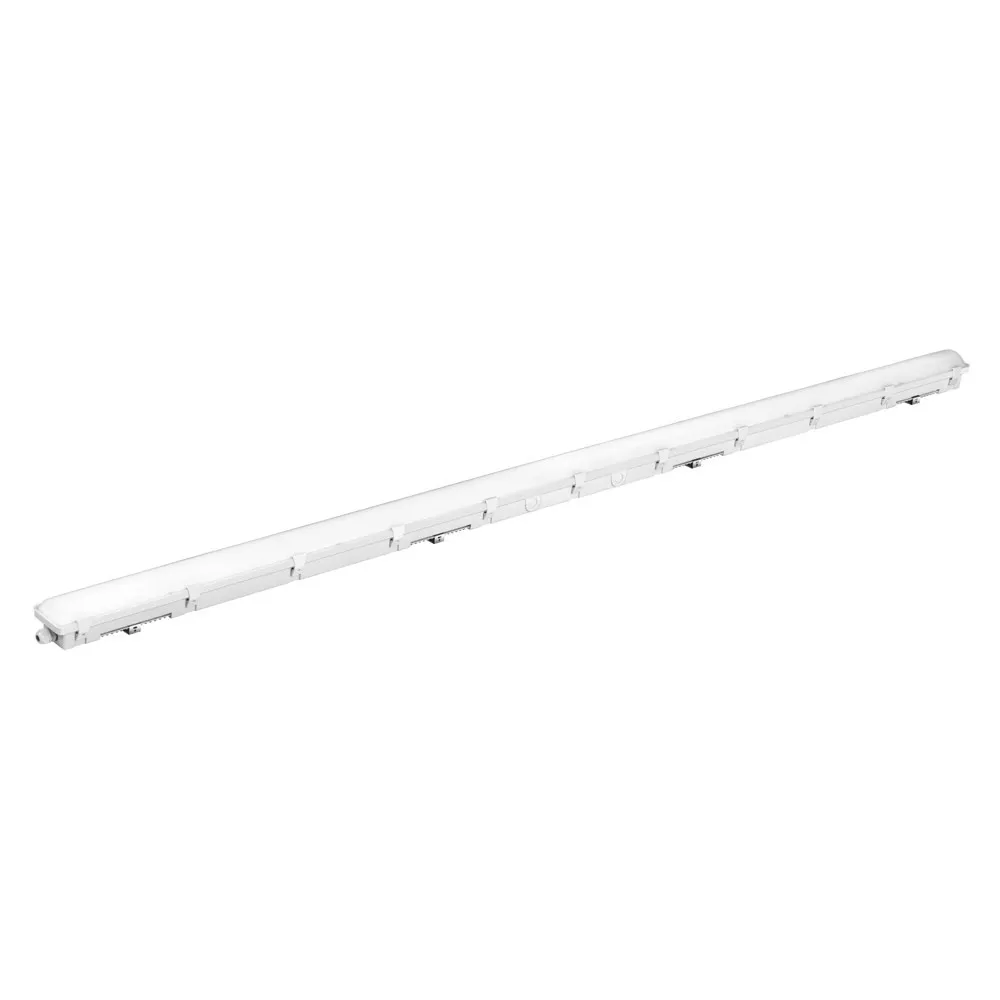

VAPOR TIGHT 8FT FROST WHITE 120-347V 3000 - 3500-4000-5000-6500K 95-89-82-75-68W 12VDC DIM 0-10V JY

Name: VAPOR TIGHT 8FT FROST WHITE 120-347V 3000 - 3500-4000-5000-6500K 95-89-82-75-68W 12VDC DIM 0-10V JY
Brand: SPECLITE
SKU: VT08FWFC0950DJY
Price: 243.97 CAD
Availability: InStock

SKU: VT08FWFC0950DJY

Brand: SPECLITE

Water, steam, dust and wash-downs are brutal on ordinary fixtures — this is the one that shrugs them off. The SPECLITE vapor tight LED light fixture in the 8 ft format is the sealed, surface-mount workhorse people search for as a vapor tight light fixture, wet location strip light, barn light or 8ft LED light fixture. Built for agricultural buildings, barns, greenhouses, car washes, parking garages, food processing rooms, cold rooms, warehouses and any space where humidity and spray are part of daily life, it replaces old fluorescent strips with clean, even linear LED lighting from end to end.

This model, SKU VT08FWFC0950DJY, is rated IP66 and NEMA 4X against water and steam, with an IK08 impact rating, a polycarbonate body in white and a frost polycarbonate lens that softens glare over the full 8 ft run. It is a 5CCT selectable fixture — 3000K, 3500K, 4000K, 5000K or 6500K — and a multi-wattage unit at 95, 89, 82, 75 or 68W, delivering 15,608 lumens at a maximum real power of 95 W, for an efficiency of 113.68 lm/W. The 110° beam angle spreads light wide, the 84 CRI keeps colours readable, and universal 120-347V input at 50/60Hz makes it easy to drop into residential, commercial or industrial panels. Add 0-10V dimming down to 10%, a 94% power factor, 12.8% THD, a motion sensor receptacle, cUL listing, DLC Premium certification (DLC ID S-S6YPR7) and 50,000 hrs of L70 lumen maintenance.

From a Québec dairy barn to a Prairie machine shed, a municipal garage, a warehouse aisle or a commercial kitchen, this fixture handles Canadian conditions with an operating range of -20°C ~ 45°C. Installation is surface mount, with three wide bracket positions and an integrated suspension cable in the lens, plus a pre-assembled diode insert that keeps maintenance quick. Its DLC Premium listing helps you qualify for utility incentive programs. Check the technical PDF in the Documentation tab, then light up your next wet-location project with confidence.

Built to take a beating
The housing and the lens are both polycarbonate — a white body with a frost lens finish — so there is no metal to rust in a wash-down bay or a humid barn. The IP66 rating plus NEMA 4X construction seals the fixture against dust, water jets and steam, while the IK08 impact rating protects it where ladders, hoses and equipment come close. At 3.80 KG, this 8 ft vapor tight LED fixture stays light enough for one installer to handle on a lift, and the pre-assembled diode insert means the light engine can be serviced without dismantling the whole run.

Light quality you can work under
Inside, 736 SMD 2835 diodes spread light through a frost lens at a 110° beam angle, so you get a smooth wash instead of hot spots down an aisle. The 5CCT selectable feature gives you five colour temperatures — 3000K, 3500K, 4000K, 5000K and 6500K — so warm light suits a workshop or covered patio and cooler light sharpens inspection tasks, sorting lines and parking areas. With a C.R.I. of 84, labels, wiring colours and produce all read correctly. Note that the fixture is not flicker-free, which is worth knowing for camera-heavy environments.

Technical specifications
Brand: SPECLITE
SKU: VT08FWFC0950DJY
Length: 8ft
Max real power: 95 W
Wattage selection: 95-89-82-75-68W
Efficiency: 113.68 lm/w
CCT: 5CCT (3000K/3500K/4000K/5000K/6500K)
C.R.I.: 84
Beam angle: 110°
Voltage: 120-347V
Frequency: 50/60Hz
Power factor: 94 %
T.H.D: 12.8 %
LED type: SMD 2835
LED qty: 736
LED voltage: 50V-60V
LED current: 700mA
Dimming: 0-10V
Lumen maintenance L70: 50,000 hrs
Housing / lens material: Polycarbonate
Housing finish: White
Lens finish: Frost
Weight: 3.80 KG
Operating temperature: -20°C ~ 45°C
Installation: Surface Mount
Sealing: IP66
Impact resistance: IK08
Electrical: cUL
Efficiency listing: DLC Premium — DLC ID S-S6YPR7
UPC: 882110008820

Electrical and installation details
Universal 120-347V input at 50/60Hz lets the same fixture serve a 120V residential garage, a 347V commercial building or a 347V industrial panel — handy when one building mixes services. The 94 % power factor and 12.8 % T.H.D keep the load clean on shared circuits. 0-10V dimming down to 10% pairs it with standard low-voltage dimmers and building controls, and the motion sensor receptacle lets you add occupancy control in storage rooms, garages and back corridors where lights run all night for nothing. Mounting is surface mount using the three wide bracket positions, or suspended with the integrated suspension cable in the lens — choose whichever suits your joists, deck or ceiling grid. Always confirm gasket seating and proper cable entry so the IP66 seal stays intact.

Where it earns its keep — and what's in the Documentation tab
Dairy and poultry barns, greenhouses, machine sheds, car washes, loading docks, cold storage, food and beverage plants, municipal garages and warehouse aisles all benefit from a sealed 8 ft linear luminaire instead of a fluorescent strip. In an 8 ft ceiling shop, a row of these turns a dim space into a clean work area; in a parking garage, the 110° spread reduces dark gaps between rows. The -20°C ~ 45°C operating range covers unheated Canadian buildings through most of the season, and the DLC Premium listing with DLC ID S-S6YPR7 supports utility rebate applications. The full technical PDF (FICHE TECHNIQUE VT08FWFC0950DJY) is available in the Documentation tab with the complete photometric, electrical and mechanical data for VT08FWFC0950DJY.

Technical Files
