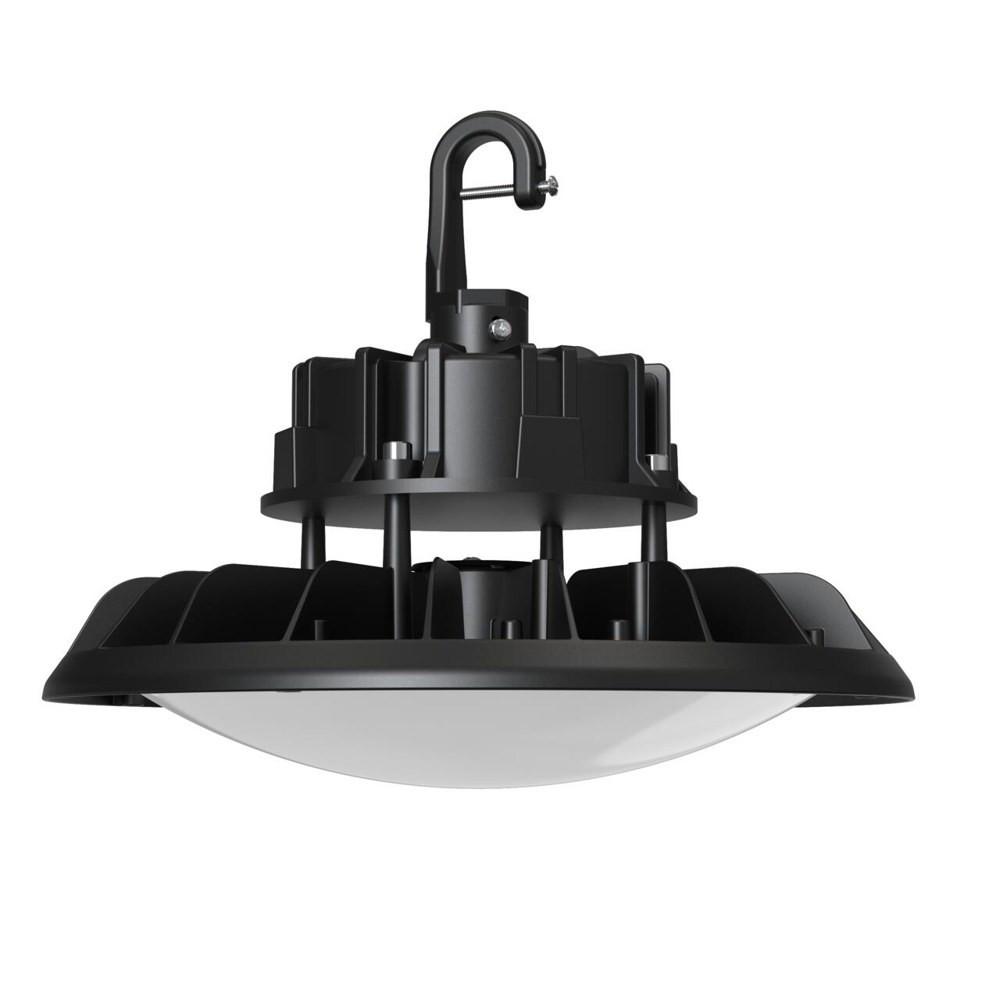

    UFO HIGHBAY DOME V2 150-100-80W 120-347V 35-40-50K BLACK FROST 90 DEG. DIM 0-10V
    UFO HIGHBAY DOME V2 150-100-80W 120-347V 35-40-50K BLACK FROST 90 DEG. DIM 0-10V

    UFO HIGHBAY DOME V2 150-100-80W 120-347V 35-40-50K BLACK FROST 90 DEG. DIM 0-10V

    SKU: DU90FBFC1500DV2

    Brand: SPECLITE

    Big ceilings deserve big light — and the SPECLITE UFO HIGHBAY DOME V2 delivers it without the glare that makes workers squint. This is the round UFO high bay LED that people look for when they type "high bay lighting", "led high bay lights canada" or "round high bay led lights": a compact dome-shaped fixture, suspended over your floor, that floods aisles, work zones and bays with clean, even white light. Its anti-glare dome softens the output so you get comfortable visibility instead of hot spots, while the frosted lens keeps the brightness looking smooth from every angle. Warehouses, garages, workshops, storage buildings, arenas, agricultural barns and big-box retail floors are its natural home. SKU: DU90FBFC1500DV2.

    Under the hood, this is a serious piece of equipment. It puts out 18,000 lumens at a real maximum power of 150 W, for an efficiency of 120 lm/w — that's a lot of light for the energy you pay for, and up to 80% less consumption than the old metal halide and halogen gear it replaces. The colour temperature is field selectable between 3500K, 4000K and 5000K, so one fixture covers warm-neutral shop light right through to crisp daylight white, with a CRI of 80 for honest colour on labels, wiring and inventory. It runs on 120-347V at 50/60Hz with a 90% power factor, 20% THD and 6KV surge protection, and it's 0-10V dimmable for lighting controls or daylight harvesting. The die-cast aluminium body carries an IP65 and IK08 rating, the polycarbonate lens is frost finish, the housing is black, and it's rated L70 at 50,000 hrs of lumen maintenance. It is flicker-free, cUL listed and DLC Premium (DLC ID S-RPXFQ4).

    Built for Canadian reality: the operating range of -40°C ~ 45°C means unheated warehouses, cold storage docks and drafty farm buildings are no problem, and the 120-347V input drops straight onto the three-phase services common in Québec and Ontario industrial buildings. It's a suspended installation with a 150 cable, recommended for mounting heights between 15 and 30 feet, and at only 2.00 KG per unit a single installer on a lift can hang a row quickly. The 90 deg. beam angle concentrates light where tall racking needs it. Ready to trade flickering old fixtures for bright, rebate-friendly LED? Add the DU90FBFC1500DV2 to your project list today.

    183.97$

    Built to take a beating
    The housing is die casting Aluminium in a black finish, which does double duty: it looks sharp under a high ceiling and it pulls heat away from the LEDs so they keep their output year after year. The lens is polycarbonate with a frost finish — impact-friendly, and the frosting is what turns raw diode brightness into the soft, comfortable dome glow this fixture is known for. Sealing is rated IP65 against dust and water jets, and impact resistance is IK08, so dust-heavy warehouses, wash-down-adjacent areas and busy shops with forklift traffic are all fair game. The whole unit weighs just 2.00 KG, which makes the overhead work far less punishing than legacy fixtures.

    Light quality that people actually like
    Inside there are 336 SMD 2835 LEDs producing 18,000 lumens with a CRI of 80 — enough colour fidelity to read wire colours, match paint codes and spot damaged stock. The operation is Flicker-Free, which matters in any space with rotating machinery or cameras. The selectable colour temperature lets you choose between 3500K, 4000K and 5000K on the job, so you can standardize a whole building or match a neighbouring area without ordering a different part number. The anti-glare dome spreads light evenly across the floor instead of blasting it straight down, and the 90 deg. beam angle keeps that output concentrated where tall shelving and workstations need it.

    Technical specifications
    SKU: DU90FBFC1500DV2
    Brand: SPECLITE
    Lumens: 18,000
    Max real power: 150 W
    Efficiency: 120 lm/w
    CCT: 3500/4000/5000K
    CRI: 80
    Voltage: 120-347V
    Frequency: 50/60Hz
    Power factor: 90 %
    THD: 20 %
    Dimming: 0-10V
    Surge protection: 6KV
    LED type: SMD 2835
    LED quantity: 336
    LED voltage: DC 180-260V
    LED current: 0.6A
    Lumen maintenance: L70 50,000 hrs
    Ingress protection: IP65
    Impact rating: IK08
    Body: Die casting Aluminium, black
    Lens: Polycarbonate, frost
    Weight: 2.00 KG
    Operating temperature: -40°C ~ 45°C
    Installation: Suspended
    Cable length: 150
    Certifications: cUL, DLC Premium (DLC ID S-RPXFQ4)
    UPC: 882110008738

    Electrical and installation notes
    The multi-volt driver accepts 120-347V, so the same fixture works on a residential-style garage circuit or on the higher-voltage service you'll find in an industrial plant — no separate transformer shopping, no separate SKU per building. Power factor is 90 % and THD is 20 %, with 6KV surge protection both with and without M.A.L.T. grounding, which is reassuring on older or storm-exposed services. Dimming is 0-10V: run a low-voltage control pair to a dimmer, an occupancy sensor or a building management system and you can trim levels in daylit zones or during off-shift hours. Installation is suspended, with a 150 cable provided, and the recommended mounting height is 15 to 30 feet. This fixture ships without an integrated photocell or motion sensor, so plan external controls if you want automation.

    Where it earns its keep, and what to read
    Picture a distribution warehouse with racking down both sides of an aisle, a truck repair shop where techs need to see under a chassis, a municipal garage, a hockey arena storage wing, a dairy barn, a manufacturing cell, or a big retail backroom — all typical homes for an LED high bay like this one. Contractors like it for retrofits because the wide voltage range and DLC Premium listing simplify both wiring and utility incentive paperwork across Canadian provinces. Plan your layout around the 90 deg. beam and the mounting height for even coverage, and keep at least one spare on the shelf for a large installation. The full technical PDF (FICHE TECHNIQUE DU90FBFC1500DV2) is in the Documentation tab, with the photometric, electrical, mechanical and packaging data you'll need for your submittal package.
