[6PK] SLIM PANEL ILX 4" 9W 120V 27-30-35-40-50K WHITE FROST DIM TRIAC

Name: [6PK] SLIM PANEL ILX 4" 9W 120V 27-30-35-40-50K WHITE FROST DIM TRIAC
Brand: SPECLITE
SKU: ILX-SP-9W5CCTWL
Price: 93.97 CAD
Availability: InStock

SKU: ILX-SP-9W5CCTWL

Brand: SPECLITE

Say goodbye to bulky housings and hello to a clean ceiling: the SPECLITE slim panel 4" is the ultra-thin recessed light that installs in minutes and looks like it was always meant to be there. Sold in a practical 6-pack, this little workhorse goes by many names — LED panel light, slim pot light, LED ceiling panel, recessed LED downlight, luminaire mince — and it answers the very common search for dimmable LED downlights that are simple, discreet and ready for real-world renovation work. Whether you are redoing a hallway, adding kitchen downlights, brightening a basement, a bedroom or a small shop, this flat panel gives you soft, even light without the deep can and without the drama.

Under the hood, it delivers 750 lumens from a maximum real power of 9W at 120V (50/60Hz), for an efficiency of 83.33 lm/w and a power factor of 95%. The built-in dip switch lets you pick from 5 selectable colour temperatures — 2700K, 3000K, 3500K, 4000K and 5000K — so one product covers a cozy warm living room and a crisp white laundry room. A CRI of 80 and a 180° beam angle spread light broadly, while the frost PMMA lens and flicker-free SMD2835 LEDs (48 of them, 24V, 320mA) keep glare and eye strain down. It is TRIAC dimmable, compatible with most residential dimmers, rated IP40, built with an aluminum body in a white finish, weighs 0.35 kg, operates from -25°C to 40°C, and is rated L70 at 50,000 hrs. Certifications: cETL and Energy Star.

This is the panel you reach for in condos, rental units, basements, closets, corridors, bedrooms, offices, clinics and small retail spaces — anywhere a shallow ceiling cavity rules out a traditional housing. Canadian renovators love the -25°C to 40°C operating range for cooler spaces like unheated entryways, and contractors love buying six at a time to finish a whole floor in one trip. Recessed installation, TRIAC dimming and five colour temperatures in one box mean fewer SKUs on the truck and fewer callbacks. Grab the 6-pack of SKU ILX-SP-9W5CCTWL and give your ceiling the clean, modern glow it deserves.

Slim by design, solid where it counts

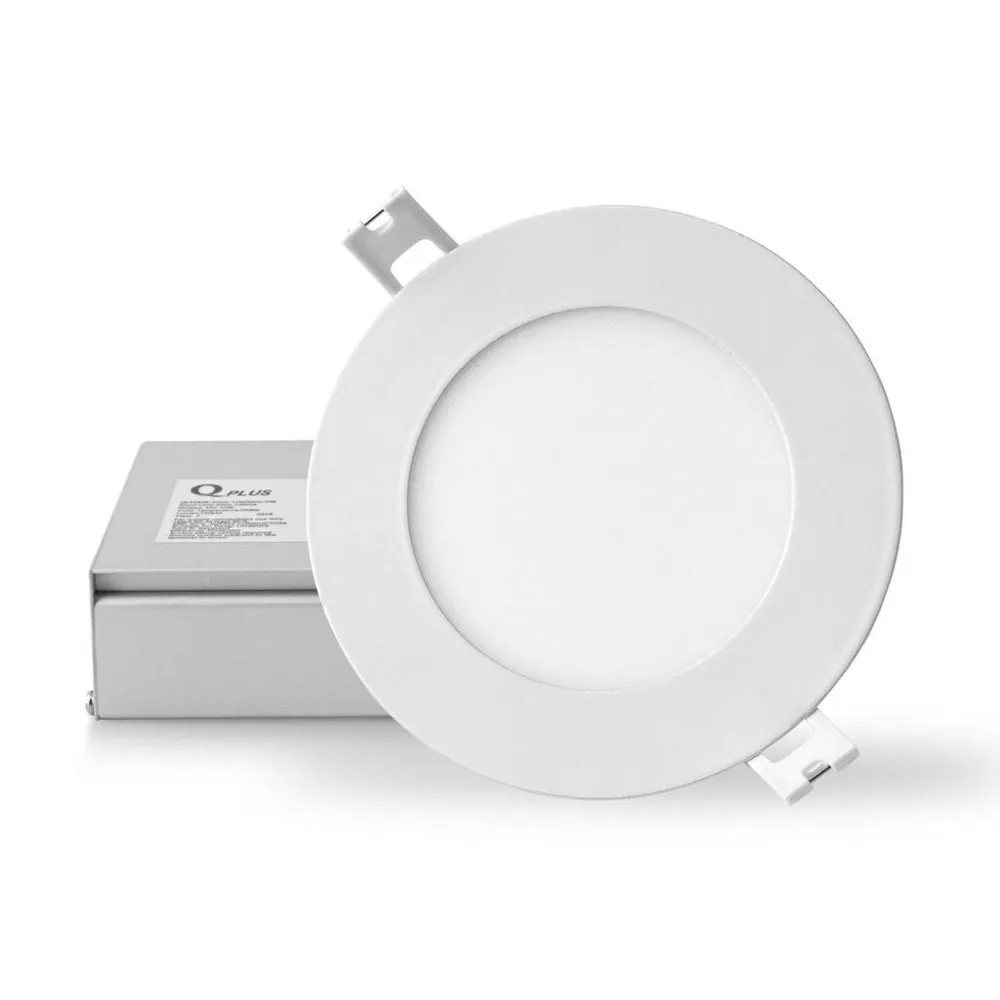

The SPECLITE 4" slim panel is built around an aluminum luminaire body in a white finish, topped with a PMMA lens in a frost finish. That combination is what gives the fixture its signature look: a flush, minimalist disc that disappears into the ceiling plane instead of competing with it. Aluminum helps carry heat away from the diodes, and the frost lens diffuses the output so you see a glowing surface rather than hot spots. At only 0.35 kg, the fixture is easy to hold overhead with one hand while you make your connections — a small detail that matters a lot when you are doing a dozen openings in a day. Installation type is recessed, and the slim profile is designed for spaces where a deep can simply will not fit.

Light quality you can actually feel
The panel produces 750 lumens with a wide 180° beam angle, which is exactly what you want for general ambient lighting: broad, washing coverage instead of narrow pools. A CRI of 80 keeps skin tones, wood floors and paint colours looking natural. Forty-eight SMD2835 diodes running at 24V and 320mA are driven to be flicker-free, which is a real comfort win in home offices, bedrooms and anywhere people work on screens. The integrated dip switch gives you 5 selectable colour temperatures — 2700K, 3000K, 3500K, 4000K and 5000K — set before installation, so the same box of six can serve a warm 2700K den and a 4000K kitchen in the same house.

Electrical, dimming and installation
The fixture runs on 120V at 50/60Hz with a maximum real power of 9W, an efficiency of 83.33 lm/w, a power factor of 95% and T.H.D. of 25%. It is TRIAC dimmable and compatible with most residential dimmers — always confirm the dimmer's minimum load and, when you group several panels on one circuit, test the low end of the dial before closing the ceiling. Set the CCT dip switch first, make your line connections, then spring the fixture into the opening. Rated IP40, it is intended for dry and protected indoor locations, and the operating temperature range of -25°C to 40°C suits chilly Canadian entryways, three-season rooms and unheated storage areas.

Technical specifications
SKU: ILX-SP-9W5CCTWL
Brand: SPECLITE
Package: 6-pack
Lumens: 750
Max real power: 9W
Voltage: 120V
Frequency: 50/60Hz
Efficiency: 83.33 lm/w
Power factor: 95%
T.H.D.: 25%
CCT: 2700K / 3000K / 3500K / 4000K / 5000K (dip switch)
CRI: 80
Beam angle: 180°
Dimming: TRIAC
LED type: SMD2835, qty 48, 24V, 320mA
Flicker: Flicker-Free
L70 lumen maintenance: 50,000 hrs
Ingress protection: IP40
Fixture material / finish: Aluminum / White
Lens material / finish: PMMA / Frost
Weight: 0.35 KG
Operating temperature: -25°C ~ 40°C
Installation: Recessed
Certifications: cETL, Energy Star
UPC: 673082013994
Unit box: 13.00 cm X 13.00 cm X 7.00 cm, 0.50 kg

Where it works and what's in the Documentation tab
Think condo corridors and closets, basement finishing projects, stairwells, bedrooms and laundry rooms, plus light commercial work: an esthetics clinic reception, a boutique fitting area, a small office or a café back-of-house. Because it is a slim recessed LED panel rather than a deep can, it is a favourite for retrofits where joists, ducts or insulation eat up the plenum, and for suspended-ceiling-adjacent gypsum bulkheads. Laid out on a grid, six panels light a typical room evenly; run them on a single TRIAC dimmer and you get everything from full-brightness task light to a soft evening scene. For layouts, submittals and inspection files, the full technical PDF (FICHE TECHNIQUE ILX-SP-9W5CCTWL) is available in the Documentation tab of this page, with the complete photometric, electrical, mechanical and packaging data.
