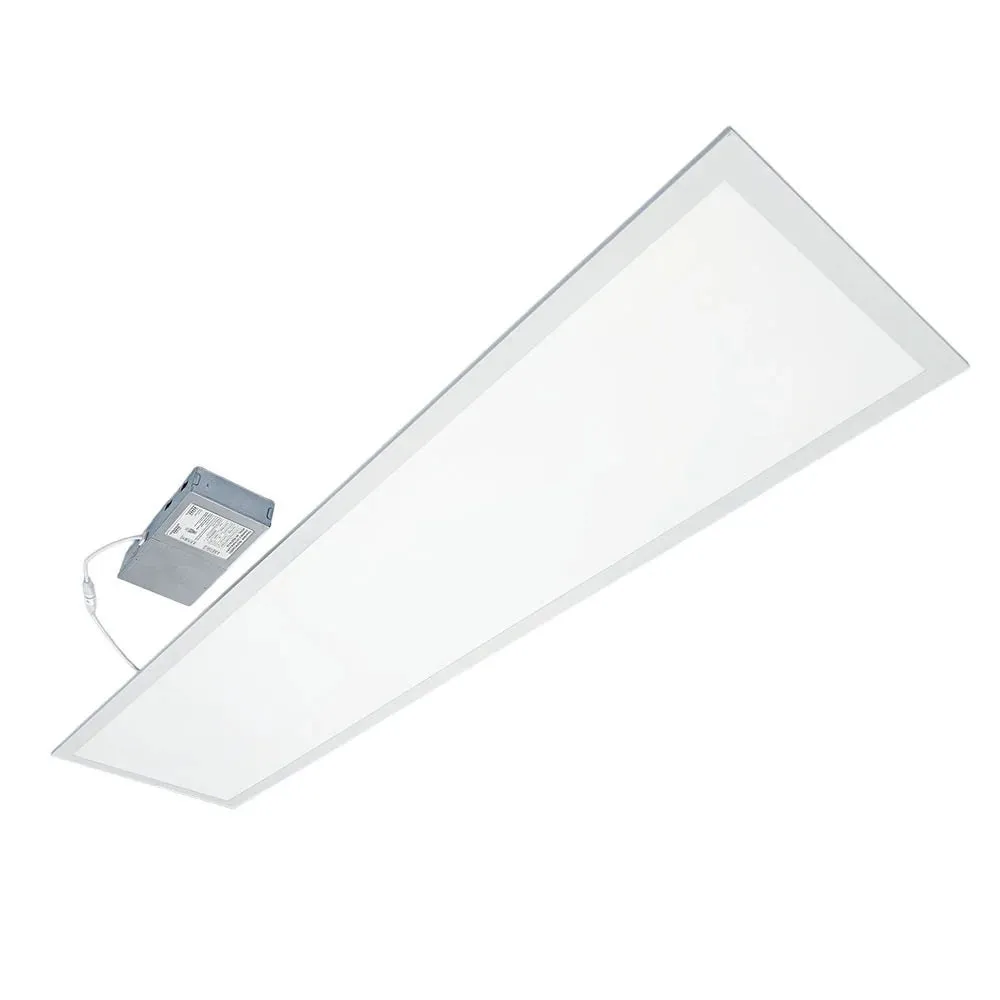

    [2PK] PANEL LIGHT 1X4' 40-30-25-20-15W 120-347V 30-40-50-57-65K WHITE FROST DIM 0-10V - PB14FWFC0400DV2
    [2PK] PANEL LIGHT 1X4' 40-30-25-20-15W 120-347V 30-40-50-57-65K WHITE FROST DIM 0-10V - PB14FWFC0400DV2

    [2PK] PANEL LIGHT 1X4' 40-30-25-20-15W 120-347V 30-40-50-57-65K WHITE FROST DIM 0-10V - PB14FWFC0400DV2

    SKU: PB14FWFC0400DV2

    Brand: SPECLITE

    Say goodbye to tired, flickering troffers: the SPECLITE 1x4 LED panel light gives you a clean sheet of even white light that makes a ceiling look brand new in an afternoon. Sold as a 2-pack, this 1x4 LED panel — also called an LED flat panel, an LED ceiling panel or simply a panel light for suspended ceilings — is built for offices, corridors, retail floors, clinics, basements and any space where you want bright, comfortable light without glare bombs overhead. It drops straight into a standard T-bar grid, or goes surface mounted or suspended when there is no grid at all, so one product covers the renovation, the new build and the quick fix. Model PB14FWFC0400DV2.

    What makes it so easy to spec is the built-in selection: a dip switch lets you choose 5 colour temperatures — 3000K, 4000K, 5000K, 5700K and 6500K — and 5 power levels, 40, 30, 25, 20 or 15W, right on the job site. Output reaches 6,250 lumens at 125 lm/W, with a CRI of 80, a 180° beam and a flicker-free, 0-10V dimmable driver that takes light down to 10%. The multi-volt driver accepts 120-347V, power factor is 90%, THD 15%, and surge protection is rated 2KV with ground / 1KV without. The housing is steel in a white finish with a polycarbonate frost lens, rated IP40 and good from -25°C to 50°C, with an L70 lumen maintenance of 50,000 hrs. It is cETL certified and DLC Premium listed (DLC ID S-JGG85D), which keeps it eligible for energy-efficiency rebate programs.

    This panel earns its keep in open-plan offices, school and church halls, condo corridors, dental and medical clinics, garages, workshops and finished basements across Canada — anywhere long hours of light meet a hydro bill. The removable driver is a real time-saver on big jobs: drivers can be pre-wired, then a junior electrician simply connects the fixtures, and the integrated circuit breaker makes later maintenance painless. The tool-free openable design means no fighting with a screwdriver above your head. Download the technical PDF for the full photometric data, then order your 2-pack and light the whole floor with one consistent colour.

    175.97$

    Built to last, built to install fast
    The SPECLITE PB14FWFC0400DV2 uses a steel fixture body in a white finish paired with a polycarbonate lens in a frost finish, the combination that turns 144 SMD 2835 LEDs into one smooth, even sheet of light instead of visible dots. The frosted lens softens the output over a 180° spread, so you get wide, comfortable coverage in corridors and open work areas. Each 1x4 LED flat panel weighs 4.00 KG, and the tool-free openable design lets you get inside without hardware — a small detail that saves real minutes when you are on a ladder. The 2-pack master box measures 127.50 cm X 12.00 cm X 36.50 cm (50 1/4" X 4 3/4" X 14 3/8") and weighs 8.28 kg (18.25 lbs).

    Light quality you can tune on site
    An integrated dip switch gives you 5 selectable colour temperatures — 3000K, 4000K, 5000K, 5700K, 6500K — plus 5 selectable power levels: 40W, 30W, 25W, 20W or 15W. That means one SKU on the truck can deliver a warm 3000K for a waiting room and a crisp 5000K for a workshop in the same building. Maximum output is 6,250 lumens at an efficiency of 125 lm/W, with a CRI of 80 for natural-looking colours on skin, product and signage. The light is flicker-free, an important comfort factor in offices and classrooms where people spend full days under the fixture.

    Electrical, dimming and installation
    The driver is multi-volt 120-347V at 50/60Hz, LED voltage 25-52VDC, LED current 1050mA, real maximum power 50 W, power factor 90% and T.H.D 15%. 0-10V dimming lets you take the panel down to 10% for daylight harvesting, evening cleaning cycles or mood-appropriate levels in retail. Surge protection is 2KV with ground and 1KV without ground. The driver is removable, so on large projects drivers can be wired ahead of time and the fixtures simply connected afterward, cutting install time and labour cost; an integrated circuit breaker makes servicing easier down the road. Installation options are recessed, surface mount or suspended, and the panel operates from -25°C to 50°C with an IP40 rating for dry and protected indoor locations.

    Technical specifications
    SKU: PB14FWFC0400DV2
    Brand: SPECLITE
    Quantity: 2-pack
    Size: 1x4'
    Power: 40-30-25-20-15W selectable, real max 50 W
    Lumens: 6,250
    Efficiency: 125 lm/W
    CCT: 3000/4000/5000/5700/6500K selectable
    CRI: 80
    Beam angle: 180°
    Voltage: 120-347V, 50/60Hz
    Dimming: 0-10V
    LED type: SMD 2835, 144 LEDs
    Ingress protection: IP40
    Operating temperature: -25°C ~ 50°C
    L70: 50,000 hrs
    Certifications: cETL, DLC Premium (DLC ID S-JGG85D)
    Weight: 4.00 KG

    Where it works and what you get with it
    Think of every ceiling that needs uniform light: accounting offices and open-plan floors, condo and hotel corridors, retail aisles, pharmacies, clinics and exam rooms, school hallways, community centres, back-of-house storage and finished basements. In a 2'x4' grid ceiling the 1x4 format lets you balance rows precisely; in a renovated basement with drywall, the same panel goes surface mounted or hangs on suspension cables. Because the fixture is DLC Premium listed, it stays eligible for utility energy-efficiency incentive programs, a point worth checking with your provincial program before you order. The technical PDF (FICHE TECHNIQUE PB14FWFC0400DV2) is available in the Documentation tab with the full photometric, electrical and mechanical data — keep it with your submittal package. Add the 2-pack to your order and give your ceiling the clean, modern, energy-smart look of a proper LED panel light.
