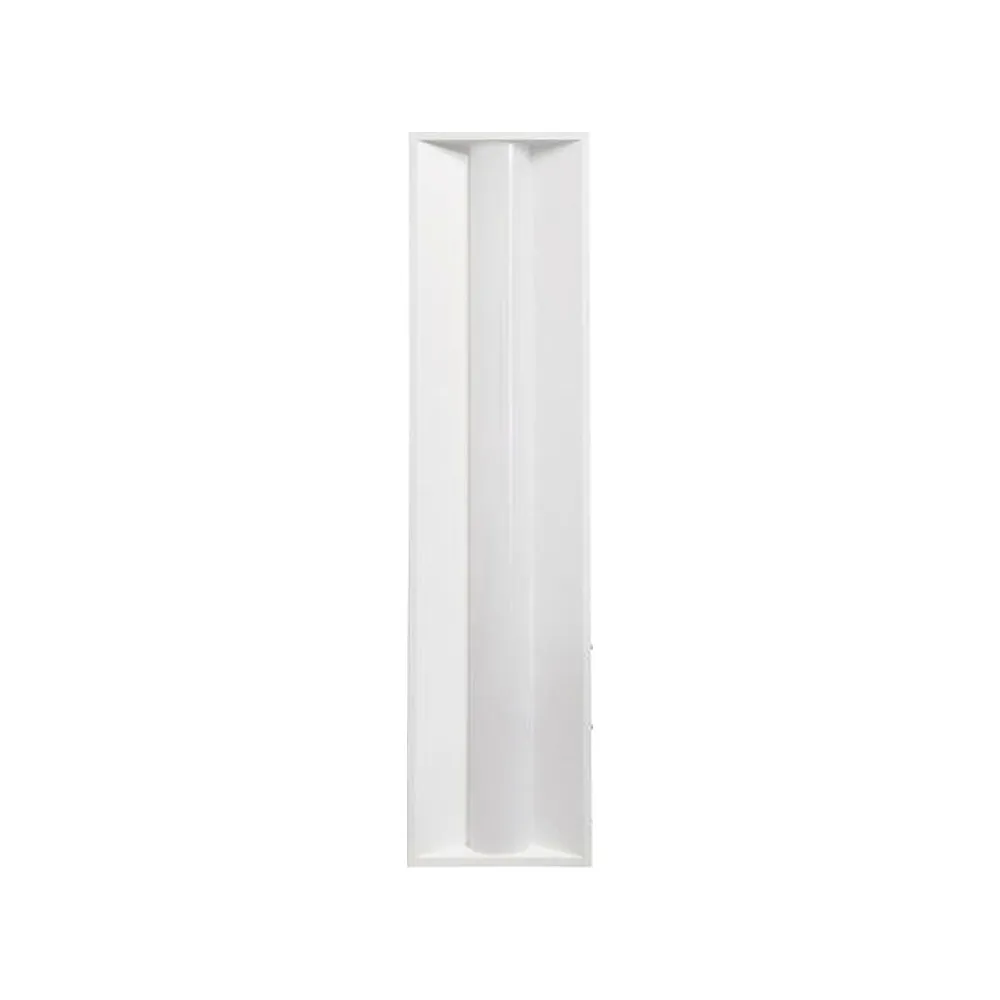

    [2PK] TROFFER LIGHT 1X4' 40-30-25-20-15W 120-347V 35-40-50-57-65K WHITE FROST DIM 0-10V
    [2PK] TROFFER LIGHT 1X4' 40-30-25-20-15W 120-347V 35-40-50-57-65K WHITE FROST DIM 0-10V

    [2PK] TROFFER LIGHT 1X4' 40-30-25-20-15W 120-347V 35-40-50-57-65K WHITE FROST DIM 0-10V

    SKU: TR14FWFC0400DSS

    Brand: SPECLITE

    Bright, even, glare-free light across a whole room — that is what a good LED troffer delivers, and this 1x4 model from SPECLITE does it while giving you five colour temperatures and five wattages in a single box. Sold as a 2-pack, this troffer light (also searched as a recessed troffer fixture, panel troffer or 1x4 ceiling light) is built for offices, classrooms, clinics, retail floors, corridors and basement renovations where you want clean lines overhead and no hot spots on the desks below. One SKU, TR14FWFC0400DSS, covers the jobs a contractor used to need four or five different boxes for.

    Each fixture is field-selectable at 40-30-25-20-15W and 3500/4000/5000/5700/6500K, so you dial in warm white for a waiting room or crisp 5000K daylight for a workshop without changing product. It puts out 6,179 lumens at an efficiency of 126.36 lm/W, with a max real power draw of 48.9 W, a 180° beam angle and a CRI of 82.9 that keeps colours honest. The universal 120-347V input handles residential and commercial panels alike, and 0-10V dimming gives smooth, flicker-free control. The steel housing is finished in white with a polycarbonate frost lens, 180 SMD 2835 diodes inside, a power factor of 99.5 %, THD of 13 %, 2KV surge protection (with and without MALT), IP20 rating, an operating range of -20°C to 45°C and L70 lumen maintenance at 50,000 hours. It is cETL listed and DLC Premium 5.1 qualified (DLC ID S-ZCCK8D), and it meets or exceeds DLC 5.1 glare requirements for real visual comfort.

    This troffer is right at home in Canadian offices and schools on 347V service, in condo corridors and lobbies, dental and medical clinics, municipal buildings, salons, small warehouses and finished basements. Anti-seismic mounting clips are included, and installation is surface mount or suspended, so you can hang it over a workbench or fix it flat to a drywall or concrete ceiling. Weighing 5.60 KG per fixture, it ships two to a box. Check the technical PDF in the Documentation tab for full photometrics, then order the count your project needs.

    218.97$

    Built to take a job site
    The housing is steel in a clean white finish, closed by a polycarbonate frost lens that diffuses the 180 SMD 2835 diodes into one smooth luminous surface instead of visible dots. That frost lens is the reason this 1x4 LED troffer meets or exceeds DLC 5.1 glare criteria: staff working under it all day get comfortable light instead of a bright bar burning in the corner of their eye. Each fixture weighs 5.60 KG, and anti-seismic mounting clips are included in the box — a detail that matters on institutional and commercial jobs where the inspector will look for them.

    Light quality and selectable output
    Five colour temperatures are selectable on the fixture: 3500K, 4000K, 5000K, 5700K and 6500K. Five wattages are selectable too — 40, 30, 25, 20 and 15W — so the same product can light a quiet reception area or a production bench. At full output the fixture delivers 6,179 lumens with an efficiency of 126.36 lm/W and a maximum real power draw of 48.9 W. The CRI of 82.9 and 180° beam angle give broad, natural-looking coverage, and the LEDs are flicker-free, which is what you want over screens and in classrooms. L70 lumen maintenance is rated at 50,000 hours.

    Electrical and installation
    The universal 120-347V input at 50/60Hz is the big time-saver: the same troffer goes on a 120V residential circuit or a 347V commercial panel, so you stock one item instead of three. Internally the LED array runs at DC 120-140V and 0.27A. Power factor is 99.5 % and THD is 13 %, with 2KV surge protection both with and without MALT. Dimming is 0-10V DC, so pair it with a standard 0-10V wall control for meeting rooms, classrooms and multi-purpose spaces. There is no photocell and no occupancy sensor built in, so add external controls if the project calls for them. Installation is surface mount or suspended, and the operating temperature range is -20°C to 45°C, which covers unheated garages and shop spaces as well as conditioned interiors.

    Technical specifications
    SKU: TR14FWFC0400DSS
    Brand: SPECLITE
    Format: 1x4', 2-pack
    Wattage: 40-30-25-20-15W selectable
    Max real power: 48.9 W
    Lumens: 6,179
    Efficiency: 126.36 lm/W
    CCT: 3500/4000/5000/5700/6500K
    CRI: 82.9
    Beam angle: 180°
    Voltage: 120-347V, 50/60Hz
    Dimming: 0-10V DC
    LED type: SMD 2835, 180 LEDs
    Housing: steel, white
    Lens: polycarbonate, frost
    Ingress protection: IP20
    Surge protection: 2KV with and without MALT
    Power factor: 99.5 %
    THD: 13 %
    Operating temperature: -20°C ~ 45°C
    Lumen maintenance: L70 at 50,000 hrs
    Weight: 5.60 KG
    Certifications: cETL, DLC Premium 5.1 (DLC ID S-ZCCK8D)
    UPC: 882110008523

    Applications and documentation
    Think open-plan offices and private offices, school classrooms and staff rooms, dental and physiotherapy clinics, pharmacies and retail aisles, condo and apartment corridors, church halls, municipal garages, hair salons and finished basements. In a renovation, a row of these recessed troffer fixtures surface-mounted on a low basement ceiling replaces tired fluorescent strips with far less energy — LED technology cuts consumption dramatically compared to old fluorescent and halogen sources. On a commercial retrofit, the 120-347V input means one item code for the whole building. The IP20 rating keeps it indoors and dry: no wet locations, no exterior soffits. Full photometrics, the nomenclature table and packaging data are in the technical PDF available in the Documentation tab — worth downloading before you submit the fixture for approval.
