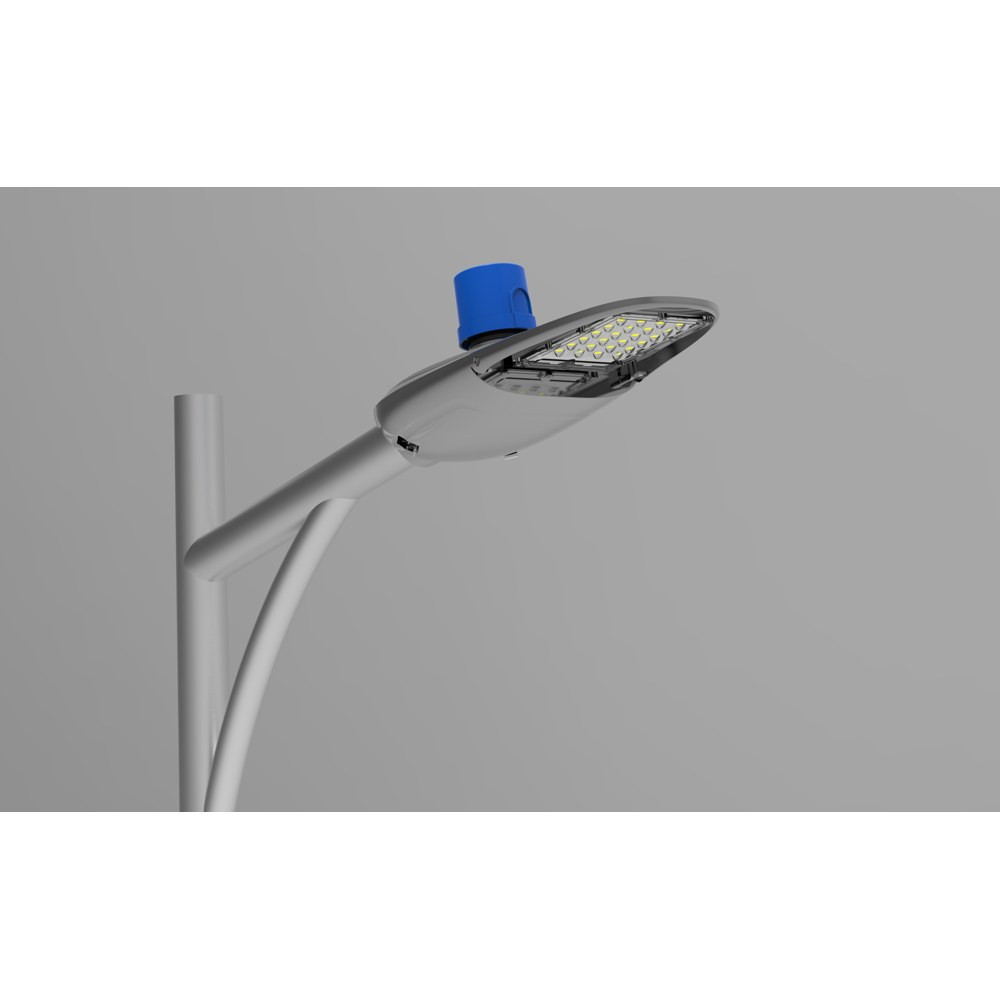

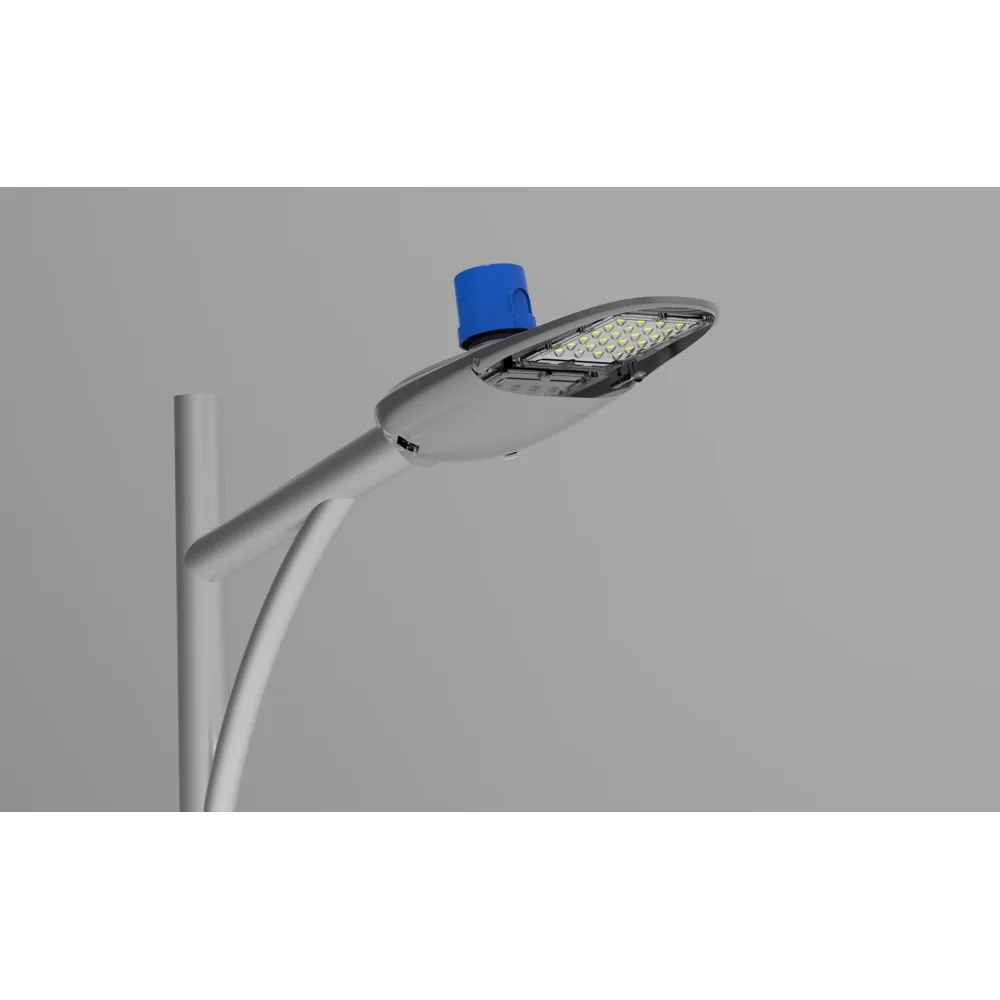

STREET LIGHT TYPE3M 70W 100-277V 40K GREY CLEAR 3PIN TWIST LOCK PHOTO

Name: STREET LIGHT TYPE3M 70W 100-277V 40K GREY CLEAR 3PIN TWIST LOCK PHOTO
Brand: SPECLITE
SKU: SE3MCGD40700PHD
Price: 386.97 CAD
Availability: InStock

SKU: SE3MCGD40700PHD

Brand: SPECLITE

Light up the street, the lane and the parking lot with a fixture built to take a Canadian winter and keep going. The Speclite SE3MCGD40700PHD is a LED street light — also called a LED street lamp, cobra head roadway light or LED street light fixture — delivering a Type III distribution in a 70W package with a factory-installed 3-pin twist lock photocell. Type III optics throw the light forward and out toward the far side of the roadway, which is exactly what you want over a street, a service road, a laneway, a municipal parking area or a long private driveway. It arrives ready to work: grey die-cast aluminum housing, clear polycarbonate lens, wall or pole mount, and dusk-to-dawn switching handled automatically by the photocell.

The numbers back up the promise. This 70W LED street light produces 8,355 lumens at an efficiency of 119.36 lm/w, so you get the output of a much thirstier HID head for a fraction of the draw. Colour temperature is 4000K, a clean neutral white with a CRI of 70 that keeps pavement markings, plates and faces readable at night. It runs on 100-277V at 50/60Hz with a 95 % power factor and 15 % THD, is 0-10V DC dimmable, and is flicker-free thanks to 96 Philips 3030 LEDs driven at 685MA. Protection is serious: IP65 against rain and washdown, IK08 impact resistance, 10KV surge protection with and without grounding, and an operating range of -30°C ~ 45°C. It is cUL listed, weighs 4.00 KG, and holds L70 lumen maintenance to 50,000 hrs.

This head belongs on municipal and private roadways, condo and apartment driveways, industrial yards, truck courts, campgrounds, dealership lots, farm entrances and any place where a contractor needs dependable dusk-to-dawn coverage without a control panel. The -30°C ~ 45°C operating range and the corrosion-resistant coating are made for salt, slush and freeze-thaw cycles from coast to coast. Mount it on a pole arm or directly to a wall, feed it with a standard 100-277V circuit, let the twist lock photocell handle the schedule, and tie it into a 0-10V dimming system later if your project calls for it. Download the technical PDF for the full photometric and mechanical data, then order the SE3MCGD40700PHD for your next roadway or site-lighting job.

Built for the road
The housing is die casting Aluminium finished in grey with a corrosion-resistant coating, and the optical cover is clear polycarbonate — a combination that shrugs off hail, road spray, branches and the occasional flying stone. The IK08 impact rating and IP65 sealing mean water and dust stay outside while the driver and LED board stay dry, and the 4.00 KG weight keeps pole loading modest. Heat is managed by the cast aluminum body itself, which is why this LED street light fixture can run continuously from -30°C to 45°C without derating drama. Installation is flexible: wall & poll mount, with a 150 cable length supplied.

Light quality and distribution
The engine uses 96 Philips 3030 LEDs producing 8,355 lumens of 4000K neutral white light with a CRI of 70. That colour temperature is the sweet spot for roadway work — whiter and more alert than old high-pressure sodium, but not harsh. The TYPE III optic pushes light forward and laterally, the classic street-and-parking-lot pattern that lets you space poles along one side of a roadway and still get even coverage across the lanes. Output is flicker-free, which matters for security cameras and for driver comfort, and lumen maintenance is rated L70 at 50,000 hrs.

Electrical and controls
The driver accepts 100-277V at 50/60Hz, so the same SKU works on the feed you already have on site. Real max power is 70 W, power factor is 95 % and THD is held at 15 %. Surge protection is rated 10KV both with and without grounding — a real asset on exposed pole runs where lightning and utility transients are a fact of life. The LED array runs at 96Vdc and 685MA. The fixture is 0-10V DC dimmable, so it can be tied into a timeclock or a central dimming controller, and the included 3pin twist lock photocell gives automatic dusk-to-dawn operation right out of the box. The fixture is cUL listed; UPC 882110006727.

Technical specifications
SKU: SE3MCGD40700PHD
Lumens: 8,355
CCT: 4000K
CRI: 70
Distribution: TYPE III
Max real power: 70 W
Efficiency: 119.36 lm/w
Voltage: 100-277V, 50/60Hz
Dimming: 0-10V DC
LEDs: 96 x Philips 3030, 96Vdc, 685MA
Lumen maintenance: L70 50,000 hrs
Housing: Die casting Aluminium, grey
Lens: Polycarbonate, clear
Ingress protection: IP65
Impact resistance: IK08
Surge protection: 10KV with and without grounding
Operating temperature: -30°C ~ 45°C
Weight: 4.00 KG
Certification: cUL
UPC: 882110006727

Applications and documentation
Think municipal side streets and rural intersections, condominium and apartment access roads, industrial park circulation lanes, truck yards, marina and campground roads, school and church parking areas, dealership lots and long farm laneways. A 70W head with 8,355 lumens and Type III optics is also a smart one-for-one replacement when a tired HID cobra head finally gives up — same pole, far less energy, and no warm-up delay after a power blink. Contractors like the twist lock socket because a photocell swap is a thirty-second job from a bucket, not a rewiring project. The full technical PDF (FICHE TECHNIQUE SE3MCGD40700PHD) is available in the Documentation tab with the complete photometric, electrical, mechanical and packaging data — worth downloading before you finalize pole spacing and mounting heights on your layout.

Technical Files
