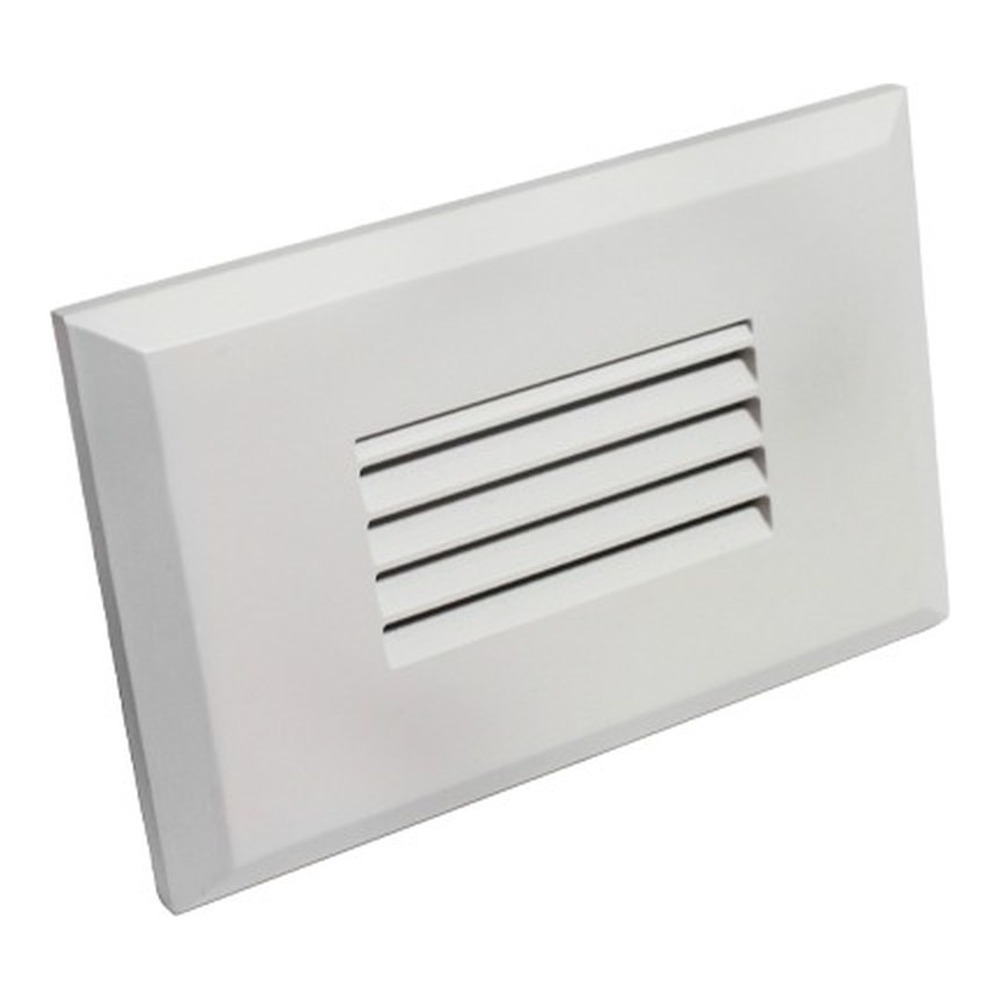

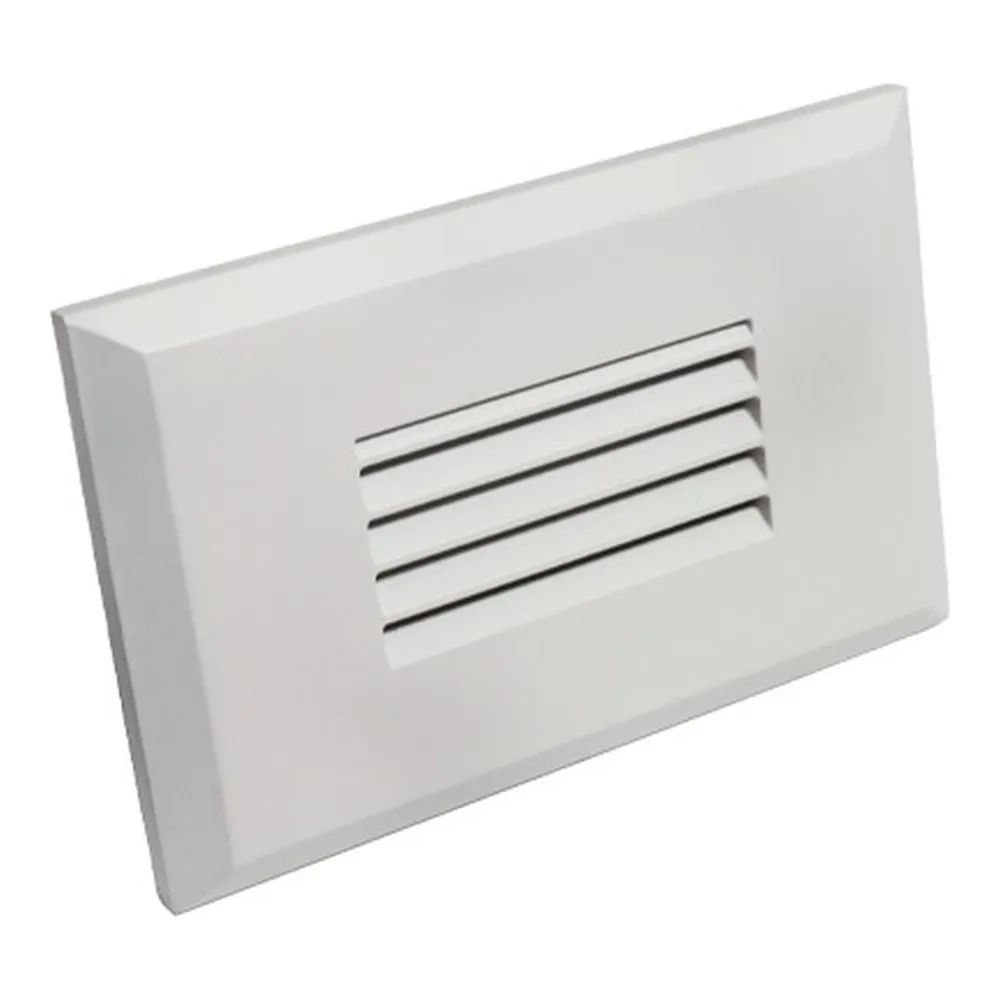

RT05 SCREWLESS LOUVER TRIM FOR LIGHT ENGINE RT05HV & RT05LV, WHITE

Name: RT05 SCREWLESS LOUVER TRIM FOR LIGHT ENGINE RT05HV & RT05LV, WHITE
Brand: LUMENSTARLED
SKU: LS-RT05-SLV-WT
Price: 14.97 CAD
Availability: InStock

SKU: LS-RT05-SLV-WT

Brand: LUMENSTARLED

Give your recessed step lights the clean, hardware-free look designers keep asking for. The RT05 Screwless Louver Trim (SKU: LS-RT05-SLV-WT) from LUMENSTARLED is the white louvered faceplate made specifically for the RT05 light engine family — the RT05HV high-voltage and RT05LV low-voltage versions. Shoppers hunting for a screwless trim, a louver bezel, a step light face, a recessed stair light cover or a replacement recessed light trim for their RT05 engines are looking at exactly the right part. It snaps on without visible screws, so nothing breaks the line of a drywall ceiling, a stairwell wall, a soffit or a white T-bar grid, and the louvered aperture shields the LED from direct view so the light lands where you want it instead of in someone's eyes.

This is an OEM trim built around the RT05 platform, so the fit is exact — no gaps, no light leakage around the edge, no shimming. The RT05 engine itself runs on 100V AC or 12V AC/DC at 2W / 2.2W for 145 lumens, in 3000K warm white, 4000K natural white, RGB or RGBW, with a CRI greater than 90 that keeps stone, wood and paint colours looking honest. The platform is rated IP67, operates from -20°C to +45°C, is dimmable, comes with a 12" (30 cm) wire lead and is c ETL us Listed with a 3-year warranty. Trims are offered in black, brushed nickel and white — this one is the white version. The RT05 measures L120 x W74 x H38 mm (L4 11/16 x W2 7/8 x H1 1/2") and drops into a cutout of 4-3/4" × 2-7/8" (121 × 73 mm).

Where does it shine? Stair risers and stairwells, hallway baseboards, hotel corridors, restaurant and retail floors, condo lobbies, decks, garden walls and walk-out basements — anywhere a Canadian project needs low, comfortable guide light through freeze-thaw seasons. Contractors keep a few on the truck because a cracked or discoloured trim is a five-minute swap instead of a full fixture change, and facility managers standardize on white so ceilings and walls stay uniform between maintenance cycles. Use it with your RT05HV or RT05LV light engines only — mixing in a non-RT05 trim invites misalignment and light leaks. Order the LS-RT05-SLV-WT and finish the job properly.

Light engine sold separately
This trim does not include the light engine. It fits the RT05 light engines installed in a standard single gang junction box: LS-RT05HV-3K, LS-RT05HV-4K, LS-RT05HV-MS-3K, LS-RT05LV-3K, LS-RT05LV-RGBW. Count one trim per engine.

Compatible with
Works with:
Fixture: LS-RT05HV-3K, LS-RT05HV-4K, LS-RT05HV-MS-3K, LS-RT05LV-3K, LS-RT05LV-RGBW

Built for one job, and it does it perfectly
The LS-RT05-SLV-WT is a screwless louver trim in a white finish, engineered as the face component of the LUMENSTARLED RT05 step light platform. Because it is the OEM trim for the RT05HV and RT05LV light engines, the attachment geometry matches the engine body exactly — you press it into place and it holds, with no set screws, no visible fasteners and no tool marks on the finished surface. That matters in hospitality, high-end residential and architectural work, where a single screw head in the wrong place is the thing everyone notices. The white surface is meant to disappear into painted drywall, white grid ceilings and modern trim work.

Glare control is the real benefit
A louvered aperture does more than look sharp. It recesses and shades the LED so people walking a corridor or climbing a stair never see the source head-on. You get the same useful light on the floor with far less visual discomfort — a big deal in workspaces, retail aisles, restaurant seating and bedrooms where a bare aperture at ankle or eye level is distracting. Paired with the RT05 engine's CRI greater than 90, the result is a soft, honest pool of light that renders tile, hardwood, brick and paint the way the designer intended.

Technical specifications
Product code: LS-RT05
Voltage: 100V AC / 12V AC/DC
Wattage: 2W / 2.2W
Light output: 145 lumens
Colour temperature: 3000K warm white, 4000K natural white, RGB, RGBW
CRI: >90
IP rating: IP67
Operating temperature: -20°C ~ +45°C
Wire length: 12" (30 cm)
Dimmable: Yes
Trim colours: Black, Brushed Nickel, White
Hole cutout size: 4-3/4" × 2-7/8" (121 × 73 mm)
Dimensions (LxWxH): L120 x W74 x H38 mm (L4 11/16 x W2 7/8 x H1 1/2")
Certifications: c ETL us Listed
Warranty: 3-year

Installation and compatibility
Plan your rough-in around the 4-3/4" × 2-7/8" (121 × 73 mm) cutout and keep the 12" (30 cm) lead accessible in the wall cavity or junction box. On the low-voltage RT05LV, run your 12V AC/DC supply from a remote driver or transformer; on the RT05HV, feed line voltage per the engine's instructions and local code. Once the engine is set and wired, the trim pushes on last — which also means a damaged or paint-splattered trim can be replaced later without pulling the fixture out of the wall. This trim fits the RT05HV and RT05LV engines and nothing else; using a trim from another platform can leave gaps, light leaks and an insecure fit.

Where it gets specified in Canada
Think exterior stairs and entry steps that see snow, salt and spring runoff, where the RT05's IP67 rating and -20°C to +45°C operating range earn their keep; think condo corridors and hotel hallways running dimmed all night; think basement stairwells, theatre rooms, deck perimeters and retaining walls. Because the platform is dimmable and c ETL us Listed, it slots into spec-grade commercial jobs as easily as into a home renovation. Full details on the RT05 series, including electrical data, cutout and dimension drawings, are in the technical PDF available in the Documentation tab of this page — worth downloading before you cut the opening. Add the LS-RT05-SLV-WT to your order and keep spares on hand so every RT05 in the building looks identical on day one and five years in.
