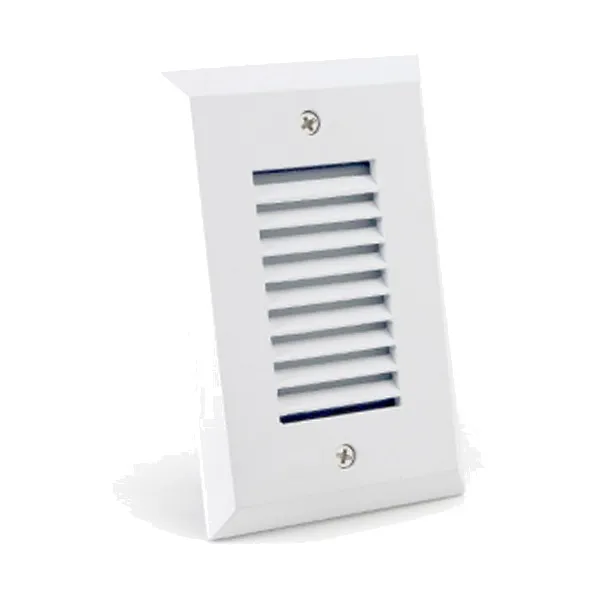

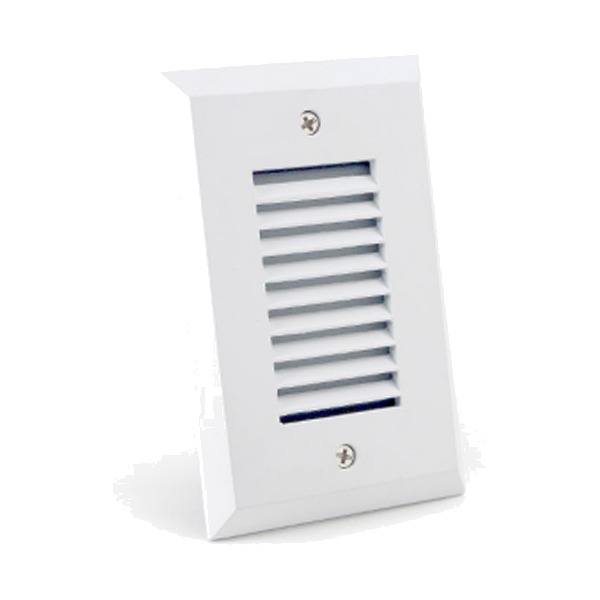

RT05 VERTICAL LOUVER TRIM FOR LIGHT ENGINE RT05HV & RT05LV, WHITE

Name: RT05 VERTICAL LOUVER TRIM FOR LIGHT ENGINE RT05HV & RT05LV, WHITE
Brand: LUMENSTARLED
SKU: LS-RT05-VLVR-WT
Price: 14.97 CAD
Availability: InStock

SKU: LS-RT05-VLVR-WT

Brand: LUMENSTARLED

Glare is the fastest way to ruin a beautiful ceiling — and this is the little part that fixes it. The RT05 Vertical Louver Trim in White (SKU: LS-RT05-VLVR-WT) from LumenstarLED is the finishing ring, or recessed trim, made specifically for the RT05HV and RT05LV light engines. People look for it under a lot of names — louver trim, anti-glare trim, step light face plate, recessed light trim for a pot light — but the job is always the same: it snaps onto the light engine, closes the opening in the wall or ceiling, and shapes how you see the light. The vertical louver blades block off-angle views of the LED source while letting the beam out generously, so you get the glow on the floor, the stair or the wall without the hot spot in your eyes.

This is a trim, not a complete fixture, so the electrical performance comes from the RT05 platform it completes. The RT05 screwless step light family runs at 100V AC or 12V AC/DC, draws 2W / 2.2W and delivers 145 lumens, with a CRI greater than 90 that keeps wood grain, stone and paint colours looking true. It is offered in 3000K warm white and 4000K natural white as well as RGB and RGBW, it is dimmable, rated IP67, and it is c ETL us Listed with a 3-year warranty. The RT05 body measures L120 x W74 x H38 mm (L4 11/16 x W2 7/8 x H1 1/2") with a hole cutout of 4-3/4" × 2-7/8" (121 × 73 mm), and comes with a 12" (30 cm) wire lead. The white finish lets the trim melt into a painted ceiling or wall so the eye goes to the light effect, not the hardware.

Where does it shine? Stairwells and hallway steps, open-plan offices, clinics and waiting rooms, hotel corridors, restaurant risers, condo lobbies and finished basements — anywhere in Canada where people walk past a low-mounted light and you do not want them squinting. Because the RT05 is a modular system, you choose the engine first, then the look: this vertical louver trim fits the RT05HV and RT05LV light engines only. Specify it for new construction or a retrofit, and give your project a clean white face with serious glare control.

Light engine sold separately
This trim does not include the light engine. It fits the RT05 light engines installed in a standard single gang junction box: LS-RT05HV-3K, LS-RT05HV-4K, LS-RT05HV-MS-3K, LS-RT05LV-3K, LS-RT05LV-RGBW. Count one trim per engine.

Compatible with
Works with:
Fixture: LS-RT05HV-3K, LS-RT05HV-4K, LS-RT05HV-MS-3K, LS-RT05LV-3K, LS-RT05LV-RGBW

Built for the RT05 modular system
LumenstarLED designed the RT05 as a platform: one screwless housing, one light engine, and a choice of trims that change the optics and the look. The RT05 Vertical Louver Trim (LS-RT05-VLVR-WT) is the white, louvered member of that family, made to the dimensional and mechanical specifications of the RT05 body so it seats cleanly with no visible screws and no gap around the opening. It secures in place quickly on site, which matters when you are finishing a full corridor of step lights in one afternoon. The trim is also offered in black and brushed nickel within the RT05 range, so you can keep one engine and change the face to match the millwork or the wall colour.

Light quality and glare control
Vertical louver blades are a classic optical strategy: they shield the LED from off-angle view while leaving the downward and forward beam wide open. In practice, someone walking down a stair or a hallway sees the lit surface, not the source. Paired with the RT05 engine's CRI greater than 90, the result is comfortable, honest colour on floors, treads and finishes — skin tones in a clinic, oak in a stairwell, stone in a lobby. The RT05 is available in 3000K warm white and 4000K natural white, plus RGB and RGBW versions for accent and wayfinding schemes, and it is dimmable, so evening levels can be dropped without losing the effect.

Technical specifications (RT05 platform)
Product code: LS-RT05
Trim SKU: LS-RT05-VLVR-WT
Voltage: 100V AC / 12V AC/DC
Wattage: 2W / 2.2W
Light output: 145 lumens
Colour temperature: 3000K Warm White, 4000K Natural White, RGB, RGBW
CRI: >90
IP rating: IP67
Operating temperature: -20°C~+45°C
Wire length: 12" (30 cm)
Dimmable: Yes
Trim colours: Black, Brushed Nickel, White
Hole cutout: 4-3/4" × 2-7/8" (121 × 73 mm)
Dimensions (LxWxH): L120 x W74 x H38 mm (L4 11/16 x W2 7/8 x H1 1/2")
Certifications: c ETL us Listed
Warranty: 3-year

Installation and compatibility
This trim fits the RT05HV and RT05LV light engines — nothing else. Decide early which engine you need: the high-voltage version for a 100V AC circuit, or the low-voltage one for a 12V AC/DC run driven from a remote supply, which is often the easier path in stair risers and around water. Rough in to the 4-3/4" × 2-7/8" (121 × 73 mm) cutout, land the 12" (30 cm) leads in an accessible junction, seat the engine, then click the louver trim on last so it stays clean through drywall and paint. The IP67 rating and the -20°C~+45°C operating range mean the RT05 handles damp, dusty and cold locations, which is why it turns up in Canadian garages, covered entries, unheated stairwells and exterior steps as readily as in a finished hallway.

Applications and documentation
Think open-plan offices where low-level lighting must not reflect in screens, healthcare corridors where night-time glare wakes patients, boutique retail and hotels where the guest should feel the light and never see the source, plus home projects: basement stairs, deck steps, a hallway that no longer needs an overhead light at 2 a.m. For layouts, cutout confirmation and the full ordering options, the RT05 Screwless Step Light technical PDF is available in the Documentation tab of this page — check it with your electrician before you cut the wall, and order the trim colour that matches the rest of the job.
