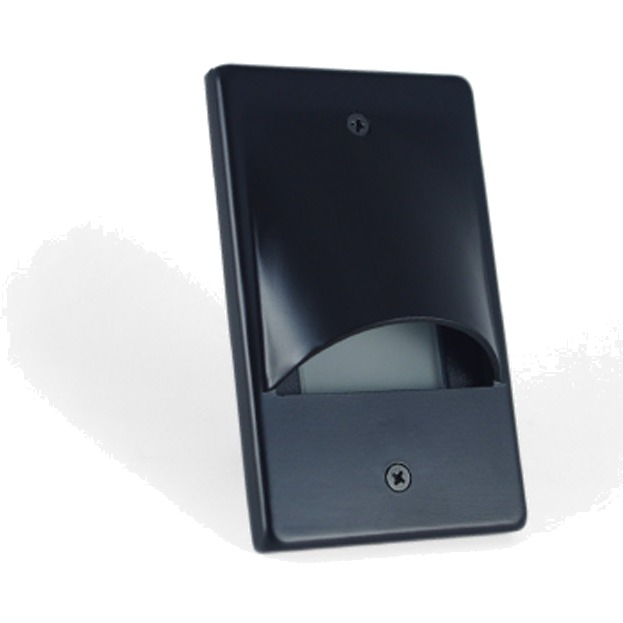

RT05 SCOOP TRIM FOR LIGHT ENGINE RT05HV & RT05LV, BLACK

Name: RT05 SCOOP TRIM FOR LIGHT ENGINE RT05HV & RT05LV, BLACK
Brand: LUMENSTARLED
SKU: LS-RT05-SC-BK
Price: 14.97 CAD
Availability: InStock

SKU: LS-RT05-SC-BK

Brand: LUMENSTARLED

Give your RT05 step light the finishing touch it deserves. The RT05 Scoop Trim in black (SKU LS-RT05-SC-BK) from LumenstarLED is the dedicated faceplate — also called a trim ring, trim cover or bezel — made for the RT05HV (high-voltage) and RT05LV (low-voltage) light engines. Its scoop profile, with a smooth angled edge, shields the source and pushes the light downward and outward, which is exactly what you want on a stair riser, along a hallway baseboard or under a bench. People shop for this kind of part when they search for recessed step light trim, encastré noir or a black faceplate to match dark millwork, and this one drops right into the RT05 platform with no fitment guesswork.

Because the trim is part of the RT05 Screwless Step Light system, it works with a fixture family rated IP67, c ETL us Listed, and backed by a 3-year warranty. The RT05 light engines run at 100V AC or 12V AC/DC, draw 2W or 2.2W, deliver 145 lumens and a CRI greater than 90 so skin tones, stone and wood read true. Colour temperature options on the platform include 3000K warm white, 4000K natural white, RGB and RGBW, and the engines are dimmable. The RT05 measures L120 x W74 x H38 mm (L4 11/16 x W2 7/8 x H1 1/2") with a hole cutout of 4-3/4" × 2-7/8" (121 × 73 mm), includes a 12" (30 cm) wire lead, and operates from -20°C to +45°C — a real advantage in Canadian winters.

Matte black is the quiet choice: in restaurants, boutique hotels, retail aisles, condo corridors, basement stairwells and covered exterior steps, a black trim disappears into the shadow line and lets the light do the talking. Contractors love that the trim and the engine are sold separately, so a single order can dress an entire stairwell consistently, or refresh an existing RT05 installation without touching the wiring. This trim fits the RT05HV and RT05LV light engines only — pair it with the engine of your choice and you have a complete, screwless step light. Add it to your project list and finish the job right.

Light engine sold separately
This trim does not include the light engine. It fits the RT05 light engines installed in a standard single gang junction box: LS-RT05HV-3K, LS-RT05HV-4K, LS-RT05HV-MS-3K, LS-RT05LV-3K, LS-RT05LV-RGBW. Count one trim per engine.

Compatible with
Works with:
Fixture: LS-RT05HV-3K, LS-RT05HV-4K, LS-RT05HV-MS-3K, LS-RT05LV-3K, LS-RT05LV-RGBW

Built as a matched component, not a generic cover
The RT05 Scoop Trim in black is an OEM-matched accessory for the LumenstarLED RT05 platform. Recessed lighting lives or dies on fitment: a trim that is a millimetre off leaves a shadow gap, catches dust and looks amateur. This trim is dimensioned for the RT05 body and its screwless mounting approach, so the edge sits flush against the finished wall or riser. The scoop geometry — an angled, swept opening rather than a flat ring — shields the eye from the diode while throwing light forward onto the tread or the floor, reducing glare in low-mounted positions where fixtures sit right in your line of sight.

Light quality and electrical details of the RT05 platform
Behind the trim, the RT05 light engine delivers 145 lumens from just 2W or 2.2W, with a CRI greater than 90 for accurate rendering of stone, hardwood and painted surfaces. Colour temperature choices on the platform are 3000K warm white and 4000K natural white, plus RGB and RGBW versions for accent and colour-change work. The engines are offered in 100V AC (RT05HV) and 12V AC/DC (RT05LV) versions, both dimmable, so you can tune a stairwell down to a soft night-level glow. Each engine ships with a 12" (30 cm) wire lead for connection inside the box or to a low-voltage run.

Technical specifications
SKU: LS-RT05-SC-BK
Product code (platform): LS-RT05
Type: Scoop trim for RT05HV & RT05LV light engines
Finish: Black (trim colours available: Black, Brushed Nickel, White)
Voltage: 100V AC / 12V AC/DC
Wattage: 2W / 2.2W
Light output: 145 lumens
Colour temperature: 3000K Warm White, 4000K Natural White, RGB, RGBW
CRI: >90
IP rating: IP67
Operating temperature: -20°C ~ +45°C
Wire length: 12" (30 cm)
Dimmable: Yes
Hole cutout: 4-3/4" × 2-7/8" (121 × 73 mm)
Dimensions (LxWxH): L120 x W74 x H38 mm (L4 11/16 x W2 7/8 x H1 1/2")
Certifications: c ETL us Listed
Warranty: 3-year

Installation and compatibility
Rough in the opening to 4-3/4" × 2-7/8" (121 × 73 mm), run your feed to the 12" (30 cm) lead, seat the light engine, then finish with the scoop trim. Because the trim ships separately from the engine, you can decide the look late in the project — black for a dark stair core, another finish elsewhere — without changing the rough-in. Confirm your voltage first: the RT05HV is the 100V AC version and the RT05LV is the 12V AC/DC version fed from a low-voltage supply. This trim fits those two engines and no others, so there is no cross-shopping or shimming required on site.

Where it earns its keep, and documentation
Think basement and condo stairwells, hotel corridors, restaurant banquette bases, retail fitting-room alcoves, home theatre steps and covered outdoor entries. The IP67 rating and the -20°C to +45°C operating range of the RT05 platform mean it handles wash-down floors, damp basements and cold Canadian shoulder seasons, while the c ETL us Listed certification keeps inspectors happy on commercial jobs. The full RT05 Screwless Step Light technical PDF is available in the Documentation tab of this page — check it for cutout dimensions and engine options before ordering your trims in quantity.
