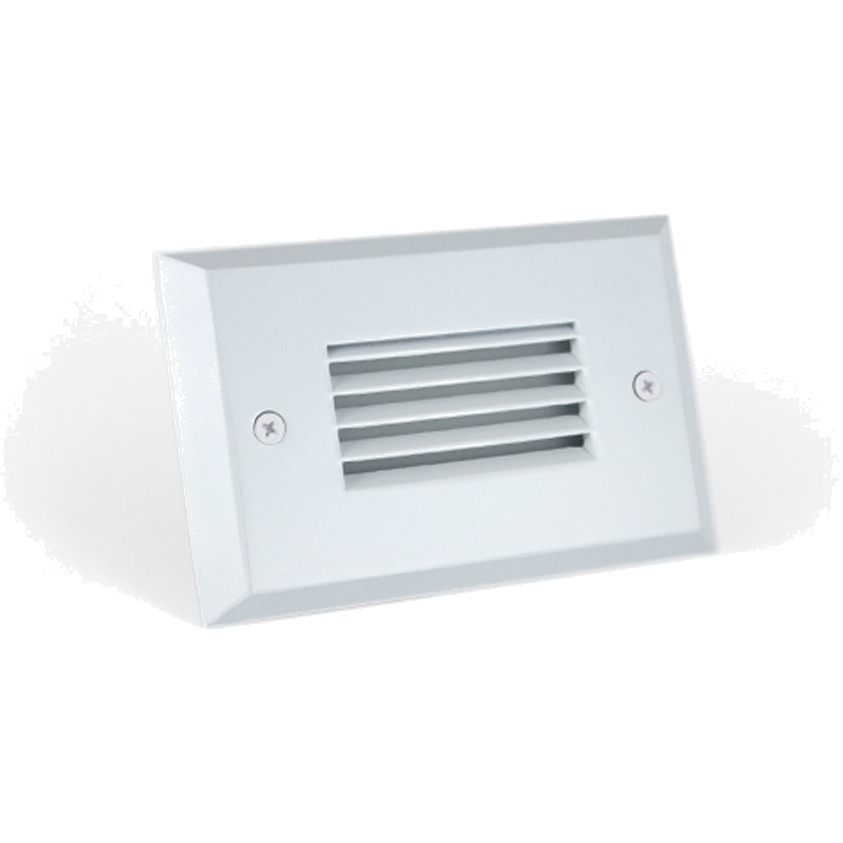

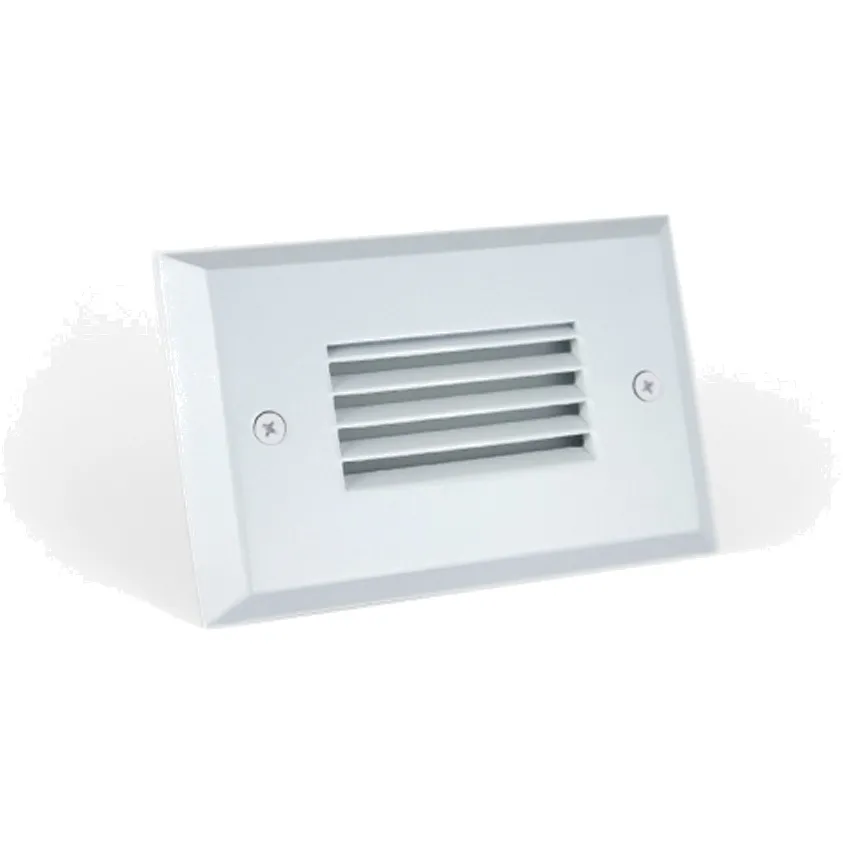

RT05 LOUVER TRIM FOR LIGHT ENGINE RT05HV & RT05LV, WHITE

Name: RT05 LOUVER TRIM FOR LIGHT ENGINE RT05HV & RT05LV, WHITE
Brand: LUMENSTARLED
SKU: LS-RT05-LVR-WT
Price: 14.97 CAD
Availability: InStock

SKU: LS-RT05-LVR-WT

Brand: LUMENSTARLED

Give your step lights a clean, glare-free face with the RT05 Louver Trim in white, the dedicated faceplate made for the RT05 light engine platform by LumenstarLED. People look for this part under a lot of names — louver trim, louvre faceplate, recessed step light trim, stair light cover, screwless trim ring — and they all point to the same thing: the finishing piece that snaps onto the engine, hides the rough opening and shapes the beam. This one (SKU LS-RT05-LVR-WT) is engineered specifically for the RT05HV (high voltage) and RT05LV (low voltage) light engines, so the mechanical fit is precise, with no gaps, no rocking and no misalignment against the drywall or the stone.

The louver geometry is the star here. Internal baffles intercept the light at the angles that hit people in the eyes and redirect it downward in a tight, controlled wash — exactly what you want on stair treads, along corridors and under benches where a bare aperture would be uncomfortable. The trim is aligned to the RT05 aperture so the engine's intended distribution pattern is preserved, and the clean white finish disappears into standard painted drywall, white risers and light-toned ceilings. The RT05 engine family it serves is a screwless step light platform with a hole cutout of 4-3/4" × 2-7/8" (121 × 73 mm), so you are matching a trim to a rough opening you already know. Trim colours in the RT05 family include black, brushed nickel and white — this is the white version.

It shines in stairwells, hallways, condo lobbies, hotel corridors, restaurant banquettes, retail showrooms and office circulation zones — anywhere in Canada where comfort and a tidy finish matter as much as light output. As a component, it fits the RT05HV and RT05LV light engines and nothing else, which makes it the right call for phased projects, renovations, or replacing a trim that got scratched, painted over or damaged during construction — no need to tear out the whole fixture. Order the trims that match your engine count and finish the job the way it was drawn.

Light engine sold separately
This trim does not include the light engine. It fits the RT05 light engines installed in a standard single gang junction box: LS-RT05HV-3K, LS-RT05HV-4K, LS-RT05HV-MS-3K, LS-RT05LV-3K, LS-RT05LV-RGBW. Count one trim per engine.

Compatible with
Works with:
Fixture: LS-RT05HV-3K, LS-RT05HV-4K, LS-RT05HV-MS-3K, LS-RT05LV-3K, LS-RT05LV-RGBW

Built for one job, done right
The RT05 Louver Trim is not a universal ring you force into place — it is the dedicated faceplate for the RT05 light engine series. That single-purpose design is what makes the install fast: the trim indexes to the RT05 aperture, sits flush and keeps the engine's optical pattern intact. The louver trim style is recognized across the lighting industry for glare control, and that is its whole reason for being on a low-mounted fixture. The stepped internal baffles cut the high-angle light that causes discomfort at eye level and push the output down where it belongs, onto the tread, the floor or the path.

Finish and appearance
This SKU ships in white. On painted gypsum, white risers, pale millwork or light stone, it reads as a quiet detail rather than a fixture — which is usually the point with a recessed step light. The RT05 platform offers trims in black, brushed nickel and white, so a designer can mix finishes room by room while keeping the same engine behind the wall. If a trim gets damaged on site, or a client changes the wall colour later, the trim can be swapped on its own.

Technical specifications
Product code: LS-RT05-LVR-WT
Brand: LumenstarLED
Type: Louver trim for RT05HV and RT05LV light engines
Finish: White
Trim colours available in the RT05 family: Black, Brushed Nickel, White
Related engine platform: LS-RT05 screwless step light
Hole cutout size (RT05): 4-3/4" × 2-7/8" (121 × 73 mm)

Compatibility and installation
Use this trim with the RT05HV (high voltage) or RT05LV (low voltage) light engine — those are the two products it was designed around. The RT05 rough opening is 4-3/4" × 2-7/8" (121 × 73 mm), so if your cutout was made for the RT05, this trim will cover it correctly. Install the engine and wiring first, verify the fixture is powered and aimed as intended, then set the trim last so it does not collect drywall dust or paint overspray. On a jobsite, a smart habit is to order a few spare trims with the engines: painters and finishers are hard on faceplates, and having a matching white trim on hand at punch-list time saves a return trip.

Where it earns its keep, and documentation
Think hotel corridors and stair cores, condo and apartment common areas, restaurant banquette bases, theatre aisles, retail showroom plinths, office circulation and home basement staircases. Anywhere occupants walk past a light at shin height, a louvered faceplate is the difference between guidance lighting and an annoying bright spot. Contractors, lighting designers and facility managers standardizing on the RT05 platform can keep this trim in stock for retrofits and replacements without specifying a whole new fixture. The RT05 screwless step light technical PDF is available in the Documentation tab of this page for cutout dimensions and engine details.
