ROUND COMMERCIAL LED RECESSED - LCDL-CDR8-20W-MV-3CCT-WH

Name: ROUND COMMERCIAL LED RECESSED - LCDL-CDR8-20W-MV-3CCT-WH
Brand: LEDCO
SKU: LCDL-CDR8-20W-MV-3CCT-WH
Price: 62.97 CAD
Availability: InStock

SKU: LCDL-CDR8-20W-MV-3CCT-WH

Brand: LEDCO

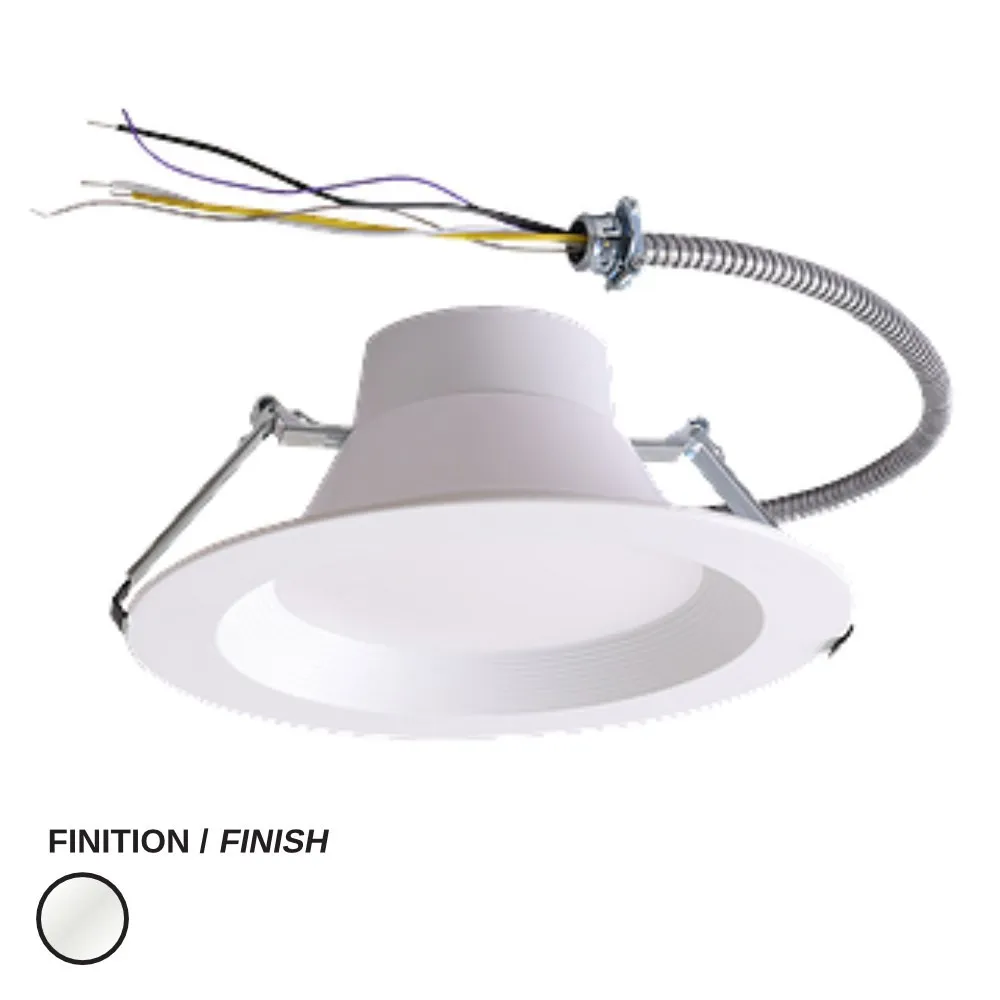

Give any ceiling a clean, professional glow with this 8" round commercial LED recessed downlight — the kind of fixture people search for as a pot light, a commercial LED ceiling light or simply a dimmable LED downlight. Model LCDL-CDR8-20W-MV-3CCT-WH pairs an integrated LED module with an efficient driver to deliver steady, flicker-free light, and its diffused PC lens spreads that light evenly instead of throwing a harsh beam at your eyes. It's a straightforward workhorse for offices, retail floors, corridors, clinics, condos and basement renovations — anywhere you want rows of tidy round trims and light you never have to think about again.

The numbers back it up. This 8" version draws 20W and produces 1850 lumens, with an efficiency of ≥75 lm/W and a 100° beam angle for smooth, even coverage from ceiling to floor. Field-selectable 3CCT colour temperature lets you choose 3000K, 3500K or 4000K right at install, so the same box of fixtures can feel warm in a lounge and crisp in a workspace. A CRI ≥90 keeps skin tones, wood finishes and merchandise looking true, and the auto-sensing 120-347V driver means one fixture handles residential and commercial panels alike. It is 0-10V dimmable, rated for damp locations, built with a die-cast aluminum housing for solid thermal management, and rated for 50 000 hours with a 5-year warranty. Outside diameter is 10.26", cut-out 7.5", height 4.25", in a white finish, with an operating range of -25°C to +40°C.

This downlight feels right at home in open-plan offices, boutiques, restaurants, waiting rooms, school corridors, garages and finished basements — and the wide voltage range is a real time-saver on Canadian commercial jobs where 347V is common. Keep a consistent spacing between fixtures and stay off the wall line to avoid scallops, confirm your 7.5" cut-out, and test one unit with your dimmer before doing the whole run. Need other sizes for the same floor plan? Match it with the round commercial LED recessed 6", the round commercial LED recessed 4" or the larger round commercial LED recessed 10". Order yours and light the whole project with one consistent look.

Construction built to last
The heart of this commercial LED recessed luminaire is a one-piece die-cast aluminum housing that pulls heat away from the LED module and keeps it working at its best. Good thermal management is what separates a downlight that stays bright from one that fades early, and it's why this fixture carries a 50 000-hour life rating and a 5-year warranty. The front is closed by a UV-resistant PC lens that diffuses the output for uniform distribution without glare — no hot dots, no eye-catching brightness when you look up. The trim wears a clean white finish that disappears into most ceilings, and the 8" format keeps a tidy, professional line when installed in rows.

Light quality and colour control
With a CRI ≥90, colours stay honest: paint samples read correctly, fabrics and packaging look like they should, and faces look healthy rather than washed out. The field-selectable 3CCT switch gives you 3000K for a warm, welcoming feel, 3500K as a neutral middle ground, and 4000K for a crisp, focused commercial atmosphere — set before installation, so one order can serve a whole building with different moods room by room. The 100° beam angle spreads light broadly, which means fewer dark gaps between fixtures and a softer wash down walls.

Technical specifications
SKU: LCDL-CDR8-20W-MV-3CCT-WH
Wattage: 20W
Lumens: 1850 lm
Efficiency: ≥75 lm/W
Colour temperature: 3000K / 3500K / 4000K selectable
CRI: ≥90
Beam angle: 100°
Voltage: 120-347V auto-sensing
Dimming: 0-10V compatible
IP rating: damp location
Outside diameter: 10.26"
Cut-out: 7.5"
Height: 4.25"
Operating temperature: -25°C to +40°C
Lifespan: 50 000 hours
Warranty: 5 years
Finish: white

Electrical and installation
The auto-sensing 120-347V driver is the practical star here: the same fixture wires into a 120V residential circuit or a 347V commercial panel without ordering a different model, which simplifies purchasing on multi-building projects. Dimming runs on a 0-10V control, so you can pair it with standard low-voltage dimmers and occupancy or daylight-harvesting controls used in offices. Plan your layout with even spacing and keep fixtures off the wall line to prevent scallops, cut a clean 7.5" hole, allow for the 4.25" height above the ceiling, and always cut power at the panel before wiring. Test one unit with your chosen dimmer before installing a full run. The -25°C to +40°C operating range and damp-location rating also make it suitable for covered entries, garages and unheated service corridors.

Applications, matching fixtures and documentation
Think open-plan office commercial lighting, retail aisles and display areas, restaurant dining rooms, clinics and reception desks, condo hallways, gyms, classrooms and finished basements. To keep one visual language across a whole floor plan, mix sizes from the same family: the round commercial LED recessed 6" for corridors, the round commercial LED recessed 4" for tight ceilings, and the round commercial LED recessed 10" for high or wide-open areas. For slim-profile work where depth is limited, the 4" flat DLF round recessed is a useful companion. The full technical PDF (LCDL-CDR8-20W-MV-3CCT-WH Spec Sheet) is in the Documentation tab with dimensions, cut-out sizes and the complete family ordering table — worth a quick look before you finalize your ceiling layout.
