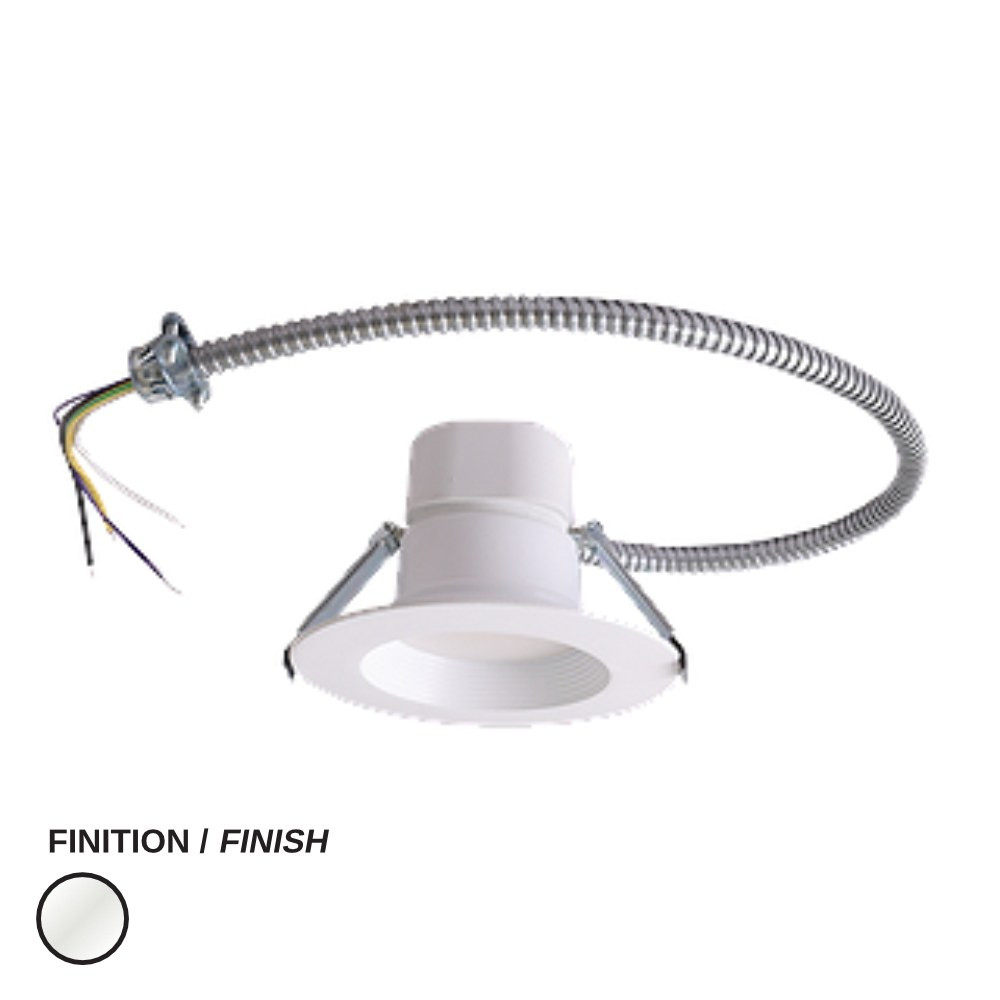

ROUND COMMERCIAL LED RECESSED - LCDL-CDR6-17W-MV-3CCT-WH

Name: ROUND COMMERCIAL LED RECESSED - LCDL-CDR6-17W-MV-3CCT-WH
Brand: LEDCO
SKU: LCDL-CDR6-17W-MV-3CCT-WH
Price: 53.97 CAD
Availability: InStock

SKU: LCDL-CDR6-17W-MV-3CCT-WH

Brand: LEDCO

Bright, clean, no-nonsense ceiling light for spaces that have to look good all day long: this is the 6" round commercial LED recessed downlight, SKU LCDL-CDR6-17W-MV-3CCT-WH. Shoppers call it a commercial LED ceiling light, a round pot light, a dimmable LED downlight or simply a 6-inch recessed can — whatever the name, it does the same job: even, glare-controlled light from a compact housing with the driver already built in. It's the everyday workhorse for offices, boutiques, clinics, corridors, kitchens and basements, and it drops into new construction or a renovation without a separate can or remote driver to find room for.

The 6" model delivers selectable output — 10W, 12W or 17W for 850, 1000 or 1500 lumens — with an efficiency of ≥75 lm/W, so you set the brightness on site instead of re-ordering fixtures. Field-selectable 3CCT colour temperature gives you 3000K, 3500K or 4000K from the same unit, and a CRI of ≥90 keeps paint, wood, skin tones and merchandise looking true. The one-piece die-cast aluminum housing manages heat for a 50,000-hour rated life, the UV-resistant PC lens spreads a wide 100° beam, and the auto-sensing 120-347V driver works on almost any building circuit while operating from -25°C to +40°C. It's 0-10V dimming compatible, damp location rated, finished in clean white, and backed by a 5-year warranty. Outside diameter 8.29", cut-out 6.0", height 4.0".

Put it over reception desks, open-plan offices, exam rooms, hallways, retail floors, condo kitchens and finished basements — the wide voltage range is a real advantage in Canadian commercial buildings running 347V. Keep the look consistent across a job by mixing sizes from the same family: the 4" round commercial LED recessed, the 8" round commercial LED recessed and the 10" round commercial LED recessed. Plan your spacing, cut your 6.0" holes, and let a qualified electrician finish the wiring. Order yours today.

Built like a commercial fixture, not a throwaway
The body is a one-piece die-cast aluminum housing, chosen for optimal thermal management — the metal pulls heat away from the LED module so output and colour stay stable through the fixture's 50,000-hour rated life. A UV-resistant PC lens closes the aperture and diffuses the light for uniform, glare-free distribution, so you don't get hot spots on a white ceiling or reflections on screens. The finish is white, which disappears into most ceiling tiles and drywall, and this round commercial LED recessed downlight ships with its driver integrated — no separate junction box hardware to hunt down and no remote driver to hide above the grid.

Light quality and selectable settings
Two switches do the work of a dozen part numbers. The 3CCT selector sets 3000K for a warm, hospitality feel, 3500K for a neutral commercial white, or 4000K for a crisp, alert look in offices, kitchens and retail. The wattage selector on this 6" model gives you 10W (850 lm), 12W (1000 lm) or 17W (1500 lm), all at ≥75 lm/W. With CRI ≥90, colours render faithfully — important for clothing racks, food display, salon chairs, medical rooms and any space where a cheap downlight makes everything look grey. The 100° beam angle spreads light broadly, which means fewer fixtures to cover the same floor area when spacing is planned properly.

Technical specifications
SKU: LCDL-CDR6-17W-MV-3CCT-WH
Size: 6"
Wattage (6"): 10-12-17W
Lumens (6"): 850-1000-1500 lm
Efficacy: ≥75 lm/W
CCT: 3000K / 3500K / 4000K field-selectable
CRI: ≥90
Beam angle: 100°
Voltage: 120-347V auto-sensing
Dimming: 0-10V compatible
IP / location: damp location
Operating temperature: -25°C to +40°C
Outside diameter (MOD): 8.29"
Cut-out: 6.0"
Height: 4.0"
Lifespan: 50,000 hours
Finish: white
Warranty: 5 years

Electrical and installation
The auto-sensing 120-347V driver is the feature contractors appreciate most: the same fixture goes into a 120V residential-style circuit or a 347V commercial panel without ordering a different model. Confirm your ceiling cavity clears the 4.0" height, cut a 6.0" opening, set the CCT and wattage switches before pushing the fixture up, and connect to a 0-10V dimmer if you want daytime-to-evening control. The -25°C to +40°C operating range suits unheated storage rooms, garages and vestibules, and the damp location rating covers covered entries and bathrooms — always verify the rating matches the exact location before installing. Wiring must be completed by a qualified electrician.

Applications, family and documentation
Think open-plan offices and boardrooms, clinic corridors, boutique sales floors, café seating, condo kitchens, stairwells and finished basements. For a tighter accent or a smaller cut-out, pair it with the 4" round commercial LED recessed; for higher ceilings and more output, step up to the 8" round commercial LED recessed or the 10" round commercial LED recessed. Where the plenum is very shallow, the 4" slim flat DLF recessed is a useful complement. The full technical PDF (LCDL-CDR6-17W-MV-3CCT-WH Spec Sheet) is in the Documentation tab with the complete dimension and ordering table.

Technical Files
