LINEAR LED RECESSED - LCDL-DISKCB5W

Name: LINEAR LED RECESSED - LCDL-DISKCB5W
Brand: LEDCO
SKU: LCDL-DISKCB5W
Price: 40.97 CAD
Availability: InStock

SKU: LCDL-DISKCB5W

Brand: LEDCO

Say goodbye to the row of round holes in your ceiling. The LCDL-DISKCB5W is a compact linear LED recessed fixture — a slot of light instead of a circle — that turns a plain drywall ceiling into something that looks designed. People search for it as a linear recessed light, a rectangular pot light, a slot downlight or simply recessed LED lighting, and it does exactly what all those names promise: a clean, discreet aperture that disappears into the ceiling and leaves only the light behind. Installed on its own it marks an entry or washes a hallway; repeated in a row at regular spacing it draws a continuous architectural line over kitchen counters, corridors, reception desks and workstations.

This model is a complete integrated LED recessed fixture with its power transformer included, so there is no separate driver to source or hide above the ceiling. It draws 10W at 120V AC and delivers 650 lumens at a warm, welcoming 3000K colour temperature — bright enough for real task light, soft enough to live with all evening. It is dimmable and compatible with most dimmers, so you can pull the level down for a quiet dinner and push it back up when you are chopping, reading or working. The trim is white, the body measures 6 ⅜ in. (16.3 cm) long by 2 ¼ in. (5.8 cm) wide and 2 in. (5.4 cm) high, with a 5 ½ x 1 ½ in. (13.9 x 3.6 cm) cut-out. It is insulated ceiling rated for direct contact with insulation, suitable for damp locations and all interior applications, with a rated lifespan of 35 000 hours and a 3 year warranty.

Because it is IC rated and damp-location rated, this little linear fixture is at home in the places Canadian ceilings make difficult: an insulated top-floor hallway, a bathroom or powder room ceiling, a basement renovation, a mudroom, a covered entry ceiling, or over the back bar and display shelving of a café or boutique. Pair it with the longer Linear LED recessed LCDL-DISKCB10W when you need more reach in the same visual language, or mix it into a plan built around Round commercial LED recessed 4 in. downlights for general ambient light. Map your run, plan your cut-outs, and give your ceiling a line worth looking at.

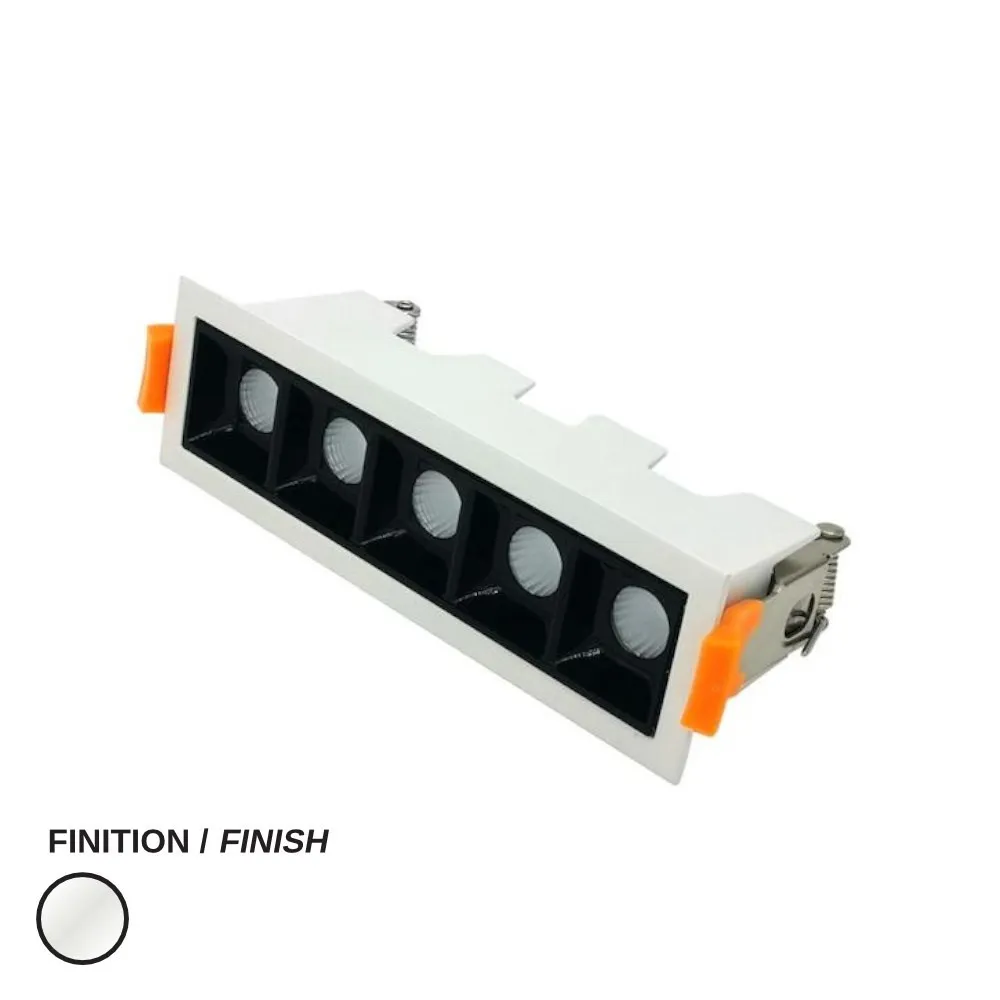

A linear aperture, built as one piece
The LCDL-DISKCB5W is a complete integrated LED recessed fixture: the LED board, the optic and the power transformer are all part of the assembly, which means fewer parts to order, fewer connections in the ceiling cavity and a faster install. The visible face is a narrow rectangular aperture with a white trim, a shape that reads as architectural detailing rather than as a light fixture. Housing dimensions are 6 ⅜ in. (16.3 cm) long, 2 ¼ in. (5.8 cm) wide and 2 in. (5.4 cm) high, and the required ceiling opening is 5 ½ x 1 ½ in. (13.9 x 3.6 cm) — shallow enough to work where a deep can simply will not fit.

Light quality you can live with
At 650 lumens and 3000K, this fixture sits in the warm white zone that flatters wood, stone, paint and skin tones without tipping into yellow. The linear aperture spreads the output along its length instead of punching a single hot circle onto the floor, which is exactly why designers use slot lighting over counters and in corridors. Being dimmable with most dimmers, the same fixture can serve as bright task light during the day and as low, restful ambience at night — one of the simplest ways to make a small room feel finished.

Technical specifications
SKU: LCDL-DISKCB5W
Power: 10W ~ 120V AC
Brightness: 650 lumens
Colour temperature: 3000K
Lifespan: 35 000 hours
Trim colour: White
Length: 6 ⅜ in. (16.3 cm)
Width: 2 ¼ in. (5.8 cm)
Height: 2 in. (5.4 cm)
Cut-out: 5 ½ x 1 ½ in. (13.9 x 3.6 cm)
Rating: insulated ceiling rated, direct contact with insulation
Location: damp locations, all interior applications
Dimming: dimmable, compatible with most dimmers
Warranty: 3 years

Installation and electrical
The fixture runs directly on 120V AC line voltage with its included transformer, so it wires like any standard recessed downlight on a residential or light commercial circuit. Its insulated ceiling rating means it can sit in direct contact with batt or blown insulation — a real advantage in attic-adjacent ceilings and top-floor hallways where an unrated fixture would force you to build a clearance box. Before cutting, tape out the full run on the ceiling and confirm your spacing so the slots stay perfectly aligned; check for joists, ducts and plumbing above the line, and have the connections verified by a qualified electrician. For dimming, test the fixture with your chosen dimmer at the start of the job rather than after twenty units are in the ceiling, and keep every fixture on the run on the same dimmer for consistent levels.

Where it works, and what it works with
Think hallways and stair landings, kitchen counters and islands, bathroom ceilings, walk-in closets, home offices, condo entries, and on the commercial side reception counters, boutique display walls, café back bars and clinic corridors. Because it is damp location rated, it also suits covered exterior ceilings and bathroom ceilings where humidity is part of daily life. Need a longer slot for a wider counter or a bigger room? The Linear LED recessed LCDL-DISKCB10W shares the same 2 ¼ in. width and white trim in a longer body. To round out a full ceiling plan, combine these accent slots with Round commercial LED recessed 6 in. or Round commercial LED recessed 8 in. units for broad ambient coverage. The complete spec sheet PDF, including the technical drawing with cut-out dimensions, is available in the Documentation tab.
