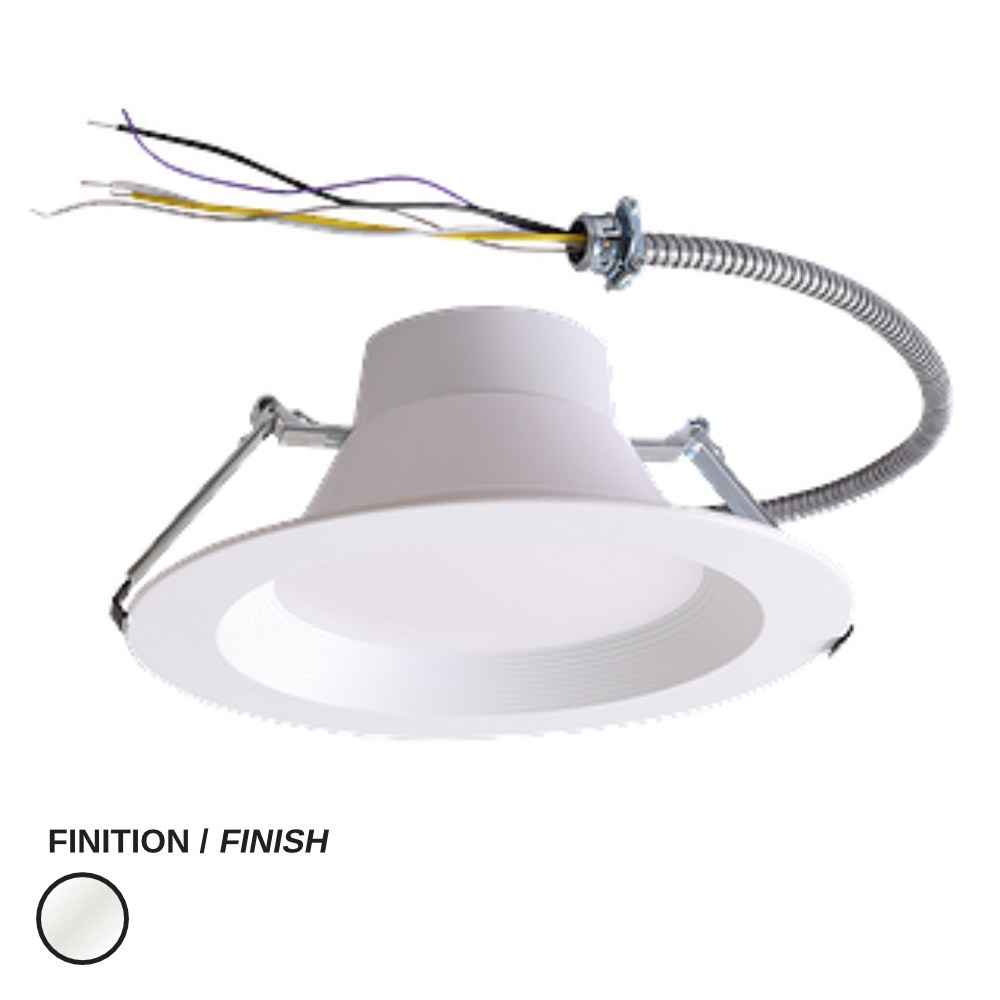

ROUND COMMERCIAL LED RECESSED

Name: ROUND COMMERCIAL LED RECESSED
Brand: LEDCO
SKU: LCDL-CDR10-40W-MV-3CCT-WH
Price: 84.97 CAD
Availability: InStock

SKU: LCDL-CDR10-40W-MV-3CCT-WH

Brand: LEDCO

Some ceilings just need one clean circle of light that does the job without fuss — and that is exactly what this round commercial LED recessed downlight delivers. Known on job sites as a pot light, a commercial LED ceiling light or simply a round recessed downlight, model LCDL-CDR10-40W-MV-3CCT-WH is the 10" version of the family, built to light corridors, offices, lobbies, shops and open-plan homes with a smooth, even wash instead of harsh hot spots. Its diffused UV-resistant PC lens softens the source, so what you see from below is a neat white circle — not a glaring dot. Whether you are re-lamping a whole floor, replacing tired halogen cans or planning a fresh layout of dimmable LED downlights, this one is made to be specified in quantity and forgotten about for years.

The specs back up the look. This 10" unit delivers 40W and 3700 lumens, with an efficiency of ≥75 lm/W and a wide 100° beam angle for even coverage between fixtures. Field-selectable 3CCT lets you set 3000K, 3500K or 4000K right at installation, and the CRI ≥90 keeps skin tones, wood finishes and merchandise looking true. The auto-sensing 120-347V driver works on residential and commercial circuits alike, it is 0-10V dimming compatible, rated for damp location, and operates from -25°C to +40°C. Rated life is 50 000 hours, and it is backed by a 5-year warranty. Dimensions for this size: 11.28" outside diameter, 8.5" cut-out, 4.75" height, in a clean white finish over a die-cast aluminum one-piece housing.

It shines in office ceilings, clinic corridors, condo hallways, salons, retail aisles, basements and kitchens — anywhere Canadian winters and long operating hours make maintenance a pain you would rather avoid. Because the same style is offered in several diameters, it is easy to carry one look through an entire building: pair this 10" with the round commercial LED recessed 4", the round commercial LED recessed 6" or the round commercial LED recessed 8" for accent and transition zones. Plan your spacing, cut once, and let a licensed electrician make the connection.

Built to stay quiet in the ceiling
The housing is a one-piece die-cast aluminum body, which is the part nobody sees but everybody benefits from: it pulls heat away from the LED board and driver so light output and colour stay stable season after season. The white finish keeps the trim discreet against painted drywall or T-bar ceilings, and the UV-resistant PC lens diffuses the source for a uniform, glare-free distribution. Over 50 000 hours of rated life, that thermal design is what keeps you off the ladder — a real advantage in high ceilings, stairwells and corridors where changing a lamp means booking a lift.

Light quality you can actually see
With a CRI ≥90, colours render honestly: paint samples look like the swatch, produce looks fresh, fabrics and skin tones look natural. The 100° beam angle spreads light broadly between fixtures, so a properly spaced row reads as continuous illumination rather than a series of bright pools. Field-selectable 3CCT (3000K, 3500K, 4000K) means one product covers warm residential spaces, neutral office areas and crisp commercial zones — you decide on site, or change your mind later without reordering.

Technical specifications
Model: LCDL-CDR10-40W-MV-3CCT-WH
Size: 10"
Wattage / output: 40W — 3700 lm
Efficacy: ≥75 lm/W
Colour temperature: 3000K / 3500K / 4000K selectable
CRI: ≥90
Beam angle: 100°
Voltage: 120-347V auto-sensing driver
Dimming: 0-10V compatible
IP rating: damp location
Operating temperature: -25°C to +40°C
Outside diameter (MOD): 11.28"
Cut-out: 8.5"
Height: 4.75"
Finish: white
Lifespan: 50 000 hours
Warranty: 5 years

Electrical, dimming and installation
The auto-sensing 120-347V driver is a big simplifier on commercial projects: the same SKU goes on a 120V residential branch circuit or a 347V commercial feed, so contractors can stock one box for several buildings. For controls, use a 0-10V compatible dimmer — verify compatibility before you wire the room, and keep the dimming pair separated properly from line conductors. Cut the ceiling opening to 8.5" and allow for the 4.75" fixture height above the plane, especially under ducts, joists or in dropped ceilings. Space your pot lights evenly and pull the outer row slightly away from the walls so light washes down instead of scalloping. Final connection should always be completed by a licensed electrician, following the Canadian Electrical Code.

Applications and matching products
Think office floors and meeting rooms, medical and dental clinics, reception areas, salons, retail aisles, restaurants, condo corridors and commercial lobbies — plus residential kitchens, hallways, bedrooms and finished basements where a higher-output 10" downlight covers a large area with fewer fixtures. For a coordinated plan, mix diameters from the same family: round commercial LED recessed 4" for tight ceilings and perimeters, round commercial LED recessed 6" for general rooms and round commercial LED recessed 8" for mid-size bays. For slim, shallow-ceiling situations, the 4" flat DLF round recessed is a useful companion.

Documentation
The full technical spec sheet for LCDL-CDR10-40W-MV-3CCT-WH is available in the Documentation tab, with the complete size, wattage, cut-out and dimming data you need for submittals and rough-in.
