LINEAR LED RECESSED

Name: LINEAR LED RECESSED
Brand: LEDCO
SKU: LCDL-DISKCB10W
Price: 84.97 CAD
Availability: InStock

SKU: LCDL-DISKCB10W

Brand: LEDCO

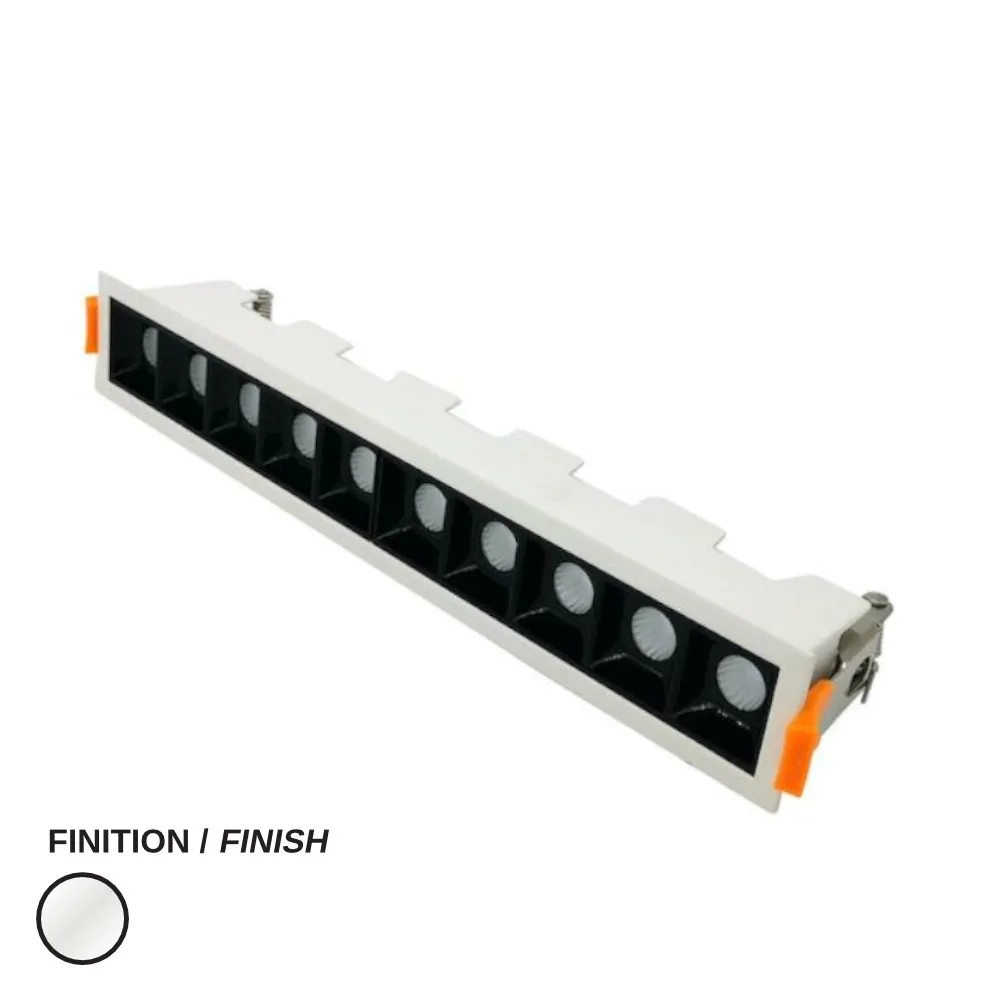

Some lights are meant to be seen. This one is meant to disappear — and leave a clean, continuous stripe of light behind. The LINEAR LED RECESSED fixture LCDL-DISKCB10W is a complete, ready-to-install integrated LED recessed fixture with its power transformer included, the kind of slim linear LED lighting people look for when a round pot light simply isn't the right shape. Homeowners call it a linear recessed light or a rectangular pot light; contractors call it a discreet way to wash a counter, a corridor or a run of cabinets with even light. It installs flush with the ceiling plane, so all you notice is the glow.

This 11 ⅝ in. (29.6 cm) model runs on 18W at 120V AC and delivers 1150 lumens of warm 3000K light — bright enough to work under, soft enough to live with. It measures 2 ¼ in. (5.8 cm) wide and 2 in. (5.4 cm) high, so it slips into ceilings with limited plenum depth, and the required opening is 10 ¾ x 1 ½ in. (27.2 x 3.6 cm). The trim is white, it is dimmable and compatible with most dimmers, it is insulated ceiling rated for direct contact with insulation, and it is suitable for damp locations for all interior applications. Rated for 35 000 hours and backed by a 3-year warranty, it is built to be forgotten about once the drywall is closed.

Use it over a kitchen island or sink, above a bathroom vanity, in a hallway, a walk-in closet, a stairwell, a basement renovation, or in repeated parallel runs across a retail floor, a clinic corridor or a small office — the rhythm of several lines reads as architecture, not as fixtures. Because it accepts direct contact with insulation, it is a practical choice for Canadian top-floor ceilings and cathedral bays where clearance around a housing is a real headache. Mix it with the shorter Linear LED recessed - LCDL-DISKCB5W for niches and tight spans, or pair the line with round units like the Round commercial LED recessed - LCDL-CDR4-12W-MV-3CCT-WH for general ambient coverage. Plan your layout, snap a line and give your ceiling the clean look it deserves.

A clean line, not a row of holes
The idea behind this linear recessed LED is simple: replace the visual clutter of scattered downlights with one uninterrupted bar of light. The flush white trim sits tight to the ceiling plane and the diffuser spreads the output evenly along the full 11 ⅝ in. (29.6 cm) body, so you get a smooth wash instead of hot spots and scallops. Because the fixture is fully integrated — LED board, optic and housing in one piece, with the power transformer included — there are no lamps to source later and no trim-and-housing matching game. It is a single part number, LCDL-DISKCB10W, from box to ceiling.

Light quality and dimming
At 3000K, the light is warm white: flattering on wood, stone, paint and skin tones, and comfortable in rooms where people relax or eat. The 1150 lumens output gives real working brightness over a counter or a desk while staying easy on the eyes. The fixture is dimmable and compatible with most dimmers, which lets you take a kitchen from full task light at supper prep down to a low evening glow. As always with LED, test your dimmer model on one fixture before you wire an entire run, especially when several units share a single control.

Technical specifications
SKU: LCDL-DISKCB10W
Type: Integrated LED recessed fixture
Power: 18W ~ 120V AC
Brightness: 1150 Lumens
Colour temperature: 3000K
Lifespan: 35 000 Hours
Trim colour: White
Length: 11 ⅝ in. (29.6 cm)
Width: 2 ¼ in. (5.8 cm)
Height: 2 in. (5.4 cm)
Ceiling opening: 10 ¾ x 1 ½ in. (27.2 x 3.6 cm)
Rating: Insulated ceiling rated, direct contact with insulation
Location: Interior applications, suitable for damp locations
Dimming: Dimmable, compatible with most dimmers
Warranty: 3 years

Installation and electrical notes
With a height of only 2 in. (5.4 cm), the housing fits shallow ceilings, furred-down bulkheads and soffits where a traditional can would never go. Cut the 10 ¾ x 1 ½ in. (27.2 x 3.6 cm) opening square and dry-fit before finishing — a tight, clean cut is what creates the seamless look. For several units in a row, snap a chalk line and measure your on-centre spacing from the same reference so the line reads straight from across the room. The insulated ceiling rating means the fixture can sit in direct contact with batt or blown insulation, a real advantage in attics and top-floor ceilings. Being suitable for damp locations, it also works over a bathroom vanity or in a covered interior area with humidity. Connections run on standard 120V AC and should be completed by a qualified electrician, following the Canadian Electrical Code and your local requirements.

Where it fits and what to pair it with
Think kitchen islands, under-cabinet bulkheads, bathroom vanities, hallways, stairwells, walk-in closets, home offices, basement renovations, reception desks, display shelving, clinic corridors and small retail floors. For shorter spans, niches and tighter layouts, the same family offers the Linear LED recessed - LCDL-DISKCB5W at 6 ⅜ in. (16.3 cm). To fill the ambient layer around your linear accents, look at the Round commercial LED recessed - LCDL-CDR6-17W-MV-3CCT-WH or the larger Round commercial LED recessed - LCDL-CDR8-20W-MV-3CCT-WH. The full technical PDF, including the dimensioned drawing with the cut-out size, is in the Documentation tab — download it before you order your ceiling cuts.
