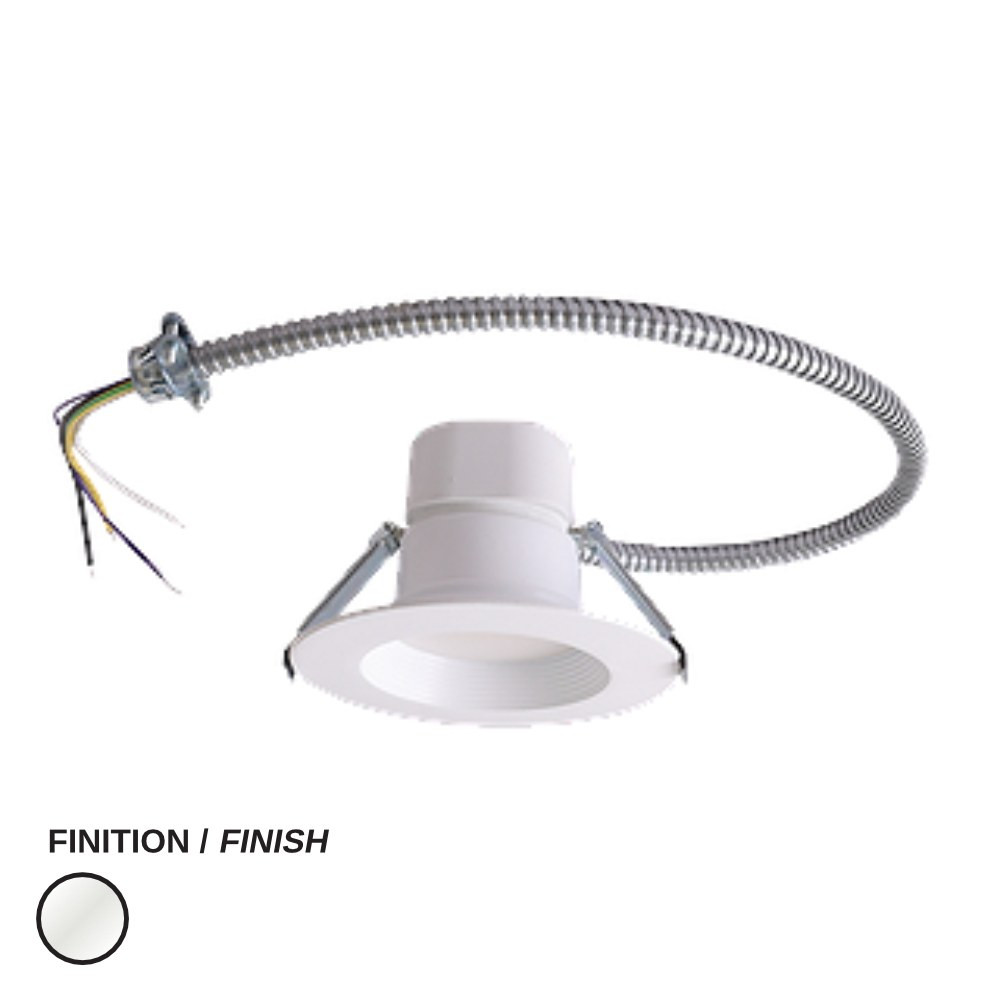

ROUND COMMERCIAL LED RECESSED - LCDL-CDR4-12W-MV-3CCT-WH

Name: ROUND COMMERCIAL LED RECESSED - LCDL-CDR4-12W-MV-3CCT-WH
Brand: LEDCO
SKU: LCDL-CDR4-12W-MV-3CCT-WH
Price: 38.97 CAD
Availability: InStock

SKU: LCDL-CDR4-12W-MV-3CCT-WH

Brand: LEDCO

Bright, even ceiling light without the glare, the noise or the heat of an old pot light: that is exactly what this round commercial LED recessed fixture brings to a ceiling. Known by many names — LED downlight, pot light, recessed can light or simply commercial LED ceiling light — this 4'' model (SKU LCDL-CDR4-12W-MV-3CCT-WH) is the compact member of a family built for offices, stores, corridors, clinics and homes that deserve better light. It is the kind of fixture contractors keep on the truck: one box, one wire, selectable colour, and a clean white trim that disappears into the ceiling so all you notice is the light.

The numbers back up the look. The 4'' model draws 12W and delivers 980 lumens, with an efficacy of ≥75 lm/W and a 100° beam angle that spreads light wall to wall instead of punching a hot spot into the floor. Field-selectable 3CCT lets you set 3000K, 3500K or 4000K right at installation, and a CRI ≥90 keeps skin tones, paint, wood and merchandise looking true. The driver is 120-347V auto-sensing and 0-10V dimmable, the one-piece die-cast aluminum housing handles the heat, and the UV-resistant PC lens softens the output. It is Energy Star certified, rated for wet locations, operates from -25°C to +40°C, is rated for 50,000 hours and carries a 5-year warranty.

With a 3.75'' cutout, a 5.91'' outer diameter and a 3.5'' height, it slips into tight ceiling cavities where bigger cans will not go: closets, hallways, entryways, soffits, under-stair nooks, retail display rows, exam rooms and reception desks. The wet location rating makes it a smart pick for covered porches, bathrooms and Canadian entry vestibules that see snow and slush. Need more output or a wider spacing on the same project? Step up to the 6'' round commercial LED recessed, the 8'' round commercial LED recessed or the 10'' round commercial LED recessed and keep the same white finish and colour temperature across the whole ceiling. Plan your grid, set every unit to the same CCT, and close the ceiling with confidence.

Built to last in the ceiling
The housing is a one-piece die-cast aluminum body, chosen for optimal thermal management: the heat generated by the LED board is pulled away from the diodes and spread through the metal, which is what protects light output and colour stability over the years. In front sits a UV-resistant PC lens that diffuses the light evenly and cuts glare, so you get a soft, uniform wash instead of visible dots. The white finish is clean and neutral, easy to blend into drywall, T-bar or painted ceilings, and the fixture mounts with installed spring clips — no extra hardware to hunt for on site.

Light quality you can set on site
Field-selectable 3CCT means one SKU covers three looks: 3000K for warm, welcoming spaces, 3500K as a neutral all-rounder, and 4000K for crisp, focused light in kitchens, workshops and commercial areas. Combined with a CRI ≥90, colours stay faithful — a real advantage in retail displays, salons, clinics and anywhere finishes and fabrics need to look like themselves. The 100° beam angle gives broad, even coverage, which lets you space units generously and still avoid dark corners between them.

Technical specifications
Model: LCDL-CDR4-12W-MV-3CCT-WH
Size: 4''
Wattage: 12W
Lumens: 980 lm
Efficacy: ≥75 lm/W
Colour temperature: 3000K / 3500K / 4000K field selectable
CRI: ≥90
Beam angle: 100°
Voltage: 120-347V auto-sensing
Dimming: 0-10V compatible
IP rating: wet location
Operating temperature: -25°C to +40°C
Outer diameter: 5.91''
Cutout: 3.75''
Height: 3.5''
Lifespan: 50,000 hours
Certification: Energy Star
Warranty: 5 years

Wiring, dimming and installation
The auto-sensing driver accepts 120V through 347V, so the same fixture goes on a residential circuit or on a commercial multi-voltage system without ordering a different part number — a big help on mixed projects and on retrofits where the panel is not what the drawings said. 0-10V dimming is supported with compatible controls, ideal for boardrooms, restaurants and showrooms where levels change through the day. Cut a 3.75'' opening, check that you have at least 3.5'' of clearance above the ceiling, make your connections, squeeze the spring clips and push the fixture home. Set the CCT selector on every unit before closing up, and keep a consistent distance from the walls so the light washes the surfaces evenly.

Where it works and what goes with it
Think corridors and stairwells in office buildings, retail aisles, hotel rooms, dental and medical clinics, cafés, condo lobbies, basements, walk-in closets and covered porches — the wet location rating and the -25°C to +40°C range suit Canadian entryways, bathrooms and unheated vestibules. On larger ceilings, mix sizes from the same family: the 6'' round commercial LED recessed and the 8'' round commercial LED recessed share the same white finish and selectable colour temperatures, while the 10'' round commercial LED recessed covers open areas and high ceilings. For shallow plenums or cabinet and niche lighting, the linear LED recessed is a useful companion. The full technical spec sheet for this model is available in the Documentation tab for cutout dimensions and electrical details before you order.
