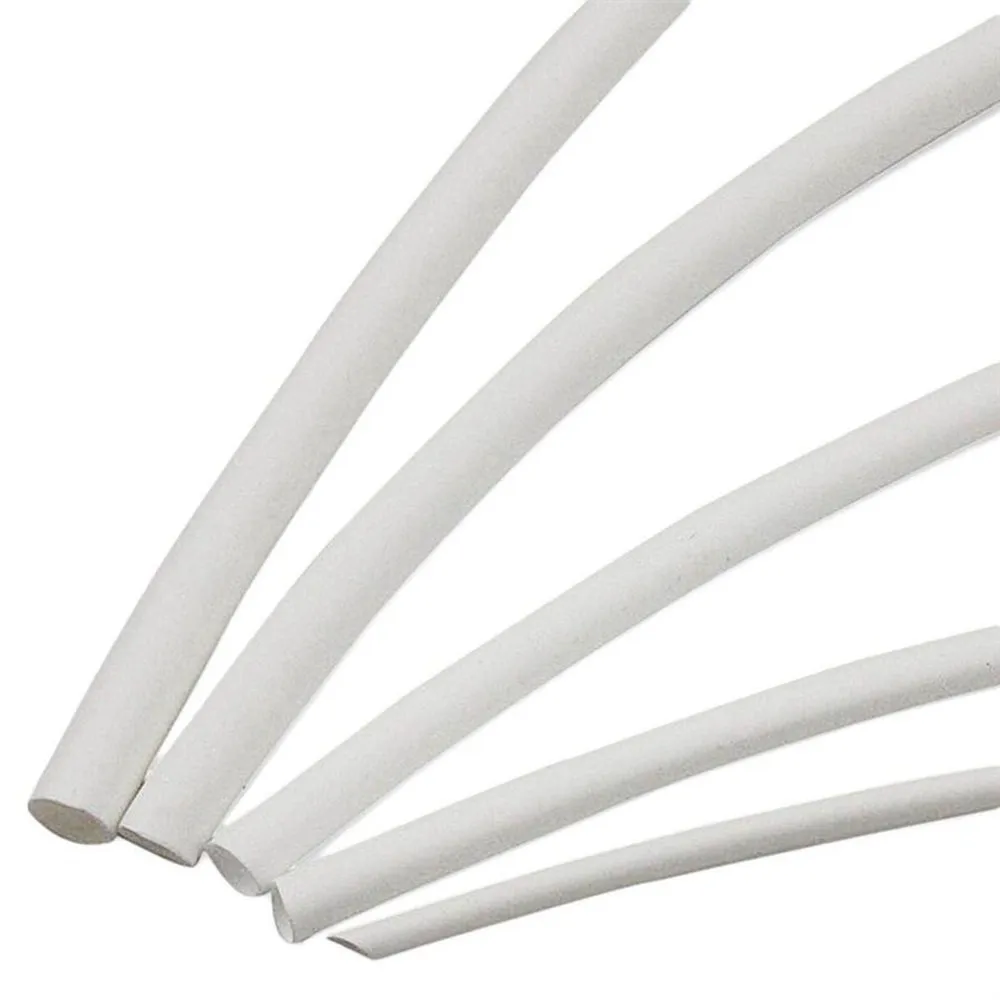

WHITE HEAT-SHRINK TUBE – SOLD BY THE INCH - LCFAB-SHRINK-12MM

Name: WHITE HEAT-SHRINK TUBE – SOLD BY THE INCH - LCFAB-SHRINK-12MM
Brand: LEDCO
SKU: LCFAB-SHRINK-12MM
Price: 0.97 CAD
Availability: InStock

SKU: LCFAB-SHRINK-12MM

Brand: LEDCO

Every clean wiring job ends the same way: a joint that needs to be insulated properly, not wrapped in tape that unravels six months later. This white heat-shrink tube — also called heat shrink tubing, shrink sleeve or gaine — is a flexible sleeve that contracts when you warm it, forming a snug, tidy jacket right over your connection. It is the everyday solution for LED tape and strip terminations, driver leads, fixture rewiring, speaker and data cables, and all the small splices that pile up on a lighting install. If you have been searching for clear shrink tube or wiring sleeve for your low-voltage work, this white version does the same job while disappearing behind trims and diffusers.

The sleeve is sold by the inch, so you order exactly the length your project needs — short sleeves for individual conductors, longer runs to cover a full connector block. One repair or dozens of terminations, you cut what you use. Once shrunk, it gives you real dielectric insulation, a slim profile and far better resistance to pulling, rubbing and vibration than electrical tape, which tends to gum up and slide in warm ceiling cavities. The white finish is the quiet advantage: behind a cove, inside an aluminum channel or near a white diffuser, a dark sleeve telegraphs through, while white simply blends in. This listing is SKU LCFAB-SHRINK-12MM, the larger diameter of the family, handy when you are covering bulkier joints, multi-conductor bundles or connector bodies.

It earns its keep in renovated basements and kitchens where LED strip lighting runs under cabinets, in retail displays and offices where drivers get swapped, and in shops doing marine, automotive and general connector and wiring repairs. Canadian contractors know the reality: cold garages, vibrating equipment and tape that lets go — heat-shrink does not. Need a tighter fit on thin conductors? Pair this size with the white heat-shrink tube 8 mm or the white heat-shrink tube 10 mm and keep all three on the bench. Order the length you need and finish your terminations the right way.

What heat-shrink tubing actually does
Heat-shrink tubing is a flexible sleeve that contracts when warmed, closing tightly around a wire joint. That simple action replaces electrical tape in most low-voltage and fixture-wiring situations and gives you three things tape cannot: dependable dielectric insulation, a tidy low-profile finish, and much better resistance to pulling, rubbing and vibration. Tape edges lift, collect dust and slide when a ceiling plenum warms up; a shrunk sleeve stays exactly where you put it. The white colour is a deliberate choice for lighting work — behind trims, coves and diffusers, dark sleeving shows as a shadow line, while white blends into the background.

Sold by the inch — you cut what you use
Because this tubing is cut to the length you order, you plan your material instead of guessing. Order short sleeves to insulate individual conductors, or a longer run to cover an entire connector block. That flexibility suits a single fixture repair just as well as a large lighting installation with dozens of terminations spread across a floor plate. A practical habit from the trade: keep a bit extra on hand, because shrink tubing always finds a use in the shop — a chafed cord, a strain-relief build-up, a label-free bundle that needs identifying.

Installation, step by step
Cut the sleeve a touch longer than the joint so the insulation is covered on both sides. Slide it onto the conductor before you make the connection — this is the step everyone forgets, and it means undoing good work to fix it. Make your splice, centre the sleeve over it, then apply even heat with a heat gun, working from the middle outward so trapped air escapes toward the ends. Rotate the wire as you go for a uniform shrink, then let the sleeve cool undisturbed before you tug or dress the harness. Avoid open flame: a lighter scorches the material and can damage the conductor insulation underneath, which defeats the whole purpose.

Technical specifications
SKU: LCFAB-SHRINK-12MM
Product: White heat-shrink tube
Colour: White
Sold: By the inch, cut to the length ordered
Category: Connectors & Wiring
Typical uses: LED tape and strip terminations, driver leads, luminaire rewiring, speaker and data cables, marine and automotive repairs

Where it fits and what to pair it with
This sleeve is at home on LED tape and strip terminations, driver leads and luminaire rewiring, and just as useful on speaker and data cables, marine and automotive repairs, and general connector and wiring work in residential and light-commercial projects. Concrete examples: sealing the solder joint where a strip meets its lead wire under a kitchen cabinet, jacketing a driver's secondary leads inside a recessed housing, or tidying a bundle of low-voltage runs in a basement renovation before the drywall goes up. Choosing a diameter is simple — the sleeve should slide over the joint without force and still close down snugly. For thinner single conductors, step down to the white heat-shrink tube 8 mm; for mid-size splices, the white heat-shrink tube 10 mm is the middle ground, while this 12 mm size handles bulkier joints and connector bodies. No separate spec sheet is published for this item; the details above cover what you need to order and install it with confidence.
