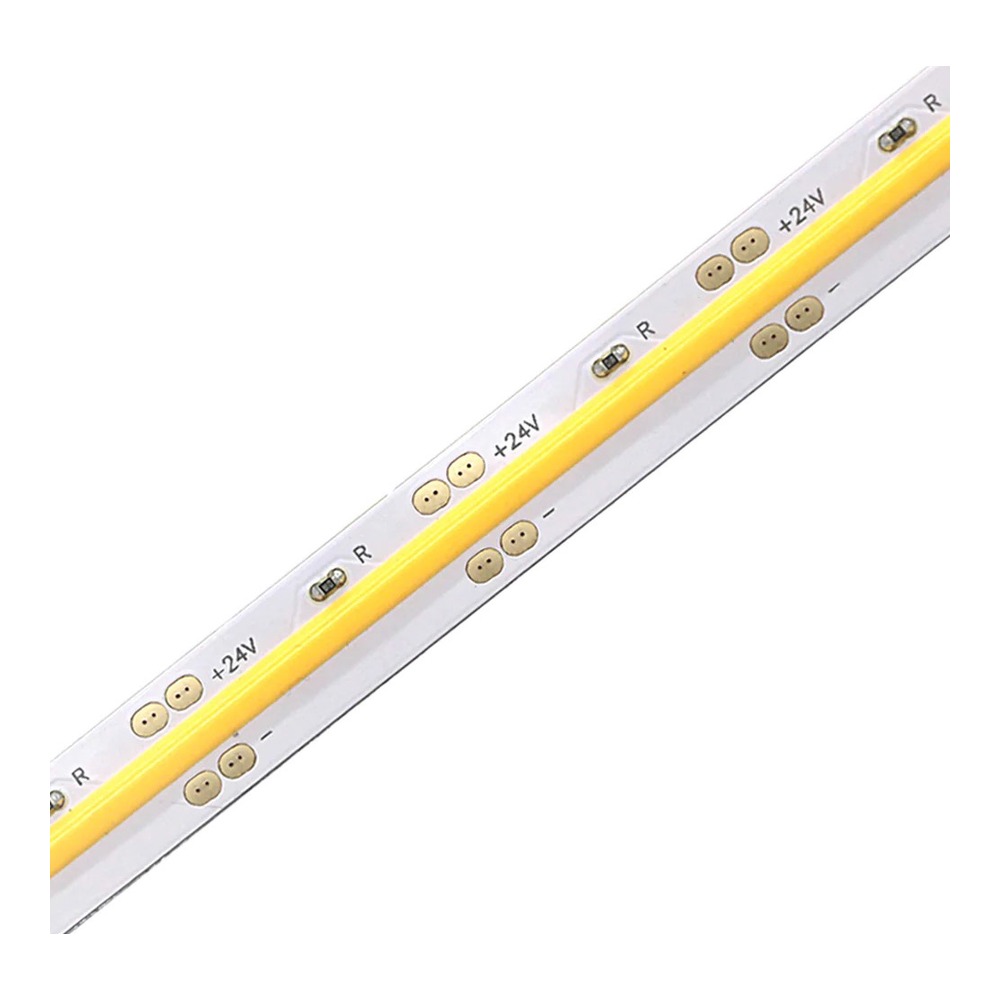

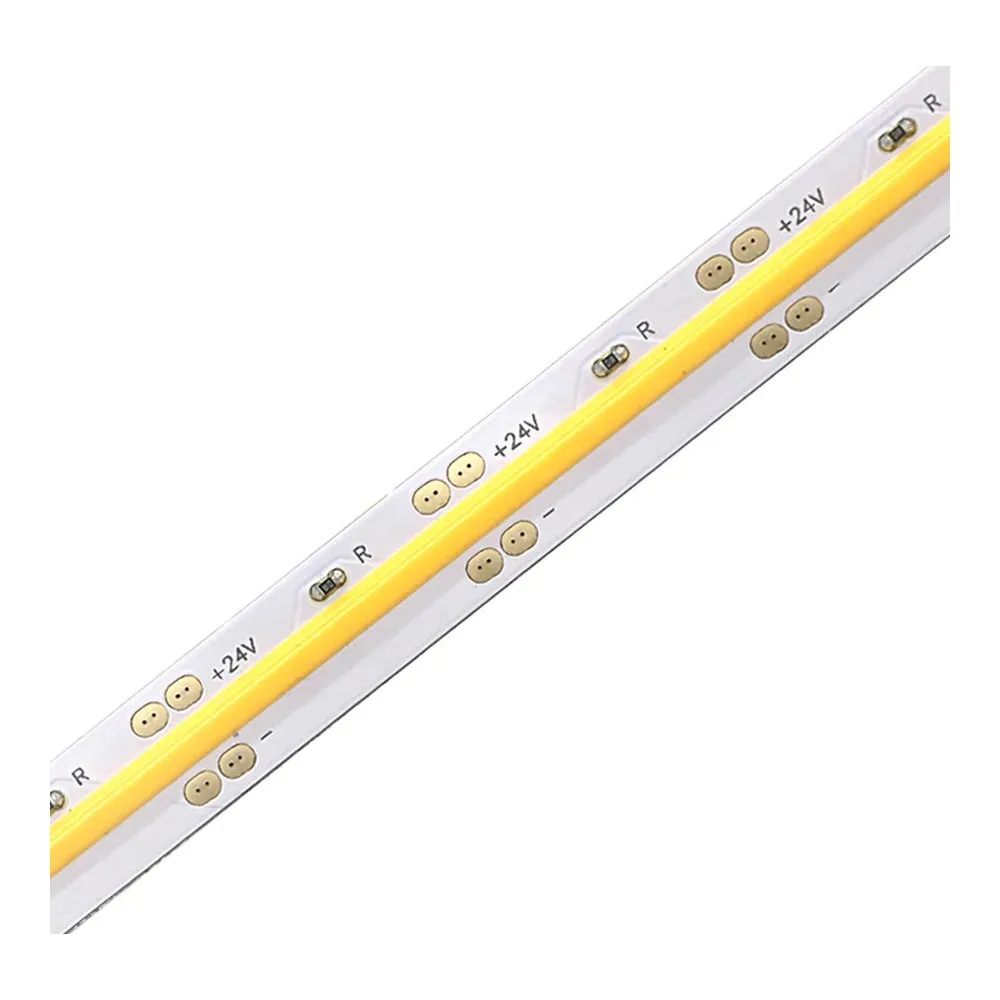

INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 3W/FT (10W/M), 480 LEDS/M, CRI 90, DIMMABLE, 35K

Name: INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 3W/FT (10W/M), 480 LEDS/M, CRI 90, DIMMABLE, 35K
Brand: LUMENSTARLED
SKU: LS-FLI-9B-24-480-35K
Price: 147.97 CAD
Availability: InStock

SKU: LS-FLI-9B-24-480-35K

Brand: LUMENSTARLED

Say goodbye to the dotted, stripy look of old strip lights. The LumenstarLED COB LED tape LS-FLI-9B-24-480-35K is a 24V DC single-colour LED tape light — also called LED strip light, ruban LED or tape lighting — built with Chip-on-Board technology so the diodes disappear into one continuous, dot-free line of light. With 480 LEDs per metre packed onto the board, you get a smooth luminous surface that looks premium even when the source is partly visible: cove lighting, under-cabinet lighting, mirror backlighting, stair treads, millwork reveals and feature walls.

This reel gives you 16.4' (5M) of dimmable LED strip drawing 3W/ft (10W/M) and producing 335 lumens per foot (1100 lumens per metre) at a welcoming 3500K — warm enough for a home or a hotel lobby, crisp enough for retail and offices. The CRI is greater than 90, so wood grain, paint, fabric and food all look true. The 120° beam angle spreads light evenly inside an aluminum channel, and the 24V DC platform means longer runs with less voltage drop than a 12V system. The tape measures 5/8" (16mm) wide by 1/16" (2mm) thick, cuts every 5/8" (16mm), comes with a 24" (60cm) wire lead on both ends and mounts with the double-sided 3M tape already applied on the back. It is cULus listed, rated IP22 for indoor use, operates from -25~+60°C (-13~140°F), lasts more than 65,000 hours and is backed by a 5-year warranty.

Kitchen renovations in Montréal, condo cove ceilings, custom closets, reception desks, display cases, restaurant bars and basement stairs — this tape belongs anywhere you want a clean line of light instead of a row of dots. Pair it with a compatible low-voltage dimming power supply and slide it into a frosted aluminum profile such as the LL10 Standard 1M frosted, LL12 Standard 1M frosted, LL13 Standard 2M frosted or the bendable LL14 Standard 1M frosted. Roll out your next lighting detail today.

Dot-free COB construction
Traditional SMD strips space individual diodes along a flexible board, which is why you see hot spots and shadows through a diffuser. The Single Color 10W COBFlex LED Strip uses Chip-on-Board technology, placing hundreds of tiny chips on a shared substrate under a phosphor layer. At 146 LEDs/ft (480 LEDs/M), the result is a continuous line of light with excellent colour consistency, optimized from the start for installation in aluminum channel systems. The flexible board is 5/8" (16mm) wide and only 1/16" (2mm) thick, so this COB LED tape tucks into shallow reveals, cabinet toe-kicks and slim recessed profiles without telegraphing its presence.

Light quality you can specify
The 3500K colour temperature sits between warm white and neutral white, a favourite for hospitality, residential and commercial interiors alike. With a CRI greater than 90, colours render naturally — essential over quartz counters, in retail displays, in art niches and anywhere finishes are being judged. Output is 335 lumens per foot (1100 lumens per metre) at 3W/ft (10W/M), enough for genuine task lighting under cabinets while still being soft enough for accent and cove work. The 120° beam angle fills a diffuser evenly, and this dimmable LED strip light works with compatible low-voltage dimming power supplies for smooth control from full output down low.

Technical specifications
SKU: LS-FLI-9B-24-480-35K
Voltage: 24V DC
Wattage: 3W/ft (10W/M)
Lumen output: 335/ft (1100/M)
Colour temperature: 3500K
CRI: >90
Beam angle: 120°
LED density: 146 LEDs/ft (480 LEDs/M)
Cut increment: 5/8" (16mm)
Roll length: 16.4' (5M)
Dimensions: 5/8" (16mm) wide x 1/16" (2mm) thick
IP rating: IP22 (indoor)
Operating temperature: -25~+60°C (-13~140°F)
Lead wire: 24" (60cm) on both ends
Lifespan: +65,000 hours
Listing: cULus
Warranty: 5-year

Wiring, cutting and installation
Installation is straightforward: peel the double-sided 3M tape on the back and press the strip into a clean, dry channel or surface. Cut only on the marked increments — every 5/8" (16mm) — and remember that each reel arrives with a 24" (60cm) wire lead on both ends, which makes it easy to reach a junction box or driver from either side of a run. Connections can be made with the COB solderless connector family: LS-SC1-COB seamless strip-to-strip, LS-SC2-COB with a 24" wire lead, LS-SC2-COB-20 extended connector with 20' (6.1m) lead, LS-SC3-COB with connectors on both ends, LS-SC4-COB L-connector for corners and the compact LS-BK-SC2-COB wire-to-strip connector. Running on 24V DC rather than 12V means longer continuous runs with less voltage drop across a room. Size your Class II low-voltage power supply to the total wattage of the run, and choose a dimmable driver if you want dimming.

Profiles, applications and documentation
Cabinet, accent, display, cove and under-cabinet lighting are the natural homes for this tape: kitchen uppers and islands, walk-in closets, floating vanities and mirror surrounds, stair nosings, coffered ceilings, reception desks, bar backs and retail shelving. Frosted aluminum profiles finish the job and protect the strip — try the slim recessed LL10 Standard 2M frosted, the slim modern LL12 Standard 2M frosted, the wider LL13 Standard 1M frosted or the curve-flexible LL14 Standard 2M frosted for arches and curved millwork. Full details, dimensions, ordering codes and the accessory list are in the technical PDF spec sheet available in the Documentation tab of this page.
