LL12 STANDARD (6.56') 2M FROSTED (BOM)

Name: LL12 STANDARD (6.56') 2M FROSTED (BOM)
Brand: LUMENSTARLED
SKU: LS-LL12-L2
Price: 49.97 CAD
Availability: InStock

SKU: LS-LL12-L2

Brand: LUMENSTARLED

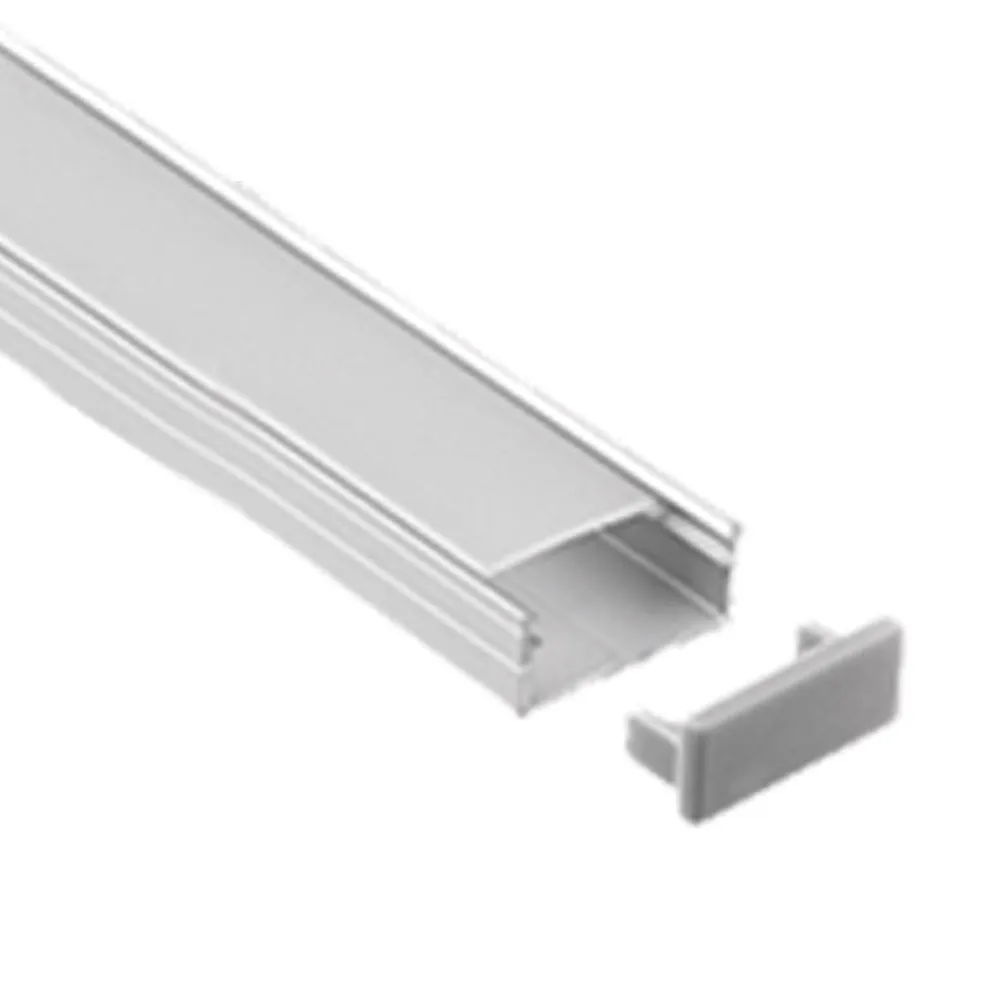

Give your LED strip lighting the clean, finished look it deserves. The LumenstarLED LL12 Standard 2M Frosted is a slim modern LED aluminum profile — also called an LED channel, LED extrusion or aluminum track for LED strip — supplied in a 2M (80") length with a frosted lens. It's the piece that turns a bare roll of tape light into real architectural lighting: the diffuser hides the individual diodes so you see a smooth line of light instead of a row of bright dots. Homeowners use it for under-cabinet lighting, stair accents and closet lighting; contractors and cabinetmakers use it for cove lighting, millwork integration, display cases and retail shelving. Wherever a strip would otherwise sit exposed, this profile gives it a protected, intentional, built-in look.

Built from anodized aluminum, the LL12 body measures W18 x H8.5 mm (W45/64" x H21/64") and is offered in 1M (40") and 2M (80") lengths — this SKU, LS-LL12-L2, is the 2M (80") version with the frosted lens style. It can be installed recessed into a routed groove or surface mounted, and the recommended router dimensions are W23/32" x H5/16" (W18 mm x H8 mm) for a flush, seamless result. The channel accepts both indoor and outdoor flex strips and works with all solderless connectors, so you can plan your runs, corners and feed points without soldering on site. The aluminum extrusion also acts as a heat sink for the tape inside, which is exactly what LED strips need to keep performing year after year.

This profile shines in kitchens, bathrooms, basements, home theatres and staircases, and just as well in restaurants, boutiques, clinics, offices and hotel corridors across Canada. Because it fits standard cabinetry depths and routed cavities, installers can line up several 2M sections end to end for long uninterrupted runs, or drop in a single length for a focused accent zone — and because every unit shares the same frosted aluminum finish, the visual continuity stays perfect from one section to the next. Pair it with the flexible LED strip of your choice, indoor or outdoor, plus the solderless connectors and power supply suited to your run. The technical spec sheet is available in the Documentation tab — download it, check your routing dimensions and order the lengths your project needs.

A profile built to last
The LL12 is machined from anodized aluminum, a material chosen for good reason: it resists scuffs and handling on the job site, it holds a crisp edge when cut, and above all it draws heat away from the LED tape bonded inside it. Heat is the number one enemy of an LED strip — a strip glued directly to drywall, wood or melamine runs hotter and fades faster. Slide that same strip into an aluminum channel and you give it a continuous heat sink along its whole length. The body is genuinely slim at W18 x H8.5 mm (W45/64" x H21/64"), so it tucks into millwork, reveals and coves without stealing space or drawing attention to itself.

Frosted lens, no more dots
The lens style on this model is frosted, and that single detail changes everything about how the finished installation reads. Without a diffuser, you see every diode: a line of hot spots reflected in a countertop, a glass shelf or a polished floor. The frosted cover blends those points into one even band of light, which is why designers specify diffused LED linear strip details for display cases, headboards, bar fronts and ceiling coves. It's also easier on the eyes in spaces where the source sits near eye level — think a hallway toe-kick or a stair nosing.

Technical specifications
Product code: LS-LL12
SKU: LS-LL12-L2
Brand: LumenstarLED
Installation: Recessed, Surface mount
Router dimensions: W23/32" x H5/16" (W18 mm x H8 mm)
Dimensions (WxH): W18 x H8.5 mm (W45/64" x H21/64")
Lengths offered: 1M (40"), 2M (80") — this SKU: 2M (80"), 6.56'
Materials: Anodized aluminum
Lens style: Frosted
Compatible strips: Indoor & Outdoor Flex
Compatible solderless connectors: All solderless connectors

Installation and compatibility
Two mounting methods are supported. For a recessed installation, rout a groove to W23/32" x H5/16" (W18 mm x H8 mm) in the cabinet panel, the shelf or the ceiling detail and drop the profile in flush — this is the go-to for under-cabinet lighting and for linear ceiling reveals. For surface mount, fasten the channel directly to the substrate and clip on the frosted lens. The profile takes indoor and outdoor flex strips and works with all solderless connectors, which means no soldering iron on site: you cut the tape at its marked cut points, clip the connector and keep moving. Plan your feed location and driver placement before you glue anything down — it's the step that saves the most time on a multi-room job.

Where it works, and what's in the Documentation tab
Concrete examples: a kitchen island with light washing the toe-kick, upper cabinets lit from the underside without a single visible diode, a basement stairwell where each nosing gets its own 2M run, a retail counter with a glowing recessed line in the front panel, a clinic reception desk, a restaurant banquette back-wall, or a bathroom mirror niche. In Canadian homes, where basements and hallways rarely get enough daylight, these continuous lines of light do more for a room than another ceiling fixture ever will. The technical PDF for the SLIM MODERN LED ALUMINUM PROFILE LS-LL12 is available in the Documentation tab, with the routing dimensions, profile section and compatibility details you'll want in hand before cutting your millwork.

Technical Files
