INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 3W/FT (10W/M), 480 LEDS/M, CRI 90, DIMMABLE, 3K

Name: INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 3W/FT (10W/M), 480 LEDS/M, CRI 90, DIMMABLE, 3K
Brand: LUMENSTARLED
SKU: LS-FLI-9B-24-480-3K
Price: 147.97 CAD
Availability: InStock

SKU: LS-FLI-9B-24-480-3K

Brand: LUMENSTARLED

Say goodbye to the dotted, spotty look of old strip lights. The COB LED tape LS-FLI-9B-24-480-3K from LumenstarLED gives you one perfectly smooth line of warm light, from the first inch to the last. Whether you call it LED tape light, tape lighting, LED strip light or simply a ruban LED, this 5 m (16.4') roll is the chip-on-board version everyone is switching to: 480 LEDs per metre bonded directly to the board in a continuous array, so there are no visible dots, no shadows, no hot spots. It was made for cove lighting, under-cabinet lighting, display cases, millwork, shelving, headboards, toe-kicks and accent details where you want to see the light and not the light source.

This is a 24V DC tape drawing 3W/ft (10W/M) and producing 335 lumens/ft (1100 lumens/M) at a 120° beam angle — bright enough to actually light a counter, soft enough to layer into a room. The 3000K warm white colour temperature flatters wood, stone and skin tones, and the CRI greater than 90 keeps merchandise, art and finishes looking true. It is fully dimmable with compatible low-voltage dimming power supplies, cULus listed, rated IP22 for indoor use, and carries a 5-year warranty with a lifespan of over 65,000 hours. The tape measures 5/8" (16mm) wide by 1/16" (2mm) thick, cuts every 5/8" (16mm), operates from -25 to +60°C (-13 to 140°F), and ships with a 24" (60cm) wire lead on both ends plus double-sided 3M tape already applied to the back.

From a Montréal condo kitchen to a boutique in Vancouver, a spa, a restaurant banquette or a hotel lobby, this dimmable LED strip light delivers the clean architectural line designers ask for. For the best result, run it inside an aluminum channel: it pairs beautifully with the slim recessed LL10 Standard 1M frosted and LL10 Standard 2M frosted, the slim modern LL12 Standard 1M frosted, the wider LL13 Standard 2M frosted or the bendable LL14 Standard 1M frosted for curves. Add your channel, a 24V power supply and start building beautiful light lines today.

COB construction: a true line of light

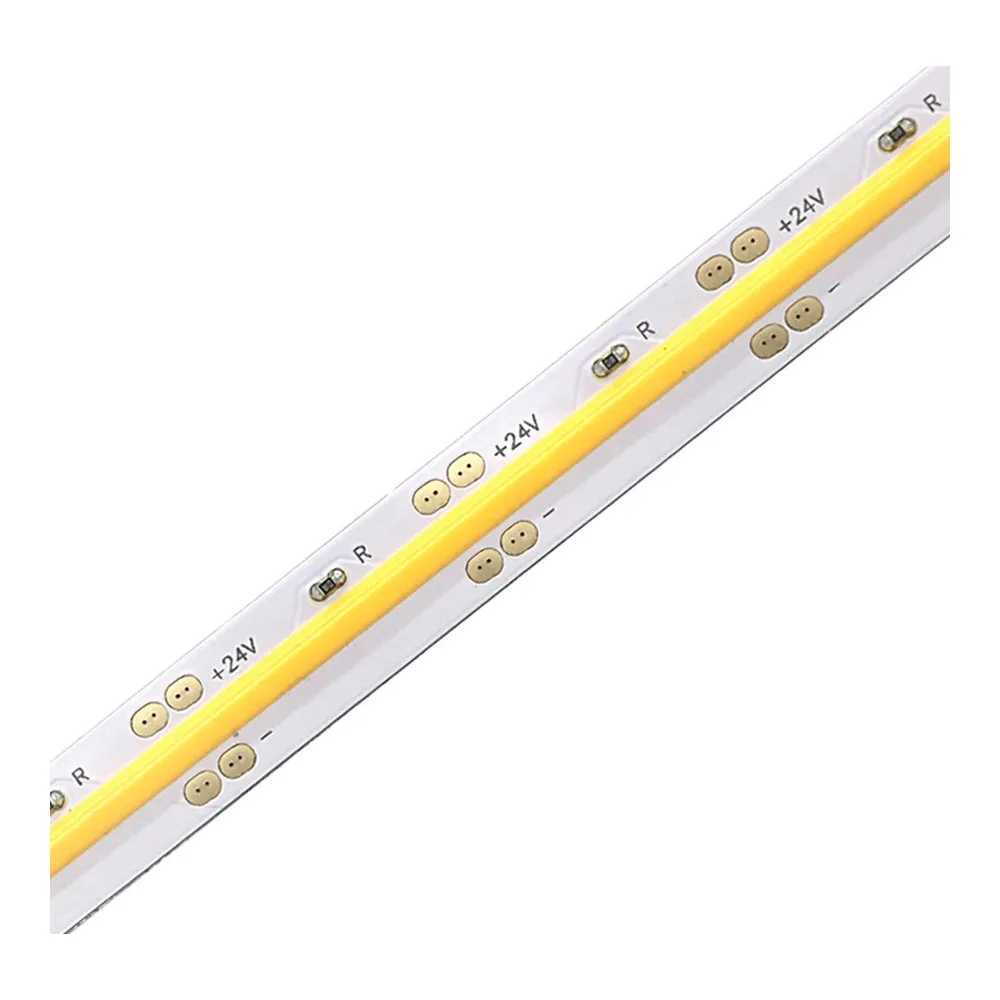

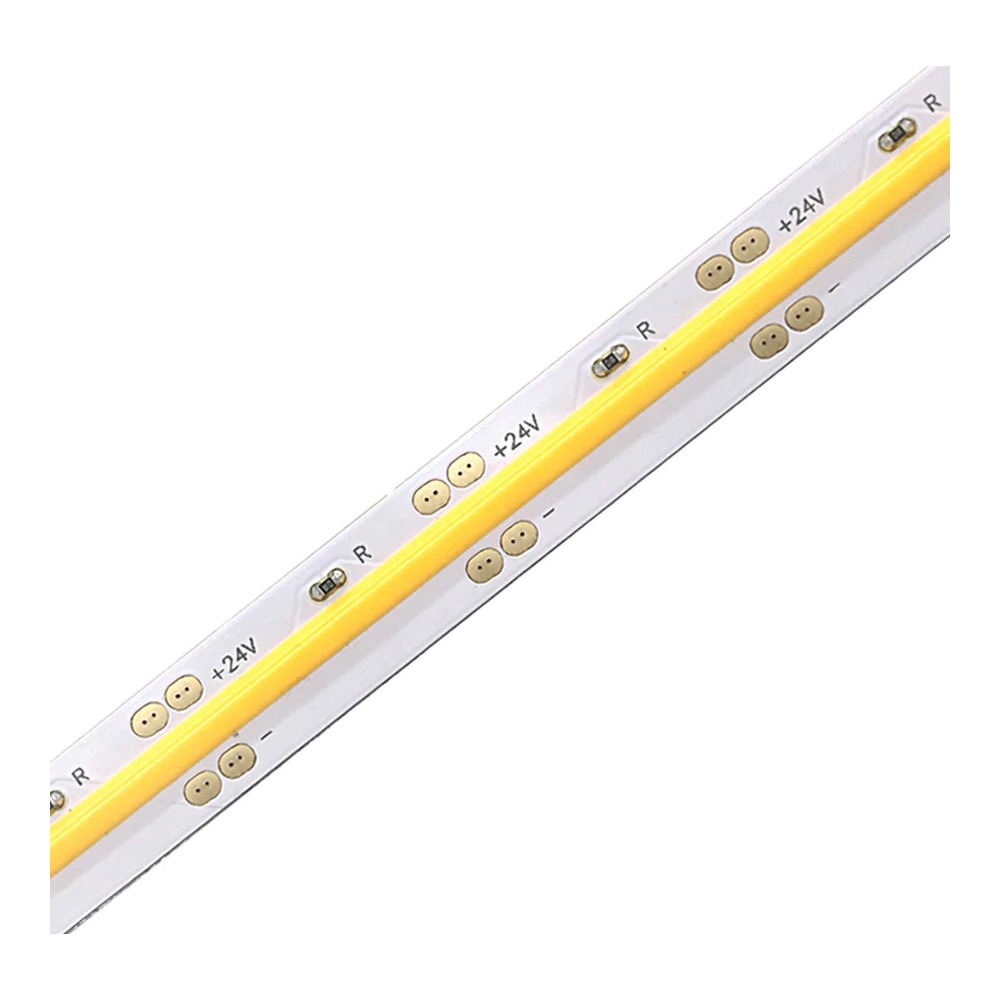

Conventional strips space individual diodes along a board, which is why you see beads of light through a lens. The Single Color 10W COBFlex LED Strip uses chip-on-board technology with 146 LEDs/ft (480 LEDs/M) encapsulated in a continuous phosphor layer, producing dot-free output with excellent colour consistency along the whole 16.4' (5M) roll. The flexible board is only 5/8" (16mm) wide and 1/16" (2mm) thick, so it hides inside narrow millwork reveals, cabinet rails and drywall channels, and the factory-applied double-sided 3M tape on the back makes mounting a one-person job.

Light quality you can trust
With a CRI greater than 90, this high CRI LED tape renders reds, woods, fabrics and skin tones honestly — the difference is obvious on a bakery display, a paint colour, a retail rack or a bathroom mirror niche. The 3000K warm white tone reads as comfortable and residential without going amber, and the 120° beam angle spreads light evenly across the surface above or below the channel. Output is rated at 335 lumens/ft (1100 lumens/M), which suits both task-level under-cabinet lighting and soft perimeter cove lighting depending on how far the tape sits from the surface.

Technical specifications
Model: LS-FLI-9B-24-480-3K
Brand: LumenstarLED
Voltage: 24V DC
Wattage: 3W/ft (10W/M)
Lumen output: 335/ft (1100/M)
Colour temperature: 3000K
CRI: >90
LED density: 146 LEDs/ft (480 LEDs/M)
Beam angle: 120°
Roll length: 16.4' (5M)
Cut increment: 5/8" (16mm)
Dimensions: 5/8" (16mm) wide, 1/16" (2mm) thick
Dimmable: yes
IP rating: 22
Operating temperature: -25~+60°C (-13~140°F)
Lifespan: +65,000 hours
Lead wires: 24" (60cm) on both ends
Listing: cULus
Warranty: 5-year

Wiring, dimming and installation
Running on 24V DC means fewer voltage-drop headaches on long runs than a 12V equivalent, and the 24" (60cm) leads on both ends let you feed power from either side or continue a run. Cut only on the marked 5/8" (16mm) increments, and use solderless COB connectors — LS-SC1-COB seamless strip-to-strip, LS-SC2-COB with a 24" wire lead, LS-SC2-COB-20 with a 20' (6.1m) lead, LS-SC3-COB with connectors on both ends, LS-SC4-COB for corners, or the compact LS-BK-SC2-COB wire-to-strip — all suitable for indoor use and compatible with the aluminum profiles. For dimming, pair the tape with a compatible low-voltage dimming power supply; size your driver to the load of the length you actually install. The IP22 rating means dry, indoor locations only.

Channels, applications and documentation
Cabinet, accent, display, cove and under-cabinet lighting are the sweet spots for this tape, and it is optimized for installation in aluminum LED channels, which both diffuse the light and act as a heat sink. Good matches in the catalogue include the LL10 Standard 2M frosted slim recessed profile for flush drywall and cabinet applications, the LL12 Standard 2M frosted slim modern surface profile, the LL13 Standard 1M frosted wide slim profile and the LL14 Standard 2M frosted curve flexible profile for arches and rounded island fronts. The full technical PDF spec sheet for the LS-FLI-9B-24-480-3K, with the dimensional drawings, ordering codes, connector list and channel chart, is available in the Documentation tab of this page.

Technical Files
