INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 3W/FT (10W/M), 480 LEDS/M, CRI 90, DIMMABLE, 4K

Name: INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 3W/FT (10W/M), 480 LEDS/M, CRI 90, DIMMABLE, 4K
Brand: LUMENSTARLED
SKU: LS-FLI-9B-24-480-4K
Price: 147.97 CAD
Availability: InStock

SKU: LS-FLI-9B-24-480-4K

Brand: LUMENSTARLED

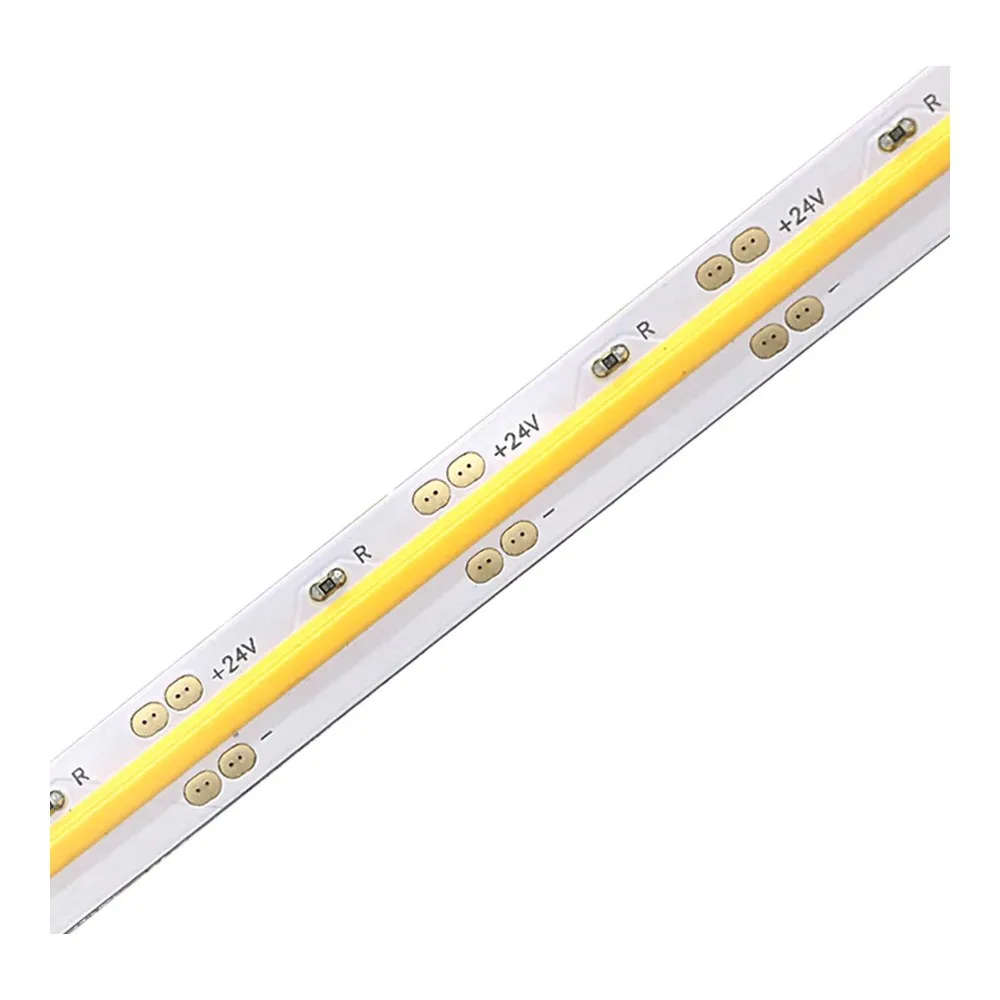

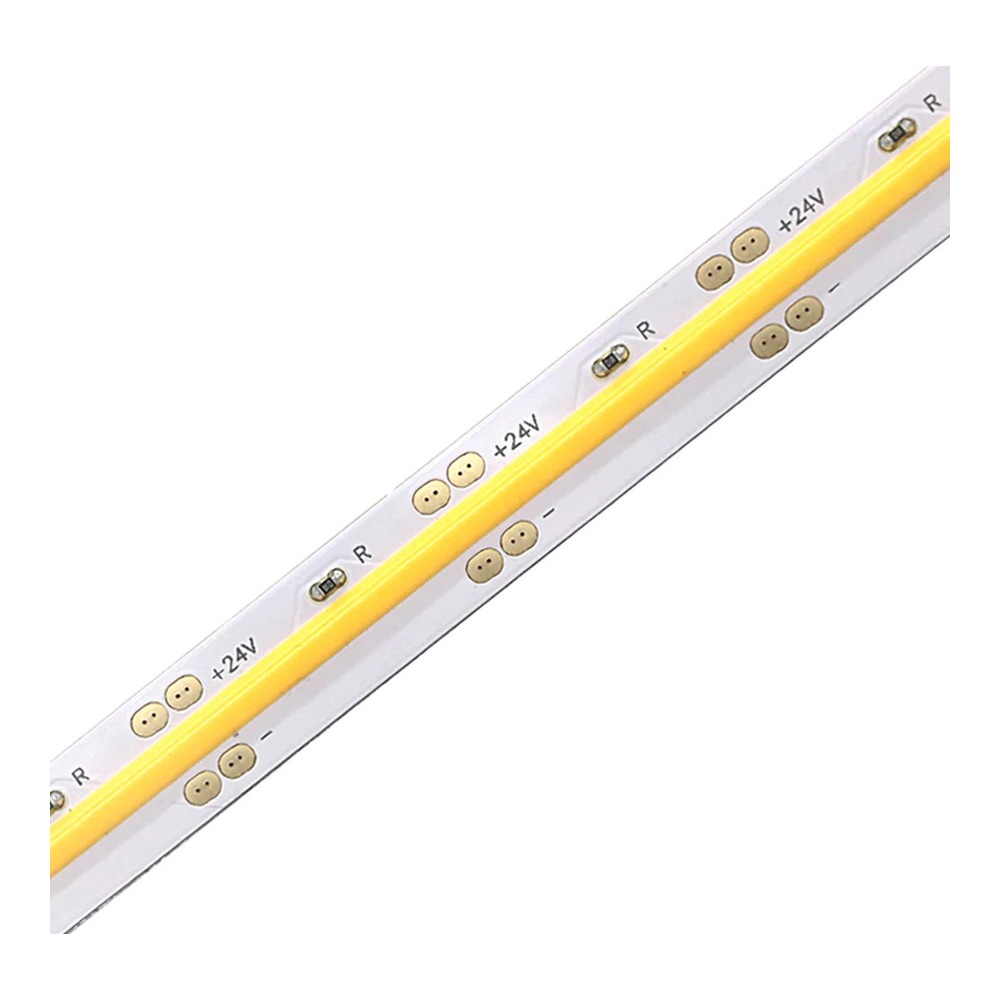

Say goodbye to the dotted, spotty light lines of old strip lights. The LumenstarLED LS-FLI-9B-24-480-4K is a 24V DC indoor COB LED tape — also called LED tape light, LED strip light, tape lighting or ruban LED — that uses chip-on-board technology to spread hundreds of diodes under a continuous phosphor layer. The result is one smooth, dot-free line of light instead of a row of visible chips. It comes on a 16.4' (5M) roll, ready for cove ceilings, under-cabinet runs, mirror surrounds, millwork reveals, display cases, shelving and architectural accents where the light should be seen and the source should not.

Every foot pulls just 3W/ft (10W/M) and gives back 335 lumens per foot (1100 lumens per metre), so a full roll delivers serious, usable brightness without heating up your power budget. The 4000K neutral white colour temperature sits right between warm and cool — crisp, contemporary, easy on the eyes — and the CRI >90 rendering keeps skin tones, wood grain, paint colours and merchandise looking true. Density is 146 LEDs/ft (480 LEDs/M) with a 120° beam angle for even wall-washing, and the 24V DC platform holds voltage better than 12V over longer runs. The tape is 5/8" (16mm) wide and just 1/16" (2mm) thick, cuts every 5/8" (16mm), ships with a 24" (60cm) wire lead on both ends, is dimmable with compatible low-voltage dimming power supplies, carries an IP 22 rating and a cULus mark, operates from -25 to +60°C (-13 to 140°F), and is rated for +65,000 hours with a 5-year warranty.

This is the tape Canadian homeowners reach for in kitchen toe-kicks and upper-cabinet valances, that contractors run in basement cove details and stair nosings, and that shop owners install in retail displays, bakery cases, salons and hotel corridors. Because it is IP 22, keep it indoors and dry. For the cleanest finish and the best heat management, mount it in an aluminum channel such as the LL10 Standard 1M frosted slim recessed profile, the LL12 Standard 2M frosted slim modern profile, the wider LL13 Standard 1M frosted, or the bendable LL14 Standard 2M frosted curve profile for arches and curved millwork. Plan your run, pair it with a 24V DC driver, and light your project the right way.

Built for a perfect line of light
The Single Color 10W COBFlex LED Strip replaces the individual chips of a traditional SMD tape with a continuous chip-on-board emitting surface. Instead of dots and dark gaps, you get an uninterrupted band of illumination — the difference is obvious the moment the light hits a ceiling cove or a glossy backsplash. The flexible substrate measures 5/8" (16mm) wide and 1/16" (2mm) thick, so it tucks into shallow reveals and narrow channels, and double-sided 3M tape on the back makes mounting a one-person job. Cut increments fall every 5/8" (16mm) at the marked points, letting you size each run to the millwork instead of forcing the millwork to match the tape.

Light quality you can trust
With a CRI greater than 90, this COB strip belongs to the high-fidelity category: reds stay red, whites stay clean, and finishes read accurately under it. The 4000K neutral white output is the versatile middle ground — bright and modern for task areas, still comfortable in living spaces — and the 120° beam angle spreads light broadly for even grazing and wall-washing. Output is rated at 335 lumens per foot (1100 lumens per metre) while drawing only 3W/ft (10W/M), and the LED density of 146 LEDs/ft (480 LEDs/M) is what keeps the line looking continuous even behind a frosted lens.

Technical specifications
SKU: LS-FLI-9B-24-480-4K
Brand: LumenstarLED
Voltage: 24V DC
Wattage: 3W/ft (10W/M)
Lumen output: 335/ft (1100/M)
Colour temperature: 4000K
CRI: >90
Beam angle: 120°
LED density: 146 LEDs/ft (480 LEDs/M)
Cut increment: 5/8" (16mm)
Roll length: 16.4' (5M)
Width: 5/8" (16mm) — Thickness: 1/16" (2mm)
IP rating: 22
Dimmable: Yes
Lead wire: 24" (60cm) on both ends
Operating temperature: -25~+60°C (-13~140°F)
Lifespan: +65,000 hours
Listing: cULus
Warranty: 5-year

Wiring, dimming and compatibility
Feed the tape with a 24V DC constant-voltage power supply sized for your total load, and remember that dimming is handled by a compatible low-voltage dimming power supply rather than the tape itself. The 24" (60cm) wire leads on both ends simplify feeds from either direction and make mid-run splices easy to hide inside cabinetry. For solderless joints, the family uses the COB Strip Solderless Connectors: LS-SC1-COB seamless strip-to-strip, LS-SC2-COB with a 24" wire lead, LS-SC2-COB-20 with a 20' (6.1m) lead, LS-SC3-COB with connectors on both ends, LS-SC4-COB for corners, and the compact LS-BK-SC2-COB wire-to-strip connector. Note that some aluminum profiles accept all connectors while others require a production lead or solder, so confirm the profile before ordering.

Where it goes and what to read
Typical applications are cabinet, accent, display, cove and under-cabinet lighting: a Montréal condo kitchen with light washing down the backsplash, a basement cove in a Calgary renovation, a bathroom mirror surround, closet rods, retail shelving and reception desk reveals. Aluminum channel is strongly recommended for heat management and for a finished architectural look — the LL10 Standard 2M frosted slim recessed profile, the LL12 Standard 1M frosted slim modern profile, the LL13 Standard 2M frosted wide slim profile and the LL14 Standard 1M frosted flexible curve profile all pair naturally with this 16mm tape. The full technical PDF spec sheet is in the Documentation tab, with the ordering guide, dimensions, accessories and profile list.

Technical Files
