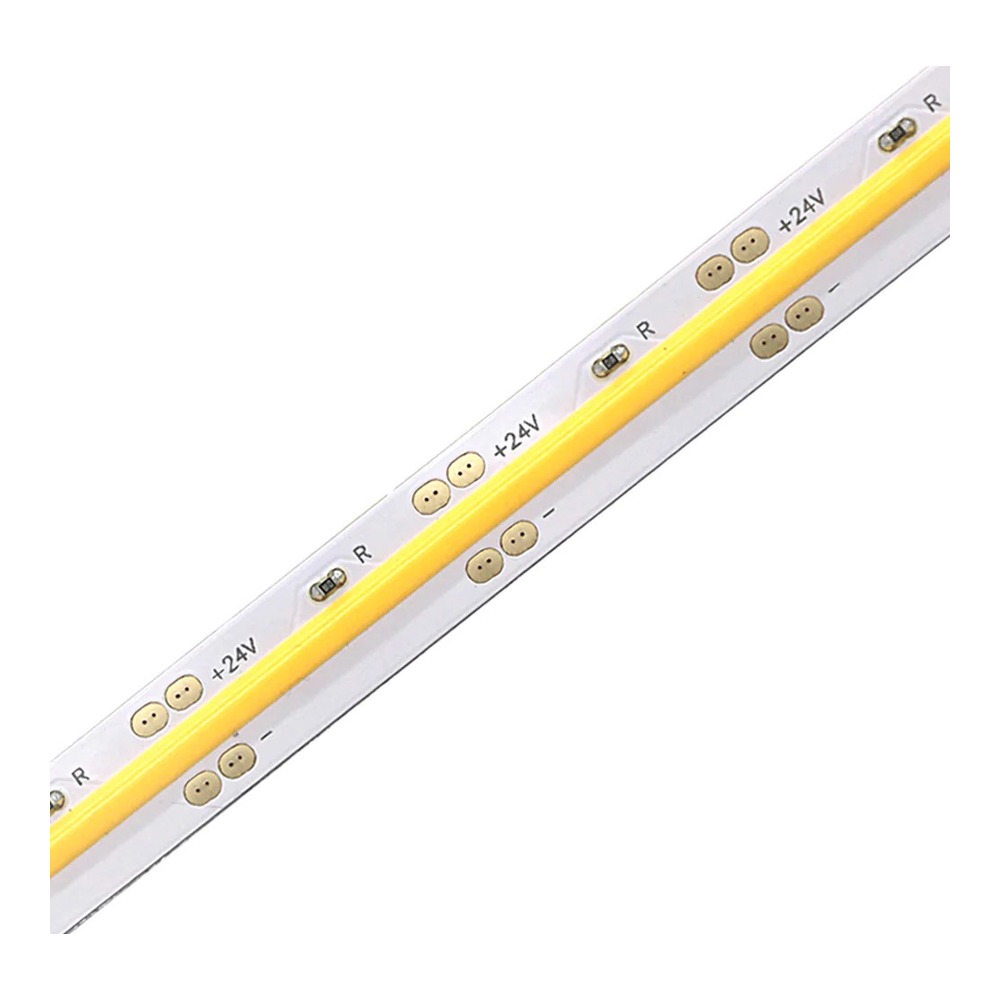

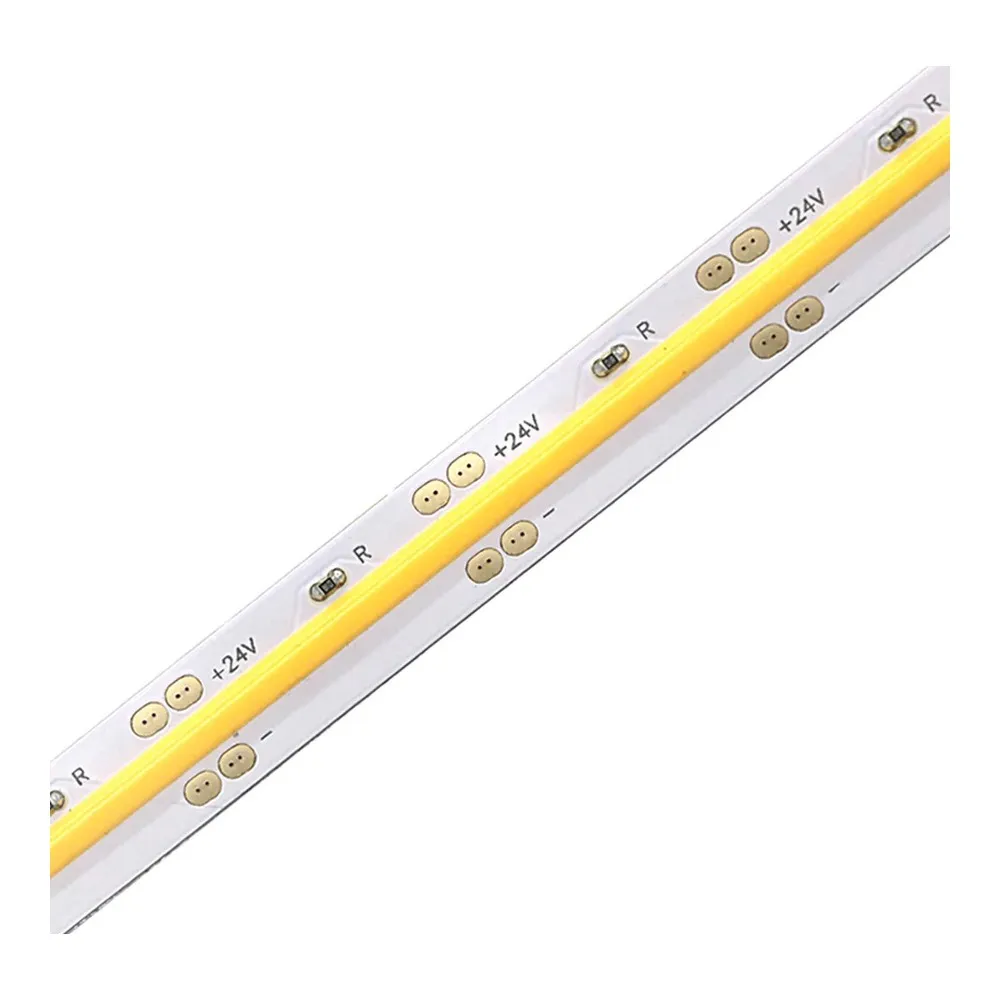

INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 1.5W/FT (5W/M), 320 LEDS/M, CRI 90, DIMMABLE, 3K

Name: INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 1.5W/FT (5W/M), 320 LEDS/M, CRI 90, DIMMABLE, 3K
Brand: LUMENSTARLED
SKU: LS-FLI-9B-24-320-3K
Price: 110.97 CAD
Availability: InStock

SKU: LS-FLI-9B-24-320-3K

Brand: LUMENSTARLED

Say goodbye to the dotted, pixelated look of old strip lights. The LumenstarLED LS-FLI-9B-24-320-3K is a COB LED tape — also called LED tape light, LED strip light, ruban LED or simply tape lighting — built for indoor projects where the light line has to look perfectly smooth. Chip-on-board technology replaces individual diodes with one continuous filament of light, so what you see is a clean glowing line instead of a row of bright dots. It comes on a 16.4' (5M) roll, runs on low-voltage 24V DC, and is at home in cove lighting, under-cabinet lighting, millwork, display cases, shelf edges, toe kicks, headboards and backlit panels.

The numbers back up the look. This tape draws 1.5W/ft (5W/M) and puts out 168 lumens/ft (550 lumens/M) with a wide 120° beam angle, packing 97 LEDs/ft (320 LEDs/M) into a strip only 5/8" (16mm) wide and 1/16" (2mm) thick. The warm 3000K white flatters wood, stone, fabric and skin tones, and the CRI >90 rating keeps colours honest — a real difference on retail displays, artwork and kitchen counters. It is dimmable with compatible low-voltage dimming power supplies, cuts every 5/8" (16mm), carries an IP rating of 22 for dry indoor use, operates from -25~+60°C (-13~140°F), and is rated for +65,000 hours with a 5-year warranty. Each roll ships with a 24" (60cm) wire lead on both ends and double-sided 3M tape already on the back. cULus listed, file E365816.

Homeowners use it to wash a kitchen backsplash or float a bathroom vanity; contractors run it in gypsum coves, closets, stair nosings and reception desks; boutiques, cafés and hotels use it to make displays and millwork look custom. Because it runs at 24V DC, longer runs hold their brightness better than 12V, which matters in Canadian open-concept rooms and long hallway coves. For the best finish, mount it in an aluminum channel with a frosted lens such as the LL10 standard 1M frosted slim recessed profile, the LL12 standard 2M frosted slim modern profile, the wider LL13 standard 1M frosted, or the bendable LL14 standard 2M frosted for curves. Add a 24V power supply, pick your channel, and give your project that seamless line of light.

Continuous light, no dots
Traditional SMD strips space diodes along the board, so you see a chain of bright points unless you hide the strip deep in a channel. The COB LED strip construction used here spreads 97 LEDs/ft (320 LEDs/M) under a single phosphor coating, producing one unbroken luminous band with a 120° beam angle. The flexible PCB measures 5/8" (16mm) wide and only 1/16" (2mm) thick, so it slips into slim profiles and tight millwork reveals, and double-sided 3M tape on the back makes the first mock-up quick. Cut increments every 5/8" (16mm) let you tailor each run to the exact shelf, cabinet or cove instead of leaving a dark gap at the end.

Light quality you can see
At 3000K, this is a warm white that reads cozy rather than yellow — the temperature most Canadian homeowners ask for in kitchens, living rooms and bedrooms. Paired with a CRI >90 rating, it renders wood grain, paint finishes, textiles, plated jewellery and food with accuracy, which is exactly why it works as well over a bakery display case as it does under upper cabinets. The output of 168 lumens/ft (550 lumens/M) is a comfortable accent level: bright enough to light a counter or a cove wash, soft enough that it never becomes a glare source when tucked behind a frosted lens.

Technical specifications
SKU: LS-FLI-9B-24-320-3K
Brand: LumenstarLED
Type: Single Color 5W COBFlex LED Strip, indoor
Voltage: 24V DC
Wattage: 1.5W/ft (5W/M)
Lumen output: 168/ft (550/M)
Colour temperature: 3000K
CRI: >90
Beam angle: 120°
LED density: 97 LEDs/ft (320 LEDs/M)
Roll length: 16.4' (5M)
Width: 5/8" (16mm) — Thickness: 1/16" (2mm)
Cut increment: 5/8" (16mm)
Dimmable: Yes, with compatible low-voltage dimming power supplies
IP rating: 22
Operating temperature: -25~+60°C (-13~140°F)
Lifespan: +65,000 hours
Lead wire: 24" (60cm) on both ends
Mounting: double-sided 3M tape on the back
Certification: cULus, file E365816
Warranty: 5-year

Wiring, dimming and installation
This is a 24V DC low-voltage tape, so it needs a Class 2 driver sized to the load, plus a little headroom. Respect polarity (+ / 24V-) at both ends, and remember the 24" (60cm) leads give you room to reach a junction box or a driver hidden in a cabinet. For dimmable LED strip lights, the dimming happens at the power supply: choose a dimmable low-voltage supply compatible with your control system and the whole run follows smoothly. Solderless COB connectors make field work clean — seamless strip-to-strip, single-end or double-end lead versions, an L-connector for corners, and a compact wire-to-strip connector — all designed for indoor use and sized for the same profiles. Always mount the tape in an aluminum channel for heat management and a finished look, and keep it in dry interior locations given the IP22 rating.

Channels, applications and documentation
Choose the profile to match the reveal: LL10 standard 2M frosted for slim recessed lines in millwork, LL12 standard 1M frosted for a slim modern surface look, LL13 standard 2M frosted when you want a wider, softer band, and LL14 standard 1M frosted when the design curves around an island or a rounded bulkhead. Typical projects: cabinet and under-cabinet lighting, accent and display lighting, cove lighting in a condo living room, closet rods, retail shelving, restaurant banquettes, hotel corridors and reception millwork. The complete technical PDF (LS-FLI-9B-24-320-3K spec sheet) is in the Documentation tab with the full specification table, dimensions, ordering codes, connector list and compatible aluminum profiles — worth downloading before you finalize your quantities.
