INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 1.5W/FT (5W/M), 320 LEDS/M, CRI 90, DIMMABLE, 5K

Name: INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 1.5W/FT (5W/M), 320 LEDS/M, CRI 90, DIMMABLE, 5K
Brand: LUMENSTARLED
SKU: LS-FLI-9B-24-320-5K
Price: 110.97 CAD
Availability: InStock

SKU: LS-FLI-9B-24-320-5K

Brand: LUMENSTARLED

Say goodbye to the dotted, speckled look of old-school strip lighting. This COB LED tape from LUMENSTARLED — also called LED tape light, LED strip light or ribbon lighting — uses chip-on-board technology to fuse hundreds of tiny chips into one continuous line of light, so what you see is a clean, uninterrupted glow instead of a row of bright dots. Sold as a 5M (16.4') roll with 320 LEDs/M, model LS-FLI-9B-24-320-5K is the single-colour COBFlex strip designers reach for when the light line itself is part of the design: cove ceilings, under-cabinet task lighting, display cases, millwork reveals and accent details.

Running on 24V DC, this tape draws just 1.5W/ft (5W/M) and delivers 168 lumens per foot (550 lumens per metre) with a wide 120° beam angle, so you get a soft wash instead of hot spots. The CRI >90 rating makes wood grain, paint, skin tones and merchandise look true, and the 5000K colour temperature brings a crisp, daylight-white tone that sharpens contrast and task visibility. It's dimmable with compatible low-voltage dimming power supplies, cuts every 5/8" (16mm) for precise fitting, measures 5/8" (16mm) wide by 1/16" (2mm) thick, and comes with a 24" (60cm) wire lead on both ends for easy feeds from either direction. Rated IP22 for indoor use, it operates from -25 to +60°C (-13 to 140°F), is rated for over 65,000 hours, carries cUL US listing (E365816) and a 5-year warranty.

Use it in kitchens and bathrooms, closets and staircases, home theatres, retail displays, restaurant bars, offices and reception desks — anywhere a Canadian renovation or commercial fit-out needs a polished light line. Double-sided 3M tape on the back makes installation quick, and the strip is optimized for aluminum channels such as the LL10 Standard 1M frosted, LL12 Standard 1M frosted, LL13 Standard 2M frosted and the bendable LL14 Standard 1M frosted for curves. Add a 24V power supply and solderless COB connectors, and your dimmable LED strip project is ready to light. Download the spec sheet and start planning your runs.

Continuous, dot-free light

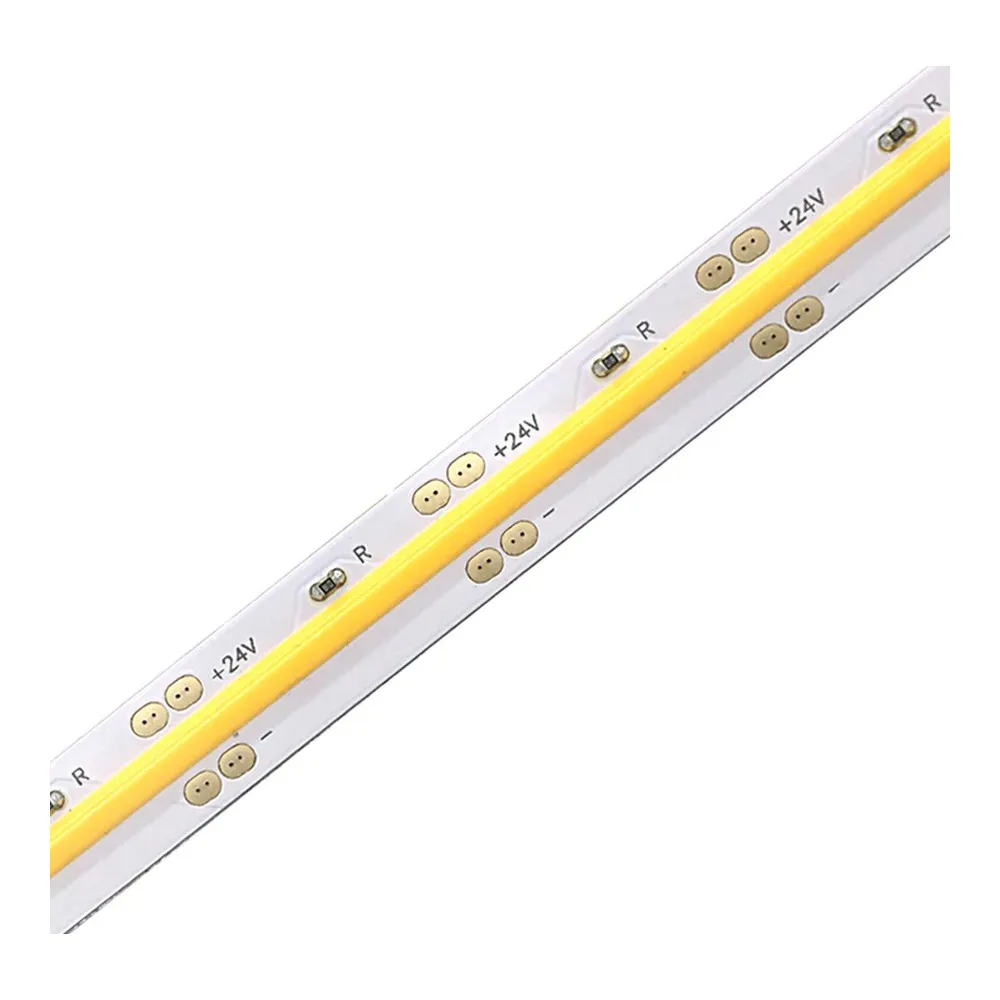

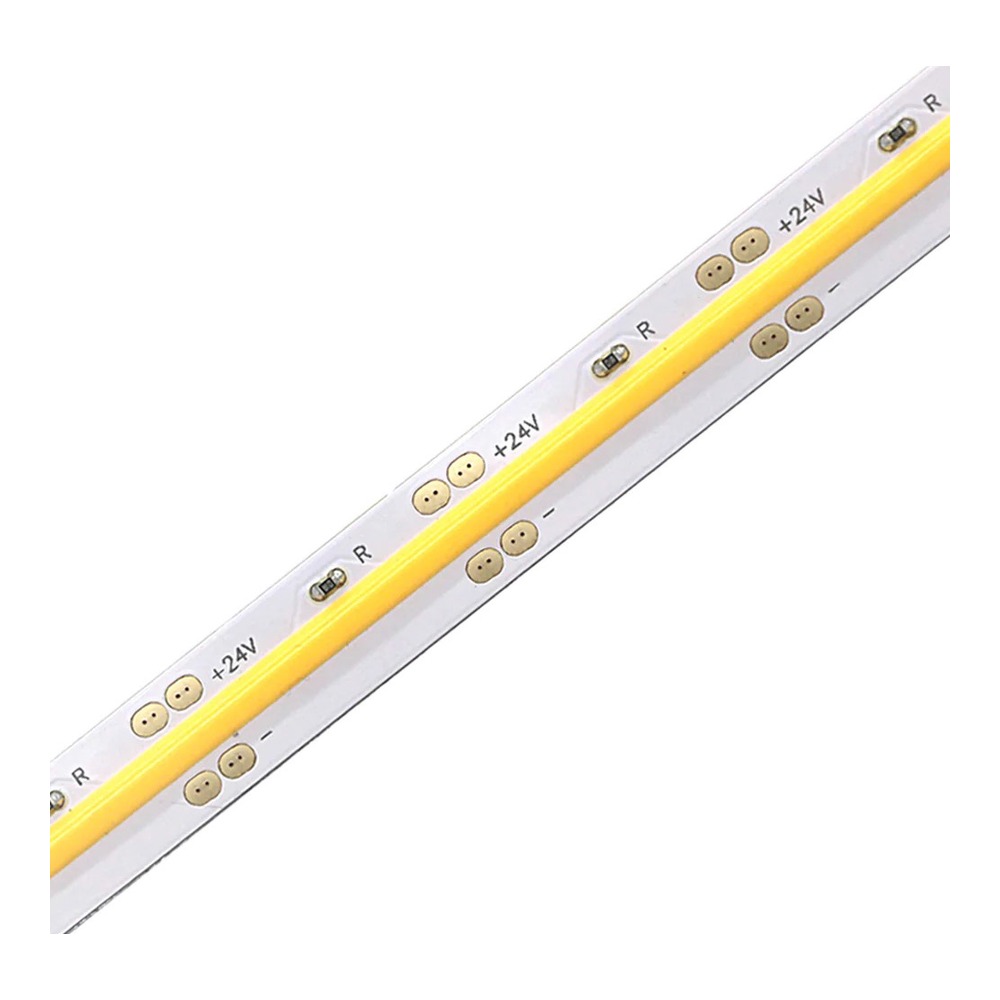

The Single Color 5W COBFlex LED Strip replaces the visible diode "dots" of conventional strips with a chip-on-board emitting surface running the full length of the tape. At 97 LEDs/ft (320 LEDs/M), the chips are packed tightly enough that the eye reads one solid line of light, even through a frosted lens at close range. That's what makes this COB LED tape the right call for cove lighting, valances, display shelving and any reveal where the fixture is seen as much as the light it produces. The 120° beam angle spreads output evenly across adjacent surfaces, so you get a smooth wash on ceilings and backsplashes rather than a striped shadow pattern.

Light quality and colour
With a CRI greater than 90 and excellent colour consistency along the run, finishes, fabrics, food and artwork keep their real colour under this tape. The 5000K colour temperature is a clean daylight white — the tone most people want in garages, workshops, task areas, laundry rooms, walk-in closets and retail displays where crispness and visibility matter more than warmth. Note that in this family, 5000K is offered on the 24V platform only, which is exactly what this SKU is built on. For a softer look in living spaces, the same strip family also exists in 2700K, 3000K, 3500K and 4000K.

Technical specifications
Model: LS-FLI-9B-24-320-5K
Brand: LUMENSTARLED
Voltage: 24V DC
Wattage: 1.5W/ft (5W/M)
Lumen output: 168 lm/ft (550 lm/M)
Colour temperature: 5000K
CRI: >90
LED density: 97 LEDs/ft (320 LEDs/M)
Beam angle: 120°
Roll length: 16.4' (5M)
Strip dimensions: 5/8" (16mm) wide x 1/16" (2mm) thick
Cut increment: 5/8" (16mm)
Lead wire: 24" (60cm) on both ends
Dimmable: Yes, with compatible low-voltage dimming power supplies
IP rating: IP22 (indoor)
Operating temperature: -25 to +60°C (-13 to 140°F)
Lifespan: +65,000 hours
Listing: cUL US, E365816
Warranty: 5 years

Installation and electrical
Installation is straightforward: peel the double-sided 3M tape on the back and press the strip into a clean, dry channel or surface. Cut only on the marked 5/8" (16mm) increments, and use the 24" (60cm) leads at either end to reach your driver. The 24V DC platform keeps current low and supports longer uninterrupted runs than 12V, which is a real advantage on long cabinetry runs, stair nosings and perimeter coves. Feed the tape with a Class II 24V low-voltage power supply sized to your total load, and choose a dimmable low-voltage supply if you want to dim. For connections without soldering, the COB seamless connector (LS-SC1-COB), connector with 24" lead (LS-SC2-COB), 20' extended connector (LS-SC2-COB-20), double-ended connector (LS-SC3-COB), L-connector for corners (LS-SC4-COB) and the compact wire-to-strip connector (LS-BK-SC2-COB) are all made for this strip and fit the matching aluminum profiles.

Channels, applications and documentation
This tape is optimized for installation in aluminum channel, which protects the strip, diffuses the source and acts as a heat sink. Good matches include the slim recessed LL10 Standard 2M frosted, the slim modern LL12 Standard 2M frosted, the wider LL13 Standard 1M frosted and the flexible LL14 Standard 2M frosted for curved bulkheads and rounded islands. Typical projects: under-cabinet task lighting in a kitchen renovation, backlit bathroom mirrors, closet rod lighting, toe-kick and stair accents, boutique shelving, bar fronts and office reception millwork. The complete technical PDF spec sheet for LS-FLI-9B-24-320-5K, with the full ordering guide, dimensions, accessories and channel list, is available in the Documentation tab.
