INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 1.5W/FT (5W/M), 320 LEDS/M, CRI 90, DIMMABLE, 35K

Name: INDOOR, 24V DC, COB LED TAPE, 5M (16.4'), 1.5W/FT (5W/M), 320 LEDS/M, CRI 90, DIMMABLE, 35K
Brand: LUMENSTARLED
SKU: LS-FLI-9B-24-320-35K
Price: 110.97 CAD
Availability: InStock

SKU: LS-FLI-9B-24-320-35K

Brand: LUMENSTARLED

Say goodbye to the dotted, striped look of ordinary strip lighting. This COB LED tape from LumenstarLED replaces the row of individual diodes with a continuous chip-on-board phosphor line, so what you see is one smooth, unbroken line of light. People search for it as LED tape light, LED strip, tape lighting, ruban LED or simply a dimmable LED strip — whatever you call it, this is the version you choose when the light line will be seen: under cabinets, in coves, along stair nosings, inside display cases, on millwork and in closets.

The roll gives you 16.4' (5M) of continuous light at 1.5W/ft (5W/M), delivering 168 lumens/ft (550 lumens/M) with a dense 320 LEDs/M (97 LEDs/ft) array and a wide 120° beam. The 24V DC platform keeps voltage drop under control over long runs, and the warm-neutral 3500K colour temperature with CRI >90 renders wood grain, quartz, fabric and skin tones honestly. It is dimmable with compatible low-voltage dimming power supplies, cuts every 5/8" (16mm), measures 5/8" (16mm) wide by 1/16" (2mm) thick, and arrives with a 24" (60cm) wire lead on both ends plus double-sided 3M tape already on the back. Rated IP22 for indoor use, it operates from -25~+60°C (-13~140°F), is cULus listed (E365816), lasts +65,000 hours and is backed by a 5-year warranty.

This tape is at home in kitchens and bathrooms, over bars and reception desks, in retail display cases, hotel corridors, offices and basement renovations across Canada — anywhere a clean architectural light line matters. For the best result, run it inside an aluminum channel such as the LL12 Standard 1M frosted or LL12 Standard 2M frosted, the wider LL13 Standard 1M frosted, the slim recessed LL10 Standard 1M frosted or the flexible LL14 Standard 1M frosted for curves. Order SKU LS-FLI-9B-24-320-35K and give your project the flawless light line it deserves.

COB construction, no dots, no shadows

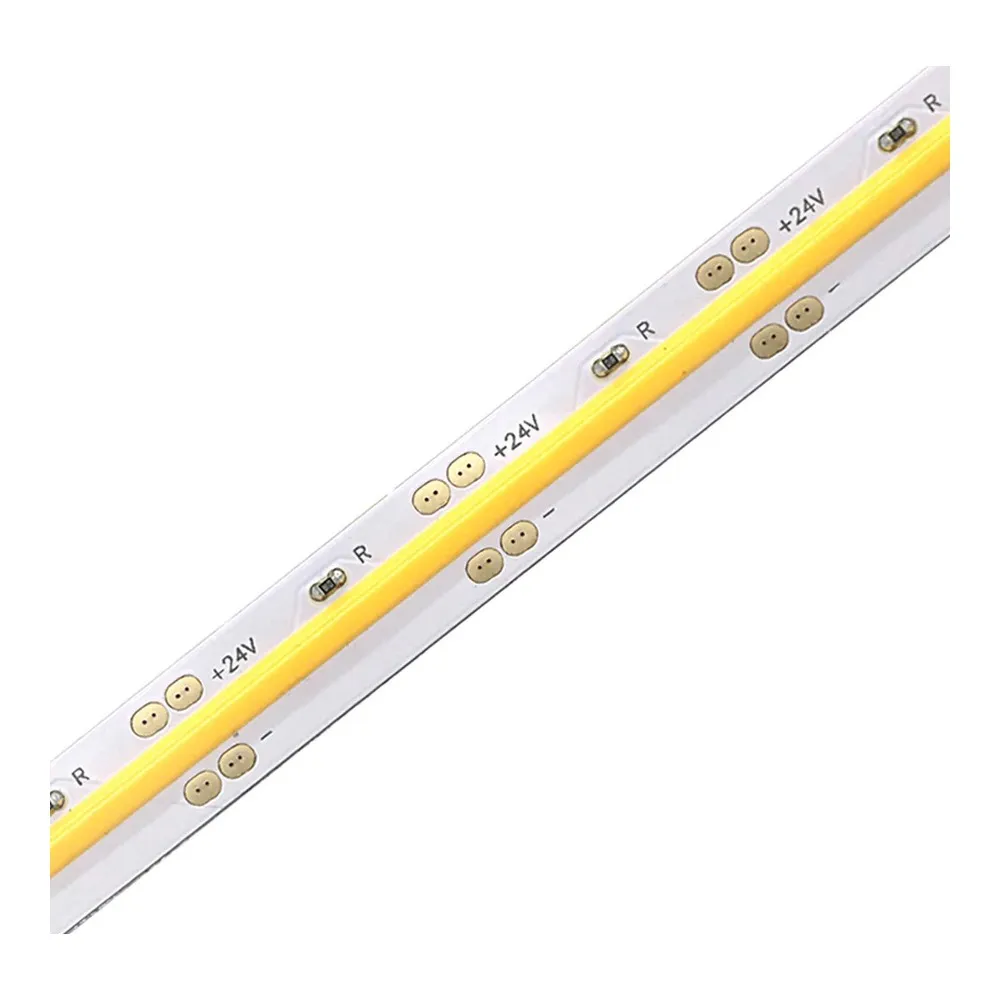

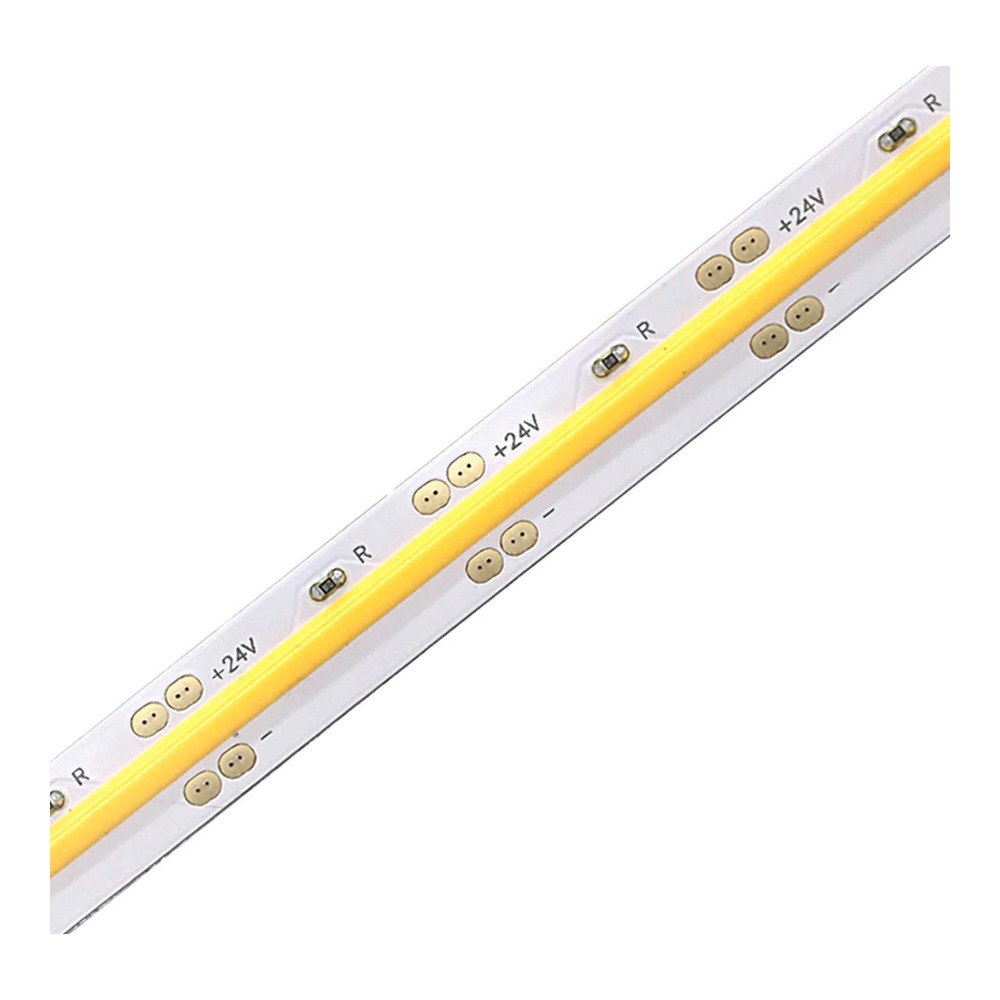

The Single Color 5W COBFlex LED Strip uses chip-on-board technology: hundreds of tiny chips sit under one continuous phosphor coating instead of being spaced out like traditional SMD diodes. The result is a dot-free, perfectly even line of light with high visual comfort, especially when the tape is installed in an aluminum channel. The flexible circuit measures 5/8" (16mm) wide and only 1/16" (2mm) thick, so it tucks into shallow reveals, cabinet undersides and slim profiles, and the double-sided 3M tape on the back makes mounting straightforward on clean, dry surfaces.

Light quality you can trust on finishes
With a CRI greater than 90 and excellent colour consistency, this LED tape light shows materials as they really are — a must for kitchens, closets, retail displays and any space where colour decisions matter. The 3500K colour temperature is the warm-neutral middle ground: crisper than a cozy 2700K, softer than a cool white, and very flattering on white oak, paint, quartz and stainless. A 120° beam angle spreads the output evenly across a backsplash or a cove ceiling, and the 320 LEDs/M (97 LEDs/ft) density keeps the line smooth even up close.

Technical specifications
SKU: LS-FLI-9B-24-320-35K
Brand: LumenstarLED
Voltage: 24V DC
Wattage: 1.5W/ft (5W/M)
Lumen output: 168/ft (550/M)
Colour temperature: 3500K
CRI: >90
LED density: 320 LEDs/M (97 LEDs/ft)
Beam angle: 120°
Roll length: 16.4' (5M)
Cut increment: 5/8" (16mm)
Dimensions: 5/8" (16mm) wide, 1/16" (2mm) thick
Lead wire: 24" (60cm) on both ends
IP rating: IP22, indoor
Operating temperature: -25~+60°C (-13~140°F)
Dimmable: Yes, with compatible low-voltage dimming power supplies
Lifespan: +65,000 hours
Listing: cULus, E365816
Warranty: 5-year

Wiring, dimming and compatible accessories
Running on 24V DC, the tape needs a Class II low-voltage power supply sized to the load; the 24V 30W and 24V 60W drivers (LS-24V-30W-O-CV, LS-24V-60W-O-CV) are the matching non-dimmable options, while smooth 0–100% dimming is achieved with a compatible low-voltage dimming power supply. Cut only on the marked 5/8" (16mm) increments, then rejoin runs without soldering using the COB solderless connectors: LS-SC1-COB strip-to-strip, LS-SC2-COB with a 24" lead, LS-SC2-COB-20 with a 20' (6.1m) lead, LS-SC3-COB with a 12" lead in the middle, LS-SC4-COB for corners, and the compact LS-BK-SC2-COB wire-to-strip connector. These connectors are designed for indoor use and fit the brand's aluminum LED profiles.

Channels, applications and documentation
An aluminum channel protects the tape, spreads heat and diffuses the beam. Choose the LL10 Standard 2M frosted slim recessed profile for a flush ceiling or cabinet detail, the LL12 Standard 2M frosted slim modern profile for shelving and toe-kicks, the wider LL13 Standard 2M frosted for higher coves, or the LL14 Standard 2M frosted curve-flexible profile to wrap an island or a rounded bulkhead. Typical projects: cabinet, accent, display, cove and under-cabinet lighting in condos, restaurants, boutiques, clinics and offices. The full technical PDF (LS-FLI-9B-24-320-35K Spec Sheet), with the ordering codes, dimensions and accessory list, is available in the Documentation tab.

Technical Files
