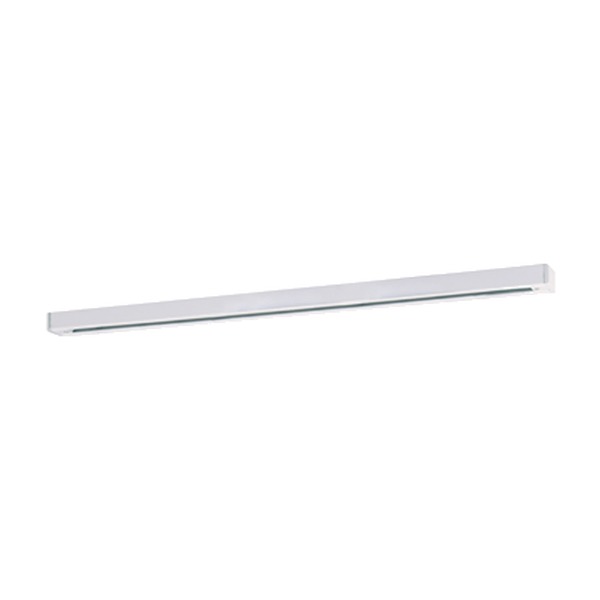

ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK12-WH

Name: ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK12-WH
Brand: LITELINE
SKU: ATK12-WH
Price: 203.97 CAD
Availability: InStock

SKU: ATK12-WH

Brand: LITELINE

Give your room a lighting system that moves with you: the ATK Series track from LITELINE is a single circuit extruded aluminum track that lets you aim light exactly where it is needed, then re-aim it when the furniture, the display or the artwork changes. Shoppers look for it as a track lighting rail, a track lighting system or simply "the bar that the track lighting heads clip into" — and that is precisely what it is. This SKU, ATK12-WH, is the 12-foot section in a clean white finish that blends into painted ceilings, so the light gets noticed instead of the hardware. It is the backbone of kitchen lighting, retail displays, gallery walls, office and commercial lighting layouts, and any renovation where you want several adjustable heads fed from one run.

The extrusion is built from 0.06" extruded aluminum with a PVC bus bar support holding 12 gauge round bus bars, and a polarity groove on the face of the track shows you where the grounding conductor sits — a small detail that makes wiring faster and safer. The single circuit power distribution system carries single hot and neutral conductors rated for a maximum capacity of 20 Amps, which is 2400 watts per circuit at 120V, so you can load a generous run of heads on one feed. Copper electrical conductors stay concealed inside the low-profile thermo-plastic track section, and the profile itself is slim: 5⁄8" (16mm) tall by 1 3⁄8" (35mm) wide. The ATK12 section measures 140 1⁄8" (3559mm) excluding end caps. It is cULus listed and backed by a 5 year warranty.

White track lighting is a favourite in Canadian homes and businesses because it disappears on a white ceiling: think open-concept kitchens and islands, basement renovations where you cannot open the ceiling for pot lights, home offices, boutiques, salons, cafés, showrooms and small commercial spaces. Mounting is surface using the supplied hardware, and suspended mounting is possible with accessories ordered separately. The track is compatible with all A-Line and Juno style track fixtures, accessories and connectors — pair it with heads such as the 8.5W LED track head ATF7509-DTW-38-WH for a matching white run, or the 8.5W LED track head ATF7509-DTW-38-BK for contrast. Need a different finish? See the same 12-foot section in black, brushed nickel or silver. Plan your run and light your space your way.

Built to be seen as little as possible

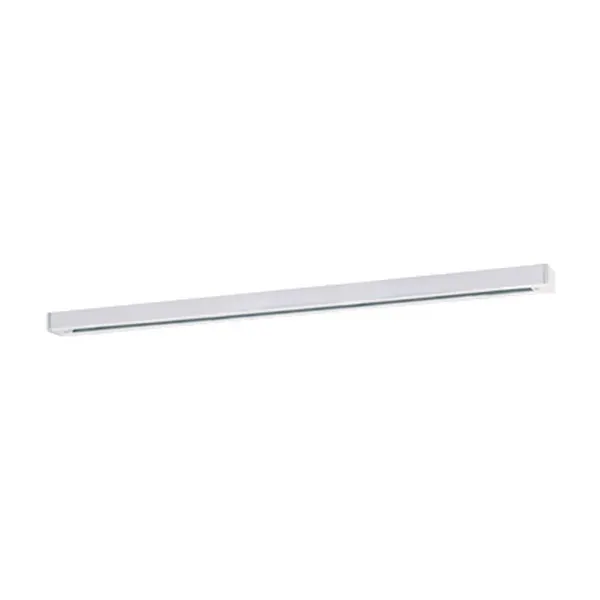

The ATK Series is an extruded aluminum track designed for use with A-Line track fixtures, and the ATK12-WH is the 12-foot nominal length in white. The body is constructed of 0.06" extruded aluminum with a 0.045" PVC bus bar support that holds 12 gauge round bus bars, a combination that keeps the channel rigid over a long run while protecting the conductors. A polarity groove runs along the face of the track to indicate the location of the grounding conductor, so the installer always knows which way the section is oriented before connectors and heads go on. In white, the extrusion reads as a thin line on a painted ceiling — ideal when you want the LED track heads to be the visual element, not the rail.

Electrical and installation details
This is a single circuit power distribution system designed to supply lighting units flexibly. Single hot and neutral conductors are rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, and the copper electrical conductors are concealed inside the thermo-plastic, low-profile track section. Installation is surface mounted using the supplied mounting hardware; suspended mounting is available with accessories ordered separately, including pendant adapters, hollow stem rods, aircraft cable kits and a sloped ceiling canopy kit. Power can enter the run through live end, wired end, centre feed, monopoint or conduit feed connectors, and runs can be shaped with 'I', 'L', 'T', 'X' or flexible connectors. Current limiters are also offered for the single circuit system. All wiring should be completed by a qualified electrician in accordance with local Canadian electrical code.

Technical specifications
SKU: ATK12-WH
Brand: LITELINE
Series: ATK, single circuit extruded aluminum track
Nominal length: 12'
Length excluding end caps: 140 1⁄8" (3559mm)
Profile: 5⁄8" (16mm) x 1 3⁄8" (35mm)
Extrusion: 0.06" extruded aluminum
Bus bar support: 0.045" PVC, 12 gauge round bus bars
Voltage: 120V
Maximum capacity: 20 Amps, 2400 watts per circuit
Finish: White (WH)
Mounting: Surface, with supplied hardware; suspended with accessories
Labels: cULus listed
Warranty: 5 Years

Compatibility and system building
The track system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, which gives you a huge selection of heads, pendants and adapters for one rail. Compatible LED track fixtures listed for the series include APOLLO LED, SORA LED, TEARDROP, ATLAS, DELTA, FLEX, FOCUS (ATF8010), DINE (T-LEDDNG), Flight (ATF7607), Flight (ATF7610), ATF7250, ATF7415, ATF7425, ATF7509, ATF7545 and ATF7630. Two easy pairings from our catalogue are the 8.5W LED track head ATF7509-DTW-38-WH and the 8.5W LED track head ATF7509-DTW-38-BK. Sections can be joined with a connector to build longer or L-shaped runs — a 4-foot section such as the ATK04-BN shows how the family is built in 2', 4', 6', 8' and 12' nominal lengths. Note that the 12-foot option is not available in the US; there, an 8-foot section with a 4-foot section and a joiner is recommended.

Where it works and what comes with the page
A long white run is perfect above a kitchen island or a dining table, along a hallway of framed photos, over a retail wall of shelving, in a boutique fitting area, a hair salon, a café, a gallery, a showroom or an open-plan office where desks move every few months. Because the heads slide and pivot, a commercial lighting layout can be re-balanced in minutes instead of being re-wired — a real advantage in leased spaces and seasonal retail. Prefer a darker or metallic look for the same length? The ATK12-BK, ATK12-BN and ATK12-SL are the same section in black, brushed nickel and silver. The full technical PDF spec sheet for this product is in the Documentation tab, with drawings, the ordering guide and the complete list of connectors, power feeds, suspension accessories and current limiters.
