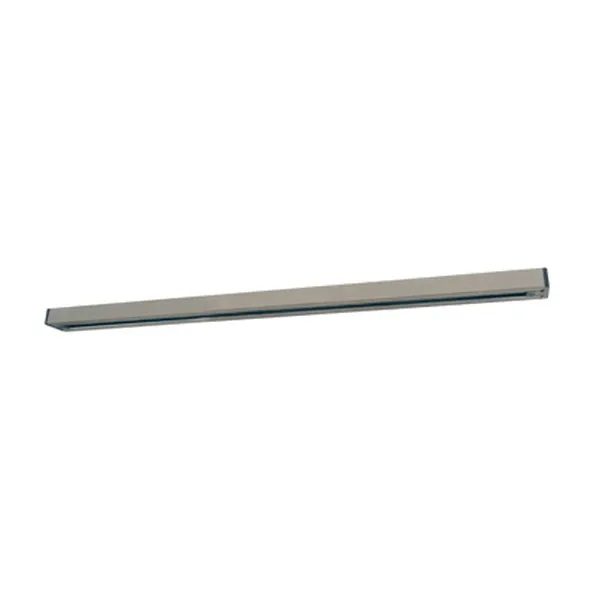

Built like a proper track, not a gadgetThe ATK series is an extruded aluminum track designed for use with A-Line track fixtures, and the ATK12-BN is the 12-foot nominal length in a brushed nickel finish. The body is constructed of 0.06" extruded aluminum with a 0.045" PVC bus bar support holding 12 gauge round bus bars — a solid, rigid channel that stays straight across a long ceiling run instead of sagging or twisting. A polarity groove on the face of the track indicates the location of the grounding conductor, a small detail that saves electricians real time when several sections and feeds go up on the same ceiling. The low-profile thermoplastic track section conceals the copper electrical conductors, so what you see from below is a slim, tidy line in a warm metallic finish that blends with stainless appliances, nickel hardware and modern cabinetry.
Electrical and installation detailsThis is a
single circuit power distribution system designed to supply lighting units flexibly. The single hot and neutral conductors are rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, which gives you generous headroom for a full row of
LED track heads on one run. The track is surface mounted using the supplied mounting hardware, and suspended mounting is available with accessories ordered separately — rods, canopy kits and aircraft cable sets are listed in the accessories section of the specification sheet. Power feeds and connectors are ordered separately as well, which is what makes track so versatile: a live end feed, an L, T, X or centre feed, an I connector or a flexible connector lets you shape straight runs, corners and continuous perimeters from the same components. It is
cULus listed and covered by a 5 year warranty.
Technical specificationsSKU: ATK12-BN
Brand: LITELINE
Series: ATK, single circuit extruded aluminum track
Nominal length: 12'
Profile: 5⁄8" (16mm) x 1 3⁄8" (35mm)
Extrusion: 0.06" extruded aluminum, 0.045" PVC bus bar support, 12 gauge round bus bars
Circuit: single circuit, single hot and neutral conductors
Rating: 20 Amps maximum (2400 watts per circuit) at 120V
Finish: BN, Brushed Nickel
Mounting: surface mounted with supplied hardware; suspended with accessories (ordered separately)
Labels: cULus listed
Warranty: 5 Years
Compatibility and what to put on itThe track system is compatible with all A-Line® and Juno® style track fixtures, accessories and connectors, so you are not locked into a single head forever. Compatible LED track fixture families listed on the spec sheet include APOLLO LED, SORA LED, ATLAS, DELTA, FLEX, FOCUS, TEARDROP, DINE and the Flight models, along with heads such as ATF7250, ATF7415, ATF7425, ATF7509, ATF7545, ATF7607 and ATF7630. Popular choices from our catalogue include the
8.5W LED track head ATF7509-DTW-38-BK and the
8.5W LED track head ATF7509-DTW-38-WH. Mixing lengths is easy too: join this 12' section to an
ATK04-BN 4' section with a connector for longer or L-shaped layouts. The same track is also offered in
black (ATK12-BK) and
silver (ATK12-SL) if another ceiling calls for a different look.
Where it earns its keep — and the paperworkIn a home, a long brushed nickel run works beautifully over a kitchen peninsula, along a hallway of framed photos, in a basement rec room or above a home office desk where glare control matters. On the commercial side, it is a workhorse for
retail and office commercial lighting: boutiques that re-merchandise every season, cafés and restaurants, salons, galleries, showrooms and small studios all benefit from heads you can re-aim in seconds rather than rewiring a ceiling. Because the section runs 12', you cover a long sightline with fewer joints — a cleaner look and fewer parts to install. The complete technical PDF (ATK12-BN Spec Sheet) is available in the Documentation tab of this page, with the technical drawings, the ordering guide and the full list of connectors, power feeds, current limiters and suspension accessories so you can build your parts list before the electrician arrives.
