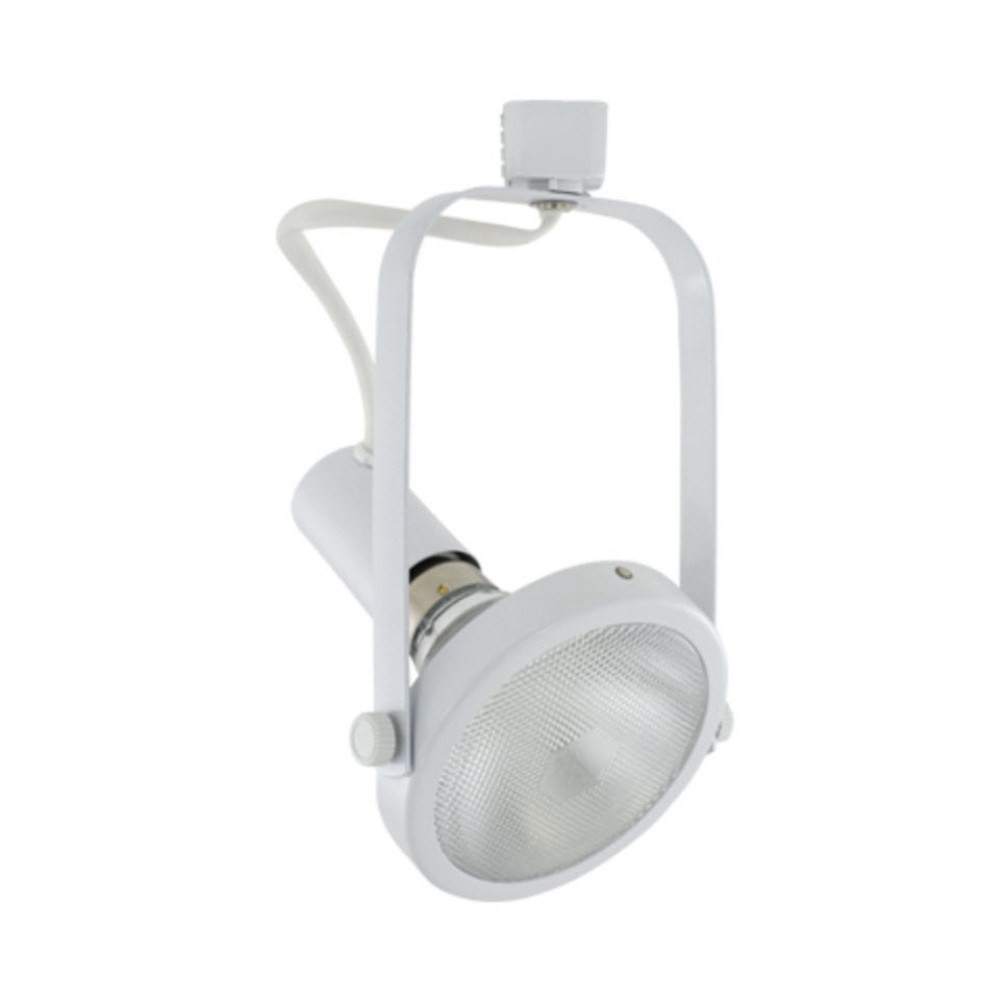

ATHENA PAR38 SPOTLIGHT - LCTL-ATH-PAR38-WH

Name: ATHENA PAR38 SPOTLIGHT - LCTL-ATH-PAR38-WH
Brand: LEDCO
SKU: LCTL-ATH-PAR38-WH
Price: 31.97 CAD
Availability: InStock

SKU: LCTL-ATH-PAR38-WH

Brand: LEDCO

Tall white ceilings call for a spotlight that blends in while carrying a big lamp: meet the Athena PAR38 spotlight in white, a line voltage track lighting head designed for large PAR38 lamps. Adjustable, lightweight and high-styled, its exposed lamp design lets you choose the lamp and aim a strong beam at a lobby feature wall, a gym climbing wall, a gallery installation or a cathedral-ceiling kitchen. Known as a track light head, a white track spotlight or a PAR38 track fixture, model LCTL-ATH-PAR38-WH brings clean, bright styling to modern interiors.

The Athena is constructed of die cast aluminum, which provides superior strength and rigidity, and its softened edges add up to a low profile, designer look that stays discreet overhead. Its porcelain socket accepts 120V PAR38 lamps, 150 watts max, loaded from the rear, and a high temperature glass shield is included, mounted to the front of the fixture. With 90° of vertical rotation and 330° of horizontal rotation, the head offers a wide range of aiming possibilities, then assures a secure lock on the angle position. It is dimmable when used with electronic line voltage rated dimming controls only (120V / 60Hz input, 120V output, 150W maximum load), and it is cULus listed.

Choose a PAR38 LED lamp and you get a bright, efficient white track light that uses a fraction of the energy of halogen, with the beam and colour temperature of your choice. Picture it in a Burnaby condo lobby, a Lévis fitness centre, a Kingston art gallery or a Charlottetown church with a vaulted ceiling. Dark ceiling elsewhere? The Athena PAR38 spotlight in black keeps the same design, and for lower rooms, the Athena PAR30 spotlight in white takes a PAR30 lamp. Check the connector style against your track and raise the bar on your lighting!

A white head for tall, bright spaces
This white version, LCTL-ATH-PAR38-WH, belongs to the ATHENA series (model PAR222/38 on the spec sheet): an adjustable, lightweight, high-styled, exposed lamp design, line voltage track lighting fixture sized for PAR38 lamps. Against a white ceiling, a white track head almost vanishes, leaving the light itself to do the work. The body is constructed of die cast aluminum, which provides superior strength and rigidity, softened edges add up to the low profile aesthetic design, and a high temperature glass shield is included, mounted to the front of the fixture.

Lamping and beam choices
ATHENA provides rear load lamping into a porcelain socket for 120V PAR38 lamps, 150 watts max, and allows for a directional light source for special aiming. The large PAR38 format is made for distance and coverage: in a double-height lobby or a gym, a narrow PAR38 LED spot can pick out a sign or a feature at a distance, while a flood lamp spreads light over a large wall or a display island. Warm white lamps suit churches, lobbies and homes, and neutral white keeps colours accurate in galleries and retail.

Electrical and installation details
The fixture is designed for a 120V / 60Hz input and a 120V output, with a 150W maximum load, and it is cULus listed. It is dimmable when used with electronic line voltage rated dimming controls only, so choose dimmable lamps and a suitable dimmer. Vertical rotation of 90° and horizontal rotation of 330° provide a wide range of aiming possibilities, and the head assures a secure lock on the angle position, a real plus when fixtures sit high and are hard to reach. Before installing, compare the connector compatibility chart on the spec sheet, which shows the connector styles offered for the series, with your track; accessories should be ordered separately. Switch off the breaker before working on the track, and have a qualified electrician install it with its power feed.

Technical specifications
SKU: LCTL-ATH-PAR38-WH
Line: ATHENA line voltage track fixture (PAR222/38)
Body: die cast aluminum, softened edges, low profile
Lamp: 120V PAR38, 150 watts max, rear load
Socket: porcelain
Front shield: high temperature glass, included
Rotation: 90° vertical, 330° horizontal
Electrical: 120V / 60Hz input, 120V output, 150W maximum load
Dimming: electronic line voltage rated dimming controls only
Certification: cULus listed
Finish: white

Applications and documentation
Hang these track light heads in a condo lobby, above the climbing wall of a fitness centre, in a gallery with high white walls or along the ridge of a vaulted kitchen ceiling. For a lower hallway or a smaller display on the same project, the Athena PAR20 spotlight in white keeps the look with a PAR20 lamp. The spec sheet, with the technical drawing, connector compatibility chart and ordering guide, is available in the Documentation tab.

Technical Files
