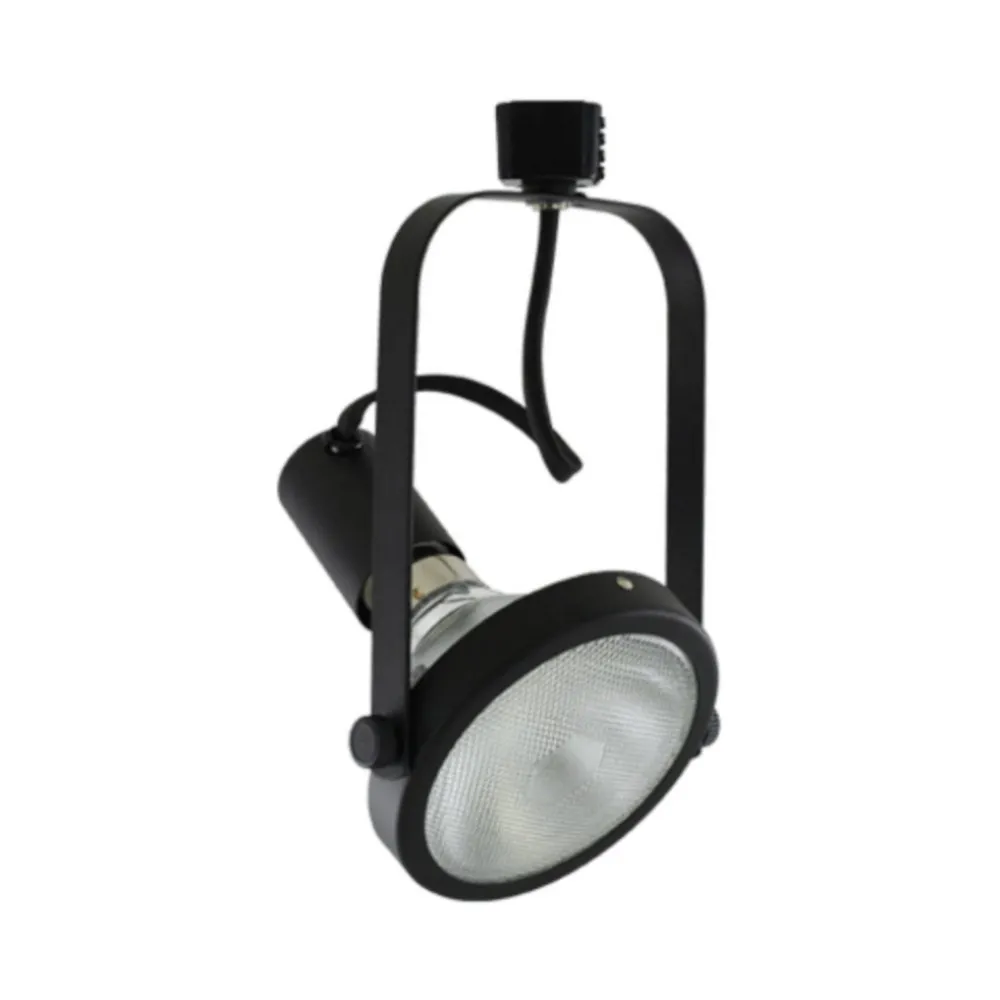

ATHENA PAR38 SPOTLIGHT

Name: ATHENA PAR38 SPOTLIGHT
Brand: LEDCO
SKU: LCTL-ATH-PAR38-BK
Price: 31.97 CAD
Availability: InStock

SKU: LCTL-ATH-PAR38-BK

Brand: LEDCO

For high ceilings and big displays, the Athena PAR38 spotlight is the heavy hitter of the line: a line voltage track lighting head built for large PAR38 lamps. Adjustable, lightweight and high-styled, its exposed lamp design lets you pick the lamp and throw a strong, directional beam onto a feature wall, a vehicle in a showroom, a stage, a large painting or a retail end cap. Also searched as a track light head, a PAR38 track fixture or a track spotlight, model LCTL-ATH-PAR38-BK comes in black, a natural match for black track, open ceilings and industrial interiors.

The body is constructed of die cast aluminum, which provides superior strength and rigidity, and softened edges add up to a low profile, designer look, even at this size. A porcelain socket holds 120V PAR38 lamps, 150 watts max, loaded from the rear, and a high temperature glass shield is included, mounted to the front of the fixture. The head offers 90° of vertical rotation and 330° of horizontal rotation for a wide range of aiming possibilities, then assures a secure lock on the angle position. It is dimmable when used with electronic line voltage rated dimming controls only (120V / 60Hz input, 120V output, 150W maximum load), and it is cULus listed.

Fit an efficient PAR38 LED lamp and you get serious reach with a fraction of the energy of halogen, plus the beam and colour of your choice. It shines in a Mississauga car showroom, a Quebec City parish hall, a Halifax brewery with exposed beams or a Calgary warehouse loft. Bright ceiling? Choose the Athena PAR38 spotlight in white. Lower ceiling? The Athena PAR30 spotlight shares the same design with a PAR30 lamp. Check the connector style against your track lighting and make a big impression!

The largest lamp in the Athena line
The ATHENA (model PAR222/38 on the spec sheet) is an adjustable, lightweight, high-styled, exposed lamp design, line voltage track lighting fixture, and this PAR38 version takes the biggest lamp of the family. This black model, LCTL-ATH-PAR38-BK, is constructed of die cast aluminum, which provides superior strength and rigidity, a real benefit for a head carrying a large lamp. Softened edges add up to the low profile aesthetic design, and a high temperature glass shield is included, mounted to the front of the fixture.

Lamping and light output
ATHENA provides rear load lamping into a porcelain socket for 120V PAR38 lamps, 150 watts max, with a directional light source for special aiming. PAR38 lamps are the go-to choice when light has to travel: high ceilings, deep displays, tall shelving or architectural features. With a PAR38 LED lamp, you choose the beam, from a narrow spot that reaches a distant target to a wide flood that covers a large wall, and the colour, from warm white in a restaurant to neutral white in a showroom.

Electrical and installation details
The fixture is rated for a 120V / 60Hz input and a 120V output, with a 150W maximum load, and it is cULus listed. It is dimmable when used with electronic line voltage rated dimming controls only, so pair dimmable lamps with a suitable dimmer. Its vertical rotation of 90° and horizontal rotation of 330° provide a wide range of aiming possibilities, and the angle locks securely once set. The connector compatibility chart on the spec sheet shows the connector styles offered for the series; confirm the right one for your track before installing, and note that accessories should be ordered separately. Switch off the breaker before adding or moving heads, and have a qualified electrician install the track and its power feed.

Technical specifications
SKU: LCTL-ATH-PAR38-BK
Line: ATHENA line voltage track fixture (PAR222/38)
Body: die cast aluminum, softened edges, low profile
Lamp: 120V PAR38, 150 watts max, rear load
Socket: porcelain
Front shield: high temperature glass, included
Rotation: 90° vertical, 330° horizontal
Electrical: 120V / 60Hz input, 120V output, 150W maximum load
Dimming: electronic line voltage rated dimming controls only
Certification: cULus listed
Finish: black

Applications and documentation
Use these track light heads to light vehicles on a showroom floor, banners and the stage of a community hall, the brewing tanks behind a taproom bar or a two-storey stone fireplace at home. On lower sections of the same project, the Athena PAR20 spotlight keeps the same look with a smaller PAR20 lamp. The spec sheet, with the technical drawing, connector compatibility chart and ordering guide, is available in the Documentation tab.
