ATHENA PAR20 SPOTLIGHT - LCTL-ATH-PAR20-WH

Name: ATHENA PAR20 SPOTLIGHT - LCTL-ATH-PAR20-WH
Brand: LEDCO
SKU: LCTL-ATH-PAR20-WH
Price: 37.97 CAD
Availability: InStock

SKU: LCTL-ATH-PAR20-WH

Brand: LEDCO

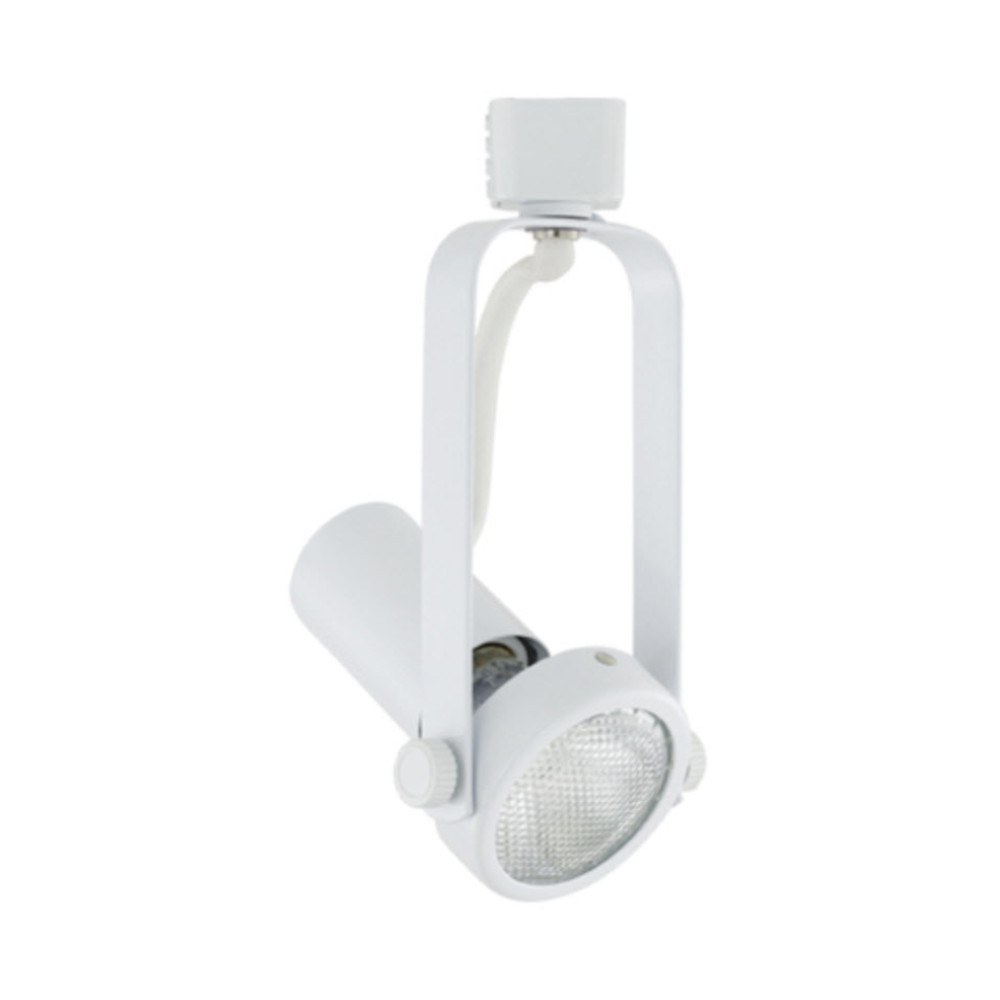

Bright, clean and easy to aim, the Athena PAR20 spotlight in white is a line voltage track light head that blends into white ceilings and white track while putting the light exactly where you want it. Adjustable, lightweight and high-styled, this exposed lamp design is built for PAR20 lamps, so you can pick the beam and colour that suit each space. Searching for track lighting heads to complete a new or existing track? Model LCTL-ATH-PAR20-WH is a great match for kitchens, galleries, boutiques, dental offices and bright Scandinavian-style interiors.

The Athena is constructed of die cast aluminum that provides superior strength and rigidity, and its softened edges give it a low profile, designer silhouette. Inside, a porcelain socket takes 120V PAR20 lamps, 50 watts max, loaded from the rear, and an included high temperature glass shield is mounted to the front of the fixture. The head offers 90° of vertical rotation and 330° of horizontal rotation, providing a wide range of aiming possibilities, and it assures a secure lock on the angle position. It is dimmable when used with electronic line voltage rated dimming controls only, with a 120V / 60Hz input, 120V output and 50W maximum load, and it is cULus listed.

Equip it with a PAR20 LED bulb to enjoy a modern, energy-saving track spotlight that draws a fraction of the power of halogen: a narrow beam for a sculpture, a wide flood for a pantry wall, warm white for a bedroom or neutral white for a craft room. Picture a row of them in a bright Halifax kitchen, a Quebec City art gallery or a Mississauga optometry clinic. For a darker ceiling, the Athena PAR20 spotlight in black offers the same design, and for bigger PAR lamps, see the Athena PAR30 spotlight (LCTL-ATH-PAR30-WH). Check the connector style against your track and make every corner shine!

A white head for bright interiors
White track and white ceilings call for a white track light that blends in, and that is exactly the role of this version, LCTL-ATH-PAR20-WH. The ATHENA (model PAR220/20 on the spec sheet) is an adjustable, lightweight, high-styled, exposed lamp design, line voltage track lighting fixture. Its body is constructed of die cast aluminum for superior strength and rigidity, and softened edges add up to a low profile aesthetic that looks tidy from every angle, whether the head points at a wall, a counter or a display table.

Lamping and aiming
ATHENA provides rear load lamping into a porcelain socket for 120V PAR20 lamps, 50 watts max, and a high temperature glass shield is included, mounted to the front of the fixture. The directional light source is made for special aiming: vertical rotation of 90° and horizontal rotation of 330° provide a wide range of aiming possibilities, and the fixture assures a secure lock on the angle position once set. Since the lamp defines the beam, you can switch from a tight spot to a wide flood simply by changing the PAR20 lamp, which makes the Athena a flexible choice for spaces whose layout changes with the seasons.

Electrical and installation details
The fixture is designed for a 120V / 60Hz input with a 120V output and a 50W maximum load, and it is cULus listed. It is dimmable when used with electronic line voltage rated dimming controls only; use dimmable lamps and a compatible dimmer for smooth results. Before installing, compare the connector compatibility chart on the spec sheet, which shows the connector styles offered for the series, with your track. Accessories should be ordered separately. Switch off the power at the breaker before adding or moving heads, and leave the track installation and its power feed to a qualified electrician.

Technical specifications
SKU: LCTL-ATH-PAR20-WH
Line: ATHENA line voltage track fixture (PAR220/20)
Body: die cast aluminum, softened edges, low profile
Lamp: 120V PAR20, 50 watts max, rear load
Socket: porcelain
Front shield: high temperature glass, included
Rotation: 90° vertical, 330° horizontal
Electrical: 120V / 60Hz input, 120V output, 50W maximum load
Dimming: electronic line voltage rated dimming controls only
Certification: cULus listed
Finish: white

Applications and documentation
These track light heads shine in bright rooms: over a white quartz island, along a gallery wall of framed prints, above the display tables of a clothing boutique or in the waiting room of a clinic. In a larger room with a high ceiling, the Athena PAR38 spotlight (LCTL-ATH-PAR38-WH) takes a larger lamp. The spec sheet, with the technical drawing, connector compatibility chart and ordering guide, is available in the Documentation tab.
