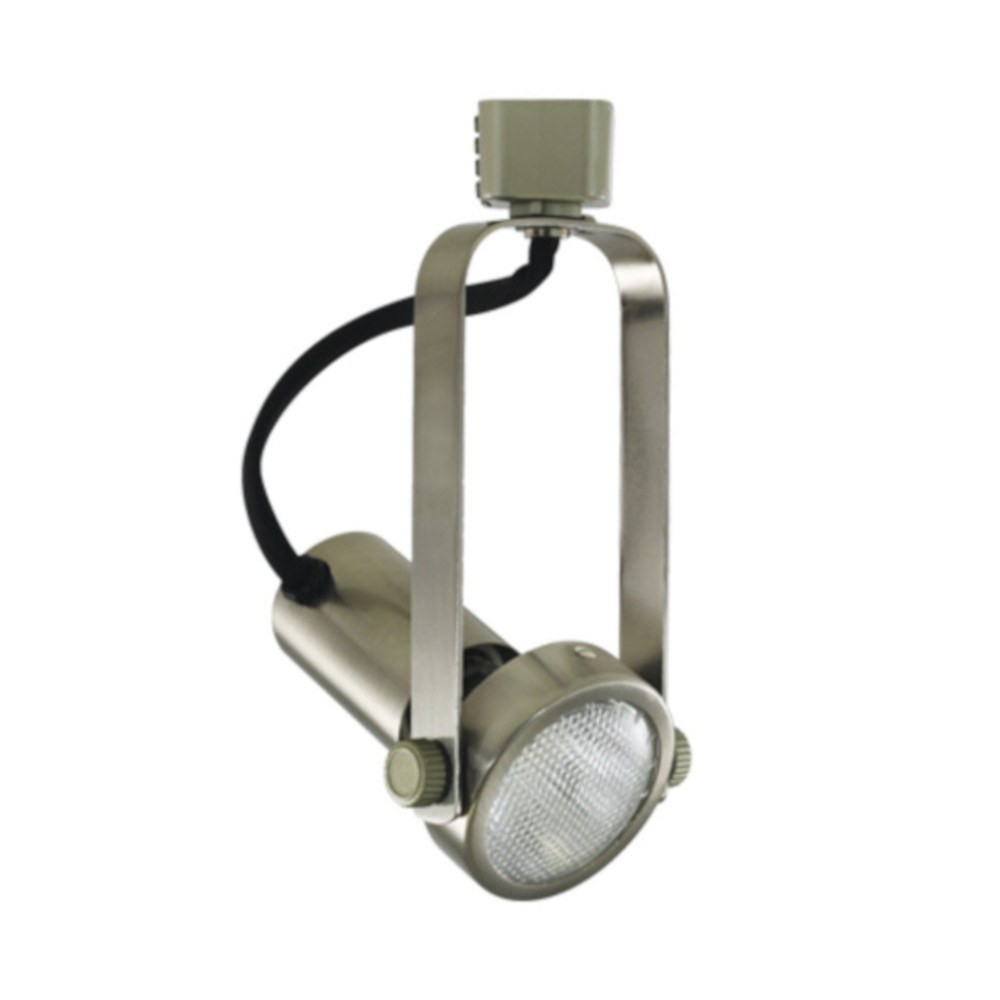

ATHENA PAR20 SPOTLIGHT - LCTL-ATH-PAR20-NB

Name: ATHENA PAR20 SPOTLIGHT - LCTL-ATH-PAR20-NB
Brand: LEDCO
SKU: LCTL-ATH-PAR20-NB
Price: 36.97 CAD
Availability: InStock

SKU: LCTL-ATH-PAR20-NB

Brand: LEDCO

Looking for a track head that lets you choose your own lamp? The Athena PAR20 spotlight is an adjustable, lightweight, high-styled line voltage track fixture designed for PAR20 lamps, so you decide the beam, the colour and the brightness. Known as a track lighting head, a track spot or a PAR20 track light, this exposed lamp design puts the focus on what matters: paintings, product shelves, a fireplace, a reception wall or a dining table. Model LCTL-ATH-PAR20-NB completes the Athena PAR20 range alongside the black and white versions, for homes, shops and offices.

Built from die cast aluminum for superior strength and rigidity, the Athena keeps a low profile thanks to its softened edges. Its porcelain socket accepts 120V PAR20 lamps up to 50 watts max, with rear load lamping that makes relamping simple, and a high temperature glass shield comes included, mounted to the front of the fixture. With 90° of vertical rotation and 330° of horizontal rotation, it offers a wide range of aiming possibilities, then locks securely on the chosen angle. It is dimmable with electronic line voltage rated dimming controls only, runs on a 120V / 60Hz input with a 50W maximum load, and is cULus listed.

Fit it with a PAR20 LED lamp and you get a crisp, energy-efficient spotlight that uses a fraction of the power of the halogen it replaces; choose a narrow beam for art or a wider flood for merchandise. It is at home in a Kelowna wine boutique, a Sherbrooke hair salon, a Regina dental office or a Toronto townhouse. Prefer a coordinated look? The Athena PAR20 spotlight in black and the Athena PAR20 spotlight in white share the same design. Check the connector style against your track lighting and light up what you love!

An exposed lamp design with a refined profile
The ATHENA line voltage track lighting fixture (model PAR220/20 on the spec sheet) is adjustable, lightweight and high-styled. Its body is constructed of die cast aluminum, which provides superior strength and rigidity, and its softened edges add up to a low profile aesthetic design. This version, LCTL-ATH-PAR20-NB, shares that construction with the black and white Athena PAR20 heads. The front of the fixture carries an included high temperature glass shield, for a clean, finished look.

Choose your lamp, choose your light
Because the Athena is a PAR20 track light, its light output, beam spread and colour temperature depend on the lamp you install in the porcelain socket, made for 120V PAR20 lamps, 50 watts max. Rear load lamping makes changing lamps simple, and the directional light source allows for special aiming. Pick a warm white LED PAR20 for a cozy living room, a neutral white for a kitchen or workshop, a narrow spot for a sculpture or a flood for a shelving wall. Dimmable LED lamps also let you tune the mood of a restaurant or a home theatre in seconds.

Electrical and installation details
The fixture is rated for a 120V / 60Hz input and a 120V output, with a 50W maximum load, and it is cULus listed. It is dimmable when used with electronic line voltage rated dimming controls only, so combine the right dimmer with dimmable lamps. Vertical rotation of 90° and horizontal rotation of 330° provide a wide range of aiming possibilities, and the fixture assures a secure lock on the angle position. The connector compatibility chart on the spec sheet shows the connector styles offered for the series: check it against your track before installing. Accessories should be ordered separately. As always, switch off the breaker before working on a track, and have a qualified electrician install the power feed.

Technical specifications
SKU: LCTL-ATH-PAR20-NB
Line: ATHENA line voltage track fixture (PAR220/20)
Body: die cast aluminum, softened edges, low profile
Lamp: 120V PAR20, 50 watts max, rear load
Socket: porcelain
Front shield: high temperature glass, included
Rotation: 90° vertical, 330° horizontal
Electrical: 120V / 60Hz input, 120V output, 50W maximum load
Dimming: electronic line voltage rated dimming controls only
Certification: cULus listed
Trim finishes in the series: black, brushed nickel, white

Applications and documentation
Use a run of Athena track light heads to light the displays of a Kelowna boutique, the stations of a hair salon or the artwork of a condo hallway; in a kitchen, aim one at the island and another at open shelving. For larger lamps on the same kind of project, the Athena PAR30 spotlight extends the line. The spec sheet, including the technical drawing, connector compatibility chart and ordering guide, is in the Documentation tab.
