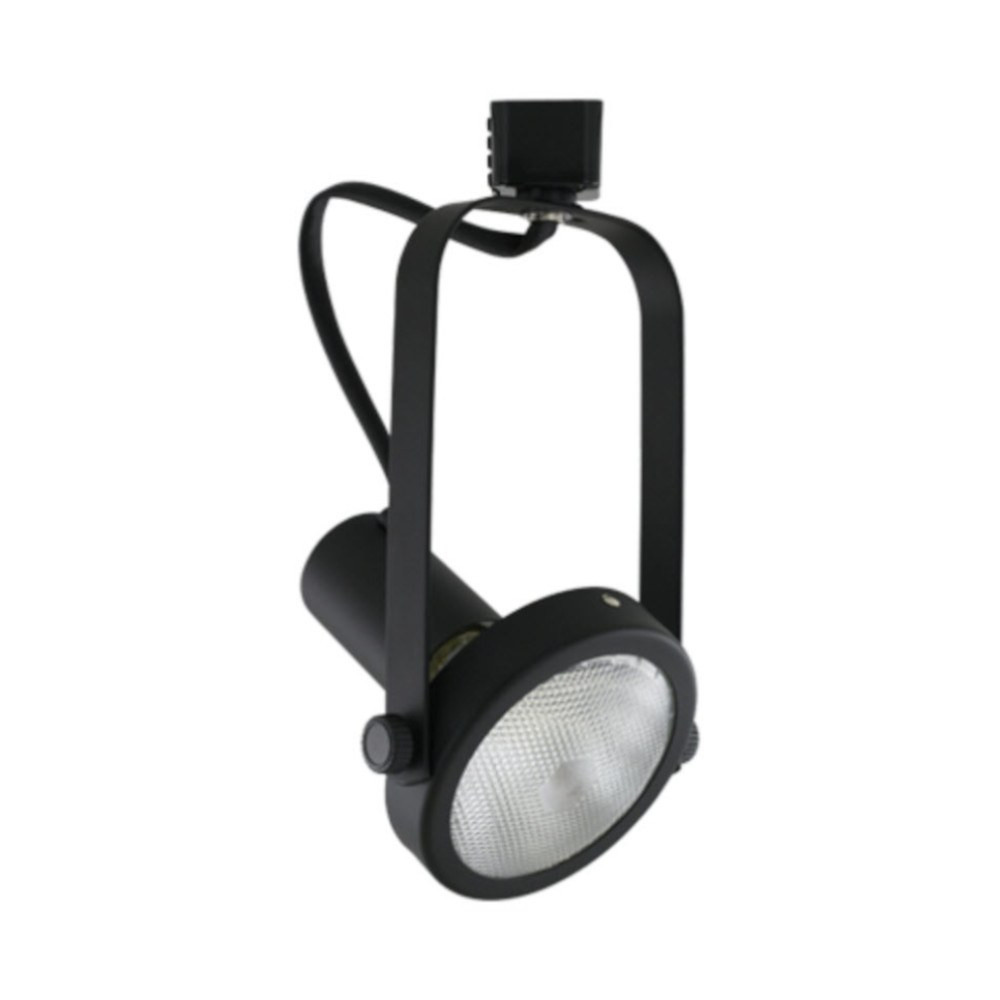

ATHENA PAR30 SPOTLIGHT

Name: ATHENA PAR30 SPOTLIGHT
Brand: LEDCO
SKU: LCTL-ATH-PAR30-BK
Price: 29.97 CAD
Availability: InStock

SKU: LCTL-ATH-PAR30-BK

Brand: LEDCO

When a small spotlight is not quite enough, step up to the Athena PAR30 spotlight, a line voltage track lighting head designed for PAR30 lamps. Adjustable, lightweight and high-styled, this exposed lamp design gives you the punch of a larger lamp with all the flexibility of track: aim it at merchandise walls, artwork, a staircase, a bar or a kitchen island. Also known as a track light head, a PAR30 track fixture or a track spotlight, model LCTL-ATH-PAR30-BK comes in a bold black finish that pairs beautifully with black track, exposed ducts and loft-style ceilings.

The body is constructed of die cast aluminum, which provides superior strength and rigidity, while softened edges add up to a low profile, designer aesthetic. A porcelain socket accepts 120V PAR30 lamps, 75 watts max, loaded from the rear, and a high temperature glass shield is included, mounted to the front of the fixture. With 90° of vertical rotation and 330° of horizontal rotation, the head offers a wide range of aiming possibilities and assures a secure lock on the angle position. The fixture is dimmable when used with electronic line voltage rated dimming controls only (120V / 60Hz input, 120V output, 75W maximum load), and it is cULus listed.

Install an efficient PAR30 LED lamp and you get a powerful yet economical LED track spotlight, using a fraction of the energy of halogen with the beam of your choice. It is right at home in a Calgary sporting goods shop, a Montreal restaurant with high ceilings, a Winnipeg community hall or a Toronto loft. Lighter ceiling? Choose the Athena PAR30 spotlight in white. Lower ceiling or smaller display? The Athena PAR20 spotlight shares the same design for PAR20 lamps. Check the connector style against your track and put your best features in the spotlight!

More lamp, same refined design
The ATHENA (model PAR221/30 on the spec sheet) is an adjustable, lightweight, high-styled, exposed lamp design, line voltage track lighting fixture, here sized for PAR30 lamps. This black version, LCTL-ATH-PAR30-BK, is constructed of die cast aluminum, which provides superior strength and rigidity, and its softened edges add up to a low profile aesthetic design. A high temperature glass shield is included and mounted to the front of the fixture, giving the head a finished look even though the lamp itself remains the star.

Lamping and light output
ATHENA provides rear load lamping into a porcelain socket made for 120V PAR30 lamps, 75 watts max. That larger lamp format is what makes a PAR30 head so useful: compared with the PAR20 version, it accepts a bigger lamp, ideal when the ceiling is higher or the display is wider. The light itself depends on the lamp you choose, so a PAR30 LED spot can make a single painting pop, while a flood lamp washes an entire shelving unit; pick warm white for restaurants and homes, neutral or cool white for retail and workshops.

Electrical and installation details
The fixture takes a 120V / 60Hz input and delivers a 120V output, with a 75W maximum load; it is cULus listed. It is dimmable when used with electronic line voltage rated dimming controls only, so combine dimmable lamps with a suitable dimmer. The vertical rotation of 90° and horizontal rotation of 330° provide a wide range of light source aiming possibilities, and the angle locks securely once set. The connector compatibility chart on the spec sheet shows the connector styles offered for the series; check it against your track before installing. Accessories should be ordered separately. Switch off the breaker before adding or moving heads, and have a qualified electrician install the track and its power feed.

Technical specifications
SKU: LCTL-ATH-PAR30-BK
Line: ATHENA line voltage track fixture (PAR221/30)
Body: die cast aluminum, softened edges, low profile
Lamp: 120V PAR30, 75 watts max, rear load
Socket: porcelain
Front shield: high temperature glass, included
Rotation: 90° vertical, 330° horizontal
Electrical: 120V / 60Hz input, 120V output, 75W maximum load
Dimming: electronic line voltage rated dimming controls only
Certification: cULus listed
Finish: black

Applications and documentation
A few of these track light heads can light the feature wall of a Calgary shop, the bar of a Montreal restaurant or the artwork of a double-height living room; in a garage workshop, aim one at the workbench and another at the tool wall. Where even more reach is needed, the Athena PAR38 spotlight takes a larger PAR38 lamp. The spec sheet, with the technical drawing, connector compatibility chart and ordering guide, is available in the Documentation tab.

Technical Files
