ATHENA PAR38 SPOTLIGHT - LCTL-ATH-PAR38-BS

Name: ATHENA PAR38 SPOTLIGHT - LCTL-ATH-PAR38-BS
Brand: LEDCO
SKU: LCTL-ATH-PAR38-BS
Price: 38.97 CAD
Availability: InStock

SKU: LCTL-ATH-PAR38-BS

Brand: LEDCO

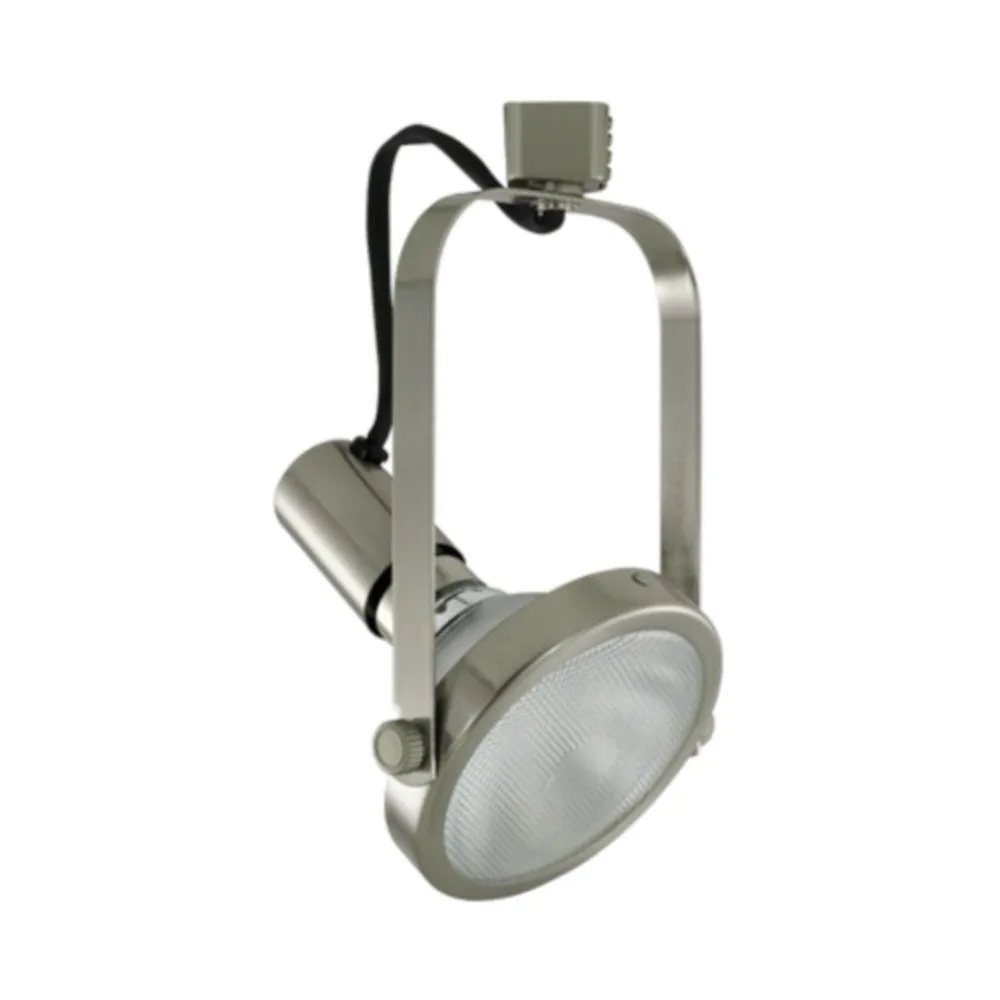

Light up tall spaces with confidence using the Athena PAR38 spotlight, a line voltage track light head designed for the large PAR38 lamp. Adjustable, lightweight and high-styled, this exposed lamp design turns any track into a powerful accent system for atriums, museum rooms, event venues, big box aisles and cathedral-ceiling living rooms. Whether you call it a track lighting head, a PAR38 track light or a track spotlight, this version, LCTL-ATH-PAR38-BS, joins the black and white Athena PAR38 heads so you can coordinate fixtures throughout a project.

Constructed of die cast aluminum for superior strength and rigidity, the Athena keeps a low profile thanks to its softened edges. The porcelain socket takes 120V PAR38 lamps, 150 watts max, with rear load lamping, and a high temperature glass shield comes included, mounted to the front of the fixture. Vertical rotation of 90° and horizontal rotation of 330° provide a wide range of aiming possibilities, and the fixture assures a secure lock on the angle position. It is dimmable with electronic line voltage rated dimming controls only, with a 120V / 60Hz input, 120V output and 150W maximum load, and it is cULus listed.

Paired with a PAR38 LED bulb, it becomes an efficient LED track spotlight that uses a fraction of the energy of halogen, with the beam spread and colour temperature you choose. Imagine it in a Saskatoon museum gallery, a Laval banquet hall, an Ottawa hotel atrium or a Trois-Rivières furniture warehouse. Prefer a classic finish? See the Athena PAR38 spotlight in black or the Athena PAR38 spotlight in white. Check the connector style against your track and let your space stand tall!

Built for big lamps and tall rooms
The ATHENA (model PAR222/38 on the spec sheet) is an adjustable, lightweight, high-styled, exposed lamp design, line voltage track lighting fixture, here sized for PAR38 lamps. This version carries the code LCTL-ATH-PAR38-BS; the ordering guide of the series lists black, brushed nickel and white trim finishes. The body is constructed of die cast aluminum, which provides superior strength and rigidity, softened edges add up to the low profile aesthetic design, and a high temperature glass shield is included, mounted to the front of the fixture.

Lamping and beam control
ATHENA provides rear load lamping into a porcelain socket made for 120V PAR38 lamps, 150 watts max, and allows for a directional light source for special aiming. The PAR38 format is the one lighting designers reach for when a beam has to cross a high ceiling or cover a large surface. Install a PAR38 LED lamp with a narrow beam to pick out a sculpture from far away, or a flood to wash a banquet hall wall; warm white creates a welcoming mood in a hotel lobby, while neutral white keeps colours honest in a furniture showroom.

Electrical and installation details
Rated for a 120V / 60Hz input and a 120V output with a 150W maximum load, the fixture is cULus listed. It is dimmable when used with electronic line voltage rated dimming controls only; combine dimmable lamps with a suitable dimmer. With 90° of vertical rotation and 330° of horizontal rotation, it covers a wide range of aiming possibilities and assures a secure lock on the angle position. The spec sheet's connector compatibility chart shows the connector styles offered for the series: compare it with your track before installing. Accessories should be ordered separately. Switch off the breaker before adding or moving heads, and have a qualified electrician install the track and its power feed.

Technical specifications
SKU: LCTL-ATH-PAR38-BS
Line: ATHENA line voltage track fixture (PAR222/38)
Body: die cast aluminum, softened edges, low profile
Lamp: 120V PAR38, 150 watts max, rear load
Socket: porcelain
Front shield: high temperature glass, included
Rotation: 90° vertical, 330° horizontal
Electrical: 120V / 60Hz input, 120V output, 150W maximum load
Dimming: electronic line voltage rated dimming controls only
Certification: cULus listed
Trim finishes in the series: black, brushed nickel, white

Applications and documentation
Mount a run of these track light heads in a museum room, above the stage of a banquet hall, along the aisles of a furniture warehouse or across the soaring ceiling of a chalet living room. For lower areas of the same project, the Athena PAR30 spotlight (LCTL-ATH-PAR30-BS) takes a PAR30 lamp. The spec sheet, with the technical drawing, connector compatibility chart and ordering guide, is available in the Documentation tab.
