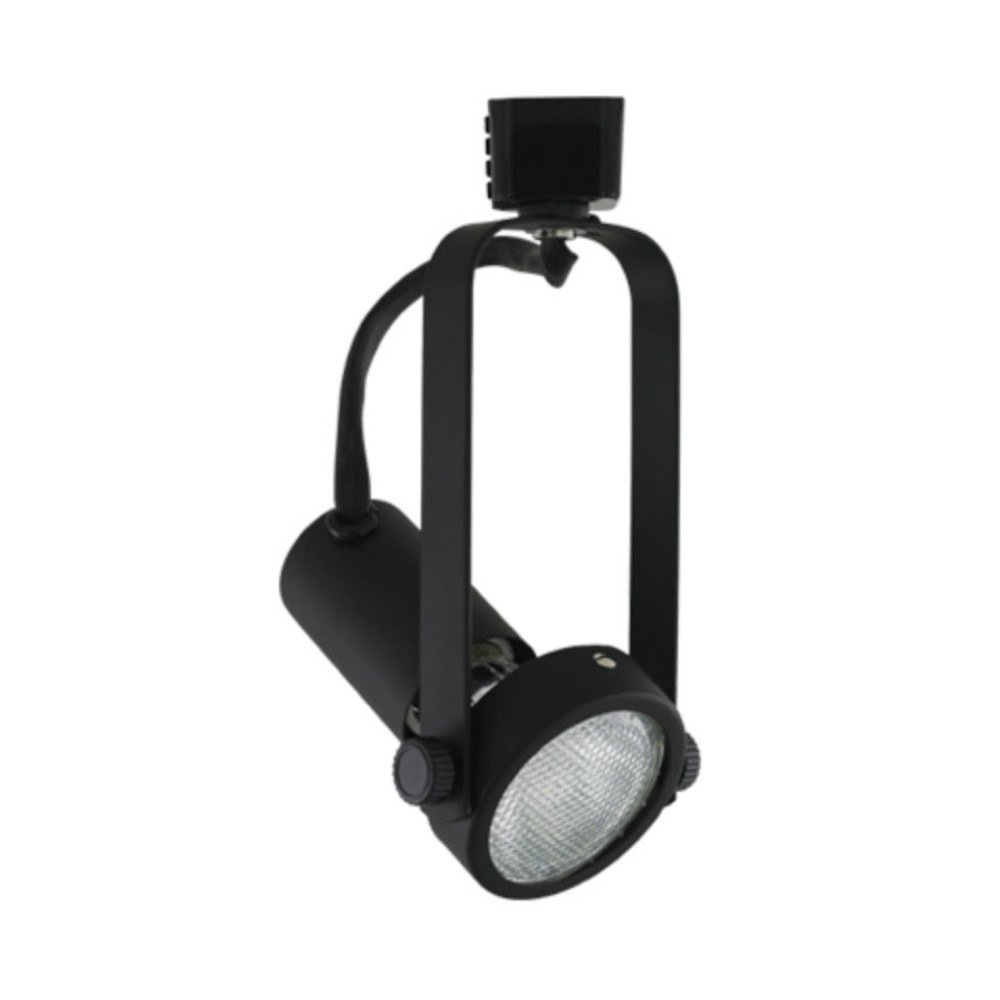

ATHENA PAR20 SPOTLIGHT

Name: ATHENA PAR20 SPOTLIGHT
Brand: LEDCO
SKU: LCTL-ATH-PAR20-BK
Price: 28.97 CAD
Availability: InStock

SKU: LCTL-ATH-PAR20-BK

Brand: LEDCO

Give your track a stylish, flexible spotlight with the Athena PAR20 spotlight, a line voltage track lighting head built around a PAR20 lamp. Adjustable, lightweight and high-styled, this exposed lamp design lets you pick the bulb and aim the beam exactly where you need it: artwork, shelves, a kitchen island or a boutique display. Whether you call it a track light head, a PAR20 track fixture or a track spotlight, model LCTL-ATH-PAR20-BK brings a sleek black finish that suits modern ceilings, black track and industrial décor, in homes and businesses alike.

The body is constructed of die cast aluminum, which provides superior strength and rigidity, and its softened edges add up to a low profile, designer look. A porcelain socket takes 120V PAR20 lamps up to 50 watts max, loaded from the rear, and a high temperature glass shield is included, mounted to the front of the fixture. Aiming is easy: the head offers 90° of vertical rotation and 330° of horizontal rotation, then assures a secure lock on the angle position so the beam stays put. The fixture is dimmable when used with electronic line voltage rated dimming controls only (120V / 60Hz input, 120V output, 50W maximum load), and it is cULus listed.

Because it runs on standard PAR20 lamps, you can fit an efficient PAR20 LED bulb and choose the colour temperature and beam spread that suit each room, using a fraction of the energy of halogen. Picture it highlighting a stone wall in a Laval family room, the menu board of a Victoria café or new arrivals in a Saskatoon boutique. Want another finish? The Athena PAR20 spotlight in white suits bright ceilings, and for larger lamps, the line continues with the Athena PAR30 spotlight. Check the connector style against your track and give every space the focused light it deserves!

Designer build, solid materials
The ATHENA is an adjustable, lightweight, high-styled, exposed lamp design, line voltage track lighting fixture; its spec sheet covers the PAR220/20 model, and this black version carries the code LCTL-ATH-PAR20-BK. Constructed of die cast aluminum, the body provides superior strength and rigidity, a real advantage for a head that will be aimed and re-aimed over the years. Softened edges add up to the low profile aesthetic, so the fixture looks refined even with the lamp exposed. At the front, the included high temperature glass shield is mounted to the fixture for a clean finish.

Lamping and light quality
ATHENA provides rear load lamping: the lamp slips in from the back into a porcelain socket made for 120V PAR20 lamps, 50 watts max. Since the fixture is built around the lamp, the light quality is yours to choose: a narrow PAR20 LED spot to make a painting pop, a wider flood for a counter, a warm white for a living room or a crisper white for a workshop or a retail wall. Dimmable LED PAR20 lamps keep the look of a classic spotlight while drawing far less power than the halogen lamps they replace, and the directional design is made for special aiming rather than general ambient light.

Electrical and installation details
The fixture works with a 120V / 60Hz input and a 120V output, with a 50W maximum load, and it is cULus listed. It is dimmable when used with electronic line voltage rated dimming controls only, so pair a suitable dimmer with dimmable lamps for smooth control. The vertical rotation of 90° and horizontal rotation of 330° provide a wide range of aiming possibilities, and the head assures a secure lock on the angle position. The spec sheet includes a connector compatibility chart showing the connector styles offered for the series: confirm the one that suits your track before installing. Switch off the power at the breaker before adding or moving heads, and have a qualified electrician install the track and its power feed.

Technical specifications
SKU: LCTL-ATH-PAR20-BK
Line: ATHENA line voltage track fixture (PAR220/20)
Body: die cast aluminum, softened edges, low profile
Lamp: 120V PAR20, 50 watts max, rear load
Socket: porcelain
Front shield: high temperature glass, included
Rotation: 90° vertical, 330° horizontal
Electrical: 120V / 60Hz input, 120V output, 50W maximum load
Dimming: electronic line voltage rated dimming controls only
Certification: cULus listed
Finish: black

Applications and documentation
In a Montreal loft, a few Athena track light heads can graze a brick wall and light the dining table from the same track; in a Moncton gift shop, they pick out shelves and window displays; in an Ottawa home office, one aimed at a bookcase adds depth to video calls. Where a high ceiling calls for a larger lamp, look at the Athena PAR38 spotlight. The spec sheet, with the technical drawing, connector compatibility chart and ordering guide, is available in the Documentation tab.
