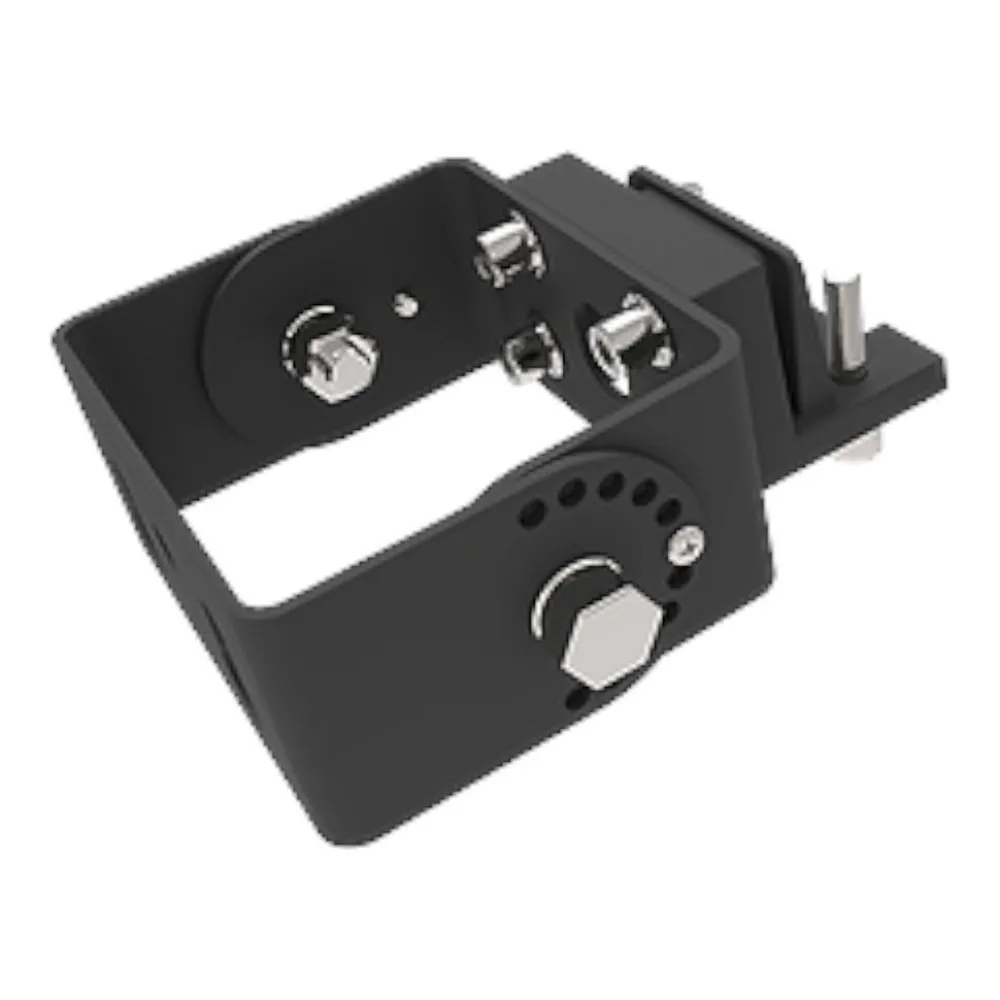

TRUNNION BRACKET FOR LED FLOODLIGHTS

Name: TRUNNION BRACKET FOR LED FLOODLIGHTS
Brand: LEDCO
SKU: LCFLD-BRACKET-T-BK
Price: 51.97 CAD
Availability: InStock

SKU: LCFLD-BRACKET-T-BK

Brand: LEDCO

Aiming a floodlight shouldn't be a wrestling match on a ladder — and with the right mount, it isn't. This trunnion bracket for LED floodlights, SKU LCFLD-BRACKET-T-BK, is the yoke-style mount people look for when they search "trunnion mount flood light", "flood light bracket" or simply "light mounting bracket". It cradles the floodlight body on both sides and bolts flat to a wall, ceiling, beam or soffit, so the fixture pivots inside the bracket until the beam lands exactly where you want it — then locks there. That single adjustment is what separates a driveway that's properly lit from a yard full of glare bouncing back at the neighbours.

The bracket is built from heavy-gauge metal with a protective finish, so it stands up to rust, road salt and UV exposure in full outdoor service — the three things that quietly destroy cheap hardware on a Canadian exterior wall. Solid mounting hardware keeps the whole assembly rigid, which means far less of the sag and slow drift that pulls a light out of aim season after season. The trunnion mount design also spreads the fixture's weight across two arms instead of one pivot point, a real advantage on larger floodlight bodies and in windy, exposed locations. Several sizes and finishes may be available in the family to suit different fixture bodies and mounting surfaces.

Contractors reach for a trunnion whenever a flood has to be surface-mounted and precisely aimed: garages, barns, loading docks, shops, workshops, parking lots, storage yards and sports surfaces, plus security lighting and area lighting around commercial buildings. It works just as well indoors, in a warehouse or garage where a flood needs to point at one specific bay, bench or rack. This black bracket is made to pair with our 30-50-60W LED floodlight, and if a different mounting style suits the job better, look at the knuckle bracket or the pole bracket. Add it to your order and mount your flood the way it was meant to be mounted.

Compatible with
Works with:
Fixture: LCFLD-60W-50W-30W-CCT-MK-U

What a trunnion bracket actually does
A trunnion — also called a yoke mount — is a U-shaped frame that grips the floodlight housing on both sides and bolts to a flat surface. The fixture rotates on two pivot points inside the arms, so you can tilt it through a wide arc, sight the beam on the target, and torque the pivot bolts to lock the aim permanently. Compared with a single-point mount, the two-sided grip holds a heavier fixture steady and resists the twisting that wind and vibration put on an outdoor flood. This is the mounting style most electricians default to for wall packs, security lights and area lighting, because it is fast to install and stays exactly where it was set.

Build and outdoor durability
The bracket is made of heavy-gauge metal and carries a protective finish, so it resists rust, road salt and UV exposure through years of exterior service. The supplied mounting hardware keeps the assembly rigid, reducing sag and drift that can slowly shift a light out of aim over the seasons. That matters on a Canadian building envelope, where freeze-thaw cycles, wind-driven rain and winter salt spray work on every exterior fastener. The black finish blends into dark soffits, steel siding and painted structural steel, keeping the hardware visually quiet so the attention stays on the building, not the bracket.

Installation and aiming
Always mount to solid backing — a stud, blocking or a proper masonry anchor — rather than siding alone; siding alone will flex and eventually let the fixture droop. Position the bracket, run your conduit or cable, hang the floodlight in the yoke, then aim the fixture before final torque, ideally after dark when you can actually see the beam pattern. Tilt the flood down enough to put light on the working surface instead of into eyes and windows; that one habit eliminates most glare complaints. Re-check the bolts after the first season, since freeze-thaw movement can loosen hardware on exterior walls. Keep the bracket's mounting face flat against the surface and use a gasket or sealant behind it on siding to prevent water tracking into the wall.

Compatibility and related accessories
This is the black trunnion, SKU LCFLD-BRACKET-T-BK, sized for standard LED floodlight bodies such as the 30-50-60W LED floodlight. For larger fixtures, the family includes the trunnion bracket for 400W-500W floodlights. If the job calls for a different mounting geometry, the knuckle bracket gives a compact swivel on a wall or junction box, the pole bracket adapts a flood to a round or square pole, and the U bracket offers another slim surface-mount option. Matching bronze versions of the trunnion, knuckle and pole brackets are also available when a darker earth-tone finish suits the building.

Typical applications
Think of every place a flood has to hit a precise target: a loading dock where trucks back in after dark, a barn door and paddock, a contractor's yard fence line, a parking lot wall, a school or municipal sports surface, or a shop bay where a technician needs bright, shadow-free light on the bench. Indoors, a trunnion lets you clamp a flood to a beam or joist and aim it straight down an aisle or onto a rack. Because the bracket is a stocked accessory, it's also the easy fix when an existing floodlight's original mount is seized, rusted or broken — swap the hardware instead of replacing the whole fixture. Have a question about fitting a specific floodlight body? Reach out before ordering and we'll confirm the match.
