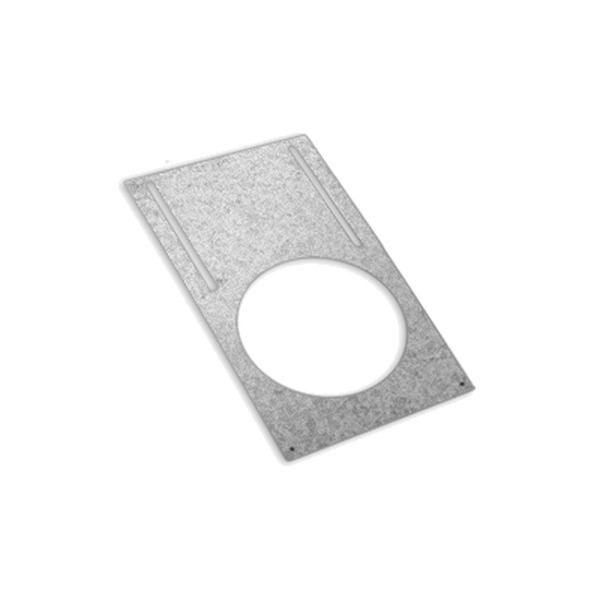

THIN LED RECESSED - MOUNTING FRAMES - PF614

Name: THIN LED RECESSED - MOUNTING FRAMES - PF614
Brand: LUMIFARO
SKU: PF614
Price: 4.97 CAD
Availability: InStock

SKU: PF614

Brand: LUMIFARO

Getting the pot lights exactly where the plan says they go is a lot easier when you set the position before the drywall goes up — and that's the whole job of the PF614 plaster frame from LUMIFARO. Also called a mounting frame, a rough-in frame, a new-construction plaster frame or simply a recessed light mounting bracket, this accessory is made to hold a 6-inch ultra-slim LED downlight in place between the joists while the ceiling is still open. Electricians and renovators use it on new builds, basement finishing, condo projects, additions and commercial fit-ups, anywhere the luminaire encastré layout has to be dead-on straight from one end of a hallway to the other.

The PF614 is the plaster frame listed as the available accessory for the FLP6-13W-3CCT-WH-2H ultra-slim fixture, a 6-inch 2-hour fire-rated downlight running on 120 volts at 13 watts and delivering 1050 lumens, with a 120° beam angle, a CRI over 80 and 3 selectable colour temperatures — 3000K, 4000K and 5000K — chosen with a selector button on the fixture. That fixture measures 7 1/16'' / 180 mm in diameter by 1 3/4'' / 44,8 mm high and needs a 6 5/8'' hole, so the frame's role is to fix that opening and the fixture's height before plaster or drywall closes the ceiling. The fixture itself is IC and airtight, dimmable, approved for damp locations, carries UL-263, ASTM E119 and CAN/ULC S101 fire-rated recognition and comes with a 3-year warranty.

This is a favourite on job sites where the ceiling gets inspected before it gets finished: new residential construction, basement renovations, rental units, offices, clinics, retail and restaurant ceilings. In Canada, that also means ceilings where the vapour barrier and the fire-rated assembly matter, and where a frame saves you from chasing crooked holes later. Pair it with the FLP-EX6-CCT 6 ft extension when the junction box sits far from the fixture location. Add the PF614 frames to your next rough-in order and let your fire rated recessed downlight layout come out perfect the first time.

What the PF614 plaster frame does
The PF614 is a plaster frame — a mounting or rough-in frame — for 6-inch ultra-slim LED recessed lights. Instead of cutting holes into a finished ceiling and hoping the spacing is right, you install the frames during rough-in, snap the drywall or plaster over them, and the openings land exactly where the electrical plan called for. It is the accessory specifically listed for the FLP6-13W-3CCT-WH-2H 6-inch downlight, which needs a 6 5/8'' hole and has an overall trim of 7 1/16'' / 180 mm diameter by 1 3/4'' / 44,8 mm high. On big layouts — hallways, open kitchens, office grids — frames are what keep every recessed LED downlight in a straight, evenly spaced line.

The fixture it works with
The matching LUMIFARO ultra-slim fixture is a 2-hour fire-rated unit recognized under UL-263, ASTM E119 and CAN/ULC S101, and it is IC and airtight as well as approved for damp locations. It draws 13 watts at 120 volts and puts out 1050 lumens with a 120° beam angle for wide, even coverage, a CRI greater than 80 for natural-looking skin tones and finishes, and 3CCT selectable colour temperature — meaning 3 selectable colour temperatures, 3000K, 4000K or 5000K, set with a button on the fixture before installation. Operating temperature runs from -25° to +45°, which suits unheated garages, cottages and covered porches across Canadian seasons. Warranty on the fixture is 3 years.

Technical specifications
SKU: PF614
Brand: LUMIFARO
Type: Plaster frame PF-614, accessory for ultra-slim LED recessed light
Fits fixture: FLP6-13W-3CCT-WH-2H
Fixture hole required: 6 5/8''
Fixture size: 7 1/16'' / 180 mm dia. x 1 3/4'' / 44,8 mm H
Junction box dimensions: 3 3/8'' / 85 mm x 3 3/8'' / 85 mm x 1 1/4'' / 32 mm
Fixture voltage / power: 120 V / 13 W
Lumens: 1050
Colour temperatures: 3000K / 4000K / 5000K selectable
CRI: > 80
Beam angle: 120°
Colour: WH-White
Fire rating: 2 hours (UL-263, ASTM E119, CAN/ULC S101)
Other: IC and airtight, damp location approved, dimmable
Operating temperature: -25° to +45°
Warranty: 3 years

Wiring and dimming notes
Installation of the fixture stays simple: the cable runs to the junction box with quick-connect push-in terminals — black wire, white wire, green wire — so there is nothing to strip and twist inside a tight ceiling cavity. Always shut off the power before connecting an LED device, otherwise the driver can be damaged. On dimming, these ultra-slim ceiling lights work with most dimmers; since LED dimmers are generally rated for a maximum of 150 watts, do not exceed 80% of that capacity to avoid flicker at the low end of the dial — the documentation gives the example of a maximum of 8 6-inch units (120 watts total) or 13 4-inch units (117 watts total) per dimmer. Where the junction box can't sit right at the fixture, the FLP-EX6-CCT 6 ft extension gives you the reach.

Applications and documentation
Use the PF614 on new residential construction, basement and attic conversions, condo and multi-unit projects, and commercial ceilings in offices, clinics, salons, boutiques and restaurants — anywhere a fire-rated recessed downlight has to be positioned before the ceiling closes. Contractors often order frames by the ceiling: one per fixture, laid out from the drawings, then the drywall crew cuts to the frame. Full details, dimensions and the installation diagram for the PF614 plaster frame and its matching fixture are in the technical PDF (PF614 Spec Sheet) available in the Documentation tab of this page.
